baualu

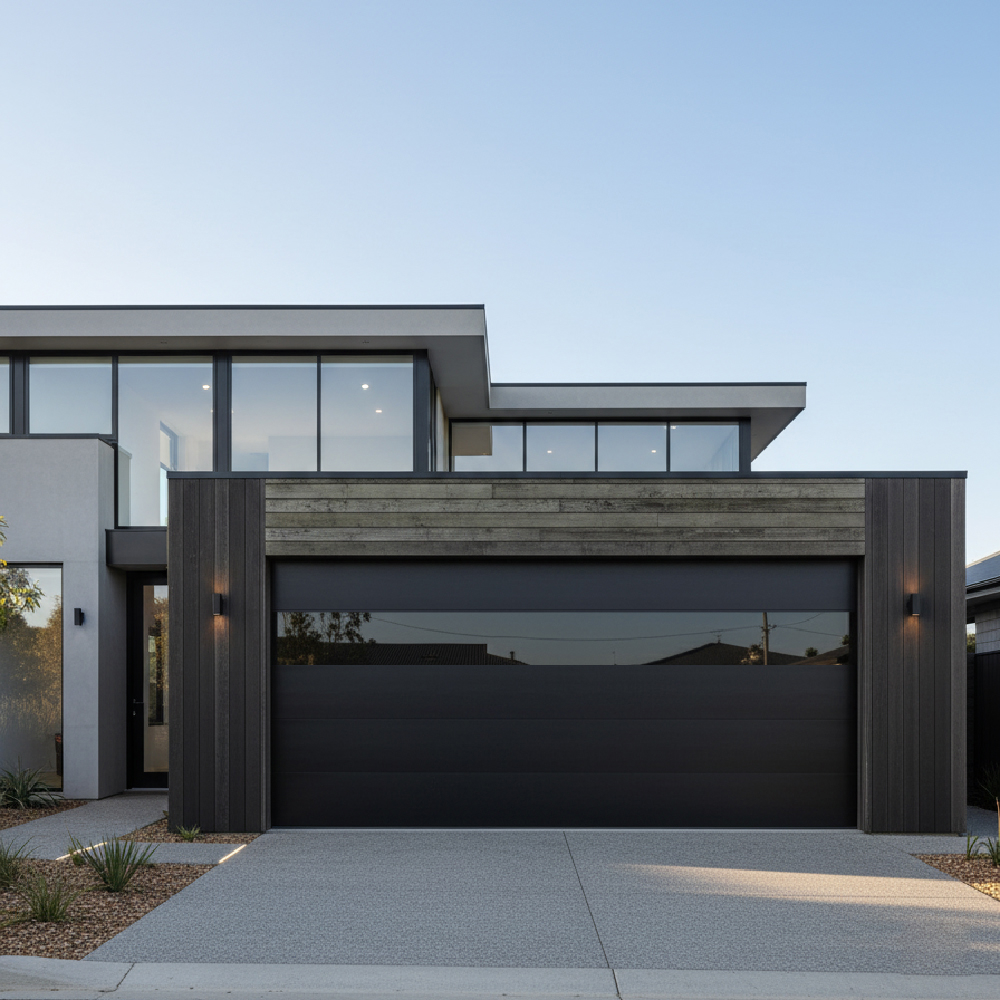

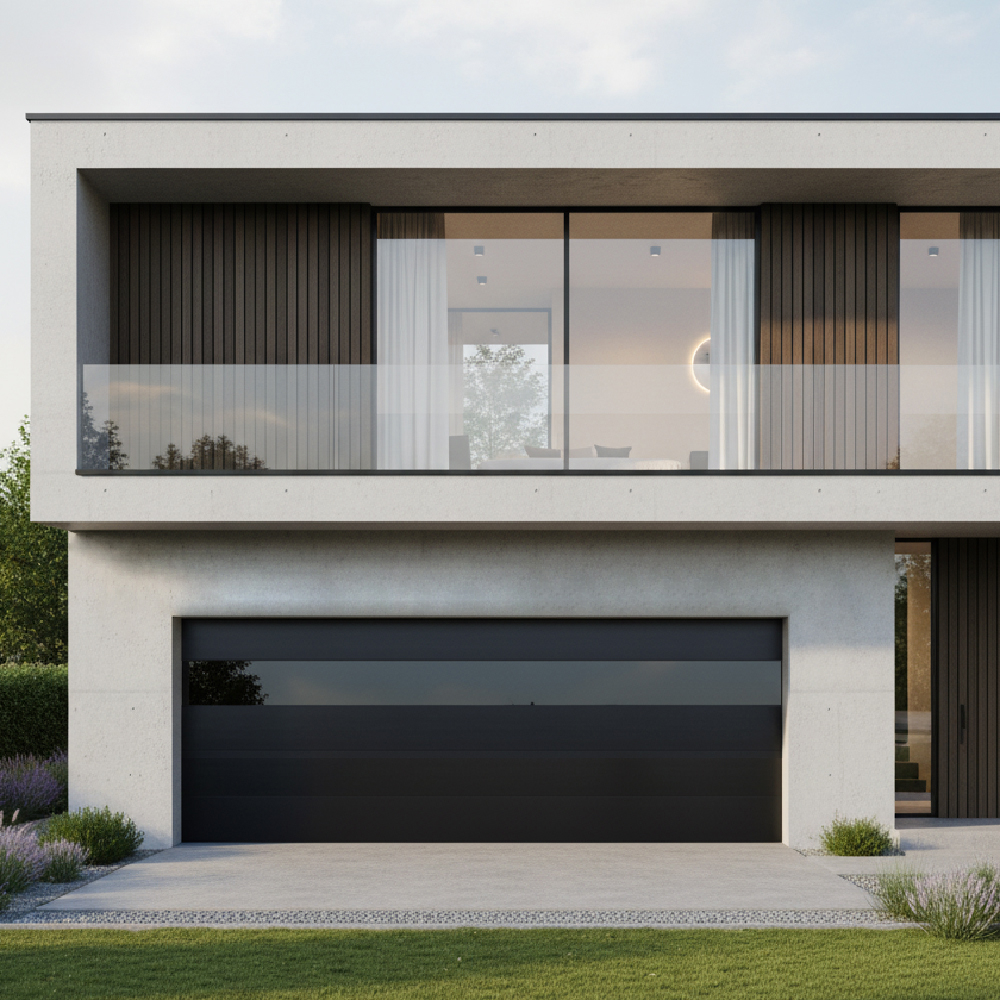

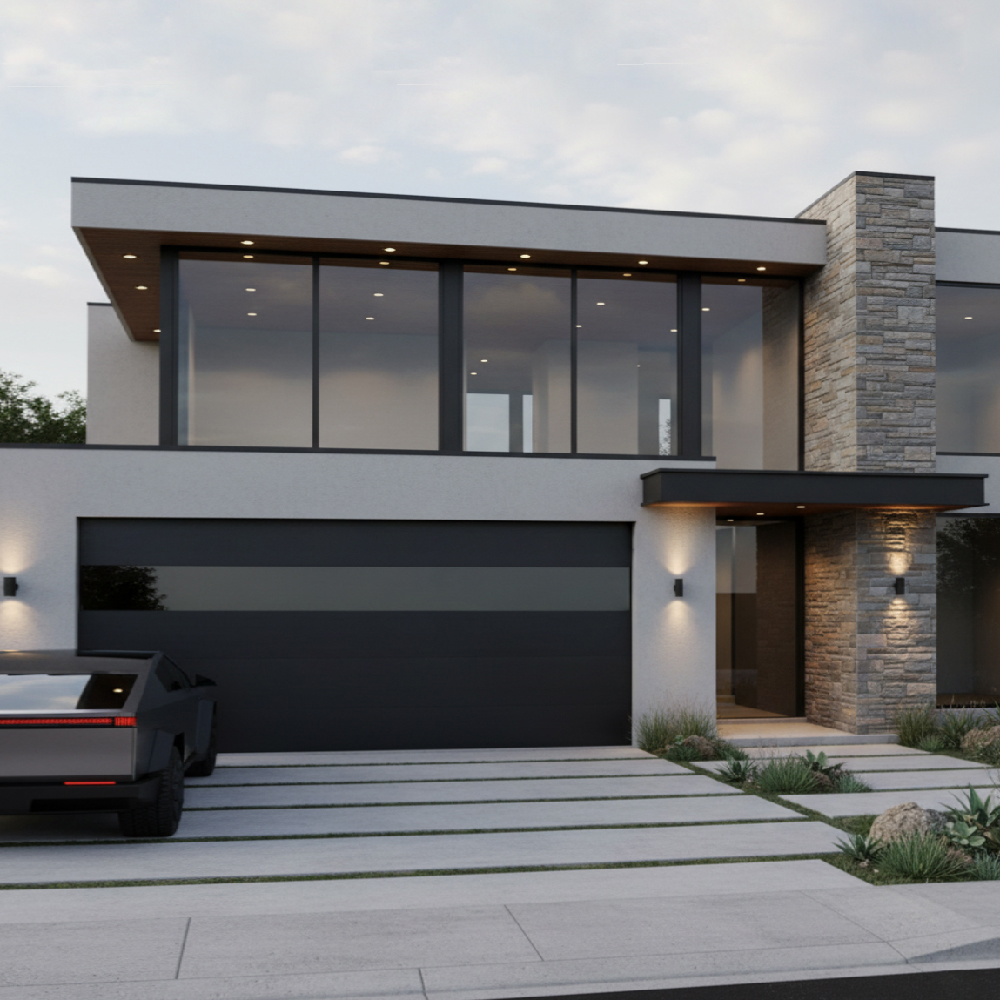

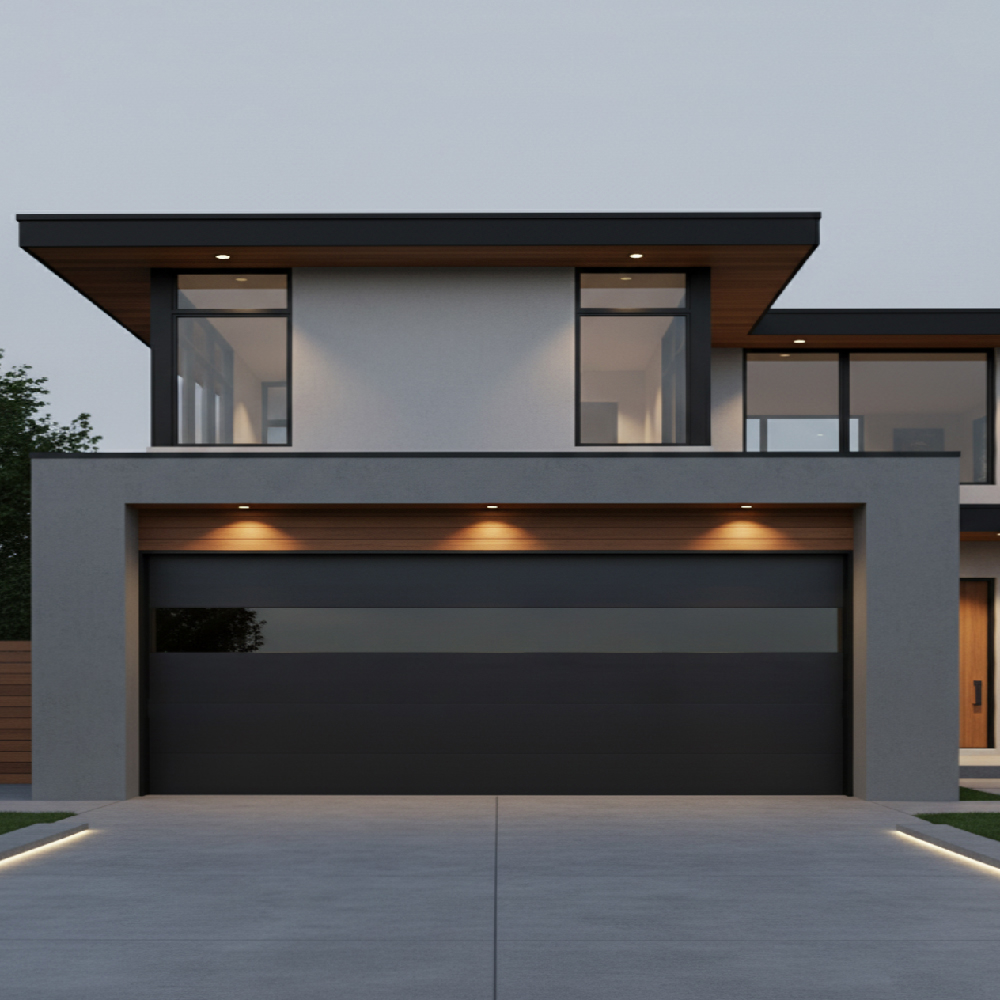

Contemporary Garage Door Black 8' x 8'

$2,399.00

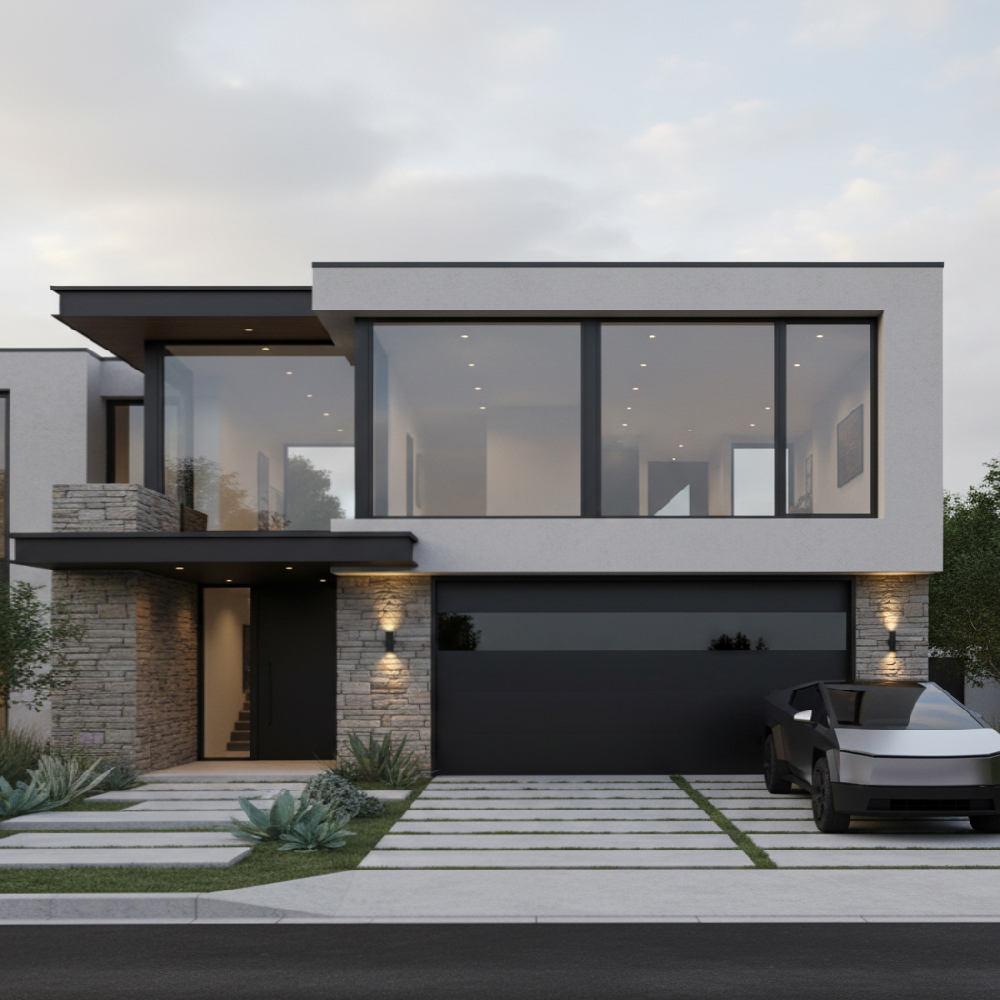

The Insulated Contemporary Garage Door with Infinity Horizontal Glass is designed to combine modern aesthetics, durability, and thermal efficiency. Featuring a Titan Grey smooth panel pattern, this contemporary garage door is constructed with galvanized steel sheets on both sides and a polyurethane foam–filled insulated core, delivering excellent insulation, strength, and long-term performance. The 40 mm thick insulated panel, combined with a 26-gauge galvanized steel front sheet and a 28-gauge galvanized steel back sheet, ensures effective thermal and sound insulation while maintaining structural reliability. This makes the door suitable for residential applications.

Attribute Selection

Color
Hardware
info
Edit product attribute

Edit product attribute

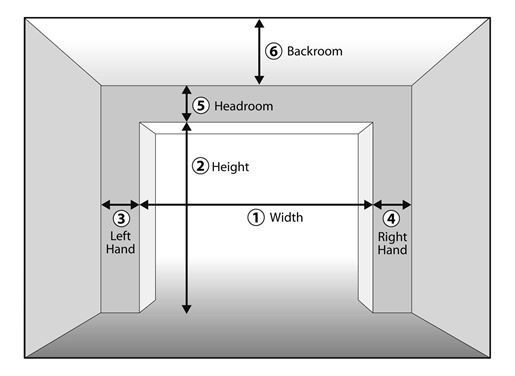

Headroom is the space needed above the top of the door for the door the overhead tracks, and the springs. Measure to check that there are no obstructions in your garage within that space.
You need to choose a double steel track if the headroom size is 7 7/8”- 15 3/4”. For a single steel track, the headroom size should be above 15 3/4".
Please keep in mind that the clearance between the door edge and the vertical track inside edge is 3/4"- 1" (each side).
On the inside of the garage, your opening should be framed with wood jambs, 2" x 6" if possible. The side jambs should extend to approximately the same height as the headroom required.
A minimum side room of 3-3/4" should be available on each side of the door on the interior wall surface to allow for attachment of the vertical track assembly. The rough opening should be the same size as the door.
The backroom distance is measured from the back of the door into the garage and should be at least 18" more than the height of the garage door.

Size
Installation Kit
  • Installation Kit
Shipping: Free

est. delivery:

close

Estimate shipping

Total: $2,399.00
  • Description
  • Details & Dimentions
  • Downloads

Description

close

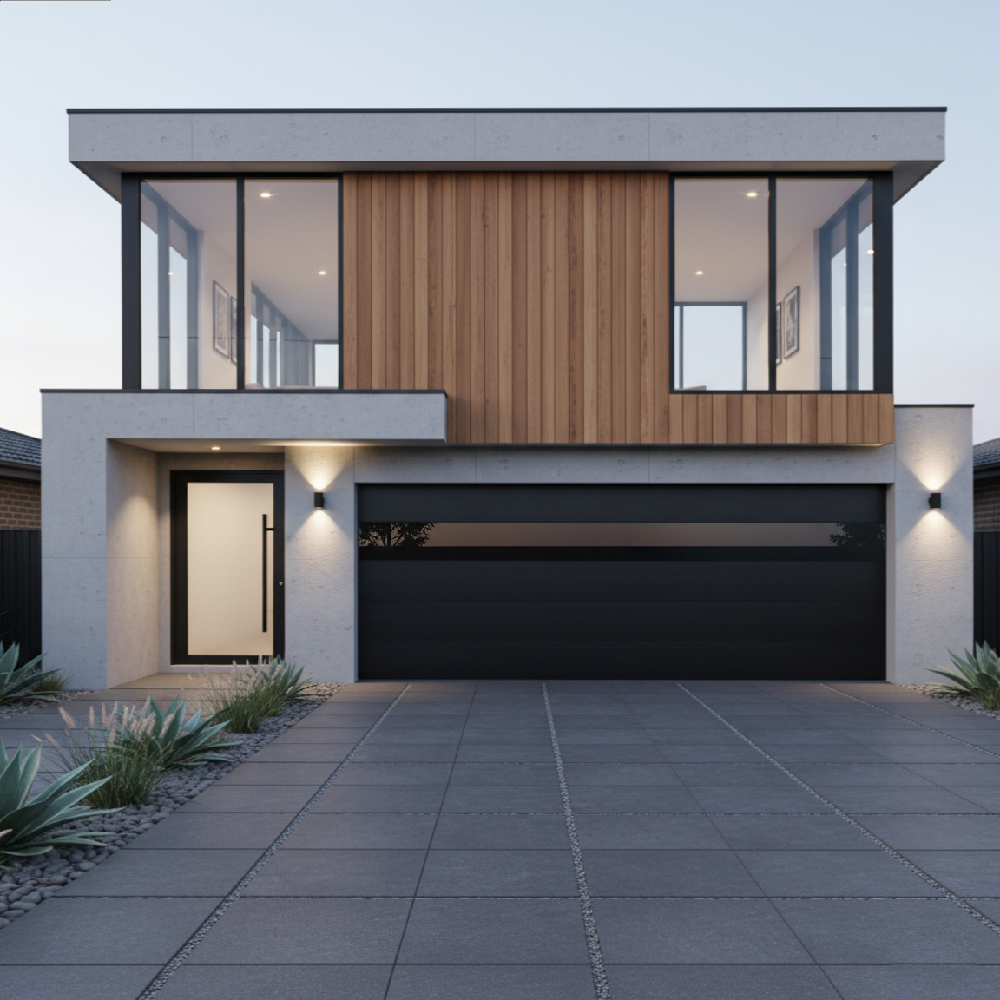

The infinity horizontal glass design creates a sleek, continuous visual line that enhances the modern appearance of the door while allowing natural light into the garage. The black tempered safety glass is treated with a spot-free nano-coating, offering impact resistance, fingerprint resistance, and easy maintenance. Finished in dark grey, the door provides a refined, contemporary look ideal for homes, apartments, villas, and other modern architectural projects.

Engineered for reliability, energy efficiency, and minimal maintenance, this garage door is a practical and stylish solution for modern living.

Key Features

·       Material: Galvanized steel sheets on both sides

·       Panel Pattern: Smooth

·       Core: Polyurethane foam–filled insulated panel

·       Door Panel Thickness: 40 mm

·       Steel Thickness:

·       Front side: 26 gauge

·       Back side: 28 gauge

·       Glass Design: Infinity horizontal glass panel

·       Color: Dark Grey

·       Applications: Homes, apartments, villas, and modern properties

·       Maintenance: Minimal maintenance; easy to clean

Glass Specifications

·        Glass Color: Black

·        Glass Thickness: 5 mm

·        Safety: Tempered safety glass

·        Anti-Vandalism: Impact-resistant construction

·        Surface Treatment:

o   Spot-free nano-coated glass

o   Fingerprint- and stain-resistant

·        Maintenance:

o   Minimal maintenance required

o   Easy to clean

Details & Dimentions

close

Products specifications

SKU BLCNGDBK-8x8
Style Contemporary
Material Aluminum Glass
Collection Contemporary Garage Doors
Color Black
Width 8 ft
Height 8 ft
Thickness 2"
Weight 573 lb

Downloads

close

Products attachments

Technical Drawings
Installation Installation Guide
You May Also Like
Elegant Garage Door White Sand 16' x 7'

Baualu

Elegant Garage Door White Sand 16' x 7'

Contemporary Garage Door White Sand 8' x 7'

Baualu

Contemporary Garage Door White Sand 8' x 7'

Contemporary Garage Door Black 16' x 8'

Baualu

Contemporary Garage Door Black 16' x 8'

Contemporary Garage Door Black 8' x 7'

Baualu

Contemporary Garage Door Black 8' x 7'

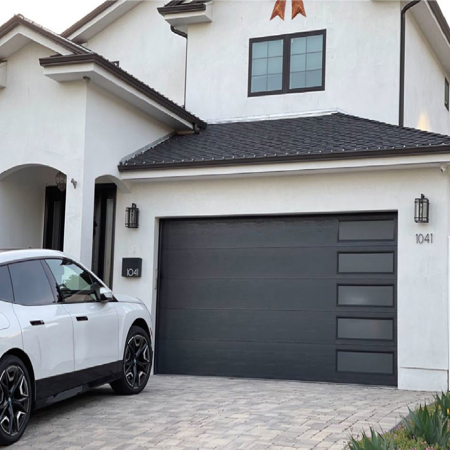

Elegant Garage Door Titan Grey 16' x 8'

Baualu

Elegant Garage Door Titan Grey 16' x 8'

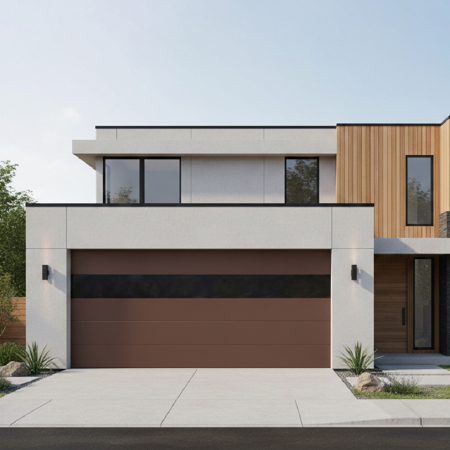

Contemporary Garage Door Brown Mocha 16' x 8'

Baualu

Contemporary Garage Door Brown Mocha 16' x 8'

Elegant Garage Door White Sand 16' x 8'

Baualu

Elegant Garage Door White Sand 16' x 8'

Elegant Garage Door Titan Grey 16'x 7'

Baualu

Elegant Garage Door Titan Grey 16'x 7'

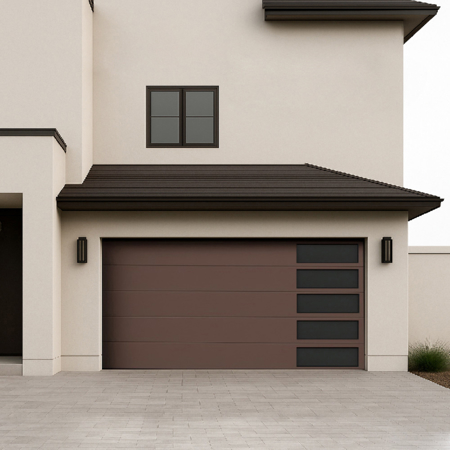

Elegant Garage Door Brown Mocha 16' x 7'

Baualu

Elegant Garage Door Brown Mocha 16' x 7'

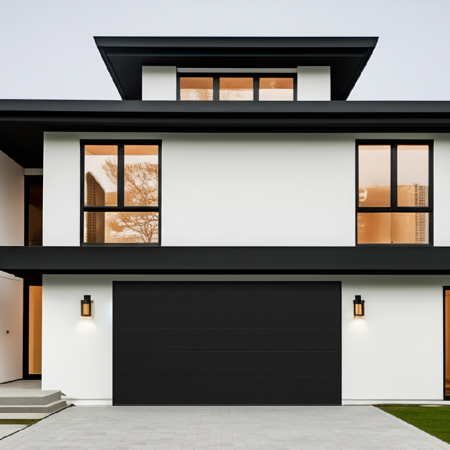

Black Smooth Steel 16'x9' Insulated Garage Door
