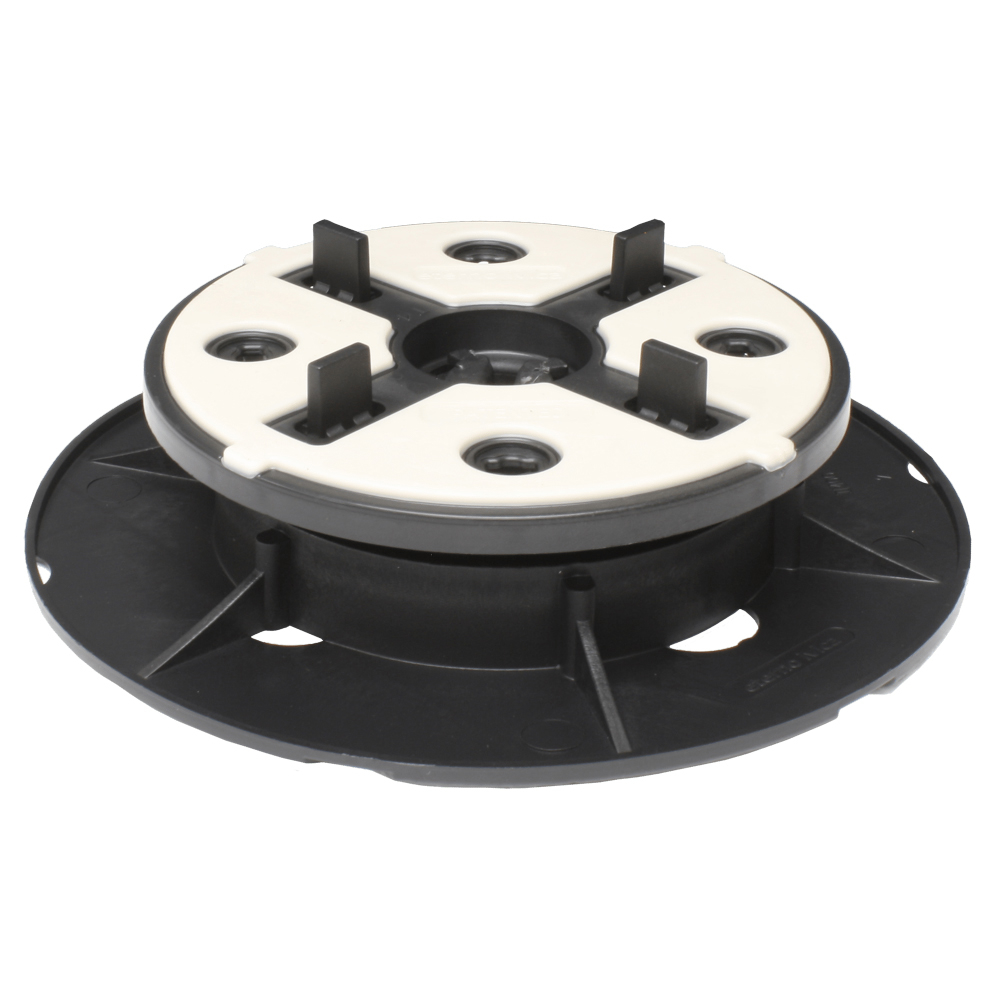

Fixed Head Adjustable Paving Support New Maxi NM1 With Paver Head 1"- 1 3/5"

For pricing information please send a request.

A wide range of features such as the noise-reducing rubber head, the Adjustment Key, a wide range of adjustable heights and the pre-cut base for wall corner cuts, make the NM pedestal perfect for any kind of raised flooring applications.

Attribute Selection

Size
Shipping: Free

est. delivery:

close

Estimate shipping

  • Description
  • Details & Dimentions
  • Downloads

Description

close

Featuring an above average loading capacity and a reliability that can only be offered by experts in the field of raised flooring supports, the NM pedestal is regularly selected and widely appreciated Internationally within the building industry.  When installed on a slopping surface, shims or the slope compensator can be placed on the pedestal head to ensure a level support surface. The slope compensator can add up to 1% of slope.

Adjustment Key sold separately

Features

  • Bi-material head offers anti-noise & anti-slip
  • Adjustable heights
  • Made from 100% recycled material
  • Removable spacer tabs
  • Smooth base with pre-cut lines
  • Resistant to weathering, acids, UV rays and wear and tear
  • Resistant to temperatures ranging from -40F – 248F

Options

  • Slope Compensator to level final grade
  • Wood joist head for joist applications
  • Aluminum joist head for aluminum joist applications
  • Pins for IPE deck tiles
  • Shims to level final grade
  • Height can be added to any pedestal with the use of the NM Extension

Information

  • Height Range: 1″ – 1 3/5″
  • Base Diameter: 8″
  • Head Diameter: 6″
  • Tab Height: 1/2″
  • Tab Width: 5/32″
  • Load Capacity: 3,300 lbs
  • Packaging: 40/Carton





Certifications

Details & Dimentions

close

Products specifications

SKU NM1

Downloads

close

Products attachments

Catalog Product Brochure
Installation Installation Guide
Technical CAD Drawing
Technical Specification
Technical Warranty
You May Also Like

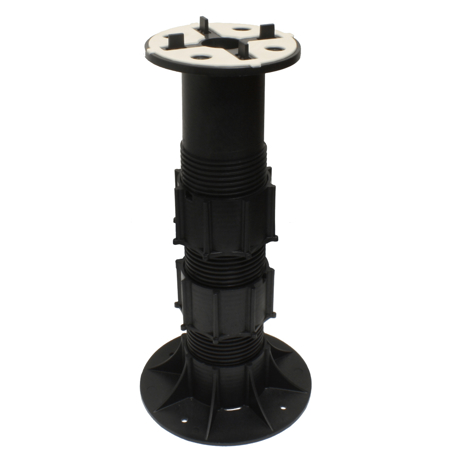

Self-Leveling Adjustable Pedestal Eterno SE11 With Paver Head 11 3/4" - 15 3/4"

MRP SUPPORTS

Self-Leveling Adjustable Pedestal Eterno SE11 With Paver Head 11 3/4" - 15 3/4"

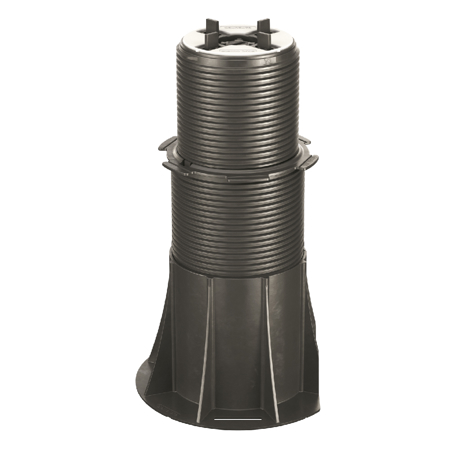

Pedestal Support Prime PR3 With Paver Head 6 1/10"-16"

MRP SUPPORTS

Pedestal Support Prime PR3 With Paver Head 6 1/10"-16"

Self-Leveling Adjustable Pedestal Eterno SE6 With Paver Head 5 1/2" - 9"

MRP SUPPORTS

Self-Leveling Adjustable Pedestal Eterno SE6 With Paver Head 5 1/2" - 9"

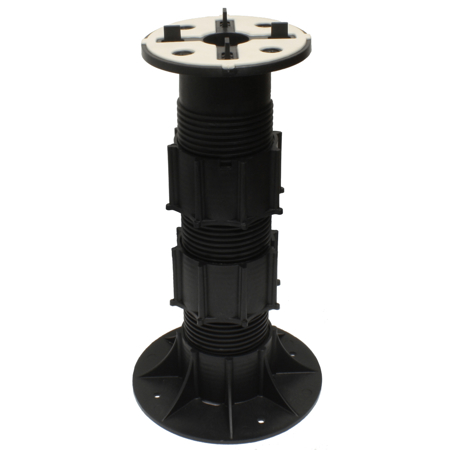

Self-Leveling Adjustable Pedestal Eterno SE10 With Paver Head 9 7/8" - 15"

MRP SUPPORTS

Self-Leveling Adjustable Pedestal Eterno SE10 With Paver Head 9 7/8" - 15"

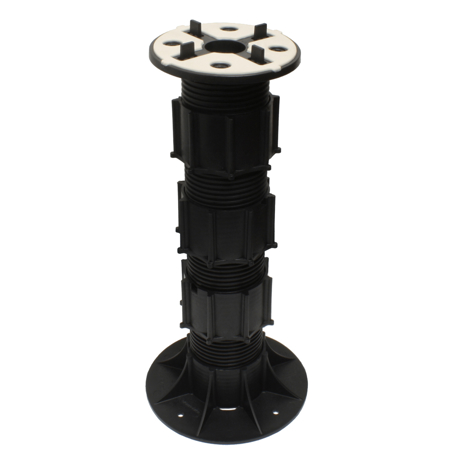

Self-Leveling Adjustable Pedestal Eterno SE12 With Paver Head 10 1/2" - 18"

MRP SUPPORTS

Self-Leveling Adjustable Pedestal Eterno SE12 With Paver Head 10 1/2" - 18"

Self-Leveling Adjustable Pedestal Eterno SE4 With Paver Head 4 3/4" - 6 3/4"

MRP SUPPORTS

Self-Leveling Adjustable Pedestal Eterno SE4 With Paver Head 4 3/4" - 6 3/4"

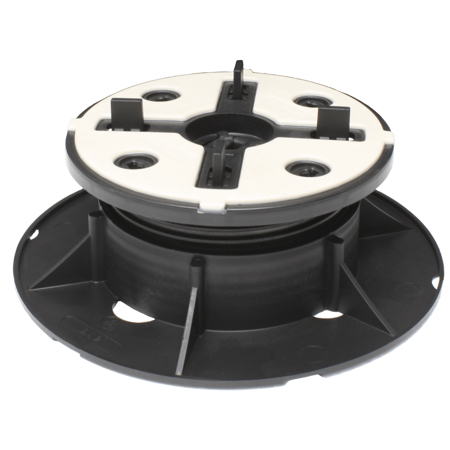

Fixed Head Adjustable Paving Support New Maxi NM2 With Paver Head 1 3/5"-2 3/4"

MRP SUPPORTS

Fixed Head Adjustable Paving Support New Maxi NM2 With Paver Head 1 3/5"-2 3/4"

Fixed Head Adjustable Paving Support New Maxi NM5 With Paver Head 5 9/10"-10 3/5"

MRP SUPPORTS

Fixed Head Adjustable Paving Support New Maxi NM5 With Paver Head 5 9/10"-10 3/5"

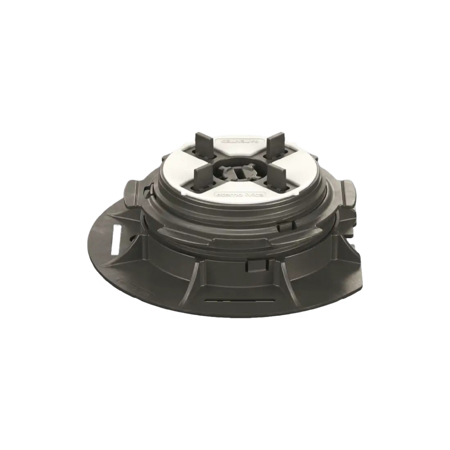

Pedestal Support Prime PR1 With Paver Head 1 1/5″-2 11/20″
