Frameless Glass Garage Door Moderno Black Badge 8' x 9'

$4,399.00

The Frameless Glass Garage Door – Black Badge is designed for contemporary architecture, combining a bold black aesthetic with high-performance safety glass. Engineered for durability and refined performance, it allows natural daylight to flow into the space while maintaining daytime privacy. The minimalist, frameless design creates a clean, seamless appearance while delivering enhanced strength, security, and long-term reliability—elevating both comfort and modern visual appeal.

Attribute Selection

Size
Color
Hardware
info
Edit product attribute

Edit product attribute

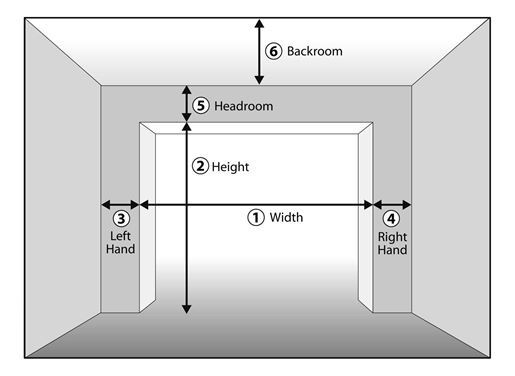

Headroom is the space needed above the top of the door for the door the overhead tracks, and the springs. Measure to check that there are no obstructions in your garage within that space.
You need to choose a double steel track if the headroom size is 7 7/8”- 15 3/4”. For a single steel track, the headroom size should be above 15 3/4".
Please keep in mind that the clearance between the door edge and the vertical track inside edge is 3/4"- 1" (each side).
On the inside of the garage, your opening should be framed with wood jambs, 2" x 6" if possible. The side jambs should extend to approximately the same height as the headroom required.
A minimum side room of 3-3/4" should be available on each side of the door on the interior wall surface to allow for attachment of the vertical track assembly. The rough opening should be the same size as the door.
The backroom distance is measured from the back of the door into the garage and should be at least 18" more than the height of the garage door.

Add
  • Installation Kit
Shipping: Free

est. delivery:

close

Estimate shipping

Total: $4,399.00
  • Description
  • Details & Dimentions
  • Downloads

Description

close

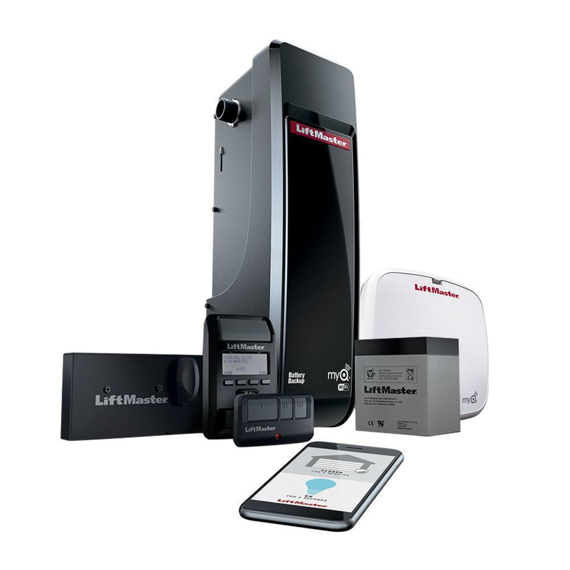

Whether you are working on a custom project or require special sizes, we are happy to provide tailor-made solutions for your glass garage doors. These garage doors are fully compatible with wall-mounted LiftMaster garage door openers, offering a space-saving and advanced access solution with built-in Wi-Fi, allowing you to control your garage door conveniently from your smartphone.

Key Features

  •         Hidden Frame: Aluminum construction for a seamless, frameless appearance
  •         Steel Track: Heavy-duty steel track system for smooth and reliable operation
  •         Hardware:

o   Fully powder-coated for enhanced durability

o   2” powder-coated U-rail reinforcement

  •         Weather Resistance:

o   Oxidation-free

o   Corrosion-resistant

o   UV and environmental exposure resistant

  •         Installation: Professional installation required

Glass Specifications

  •         Glass Type: Tempered glass
  •         Color: Black
  •         Thickness: 5 mm
  •         Safety: Tempered safety glass
  •         Anti-Vandalism: Impact-resistant construction
  •         Surface Treatment:

o   Spot-free nano-coated glass

o   Fingerprint and stain resistant

  •         Maintenance:

o   Minimal maintenance required

o   Easy to clean

Ideal Applications

  •         Modern residential garages
  •         Luxury homes
  •         Contemporary architectural projects





Details & Dimentions

close

Products specifications

SKU BLMDFGDBB-8x9
Style Contemporary
Material Tempered Glass
Collection Moderno
Color Black
Opening Type Overhead
Width 8 ft
Height 9 ft
Thickness 2 3/16"
Weight 573 lb

Downloads

close

Products attachments

Catalog Frameless Glass Garage Doors by HINTEX
Installation BAUALU-HINTEX-Frameless Garage Doors Installation
Technical Drawings
