Outdoor Ethanol Fireplace Porto Core

For pricing information please send a request.

PORTO CORE FREESTANDING BEV® FIREPLACE The first BEV fireplace for outdoor use. An alternative to gas fireplaces used in gardens, patios, hotels or restaurants.

Shipping: Free

est. delivery:

Description
Downloads

Description

Possibility to create a customized surround to perfectly match our garden design.

REAL FIRE WITHOUT CHIMNEY
NO CLEANING
NO SMOKE AND SMELL
REMOTE CONTROL

Customized fireplace

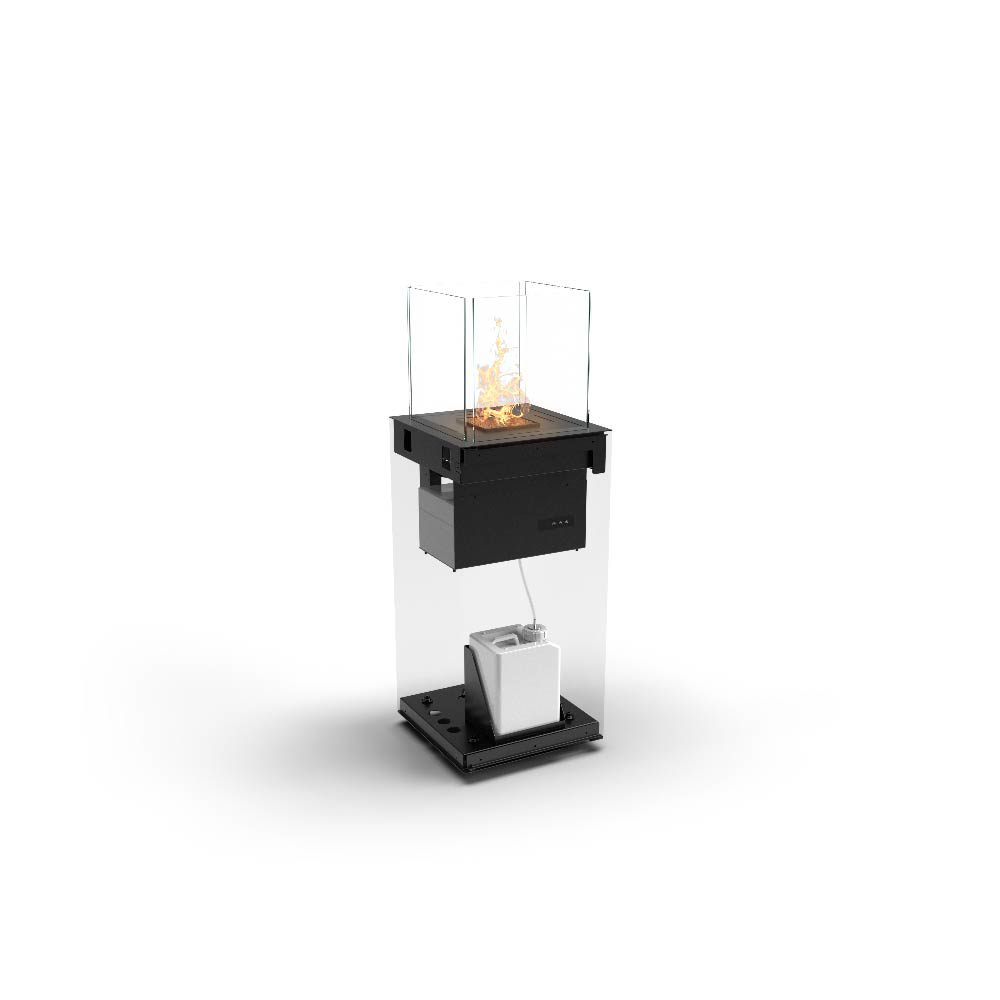

Porto Core is an automatic ethanol fireplace with BEV technology in a freestanding design to be finished with any 0.31" thick cladding. It is the easiest way to arrange a real fire indoors as there is no need to connect it to a chimney. The flames in the Porto fireplace come from burning ethanol vapour and can be controlled by remote control and mobile app.

AUTOMATIC BEV FIREPLACE FOR OUTDOORS

Porto BEV fireplace was designed to withstand a variety of weather conditions. Its electronic systems are protected in a sealed, waterproof casing. The high glass shields guard the flame from strong wind blows.

BEV^®TECHNOLOGY

Planika puts safety to the highest standards. Our BEV (Burning Ethanol Vapours) Technology ensures no direct contact between the liquid fuel and the flame and complete control over the fire. The entire process is controlled by a microprocessor and numerous safety sensors. This gives you full control over the real fire in your indoor space.

TECHNICAL SPECIFICATIONS

Fuel tank capacity – 5.0 L

Maximum burn time – 14 hours

Maximum heat output – 3.7 kW

Minimum room cubature – 37 m3

Flame height regulation – 6 stages

Fuel type – bioethanol 95 – 96,6%

Flue – not required

Air change rate – 1 space volume per hour

Power supply – 230 V

Finish – black powder coating

Materials – steel, galvanized steel, toughened glass
