baualu

Grey RR Moderno Frameless Glass Garage Door 8' x 8'

$3,815.00


Paying attention to the smallest details our frameless glass garage doors are able to satisfy different architectural and aesthetic solutions and will tastefully complement any home design.

Powder quoted hidden aluminum frame ensures the perfect match, making your house even more aesthetically pleasing and appealing with an ultimate frameless look.

Featuring sleek and timeless design Moderno Full View frameless garage doors are made of double tempered glass which is approximately 4-5 times stronger, however, even when broken, it breaks into relatively small fragments, less likely to cause any injury, and meets all building code requirements.

Moderno garage doors are available in the broadest variety of options offering standard and fully customizable sizes.

Whether you are working on a custom project or need special sizes, we will be glad to bring you tailor-made solutions for your glass garage doors.

  • Attribute Selection
  • Arrow right
Total: $3,815.00
  • Description
  • Details & Dimentions
  • Downloads

Attribute

close
Size
Hardware
info
Edit product attribute

Edit product attribute

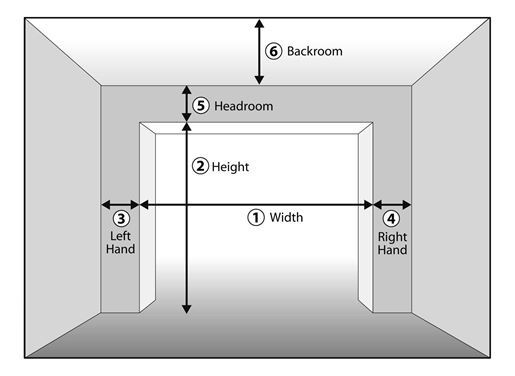

Headroom is the space needed above the top of the door for the door the overhead tracks, and the springs. Measure to check that there are no obstructions in your garage within that space.
You need to choose a double steel track if the headroom size is 7 7/8”- 15 3/4”. For a single steel track, the headroom size should be above 15 3/4".
Please keep in mind that the clearance between the door edge and the vertical track inside edge is 3/4"- 1" (each side).
On the inside of the garage, your opening should be framed with wood jambs, 2" x 6" if possible. The side jambs should extend to approximately the same height as the headroom required.
A minimum side room of 3-3/4" should be available on each side of the door on the interior wall surface to allow for attachment of the vertical track assembly. The rough opening should be the same size as the door.
The backroom distance is measured from the back of the door into the garage and should be at least 18" more than the height of the garage door.

Add
  • Installation Kit

Description

close

Paying attention to the smallest details our frameless glass garage doors are able to satisfy different architectural and aesthetic solutions and will tastefully complement any home design.

Powder quoted hidden aluminum frame ensures the perfect match, making your house even more aesthetically pleasing and appealing with an ultimate frameless look.

Featuring sleek and timeless design Moderno Full View frameless garage doors are made of double tempered glass which is approximately 4-5 times stronger, however, even when broken, it breaks into relatively small fragments, less likely to cause any injury, and meets all building code requirements.

Moderno garage doors are available in the broadest variety of options offering standard and fully customizable sizes.

Whether you are working on a custom project or need special sizes, we will be glad to bring you tailor-made solutions for your glass garage doors.

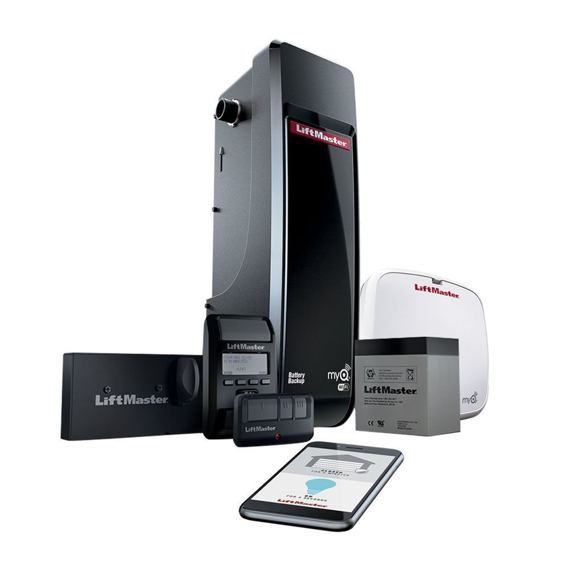

Garage doors are compatible with wall-mounted Lift Master garage door openers that provide the ultimate garage access solution, designed to optimize space with built-in Wi-Fi allowing you to control it straight from your phone.



FEATURES:

  • Material: Double Tempered Glass
  • Hidden Frame: Aluminum
  • Steel Track: Heavy Duty
  • Hardware: Powder Coated, Clear Anodized
  • Oxidation-Free, Corrosion Resistant, Exposure Resistant
  • Installation: Professional Assembly Required
  • Warranty: Limited Lifetime

GLASS FEAUTURES:

  • Smooth Surface
  • Even Thickness
  • Flat Polished Edges
  • No Wave, No Scratch, No Bubble
  • Non Reflective
  • Non Transparent, Spot Free
  • Anti Vandalism

Details & Dimentions

close

Products specifications

Color Gray
Style Contemporary
Material Aluminum Glass
Width 8.3 ft
Height 8.2 ft
Length 0.5 ft
Weight 573 lb
Collection Frameless Garage Doors

Downloads

close

Products attachments

Catalog Frameless Glass Garage Doors by HINTEX
Installation BAUALU-HINTEX-Frameless Garage Doors Installation
