RB Magralinea Aluminum Window

For pricing information please send a request.

Aluminum systems allow the construction of many different types of windows and doors, depending on the scope of application and the detailed requirements for functionality, aesthetics, thermal insulation, burglary resistance, smoke tightness or fire resistance. They include both structures with no thermal insulation, used to construct internal partitions or balcony enclosures, as well as products based on thermally insulated profiles. Aluminum structures made by the Baualu company enable the construction of many different types of windows and doors, depending on the scope of application and the detailed requirements for functionality, aesthetics, thermal insulation, burglary resistance, smoke tightness or fire resistance. They include both, aluminum constructions with no thermal insulation, used to build internal partitions (RB-45) or balcony enclosures (RB-23P system), as well as solutions based on the thermally insulated profiles (RB-60, RB-70, RB-59S.) A significant part of the aluminum window systems is available in the “HI” version, characterized by special inserts in sections, which reduce their thermal conductivity.

Shipping: Free

est. delivery:

Description
Details & Dimentions
Downloads

Description

THE ADVANTAGES OF MODERN ALUMINUM WINDOWS:

elegant and aesthetic
durable and highly resistant to weather conditions
heat-insulating and energy-saving
effectively mute noise
thanks to narrow profiles, the surface of a glass pane looks bigger

The RB Magralinea system features:

U Factor (summer) IP from: 0.1410 Btu/hft2F
U Factor (metric) IP from: 0,80 W/m2K
excellent tightness to water penetration and air infiltration
wide range of glazing of up to 33⁄16in (81 mm)
structures adjusted to different types of fittings
narrow profiles

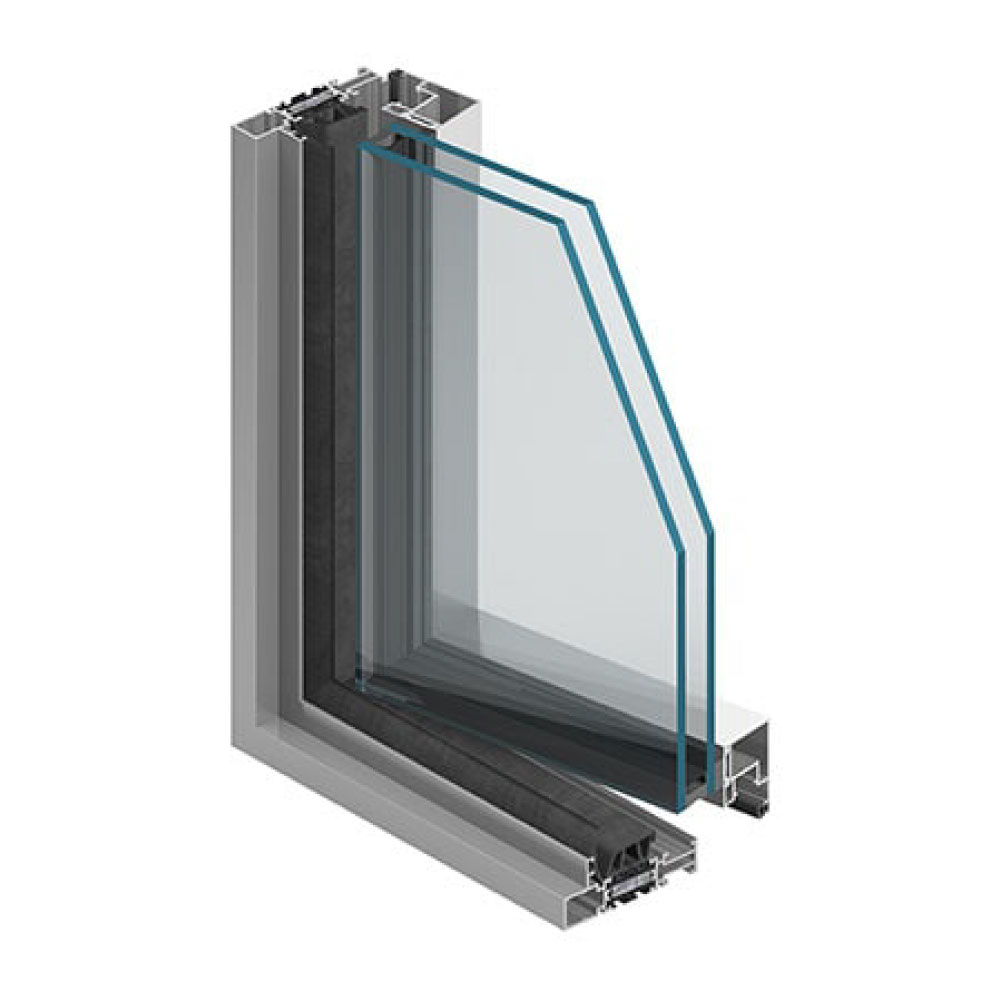

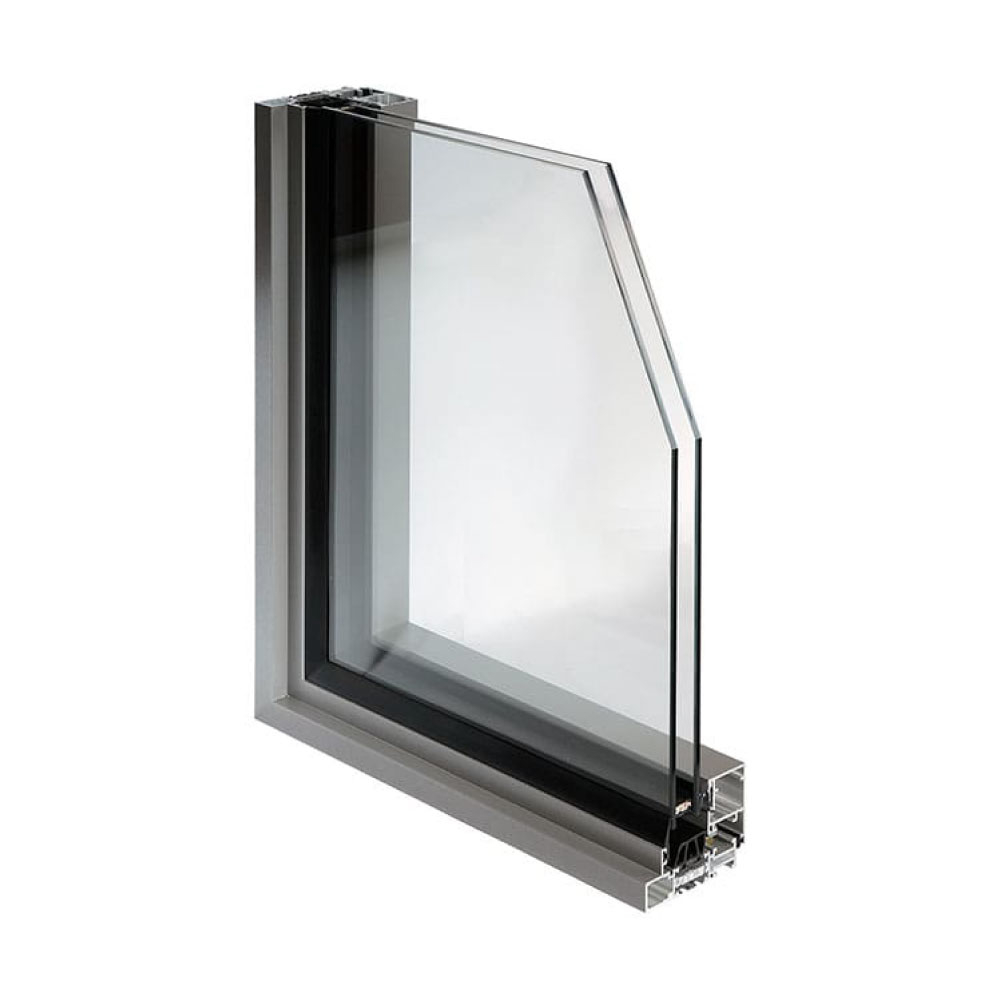

The RB Magralinea window system with a thermal barrier featuring excellent thermal insulation is used to manufacture various types of windows opening inwards (side-hung, tilt, turn-tilt) and windows fixed, which besides excellent thermal insulation also feature very good sound insulation, water and air tightness and outstanding durability.

Window system RB Magralinea, with very narrow aluminium profiles visible on the outside of the structure allows manufacture of the window sashes in two variants – with visible or invisible profiles (SG) from the outside of a building. The appearance of fixed and opening areas, when using invisible sashes, is therefore almost identical. This system can also very well replace the old type of windows made of steel profiles, ensuring a similar look from the outside of a building, while significantly increasing the thermal insulation of the partition.

FUNCTIONALITY AND AESTHETICS:

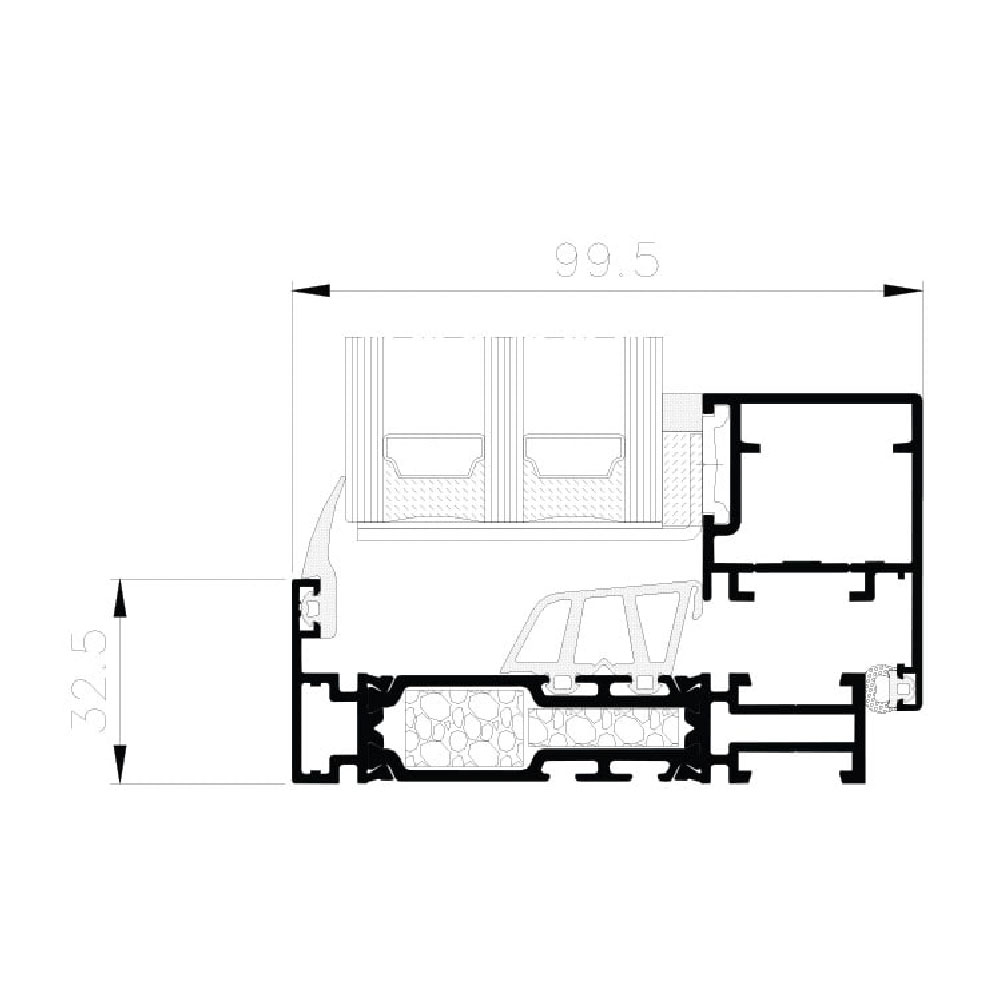

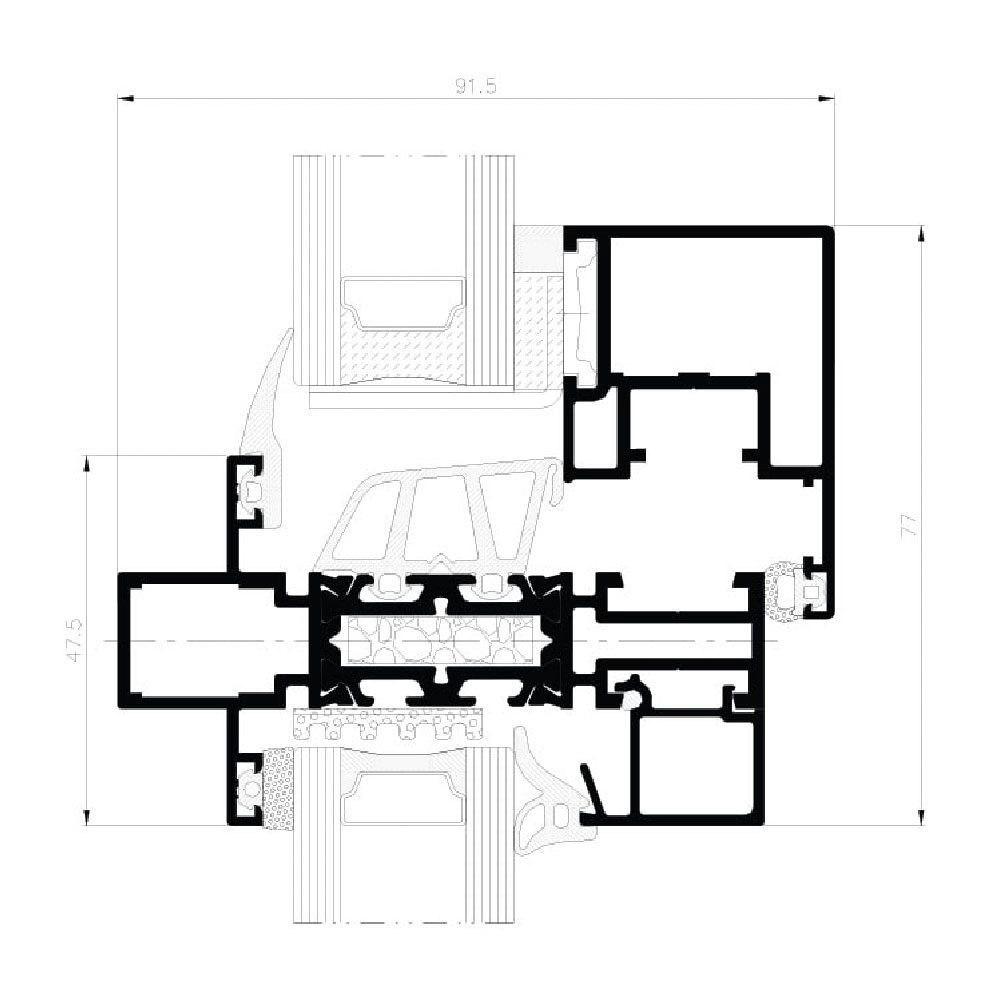

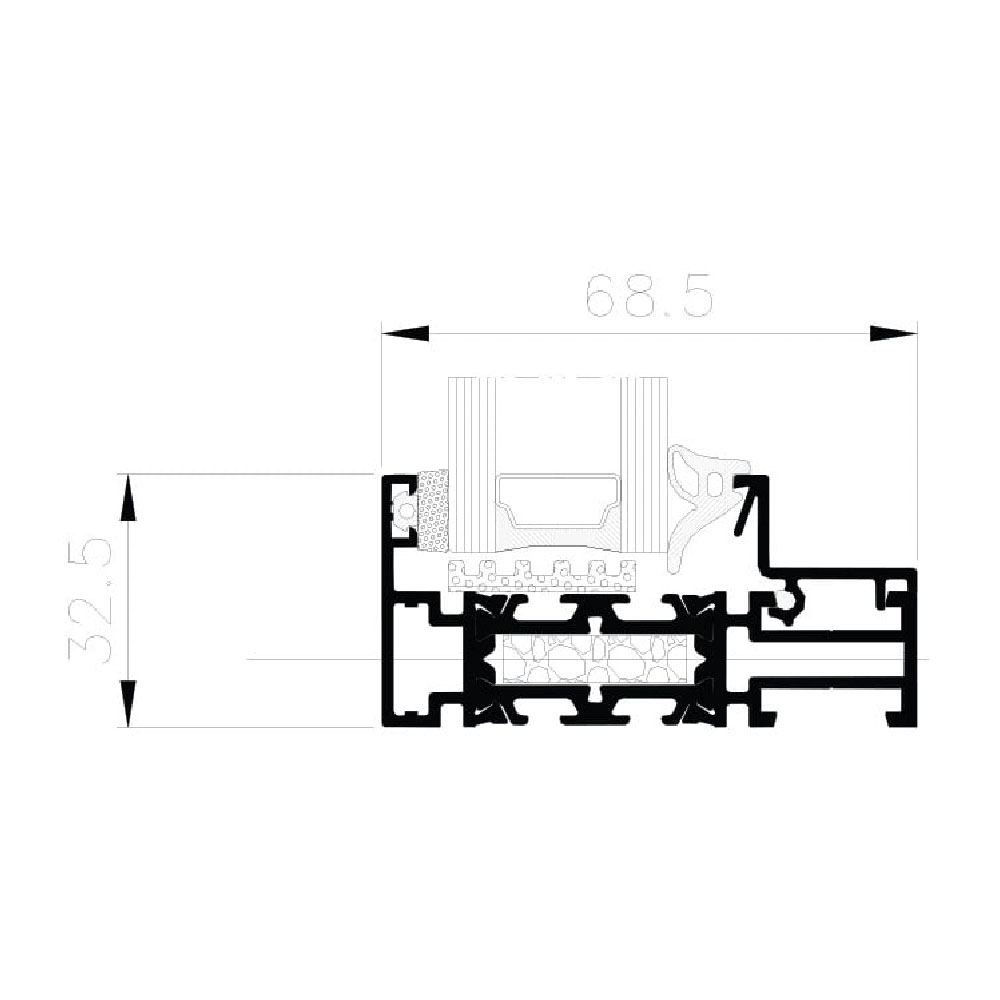

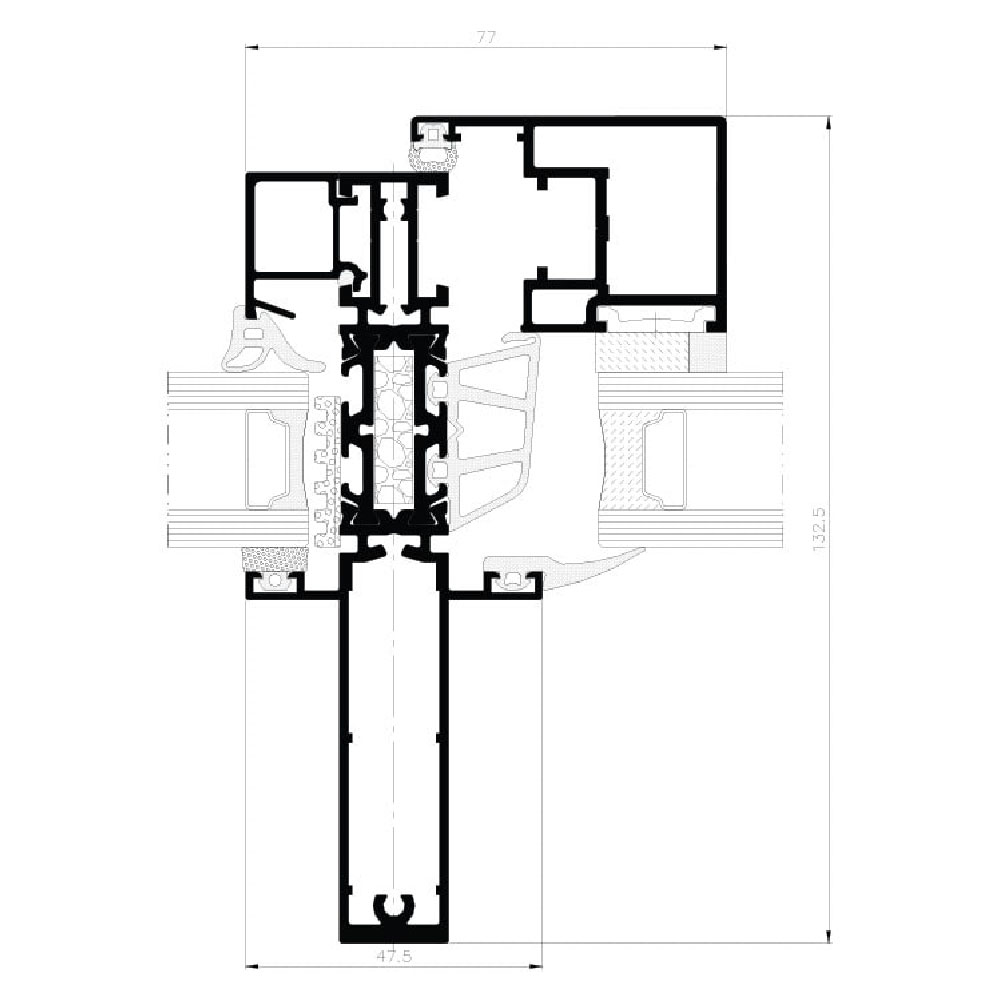

Cross section through the opening window	Cross section through the fixed window	Cross section through the opening and fixed window	Cross section through the opening and fixed window
