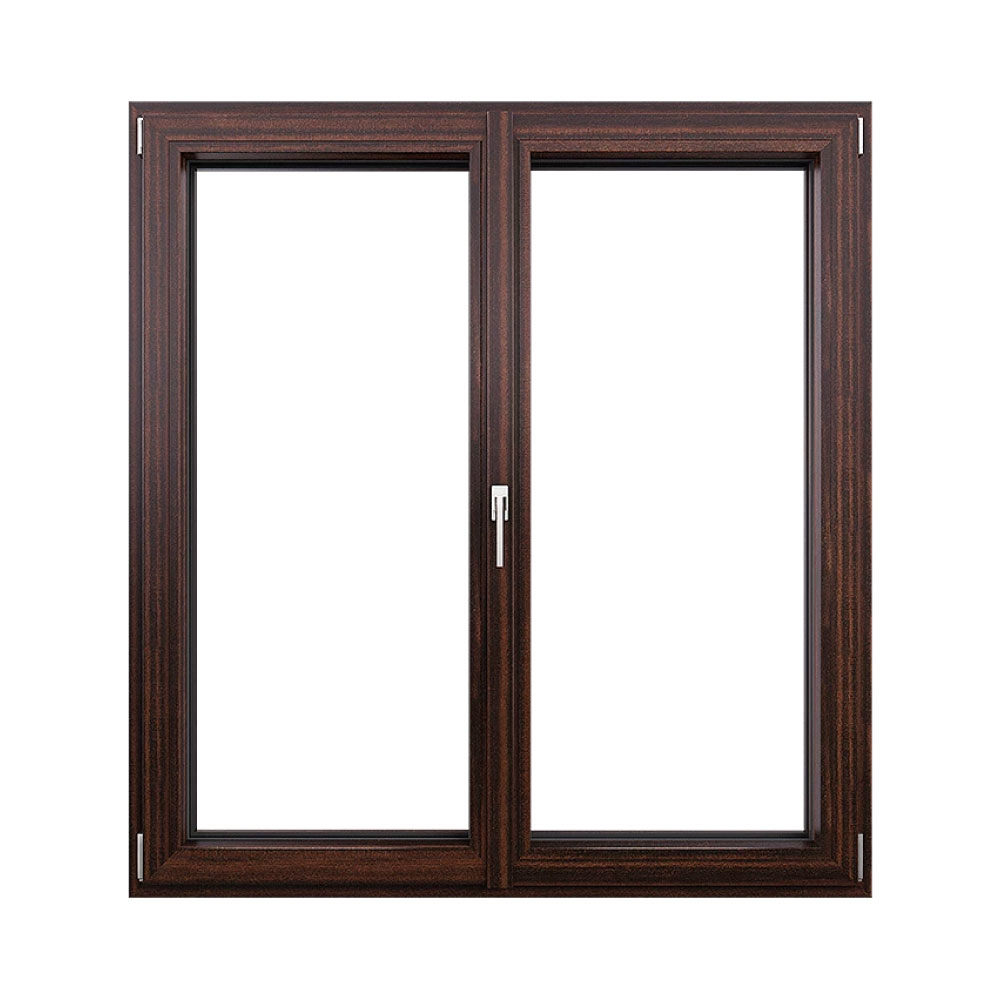

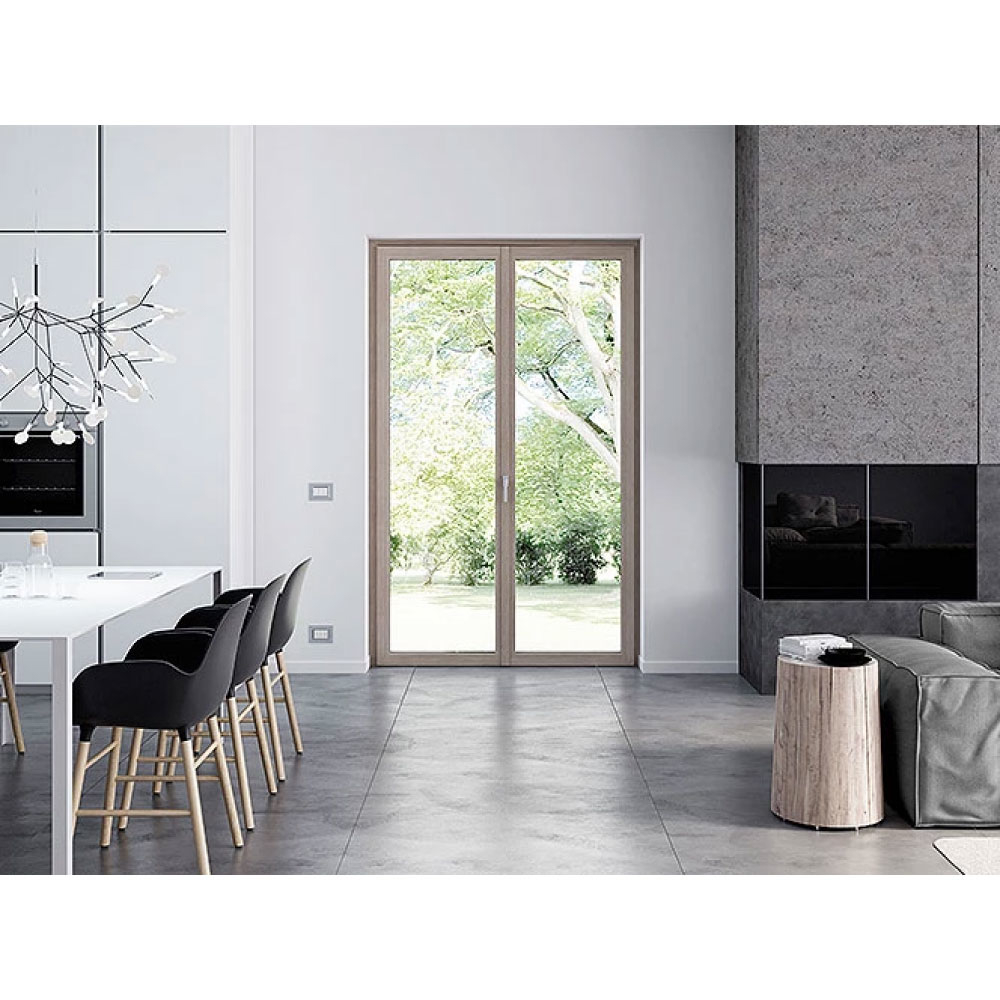

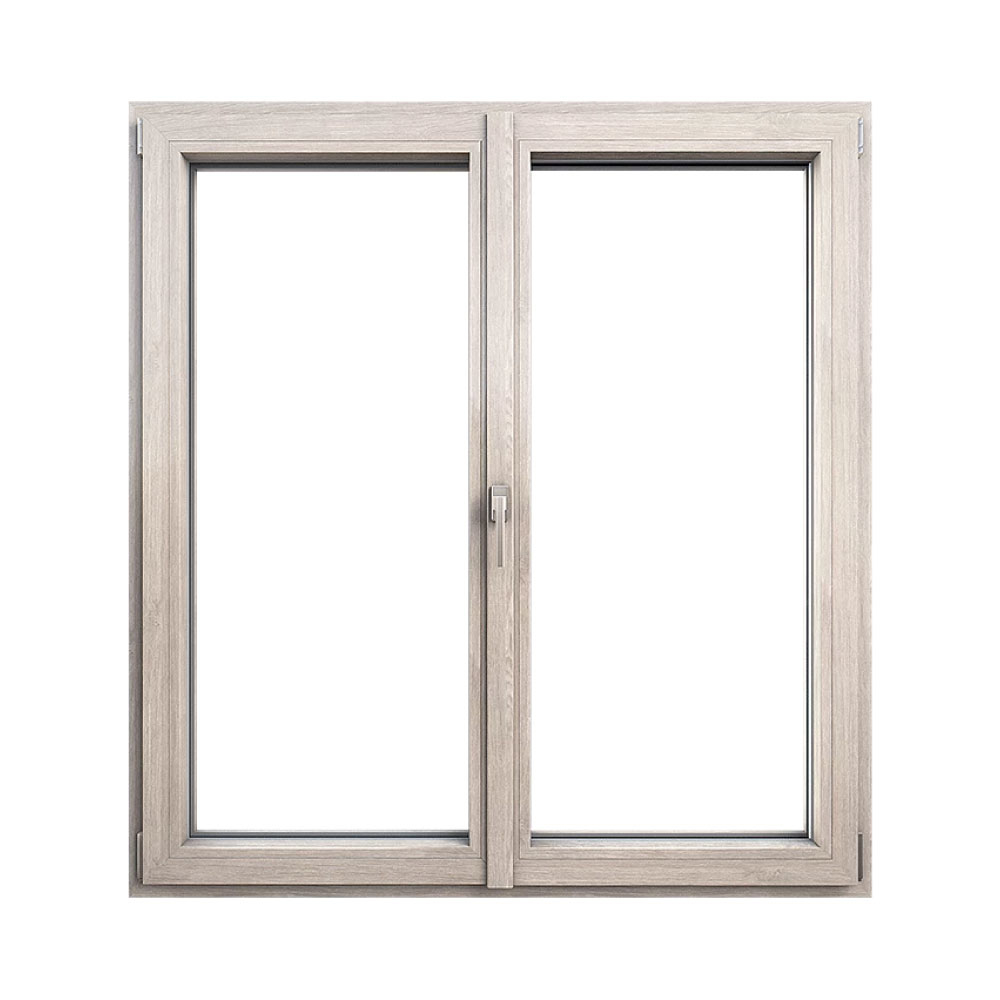

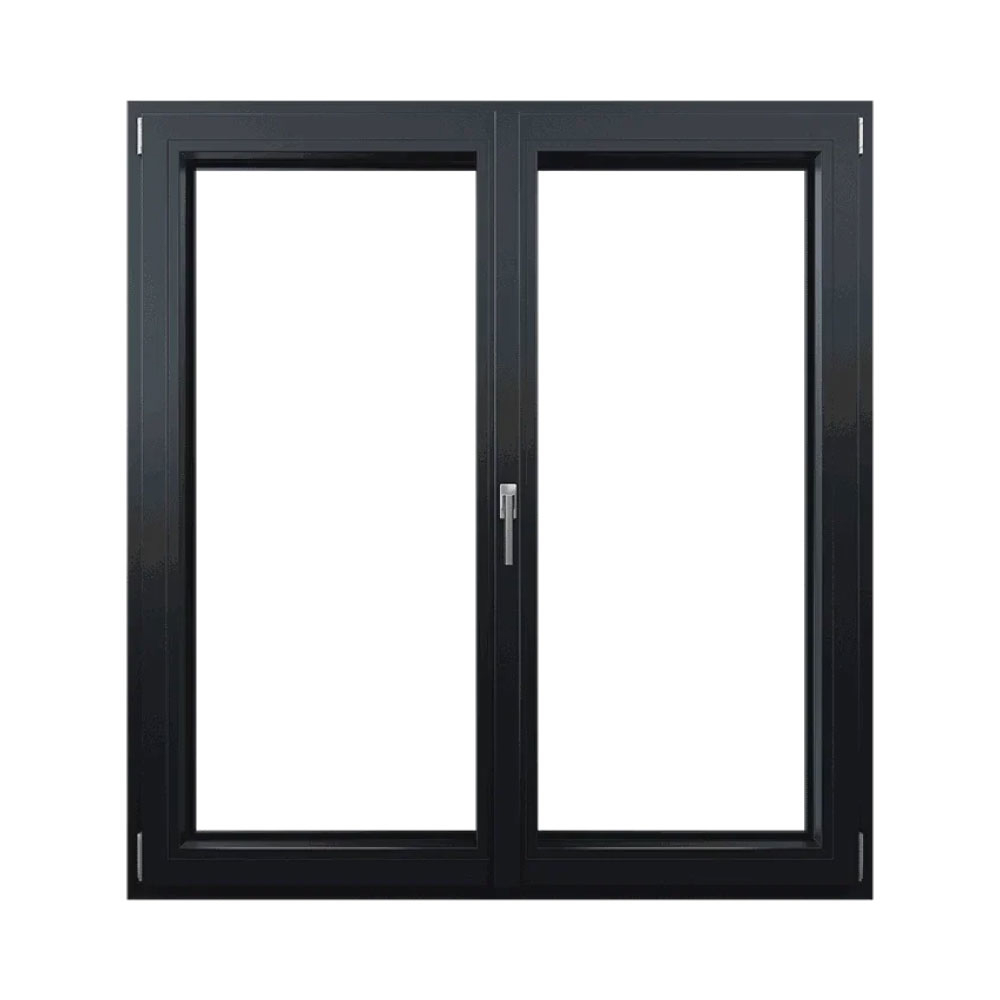

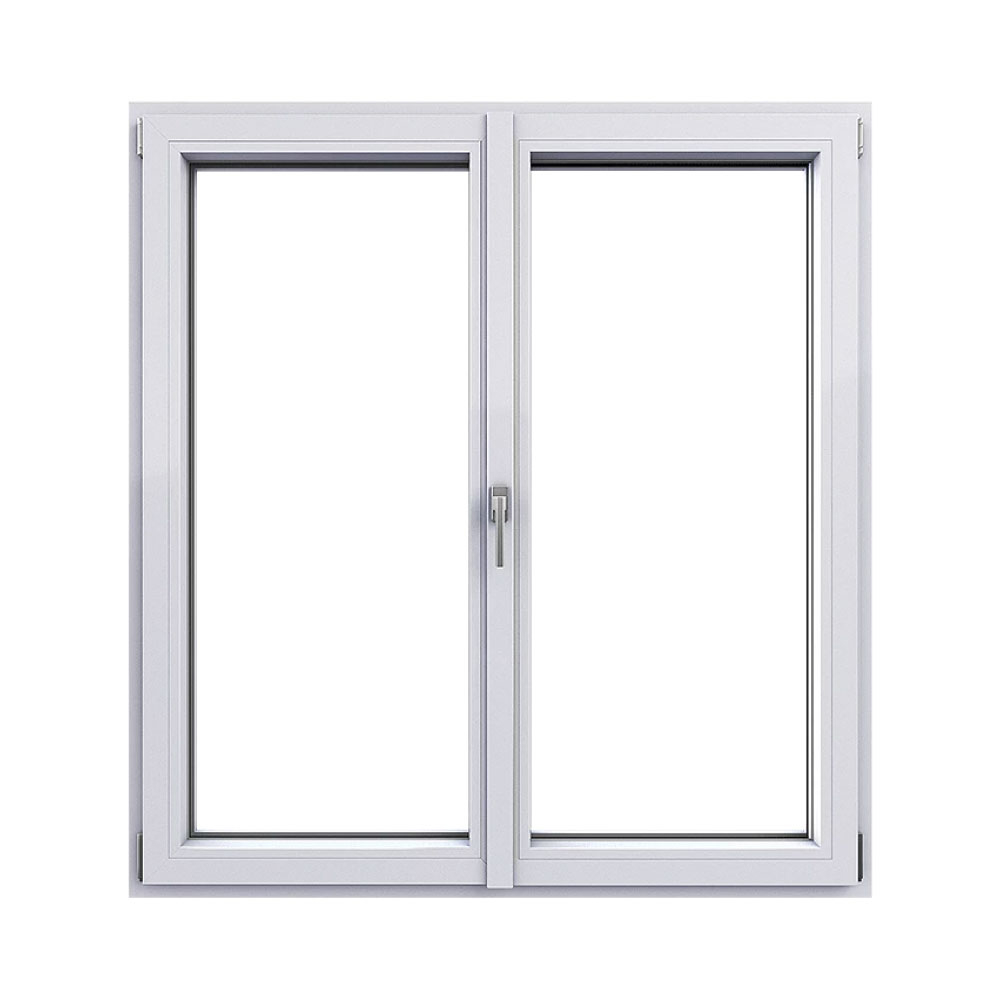

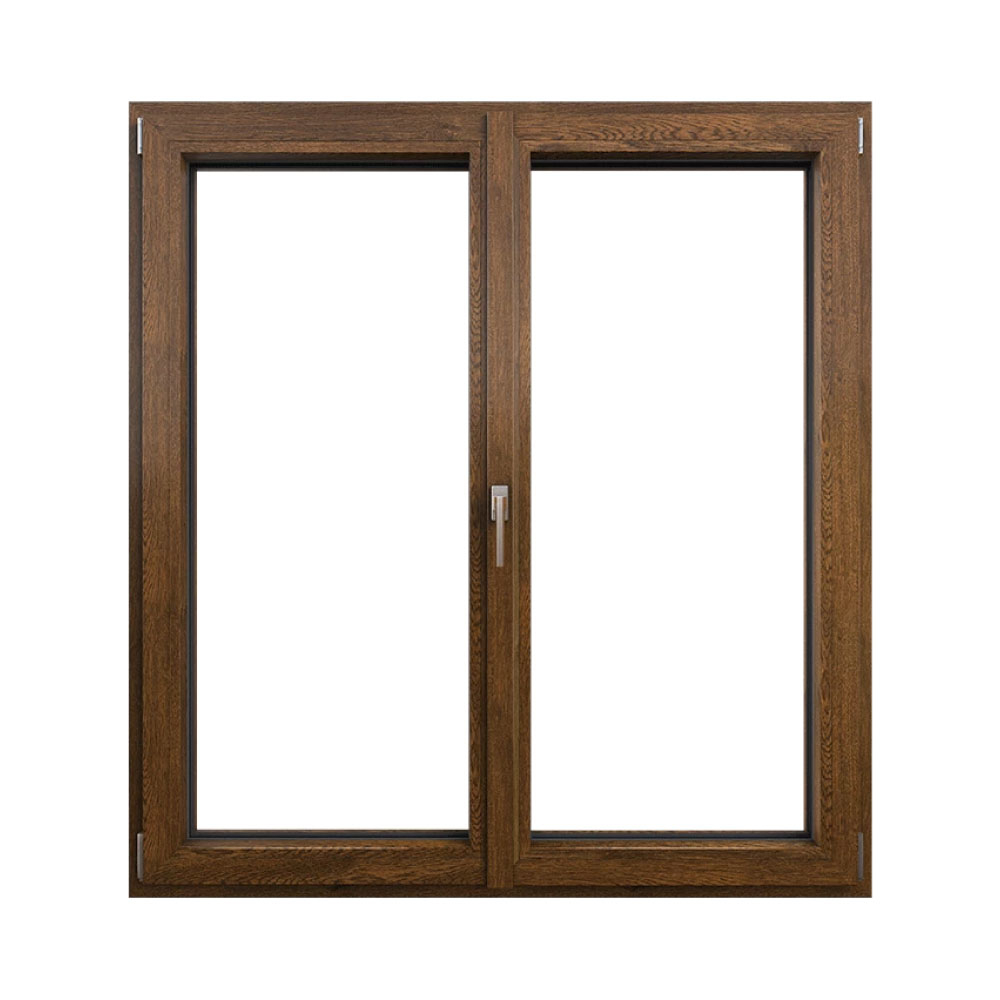

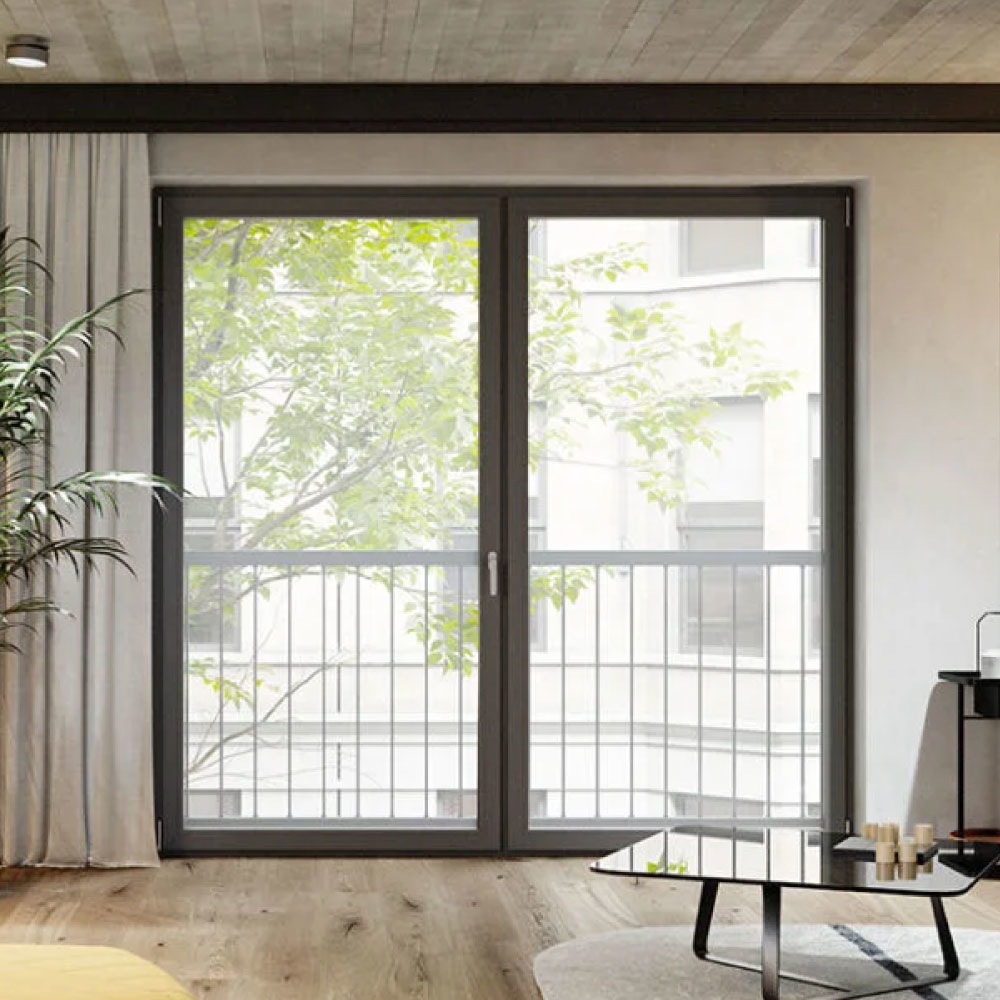

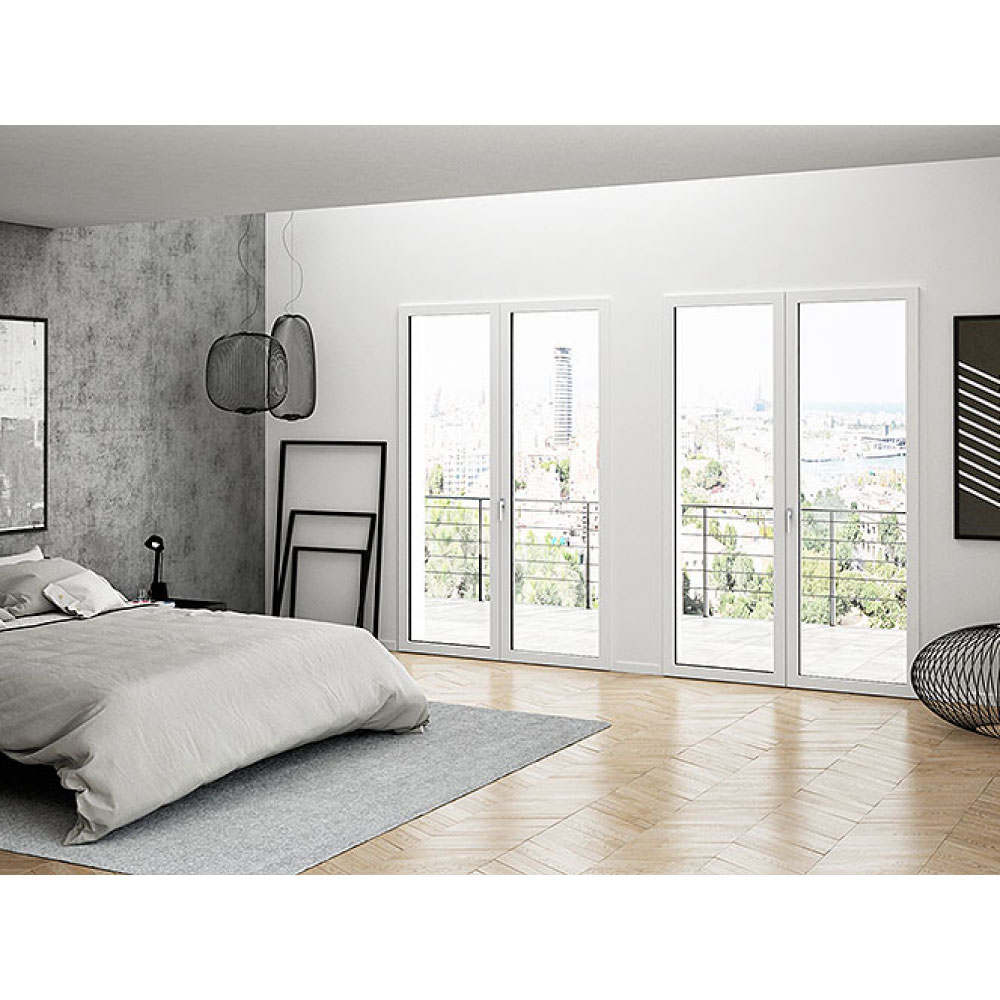

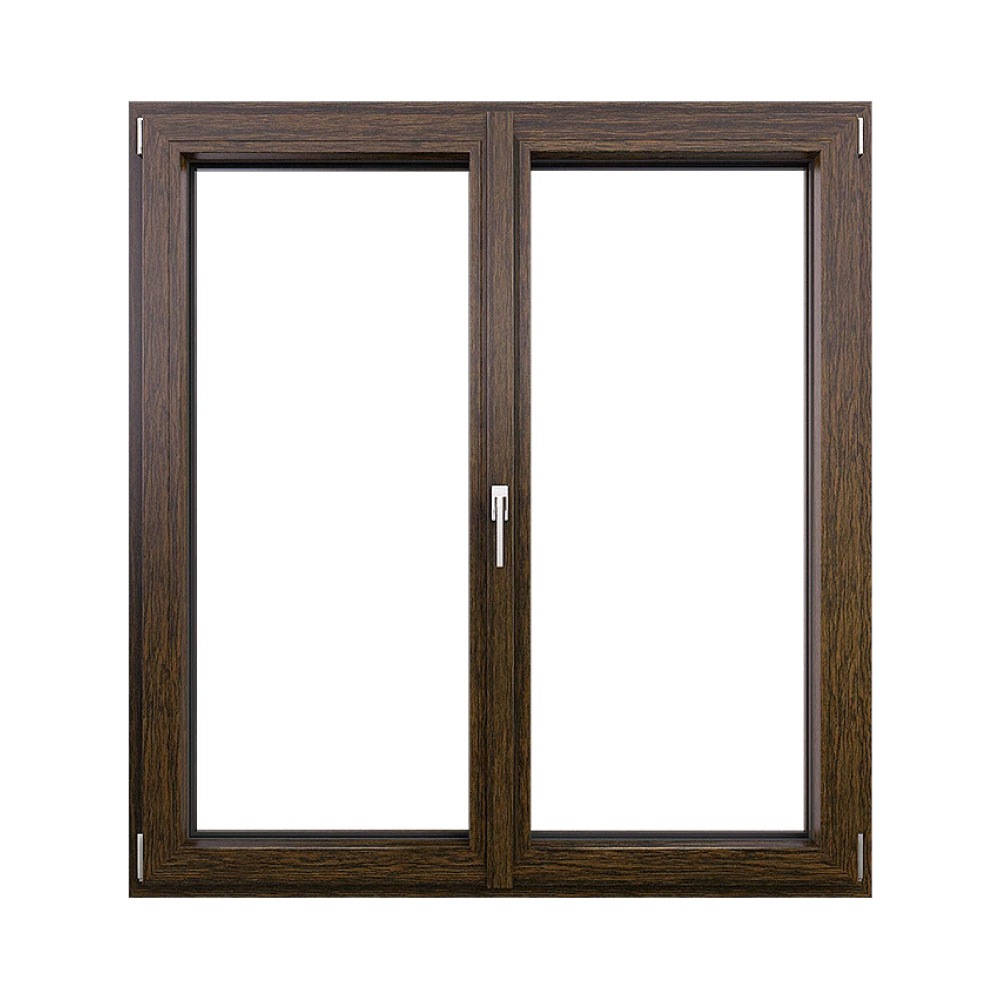

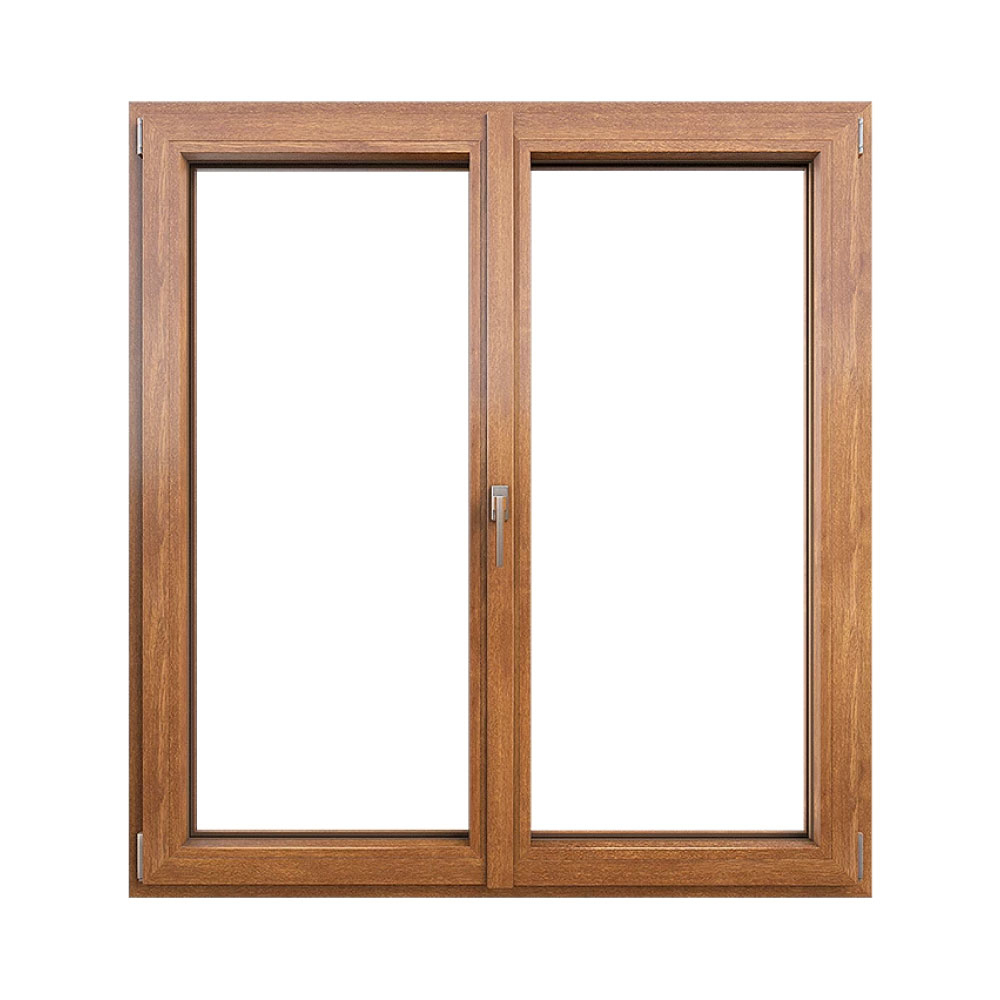

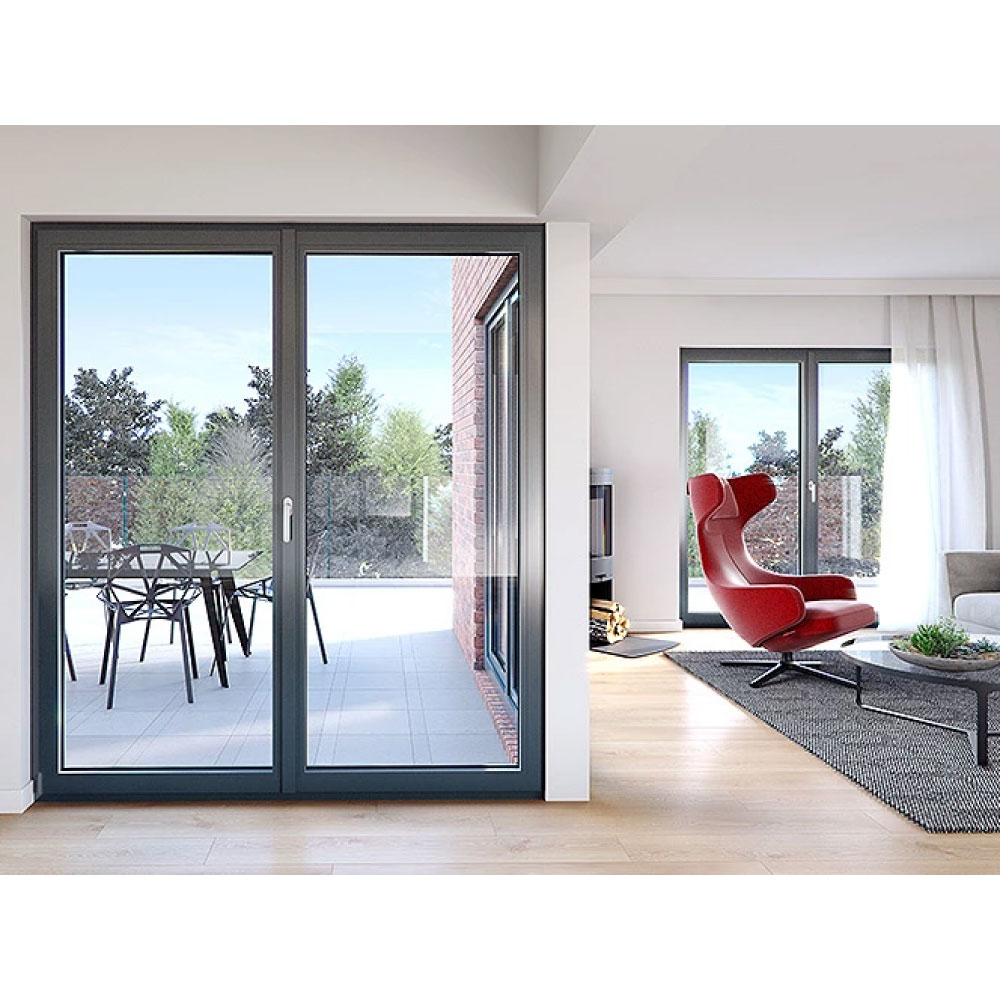

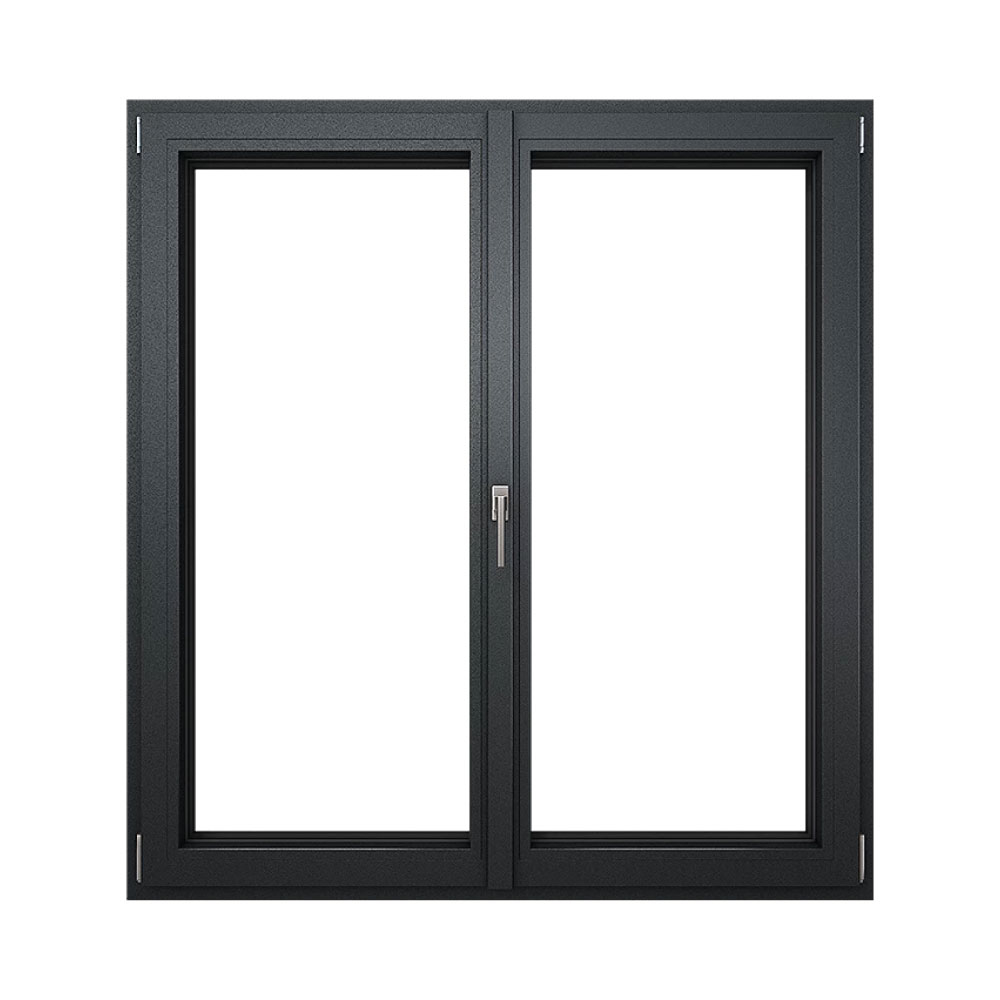

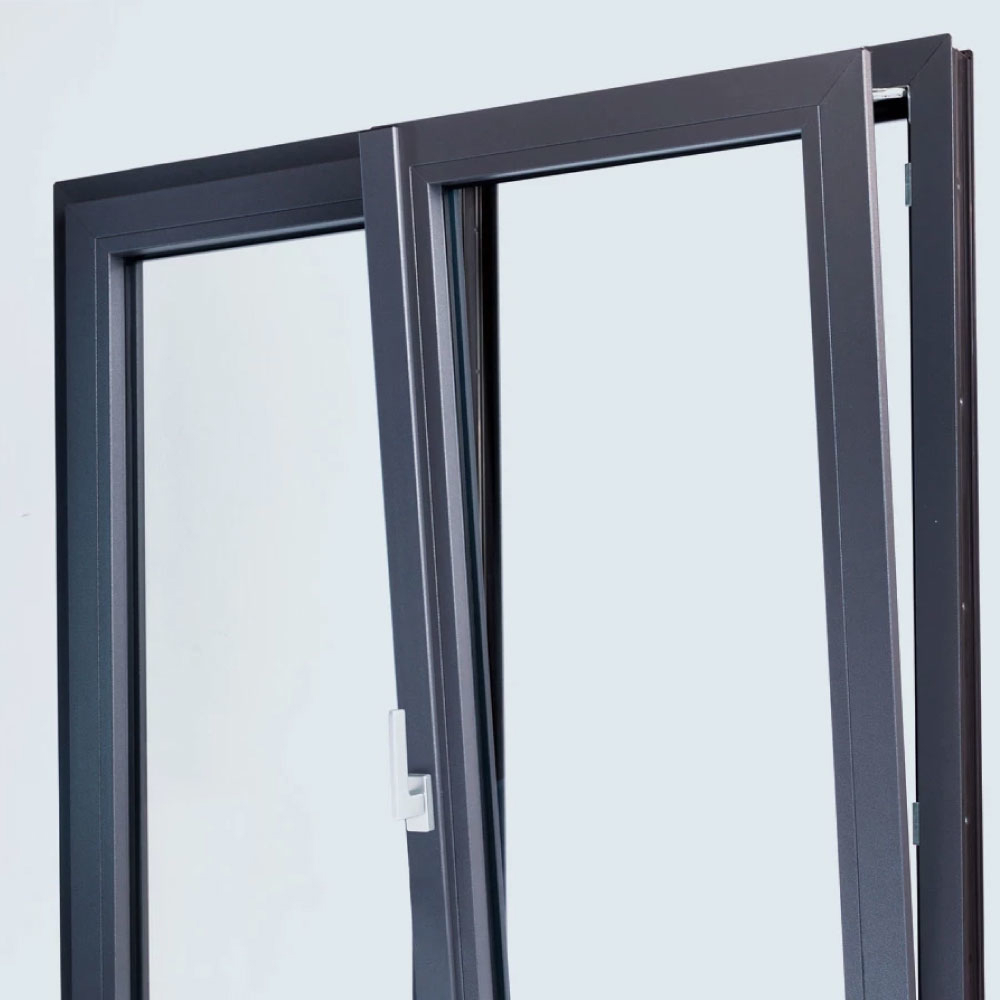

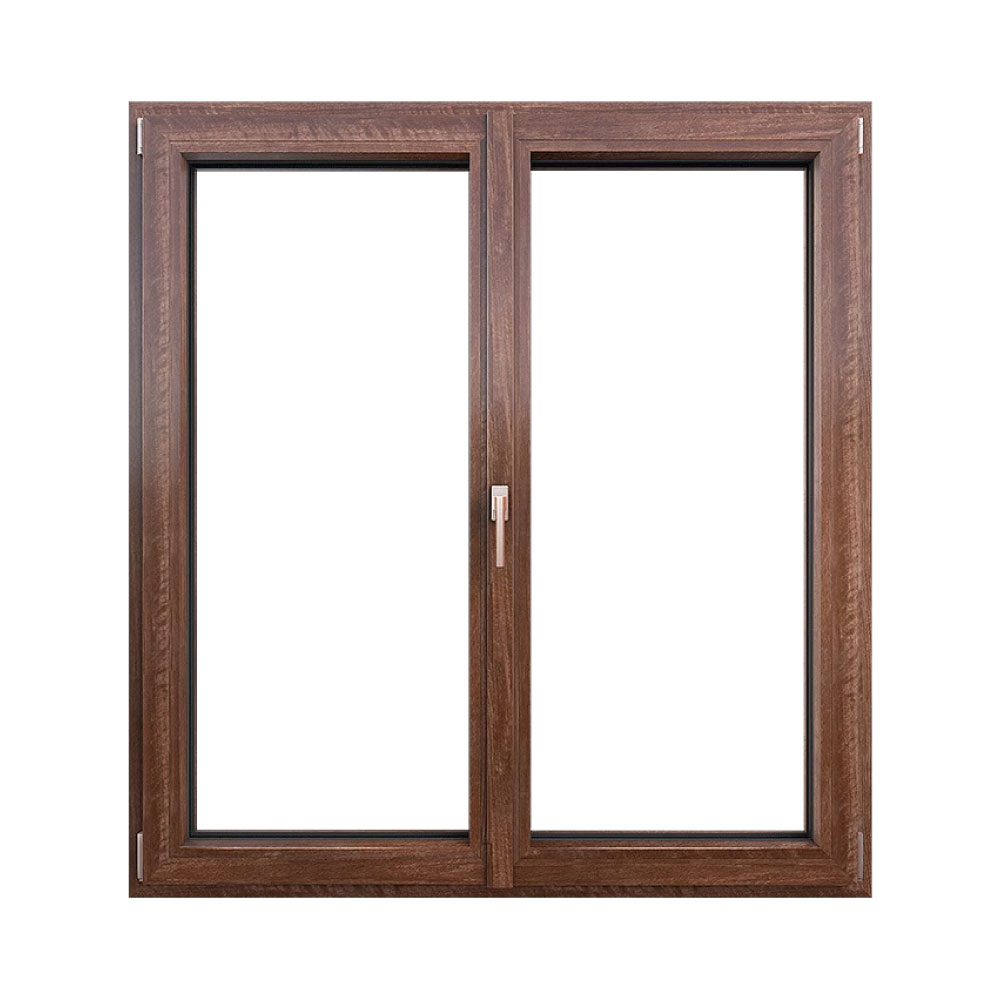

The WINDOWS 75 window and door system is a modern structure equipped with a thermal barrier guaranteeing visual weightlessness of the structure and maximum use of glazing. Used in exterior architectural elements of buildings requiring high thermal and acoustic insulation.

Application and functionality

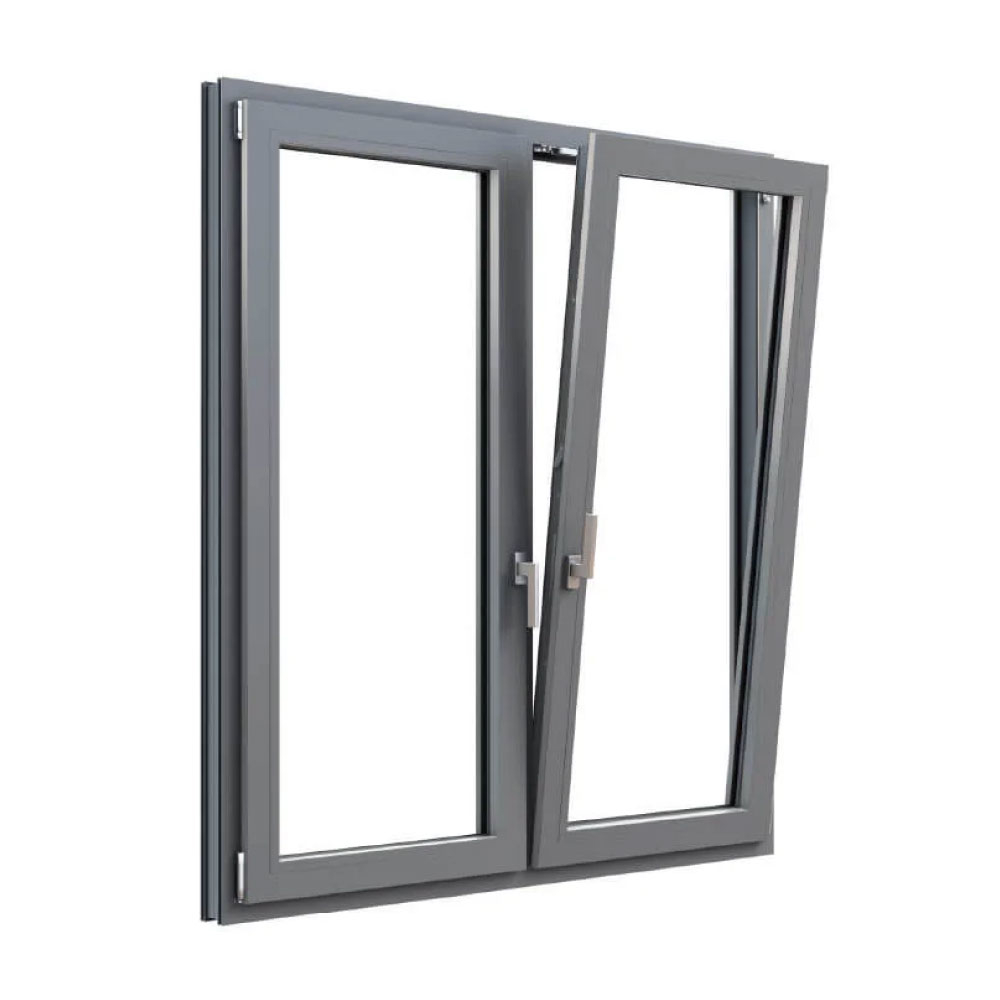

• Fixed or inward opening windows: Turn-Only, Tilt&Turn, Tilt&Slide

• single or double leaf doors, opening outwards or inwards

• optional bending of profiles and installation of arched windows

• windows and doors with anti-burglary hardware

• optional dual colored structures: the profiles can feature different colors on the interior and exterior

• installed separately or in aluminum facades

• optional use of closure sensors – reed switches

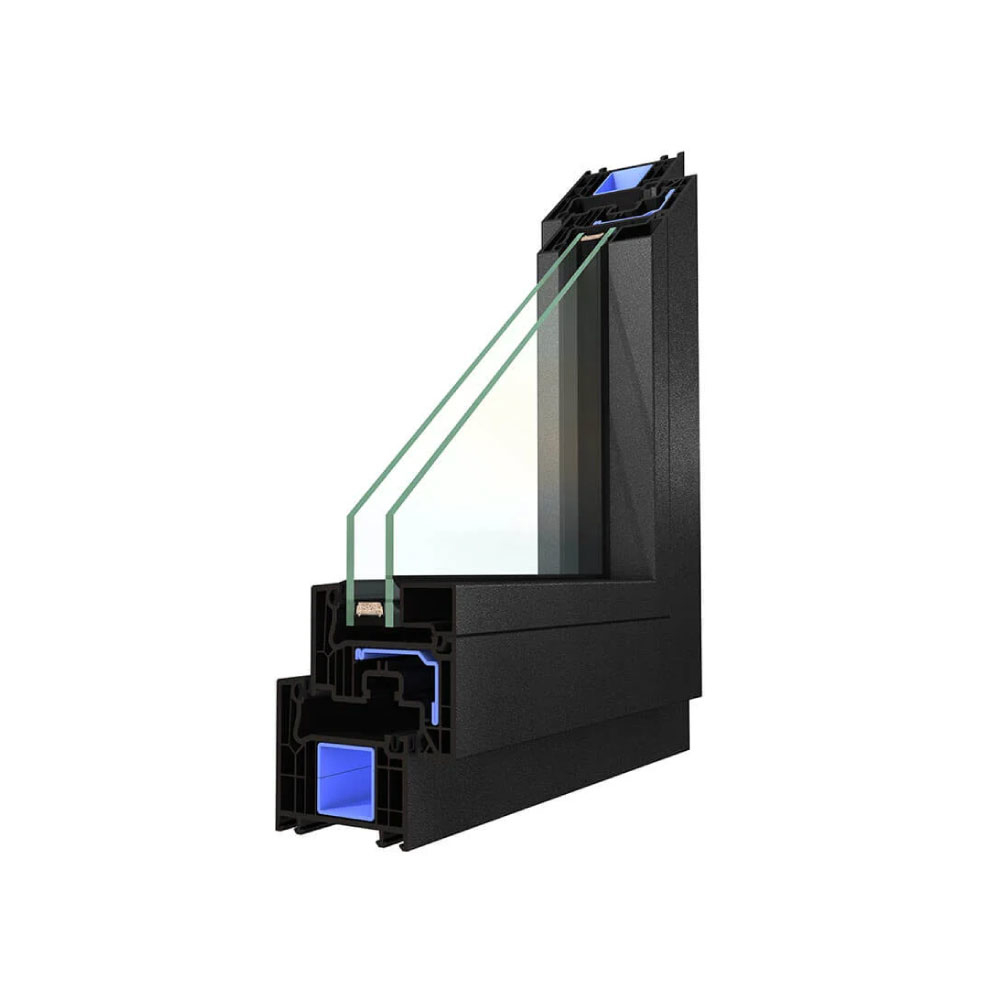

Structure

• 3-chamber sections with a depth of: 2,95 inch (window and door frame, door leaf), 3,3 inch (window sash)

• specially shaped 1,33 inch wide thermal barrier (windows)

• additional thermal insulation inserts (optional)

Dimensions

• max. sash width: 62.99 inch

• max. sash height 102.36 inch

• max. sash weight 440 lb

Glazing

• filling thickness between 0.55 inch and 2.75 inch for opening windows and 0.55 inch – 2.40 inch for fixed doors and windows

COLORS OF WINDOWS, PATIO DOORS AND FAÇADES

Ornamental glass allows light to enter the interior of the room, increasing the heat and depth of its functions while maintaining privacy. Sun blocking glass reduces the permeability of solar energy, thus reducing overheating of interiors and providing a comfortable living environment.

SWAMP OAK	GRAU GRUNGE	GRUNGE ARTICO	MAHOGANY	NUT BROWN	PUNTO GRUNGE
RAL 9007	RAL 7016	RAL 9005	RAL 9006	RAL 9016	RAL 8017
SIENA PL	SIENA ROSSO	WINCHESTER	GOLDEN OAK

Handles

Pixel

The Pixel handle has a square shape which emphasizes the simple and elegant profile of the window. In addition, it gives the window a modern character, matching both minimalist interiors as well as more sophisticated arrangements.

LIGHT GOLD	GOLD	GRAPHITE	SILVER	BLACK	WHITE

dESIGN+

Made of aluminium, the handles ensure outstanding durability, and their elegant design and ergonomic shapes are the pride of every window. dESIGN+ Handle in a modern shape in accordance with the popular minimalist trend, designed in cooperation with the KISKA design studio, available only in the OKNOPLAST Group.

LIGHT GOLD	GOLD	SILVER	BROWN	WHITE
LIGHT GOLD	GOLD	SILVER	BROWN	WHITE

Aluminum Accessories

An advantage of our products is their excellent strength. They are not damaged by UV rays or moisture, and do not rust or deform. They are also weatherproof and maintenance is simple.

ACCESSORIES – FRONT DOORS

SEALED GLASS UNIT

A sealed glass unit is installed between aluminum sheets and sealed with silicone. The elements are made of stainless steel and placed in special sockets milled in sheet metal.

Panel cross-section with a triple glazed sealed unity for double-sided cladding.	Panel cross-section with a double glazed sealed unit for single-sided cladding.	When you order filling with a double-clad panel, what you get is a triple glazed sealed unit.



SIDELIGHTS

Sidelights with decorative sandblasted glass produce an eye-catching effect. The design on the glass can be customized (sandblasting).

NB7	NB6	NB5	NB4	NB3	NB2	NB1





PULL HANDLES

P10 600 mm 800 mm 1000 mm 1200 mm 1400 mm 1600 mm 1800 mm 2000 mm 2200 mm	P10B 600 mm 1400 mm	P45 600 mm 800 mm 1000 mm 1200 mm 1400 mm 1600 mm 1800 mm	P45B 600 mm 1400 mm	P5 600 mm 800 mm	P60 600 mm 800 mm
P8 600 mm 800 mm	PD45 600 mm 1000 mm 1600 mm	Q10* 600 mm 800 mm 1000 mm 1200 mm 1400 mm 1600 mm 1800 mm 2000 mm 2200 mm	Q45* 600 mm 800 mm	Q90 600 mm 800 mm



 WELL-CONSIDERED SECURITY

A coding process with the highest degree of security is implemented as a standard in order to completely eliminate any risk of manipulation. The risk of unauthorized manipulation is eliminated by completely enclosing the access control elements in the door.



1. Bluetooth reader, fingerprint reader, numeric keypad. 2. Electric drive with Securyespagnolettey. 3. Cable gland. 4. Electrical installation. 5. Black box/ logical installation. 6. Porter button (optional). 7. Integration with SMART HOME control panel (optional). 8. Reed switch / Bolt sensor





Fingerprint reader + Bluetooth EKEY Features: Fingerprint access control and optional opening via mobile application within the Bluetooth range. Simple administration of the user base by means of a mobile application. Temporary deactivation of selected users. Daily input function activated via an application (recommended door closer). Adjustable reader backlight. Faced with the panel surface. Memory for 99 fingers. Dimensions: 25×52 mm.	Numeric keypad Features: Access control by means of a 4-6 digit code. Available with two relays (e.g. gate opening) or a control panel output. Any attempted unauthorized access activates the locking mechanism. Dimensions: 45×75 mm.	Fingerprint reader Features: Fingerprint access control. Administration with remote control or the administrator’s fingerprint. Available with two relays (e.g. second finger door open function) or a control panel output. Memory for 150 fingers. Dimensions: 45×75 mm.



RFID reader Features: Access control using a key fob or card close to the reader. Simple configuration with a MASTER key fob. Master key fob and 1 user key fob included. Memory for up to 150 key fobs, cards or users Dimensions: 45x75mm.	Blue&Code Reader Features: Access control using a 4-10 digit code or a mobile application. Supports up to 6 phones and 18 user codes. Housing made of tempered glass. Just enter the first 2 digits of the code on your phone. Functional control also via the application. Modifiable Bluetooth coverage. Dimensions: 45×91 mm.	Sorex Blue Code Reader Features: Access control using a 4-10 digit code or a mobile application. Functional control also via the application. Modifiable Bluetooth coverage. Just press OK on your phone to open the door. Adjustable reader backlight. Housing made of tempered glass. Dimensions: 46×92 mm.

Elements made of high-quality stainless steel resistant to even the most adverse weather conditions are faced with the surface of the panel, which makes it easier to keep them clean. They also improve the appearance of your house and the safety of the household members, as they solve the problem of sharp edges*. * Three-dimensional elements in selected models	Stainless steel plinth protection If you want to protect your door against mechanical damage, you can also have the stainless steel plinth protection installed in one of the three available variants.	Hidden door closer The hidden door closer provides both functionality and remarkable aesthetic. It is completely concealed in the leaf plate – only the sliding rail is visible when the door is open. The hidden door closer with infinitely variable adjustment of the hold-open device position from 80 to 120 degrees is fitted as standard.	Overhead door closer with guide rail The door closer with a visually-pleasing flat bar is mounted on the door leaf and door jamb. Available in 3 colors (white / silver / bronze). The door will always close properly, and the extensive adjustment ensures adaptation to the conditions.

Door handle Optional elegant handle with a divided backplate and a door rosette.	Door jammer This door jammer allows you to crack the door open. The door will open completely only when you turn the knob once more.	Pull handle with touch sensor / Pull handle with push button A touch sensor / handle button in combination with an electric lock in Securyespagnolettes ensure comfortable operation: doors can open freely when the pull handle is touched. When the door is closed manually or with a door closer, it is locked again.	Threshold substructure and door jamb extension For an additional charge, you can order retrofitting of the threshold substructure and door jamb extension to ensure a stable and sealed door installation.

Concealed hinges Adjustable in three planes, the hinges are the most exclusive solution to increase the aesthetic qualities of your door. They hide the fittings from view both on the outside and on the inside.	JANUS cylinder The cylinder is equipped with multi-faceted latches, which in combination with anti-drilling protection and protection against copying of the key is the highest class barrier against unauthorized attempts to open the door. It has a symmetrical key which can be inserted both ways. The cylinder is double-sided and allows the door to be opened even if the key has been left in the lock on the other side. Optional standardization of cylinders – when ordering several doors, you can get one key for all locks.	Dog bolts Mounted on the hinge side, they effectively prevent the door from being forced in. They are by far the cheapest way to increase security.
