OVERVIEW
Thermal Efficiency
Uw* |
0,96 W/m2K |
U factor* |
0,17 Btu/h·ft²·F |

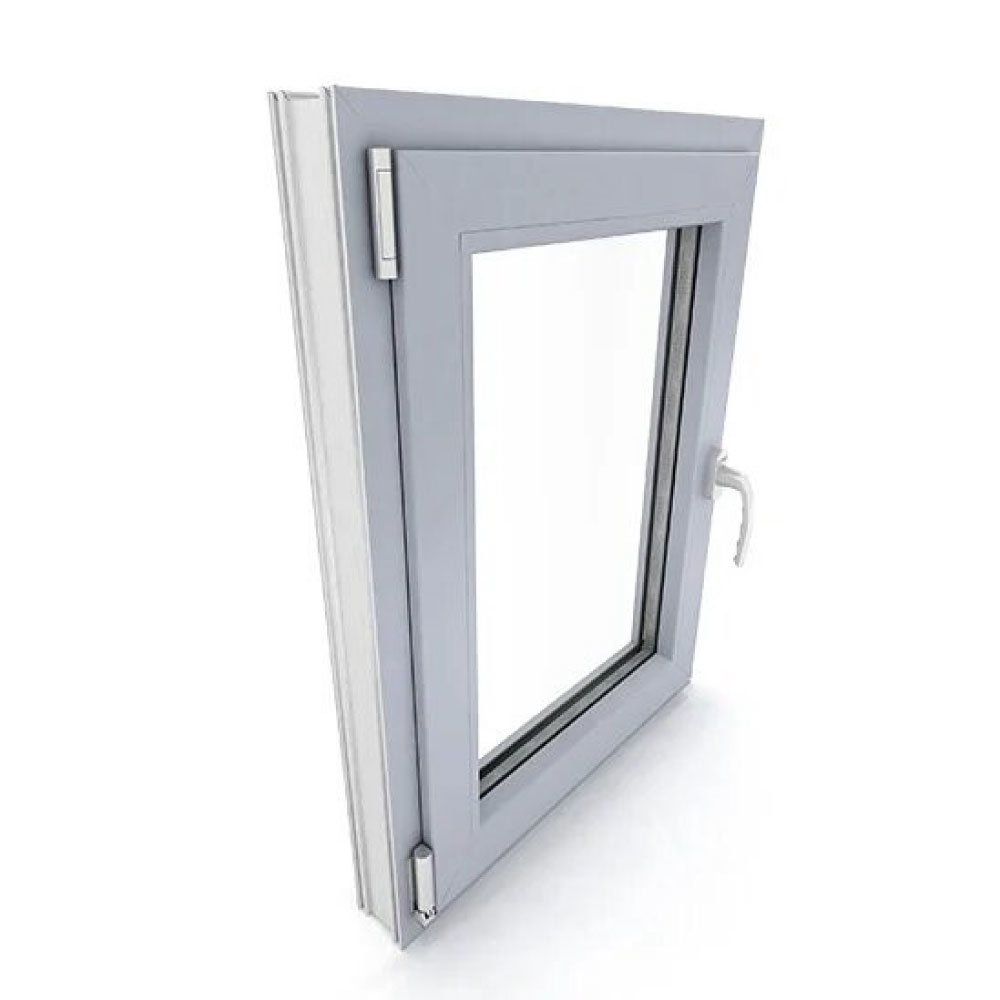

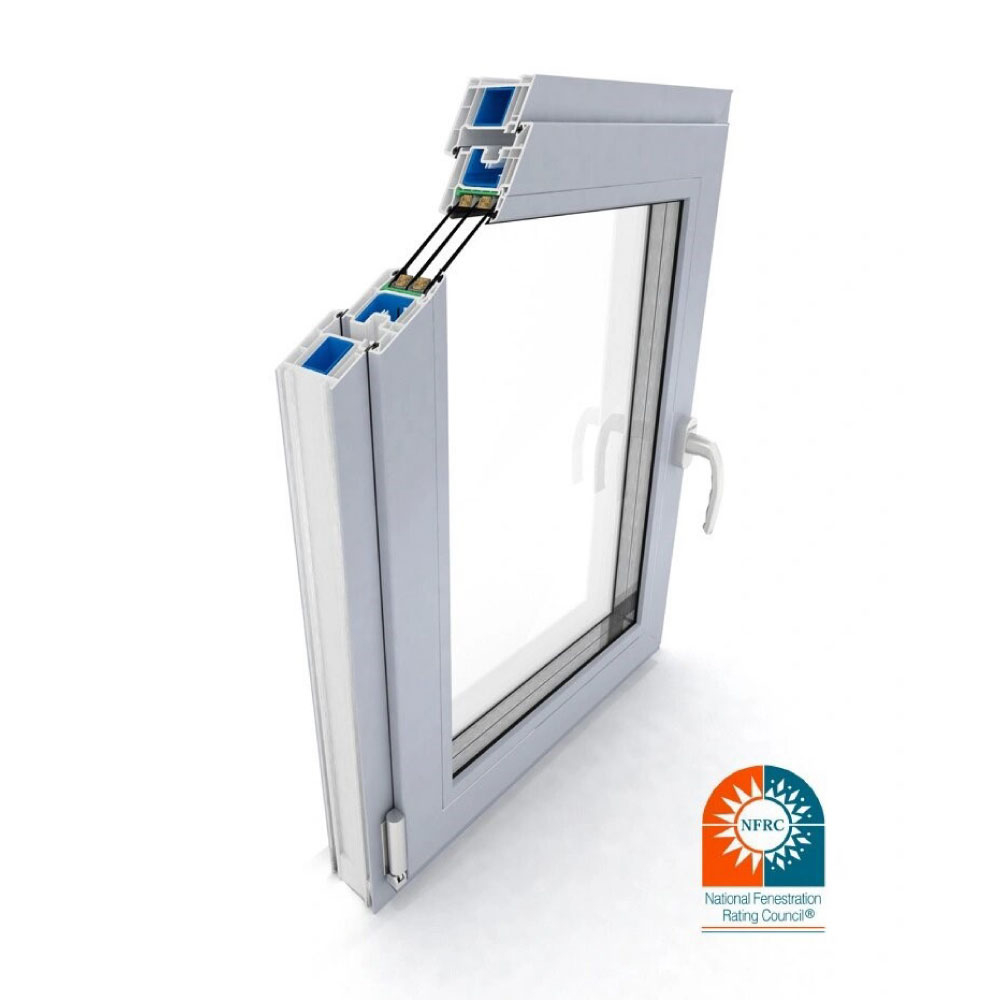

Profile
Profile name |
BVC-70 |
Installation depth |
70 mm |
Number of chambers |
5 |
Thermal break |
none |
Number of seals |
2 |
Dimensions
Maximum window width – single sash |
1500 mm |
Maximum window height – single sash |
2575 mm |
Maximum window width - double sash with a movable post |
2080 mm |
Maximum window height – double sash with a movable post |
2400 mm |
Maximum sash area |
2,25 m2 |
Maximum size of fixed glazing (when using a special glass, Maximum area of 7m2 and weight of 250 kg) |
3500 x 2900 mm lub 2900 x 3500 mm |

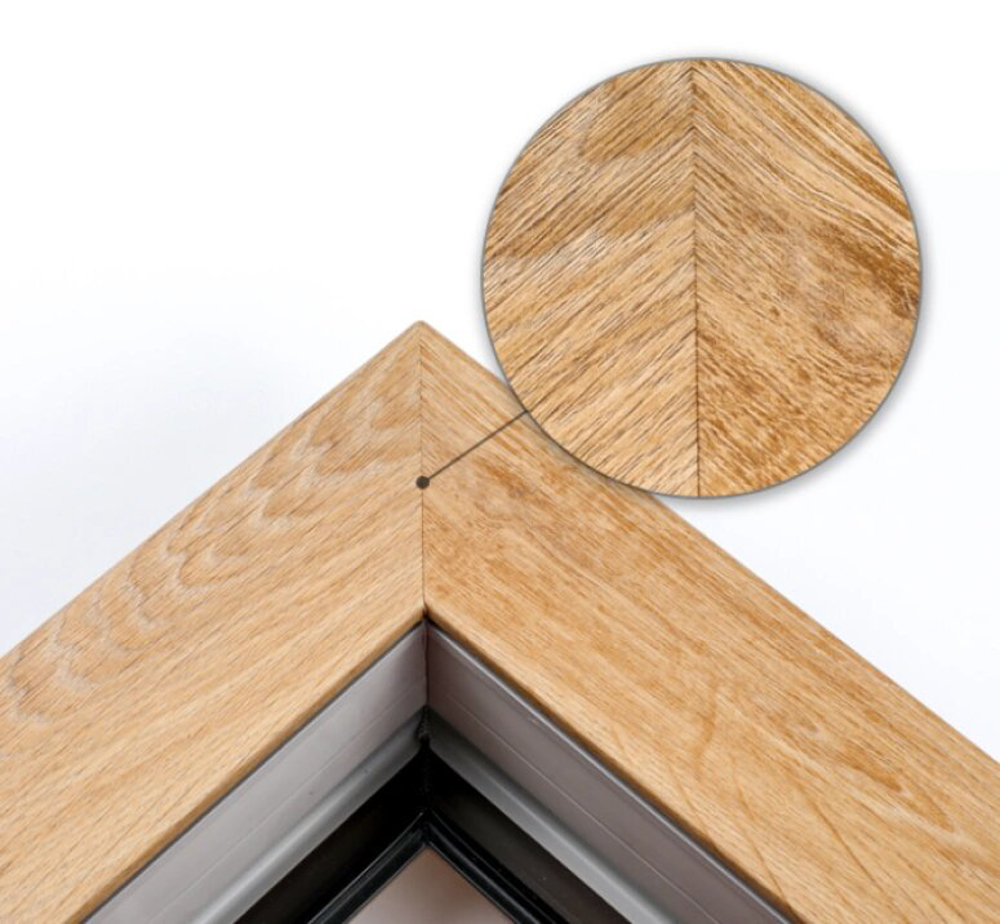

Available Colors
![](/uploads/BVQ-82 termosecure Window/Anthracite (3).jpeg) |
![](/uploads/BVQ-82 termosecure Window/Dark gray (2).jpeg) |
![](/uploads/BVQ-82 termosecure Window/Golden oak (2).jpeg) |
![](/uploads/BVQ-82 termosecure Window/Nut (1).jpeg) |
![](/uploads/BVQ-82 termosecure Window/Swamp oak (2).jpeg) |
![](/uploads/BVQ-82 termosecure Window/Winchester (5).jpeg) |
![](/uploads/BVQ-82 termosecure Window/Woodec oak (1).jpeg) |
Anthracite |
Dark grey silk |
Golden oak |
Nut |
Swamp oak |
Winchester |
Wooden oak |
AVAILABLE HANDLES
Hoppe SecuForte Hamburg
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe-SecuForte-Hamburg-Bialy.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe-SecuForte-Hamburg-Braz-8707.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe-SecuForte-Hamburg-Czarny-mat.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe-SecuForte-Hamburg-Srebrny-F1.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe-SecuForte-Hamburg-Stal-szlachetna.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe-SecuForte-Hamburg-Stare-zloto-F4.jpg) |
White |
Brown |
Black |
Silver matte |
Titanium |
Old Gold |
Hoppe Secustik Luksemburg
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/secuistik/Hoppe-Secustik-Luxembourg-Bialy.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/secuistik/Hoppe-Secustik-Luxembourg-Braz-8707.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/secuistik/Hoppe-Secustik-Luxembourg-Srebrny-F1.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/secuistik/Hoppe-Secustik-Luxembourg-Stare-zloto-F4 (1).jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/secuistik/Hoppe-Secustik-Luxembourg-Tytan-F9.jpg) |
White |
Brown |
Silver Matt |
Old Gold |
Titanium |

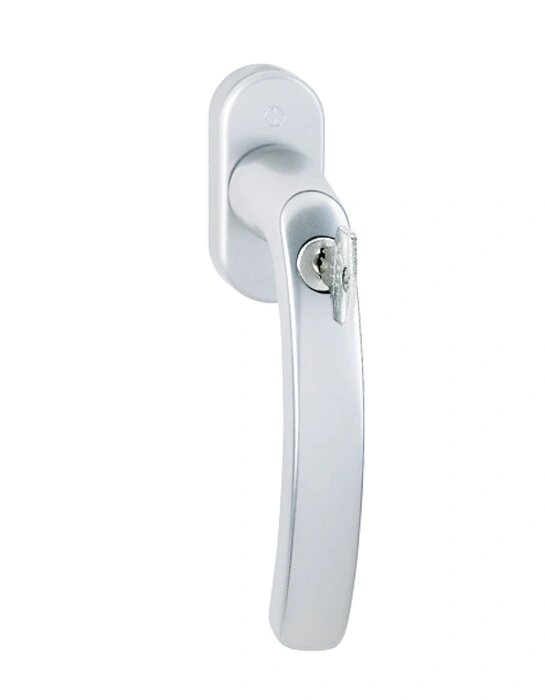

Hoppe Secustik Luksemburg with key
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/Hoppe Secustik Luksemburg with key Handles/hoppe-secustik-luxembourg-z-kluczykiem (1).jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/Hoppe Secustik Luksemburg with key Handles/Hoppe-Secustik-Luxembourg-z-kluczykiem-Bialy.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/Hoppe Secustik Luksemburg with key Handles/Hoppe-Secustik-Luxembourg-z-kluczykiem-Braz-8707.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/Hoppe Secustik Luksemburg with key Handles/Hoppe-Secustik-Luxembourg-z-kluczykiem-Srebrny-F1.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/Hoppe Secustik Luksemburg with key Handles/Hoppe-Secustik-Luxembourg-z-kluczykiem-Stare-zloto-F4.jpg) |
Stainless Steel |
White |
Brown |
Silver Matt |
Old Gold |
Hoppe Secustik New York
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/secuistik/new york handles/Hoppe-Secustik-New-York-Bialy.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/secuistik/new york handles/Hoppe-Secustik-New-York-Braz-8707.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/secuistik/new york handles/Hoppe-Secustik-New-York-Srebrny-F1.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/secuistik/new york handles/Hoppe-Secustik-New-York-Stare-zloto-F4.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/secuistik/new york handles/Hoppe-Secustik-New-York-Tytan-F9.jpg) |
White |
Brown |
Silver Matte |
Old Gold |
Titanium |

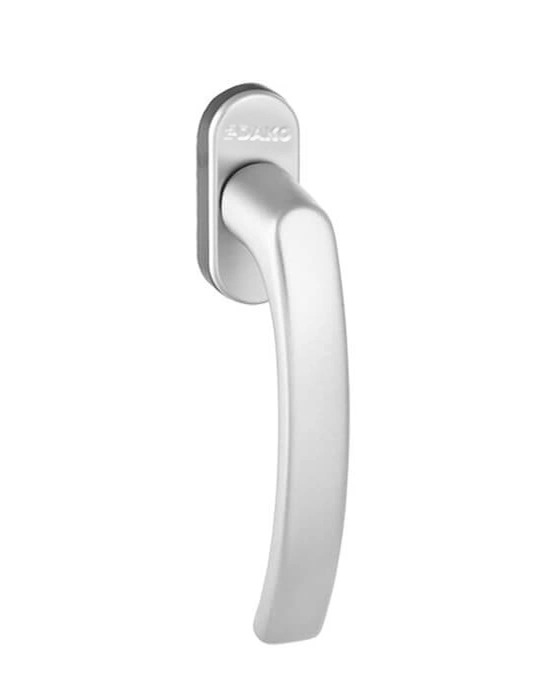

Model 1006
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/secuistik/new york handles/1006/1006-2.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/secuistik/new york handles/1006/1006_bialy_m2.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/secuistik/new york handles/1006/1006_Braz-8077_m.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/secuistik/new york handles/1006/1006_Ciemnoszary_m.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/secuistik/new york handles/1006/1006_Czarny-mat_m.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/secuistik/new york handles/1006/1006_Srebrny-F1_m.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/secuistik/new york handles/1006/1006_Stare-zloto-F4_m.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/secuistik/new york handles/1006/1006_Tytan-F9_m.jpg) |
Stainless Steel |
White |
Brown |
Titanium |
Black |
Silver Matte |
Gold |
Antracite Grey |

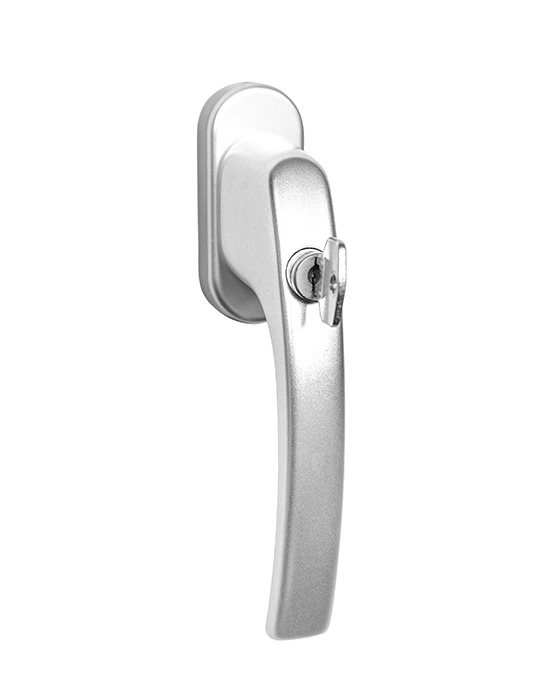

Model 1006A with key

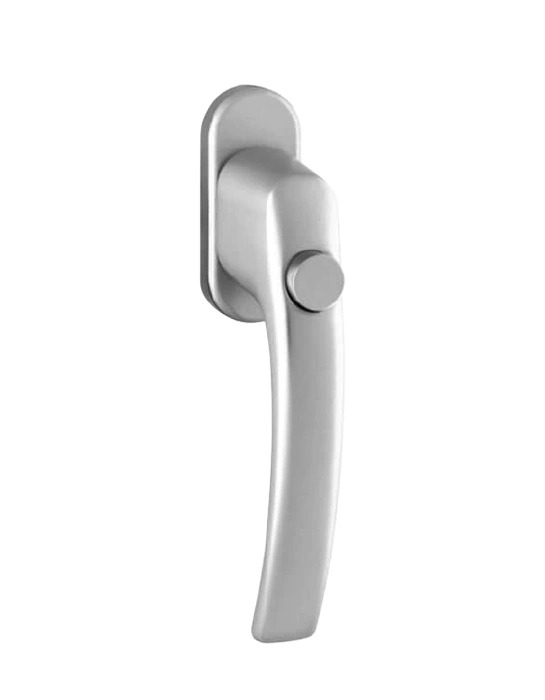

Model 1006D with button
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/Luxemburg handles new/model 1006/1006A with key/1006D with bottom/1006D-z-przyciskiem-Bialy.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/Luxemburg handles new/model 1006/1006A with key/1006D with bottom/1006D-z-przyciskiem-Braz-8077.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/Luxemburg handles new/model 1006/1006A with key/1006D with bottom/1006D-z-przyciskiem-Ciemnoszary.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/Luxemburg handles new/model 1006/1006A with key/1006D with bottom/1006D-z-przyciskiem-Czarny.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/Luxemburg handles new/model 1006/1006A with key/1006D with bottom/1006D-z-przyciskiem-Srebrny-F1.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/Luxemburg handles new/model 1006/1006A with key/1006D with bottom/1006D-z-przyciskiem-Stare-zloto-F4.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/Luxemburg handles new/model 1006/1006A with key/1006D with bottom/1006D-z-przyciskiem-Tytan-F9.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/Luxemburg handles new/model 1006/1006A with key/1006D with bottom/1006d.jpg) |
White |
Brown |
Anthracite Grey |
Black |
Stainless Steel |
Gold |
Titanium |
Silver Matte |

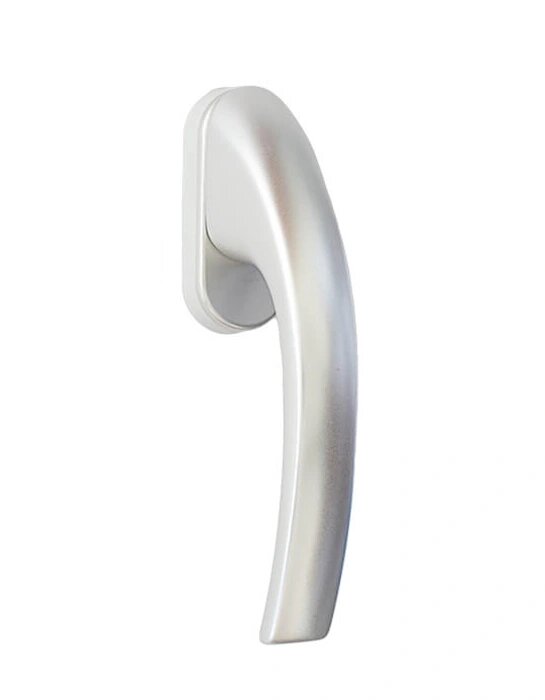

Model 1007
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/Luxemburg handles new/model 1006/1006A with key/1006D with bottom/1007/1007-Bialy.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/Luxemburg handles new/model 1006/1006A with key/1006D with bottom/1007/1007-Braz-8077.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/Luxemburg handles new/model 1006/1006A with key/1006D with bottom/1007/1007-Srebrny-F1.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/Luxemburg handles new/model 1006/1006A with key/1006D with bottom/1007/1007-Stare-zloto-F4.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/Luxemburg handles new/model 1006/1006A with key/1006D with bottom/1007/1007-Tytan-F9.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/Luxemburg handles new/model 1006/1006A with key/1006D with bottom/1007/1007.jpg) |
White |
Brown |
Stainless Steel |
Gold |
Titanium |
Silver Matte |

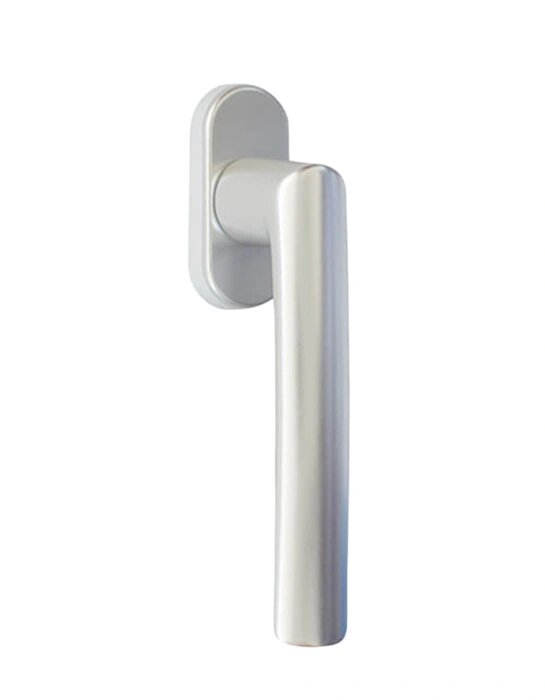

Model 1009
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/Luxemburg handles new/model 1006/1006A with key/1006D with bottom/1007/1009/1007-Stare-zloto-F4.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/Luxemburg handles new/model 1006/1006A with key/1006D with bottom/1007/1009/1009-Bialy.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/Luxemburg handles new/model 1006/1006A with key/1006D with bottom/1007/1009/1009-Braz-8077.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/Luxemburg handles new/model 1006/1006A with key/1006D with bottom/1007/1009/1009-Srebrny-F1.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/Luxemburg handles new/model 1006/1006A with key/1006D with bottom/1007/1009/1009-Tytan-F9.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/Luxemburg handles new/model 1006/1006A with key/1006D with bottom/1007/1009/1009.jpg) |
Gold |
White |
Brown |
Stainless Steel |
Titanium |
Silver Matte |

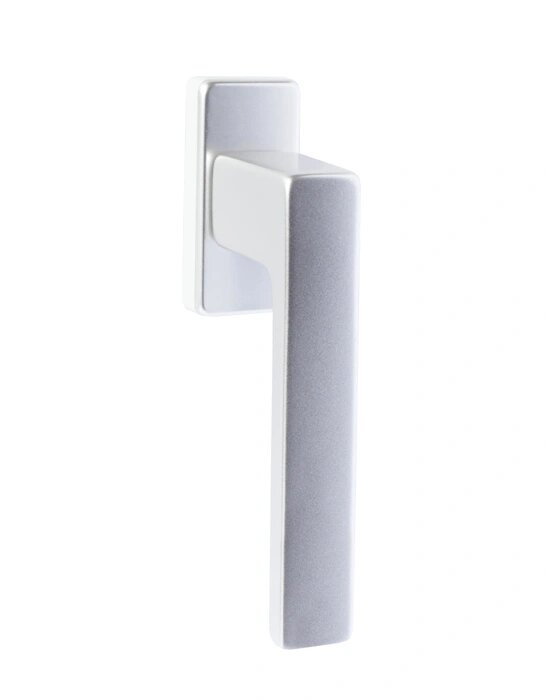

Model 1033
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/Luxemburg handles new/model 1006/1006A with key/1006D with bottom/1007/1009/1033/1033-Bialy.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/Luxemburg handles new/model 1006/1006A with key/1006D with bottom/1007/1009/1033/1033-Braz-8077.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/Luxemburg handles new/model 1006/1006A with key/1006D with bottom/1007/1009/1033/1033-Srebrny-F1.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/Luxemburg handles new/model 1006/1006A with key/1006D with bottom/1007/1009/1033/1033-Stare-zloto-F4.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/Luxemburg handles new/model 1006/1006A with key/1006D with bottom/1007/1009/1033/1033-Tytan-F9.jpg) |
![](/uploads/BVQ-82 termosecure Window/Hoppe SecuForte Hamburg Handles/Hoppe Secustik Luksemburg Handles/Luxemburg handles new/model 1006/1006A with key/1006D with bottom/1007/1009/1033/1033.jpg) |
White |
Brown |
Stainless Steel |
Gold |
Titanium |
Silver Matte |
Fittings
Standard plus fitting
• The STANDARD PLUS fitting is equipped with two anti-burglary catches in each sash.
• In Tilt and Turnsashes one of the catches is a unique anti-burglary lock with double locking, available at DAKO only.
• Additionally, the fitting features a handle rotation lock with a lifter.
Invisible hinges
• When the sash is closed the hinges are invisible what gives the windows exceptionally elegant appearance and facilitates keeping the windows clean.
• A great advantage of the fittings is an easy regulation without using the tools.
'Comfort' fitting
• The system enables the sash from the frame at a distance of 6 mm to be disengaged what ensures efficient ventilation without cooling the interior suddenly.
• During ventilation the fitting has an increased level of protection against burglary and the vertical position of the handle does not show that the window is unsealed.
• The sash maintains a stable position under wind pressure and the slot dimensions allow the interior to be ventilated during the rain.
The 'tilt first' option
• The FIRST TILT option, in which positioning the handle horizontally tilts the window, and full opening requires setting the handle in a vertical position.
• In combination with the TBT handle it allows to limit the possibility of opening the sash.
• Without using the key, they can only be tilted, which eliminates the risk of falling out.
Glass panes
Glazing is a very important element of windows affecting, among other things, their thermal efficiency and the amount of solar energy entering the interior. The increased number of chambers in the glazing package, the lower u-value of the glass and the noble gas in the inter-pane space improve thermal insulation.

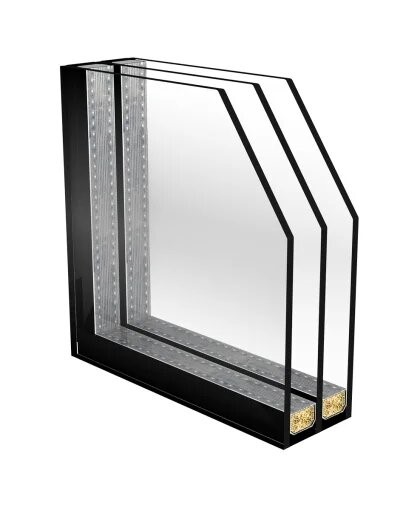

Thermal Insulation
4 mm or 6 mm thick glass panes in single or double glazing packages, equipped with a standard inter-pane spacer - from the standard aluminum, to energy-efficient spacers
• Good thermal insulation parameters
• The most popular choice of investors
Safety
Laminated or tempered safety glass
• maximum safety
• certified solutions
Protection against the sun
Transparent sun protection glass SUNCOOL 70/35
• reflects short-wave radiation emitted by the sun
• neutral color that lets the sunlight in and reflects the sun's energy
Protection against noise pollution
Glass panes for quiet and peaceful interiors
• increased noise insulation parameters
• a response to the growing demand for protection against noise pollution
More light
Low-emission glass ECLAZ
• increased light transmittance
• high energy-efficiency parameters and transparency
Special glass pannes
Our offer includes a number of solutions with special properties, such as
- Decorative glass panes
- Self-cleaning glass panes
- Frosted glass, opaque glass, enamels
- PrivaLite - glass with variable transparency (electronically controlled)
Opening Sencors
Sensors integrated with the fitting transmit information on window closing or opening to selected systems, activating them according to the user’s expectations.

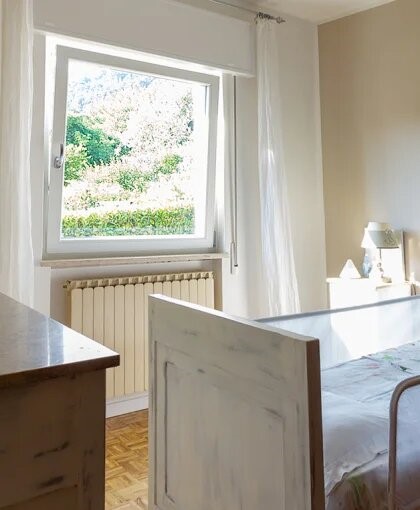

Air-conditioning
Window opening causes automatic deactivation of the air-conditioners and gives savings resulting from limiting inefficient air-conditioning operation.

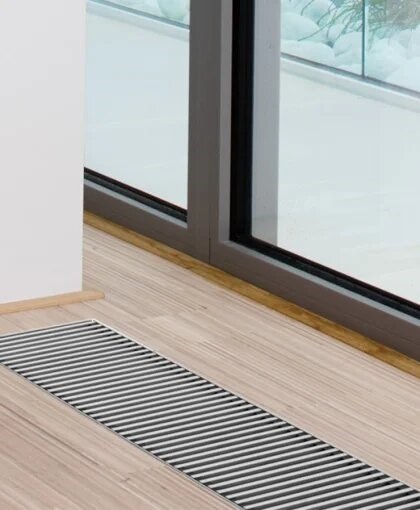

Heating
Sash opening causes deactivation of the heater under the window. Therefore, the costs of inefficient heating can be avoided.

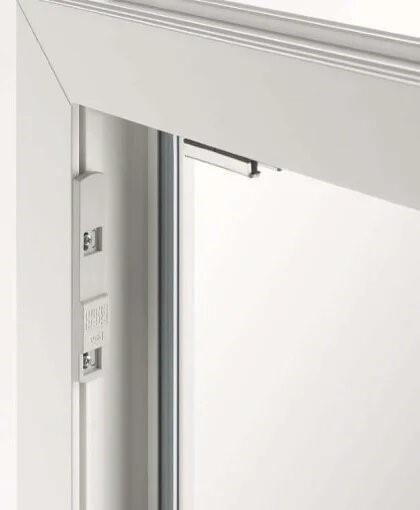

Alarm System
Information on the window status is transmitted to the alarm system, activating an alarm, if needed.
• Three-function sensors distinguish the closed, tilted and opened window so the alarm system can be protected during ventilation.
• Sensors do not react to movement what makes that they can be active when residents and animals are at home.
• Sensors are invisible from outside therefore the burglars cannot prepare themselves for attempting to disarm them.

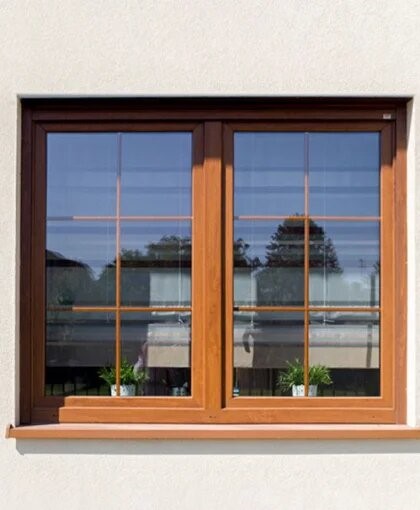

Pane bars and decorative lists
Pane bars are a perfect addition to any window. They can be not only a decoration of stylish windows but also a top element of modern window constructions. Pane bars give the interiors the exceptional ambience and, due them, the building facades acquire the unique character.
Inside pane bars
Inside pane bars are placed in the space between glasses during the production of glass packets. We offer inside pane bars 8, 18, 26, 45 mm wide. They are available in a wide range of RAL colours as well as in a few wood-like shades.
Stick pane bars
Stick pane bars are placed directly on the glass which allows the pane bars to be stuck and exchanged during the window use. We offer stick pane bars 25, 40 mm wide. The colors are available in accordance with DAKO PVC window colors.

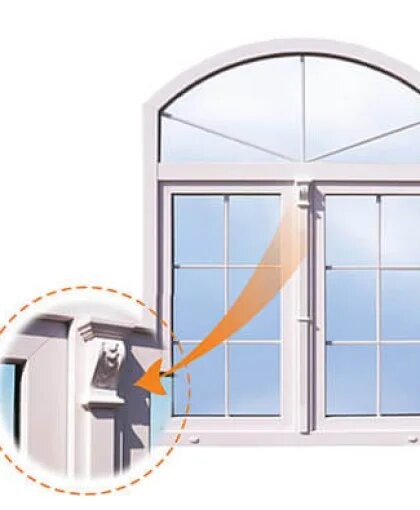

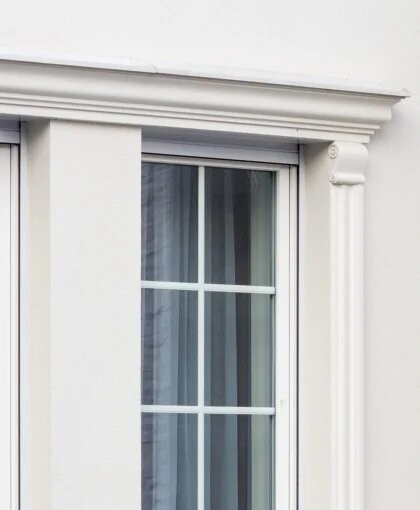

Decorative lists
Decorative lists and caps are the elements which give charm to windows. They are suitable both for historical and single-family buildings. The lists are made of polyester and covered with high quality two-component varnish.
