RB 45 Aluminum Window

By baualu

For pricing information please send a request.

Aluminum systems allow the construction of many different types of windows and doors, depending on the scope of application and the detailed requirements for functionality, aesthetics, thermal insulation, burglary resistance, smoke tightness or fire resistance. They include both structures with no thermal insulation, used to construct internal partitions or balcony enclosures, as well as products based on thermally insulated profiles. Aluminum structures made by the Baualu company enable the construction of many different types of windows and doors, depending on the scope of application and the detailed requirements for functionality, aesthetics, thermal insulation, burglary resistance, smoke tightness or fire resistance. They include both, aluminum constructions with no thermal insulation, used to build internal partitions (RB-45) or balcony enclosures (RB-23P system), as well as solutions based on the thermally insulated profiles (RB-60, RB-70, RB-59S.) A significant part of the aluminum window systems is available in the “HI” version, characterized by special inserts in sections, which reduce their thermal conductivity.

Shipping: Free

est. delivery:

close

Estimate shipping

minus-icon More Details

THE ADVANTAGES OF MODERN ALUMINUM WINDOWS:



  • elegant and aesthetic
  • durable and highly resistant to weather conditions
  • heat-insulating and energy-saving
  • effectively mute noise
  • thanks to narrow profiles, the surface of a glass pane looks bigger



THE RB 45 SYSTEM FEAUTURES:



  • modern design
  • possibility of bending profiles, among others door frames, wings and battens
  • close relation to the RB 60 and RB 70 window and door systems
  • gaskets made of EPDM synthetic rubber
  • advanced technological solutions

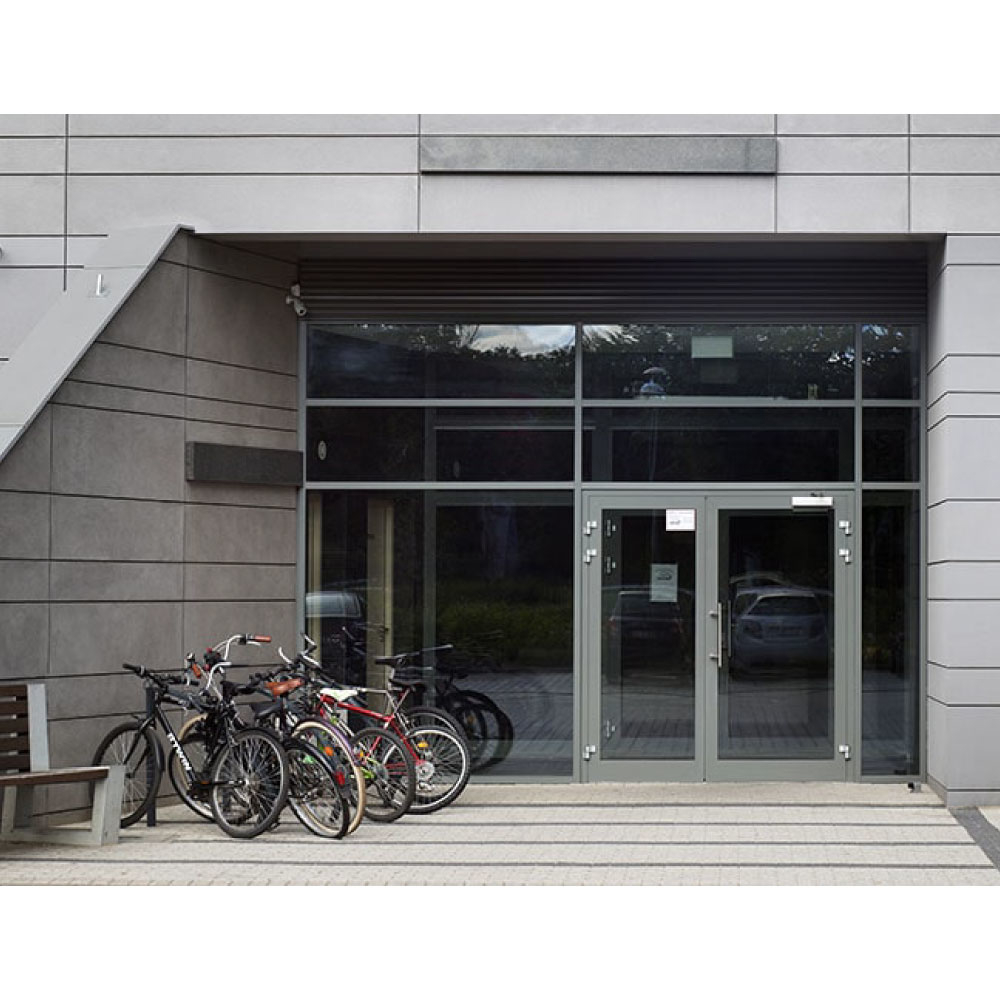

The system is used primarily for construction of the internal elements of a building – various types of partition walls, windows, doors – including sliding, swinging and automatic; vestibules, showcases, cashier boxes, glass cases, etc.

The system can be the basis for special solutions: RB-45D partitions and smoke-tight doors, as well as the so-called “crenelate” RB-45S doors.

It also allows to make doors and external glazing in situations, where thermal insulation of profiles is not required.

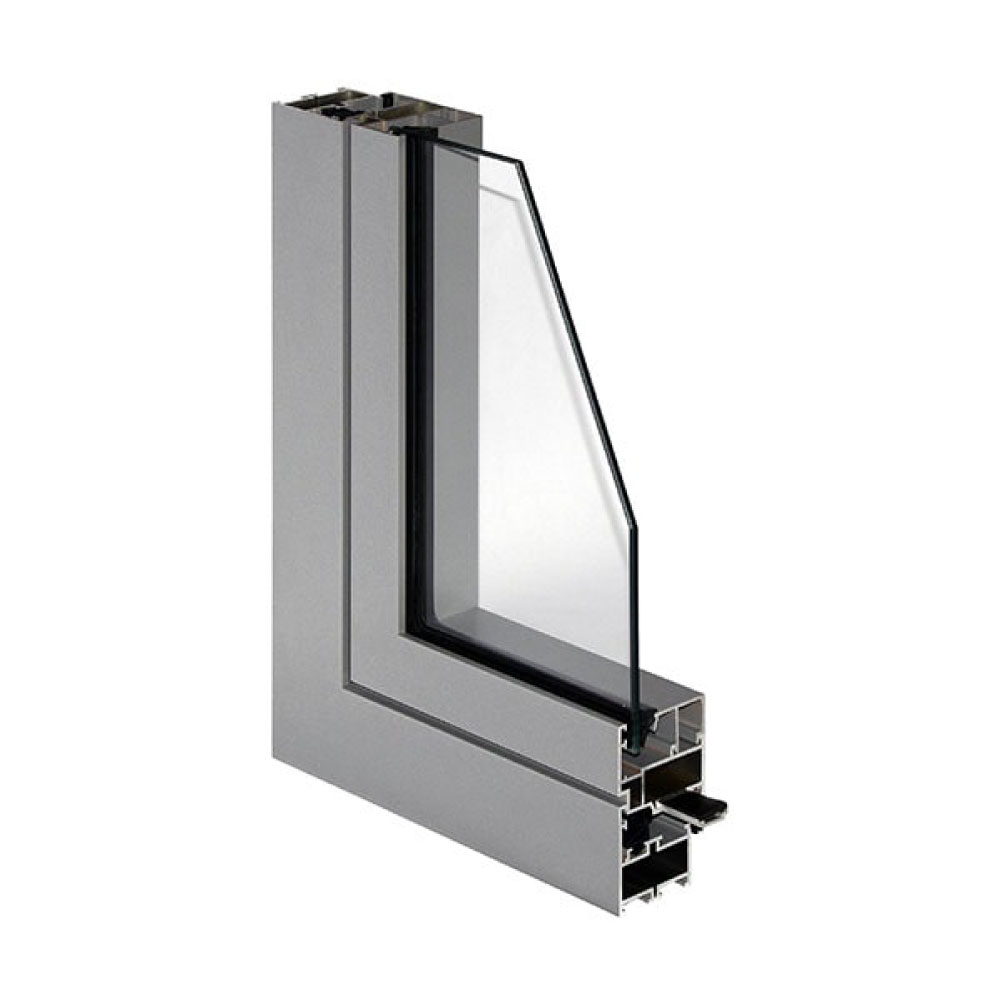

The structural depth of the window sections is: 149⁄64 in (45mm) casing, 21⁄8in (54mm) sash. Such assumed depths of the sash and casing sections give the effect of one plane on the outside (after closing), in the case of windows; and the effect of flush surfaces of the wings and frame, in the case of doors. The shape of the profiles allows for slender and durable window and door structures.

System allows the use of glazing sets thick from 2mm to 35mm in window sashes, and from 2mm to 26mm in fixed windows and door wings.





Window in the RB 45 system may also be available in versions:

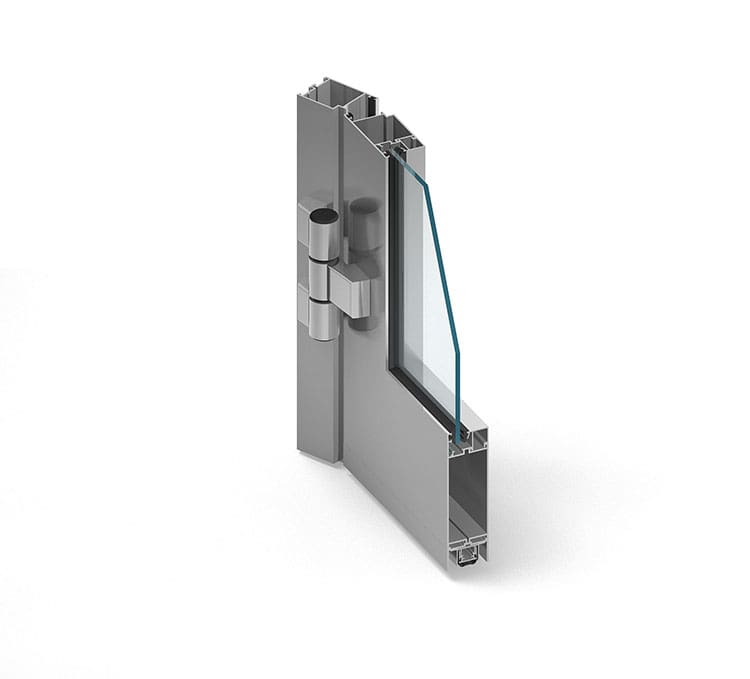

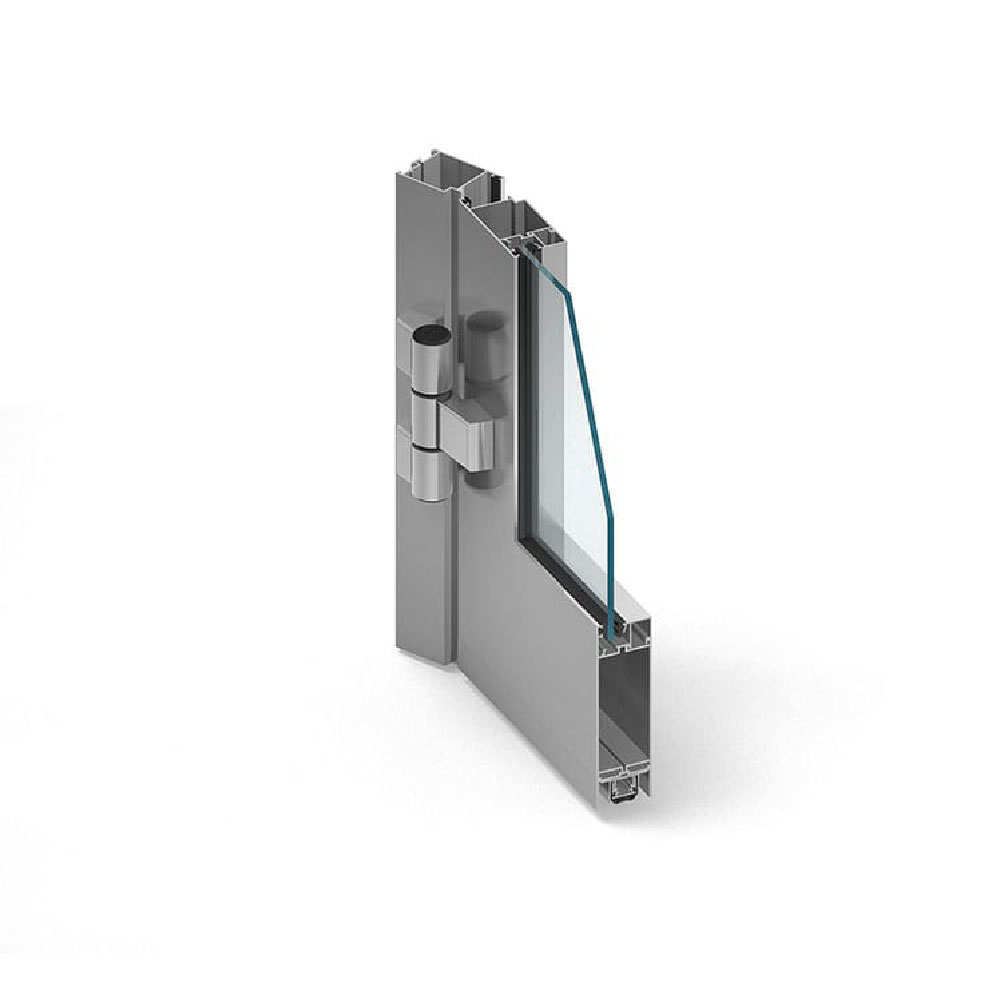

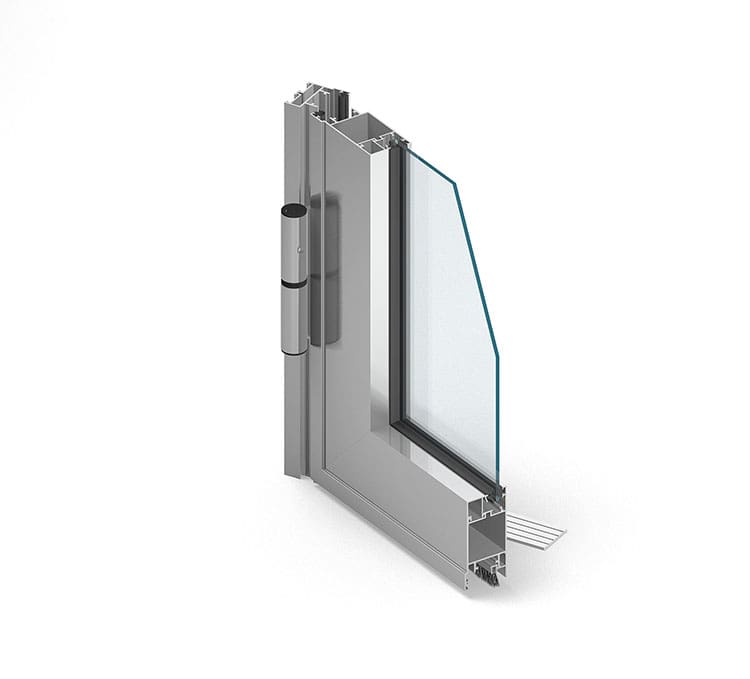

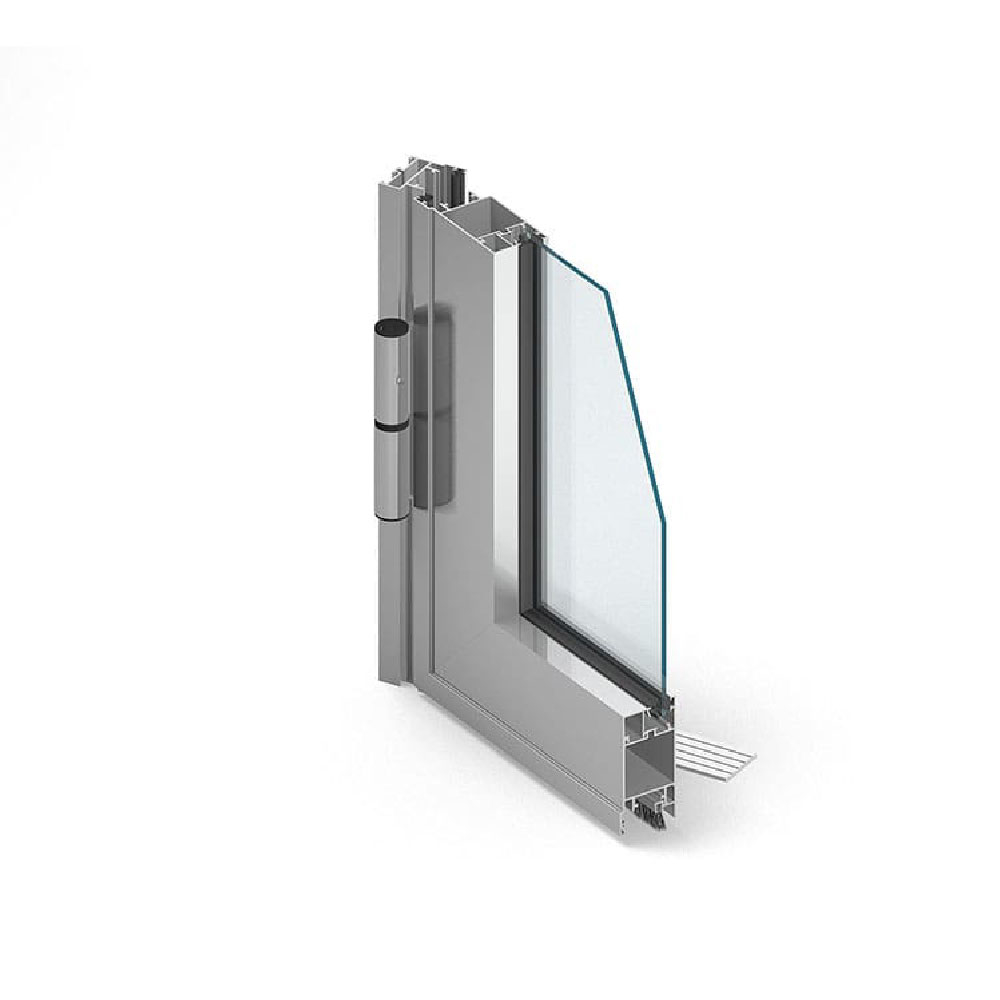

RB 45D system of smoke tight barriers and doors RB 45S system is used to make doors equipped with crenelate fittings and partition walls with doors. It is part of the window and door system.





AVAILABLE COLORS



Choose a color from our rich palette and shape the windows according to your ideas.













Products specifications

Material Aluminum

Products attachments

Catalog Baualu Window Catalogue
