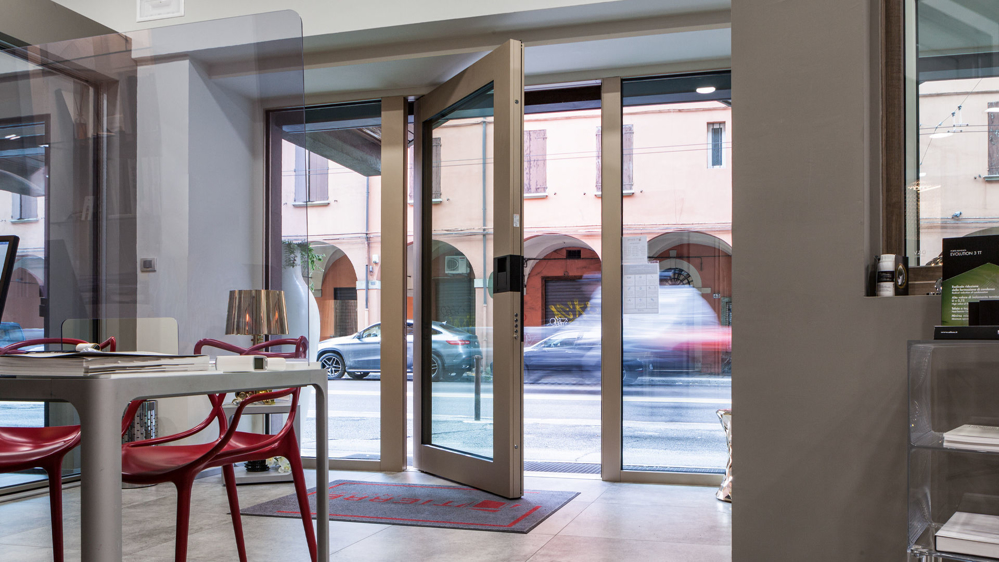

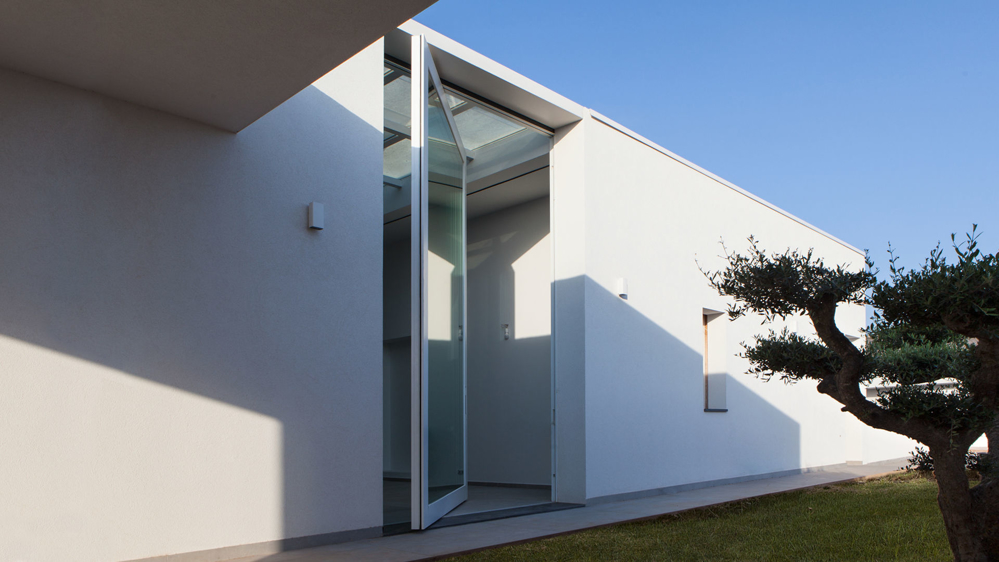

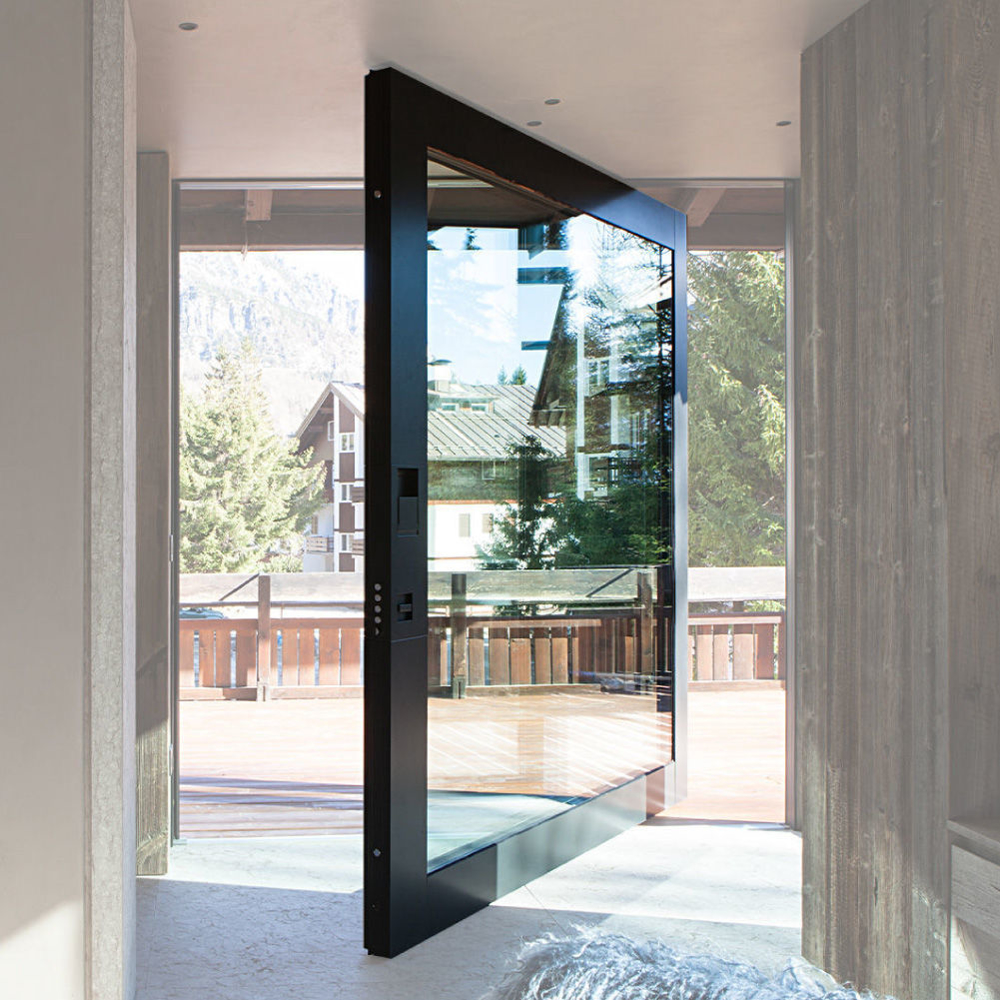

Nova Pivot Safety Door

By baualu

For pricing information please send a request.

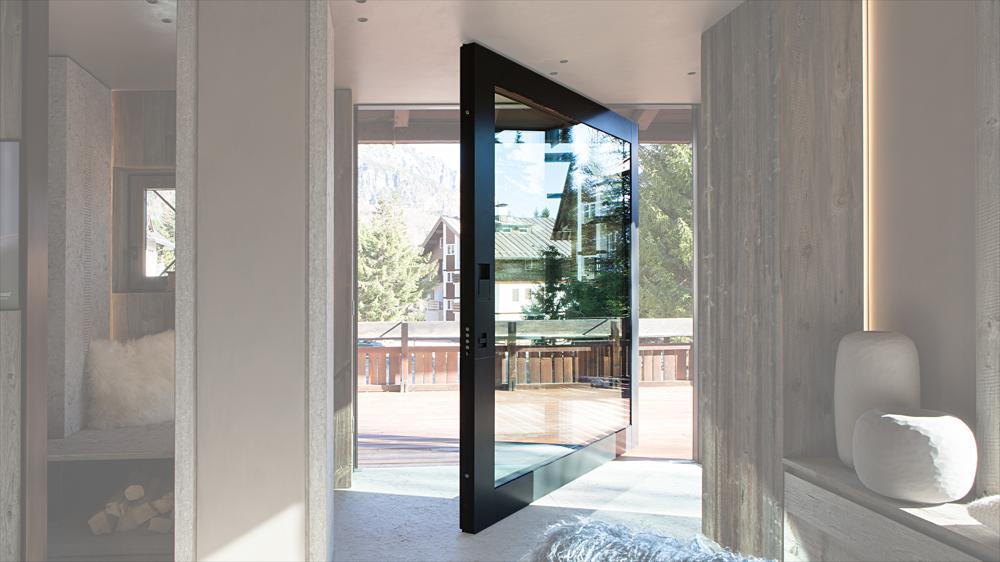

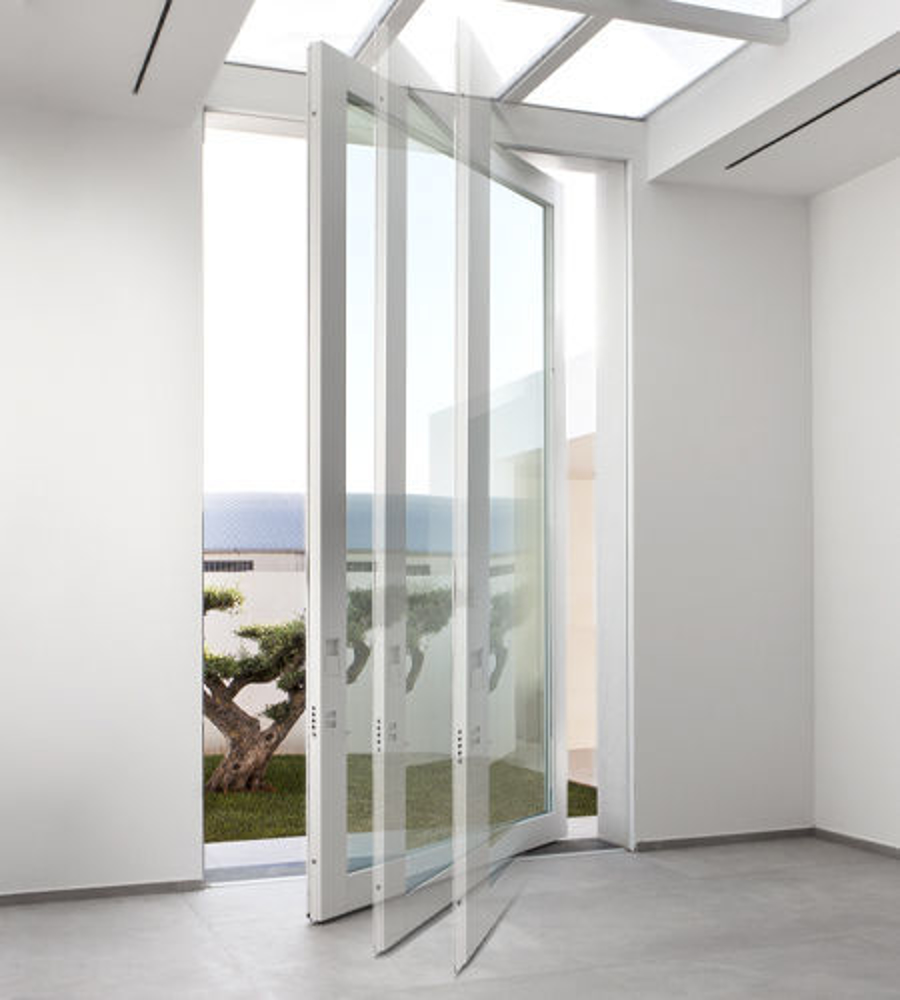

Nova is the pivoting door with glass elements that allows new design possibilities in the entrance area: the close connection between the interior and exterior environment continues, taking the view beyond the threshold and bringing the landscape inside.

Intrinsic meanings, aesthetic possibilities and technical features do coexist in a door that is launched on the market as a sensational revolution, capable of creating innovative scenarios in contemporary architecture.

minus-icon More Details

DETAILS

SPECIFICATIONS

SHAPES

OPTIONAL FEATURES

CATALOGS

VIDEOS



Details



Nova is the pivoting door with glass elements that allows new design possibilities in the entrance area: the close connection between the interior and exterior environment continues, taking the view beyond the threshold and bringing the landscape inside.

Intrinsic meanings, aesthetic possibilities and technical features do coexist in a door that is launched on the market as a sensational revolution, capable of creating innovative scenarios in contemporary architecture.

Pivoting door with glass elements featuring:



  • Freedom of measurement up to 3200x6200mm (other sizes on request)

  • Version with standard supplied heat barrier frame and leaf

  • Motorized electronic lock with integrated Arckey system, access control on request

  • Automatic opening with floor motor for doors weighing up to 560 kg on request

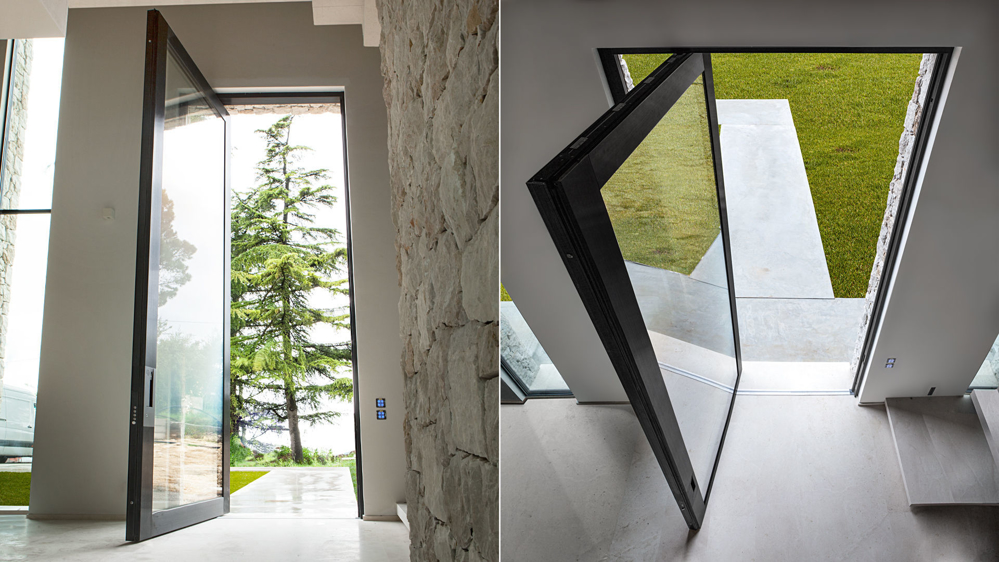

FREEDOM, IN TERMS OF SIZE

Nova allows creating fully glazed out-of-size entrance solutions thanks to the nature of its constructional features: the renewed pivoting opening mechanism and the steel support structure.





AUTOMATIC OPENING WITH FLOOR M0TOR

Electronics components are designed to allow for maximum refinement of movement, conceived mainly for large pivoting doors. Management system configurable with the Oikos Arckey App.



  <

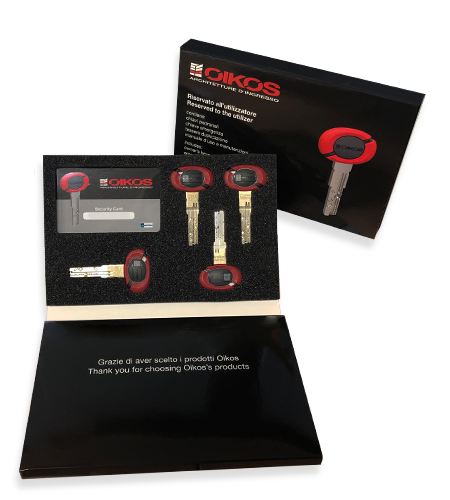

OWNER'S KEY

All Oikos doors are supplied with a building site key to be used for the production checks and by the technical staff entrusted with the installation as well as with the owner's keys, sealed inside a special box.



STANDARD SUPPLIED HEAT BARRIER FRAME AND LEAF

It increases exponentially the thermal insulation performance of the door while keeping the safety features and break-in performance values unchanged.

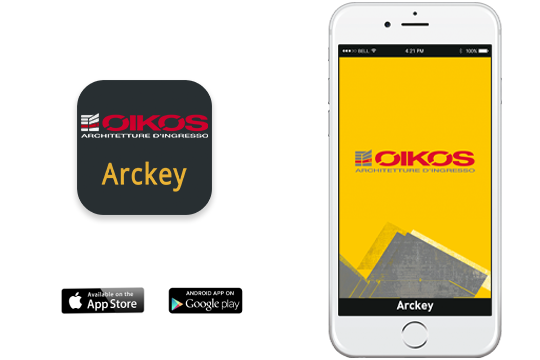

ARCKEY, THE LOCK AT THE SERVICE OF ARCHITECTURE

The Oikos Arckey App is the integrated access management system that allows the electronic opening directly from a smartphone.



ADI DESIGN INDEX

Nova has officially become part of the 2018 ADI Design Index catalog





Specifications





Performance

Standard

Upon request

Break-In Resistance Class 3 -
Thermal 1.6 1.3
Acoustic 38dB -
Air 2 Mose Kit 4
Water 0 Mose Kit 5A
Wind C4 Mose Kit C5
Fire - EI 60 / VKF 60 / EI 120 / UL-FD 120
Hurricaneproof - Hurricaneproof Noa







Shapes

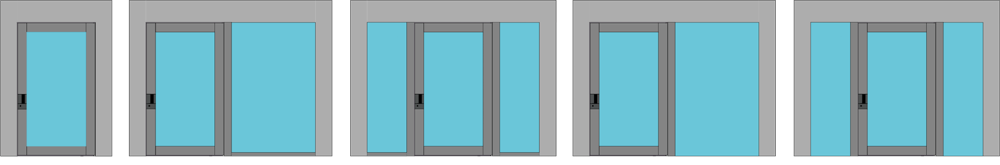

Nova is available in the version with single leaf, single panel, and double side panel (also in the Minimal version)









Optional Features



OPENING TYPES

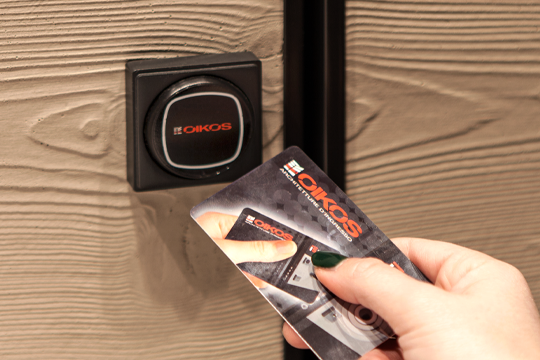

Arckey System   Card Reader
The Oikos Arckey App is the integrated access management system that allows the electronic opening directly from a smartphone.   The Arckey system foresees, as a complementary system to the door opening, the use of the Oikos Card to be placed directly next to the leaf.

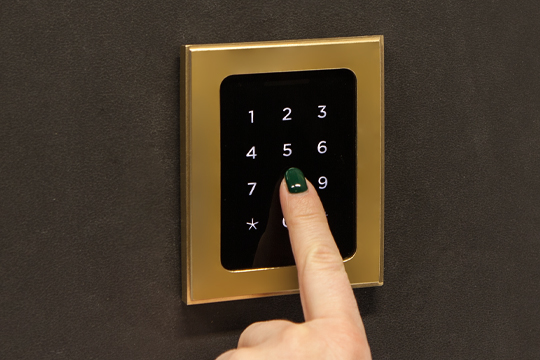

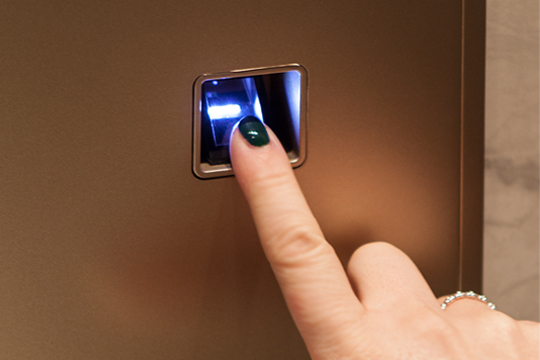

Touchpad   Fingerprint Reader
The leaf opening can take place by entering a code on a touch screen support.   Opening the entrance can be done simply through fingerprint recognition.

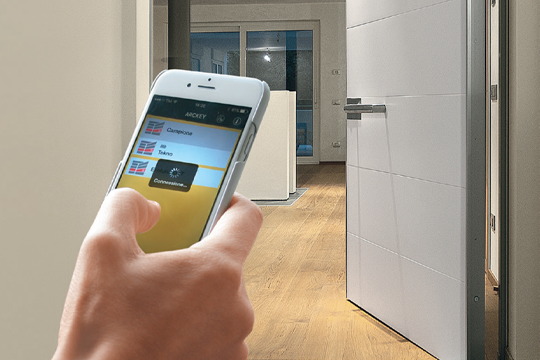

Smartphone
Door opening via smartphone and manageable through the Oikos Tech App.



FLOOR CLOSING ELEMENT (or draught excluder)

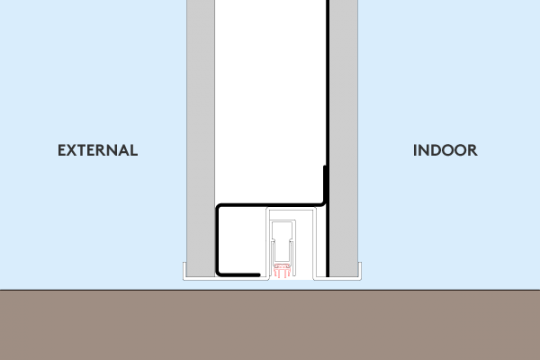

Standard draught excluder   Solution with Mose Kit

A floor device that, when the door is closed, correctly insulates a room from cold air draughts, smoke, dust and noise, contributes to greater living comfort and also guarantees savings in the energy needed for air conditioning. The draught excluder perfectly closes the gap between the leaf and the floor.

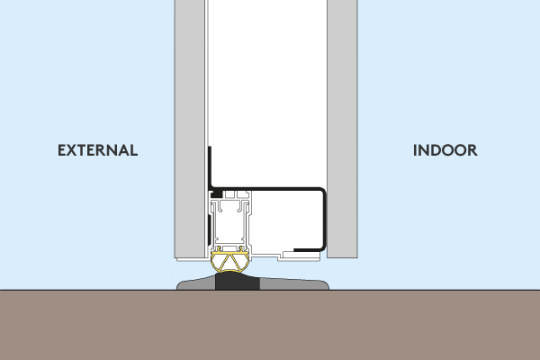

  The use of the Mose threshold is necessary when you want to obtain maximum performance and the installation site features a non-homogeneous floor.
Solution with Dam kit

The ultimate solution in terms of invisible threshold performance! The Dam kit allows a high isolation from external agents totally eliminating architectural barriers. Solution installable only when there is a homogeneous plan.
