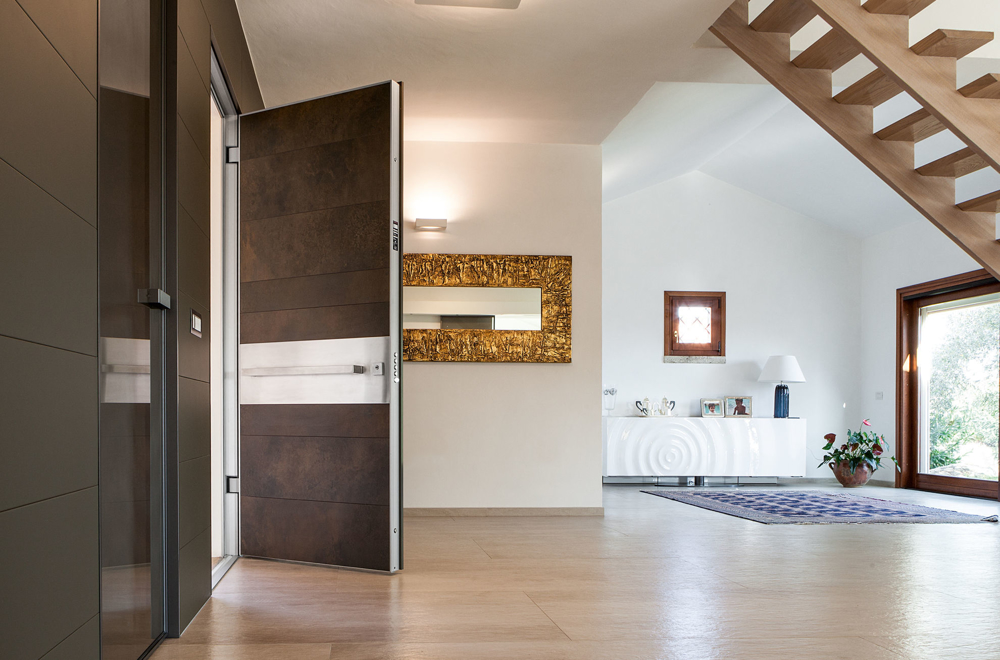

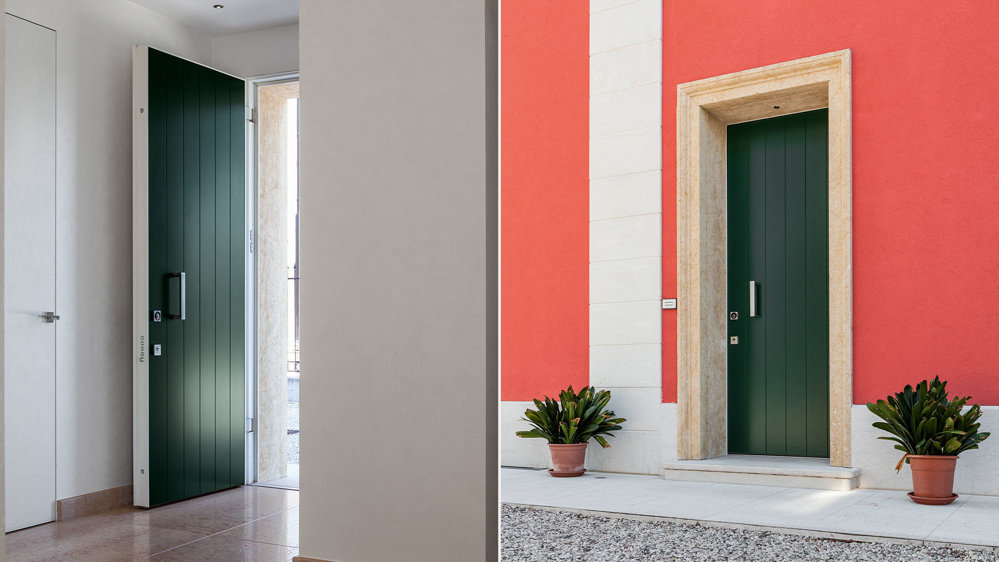

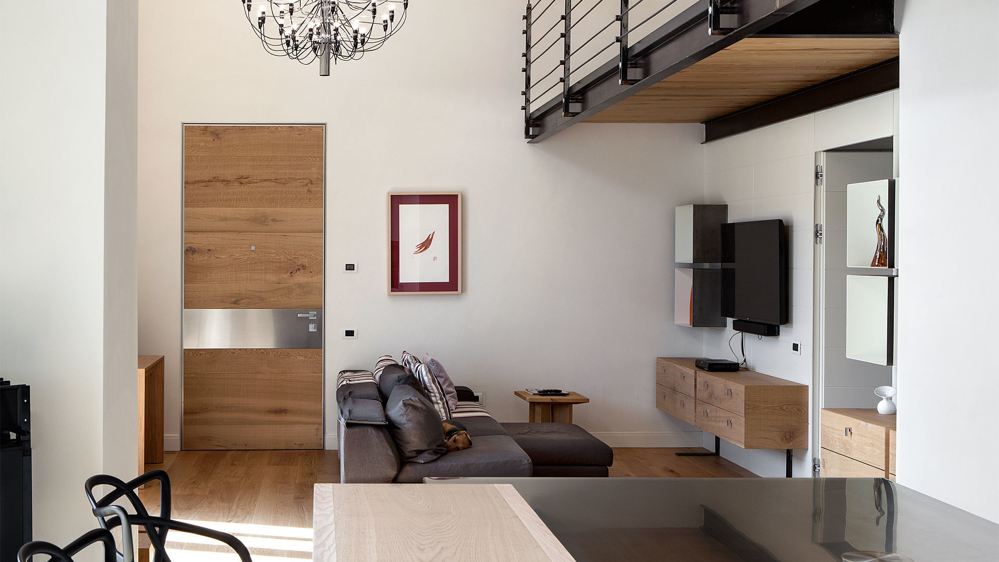

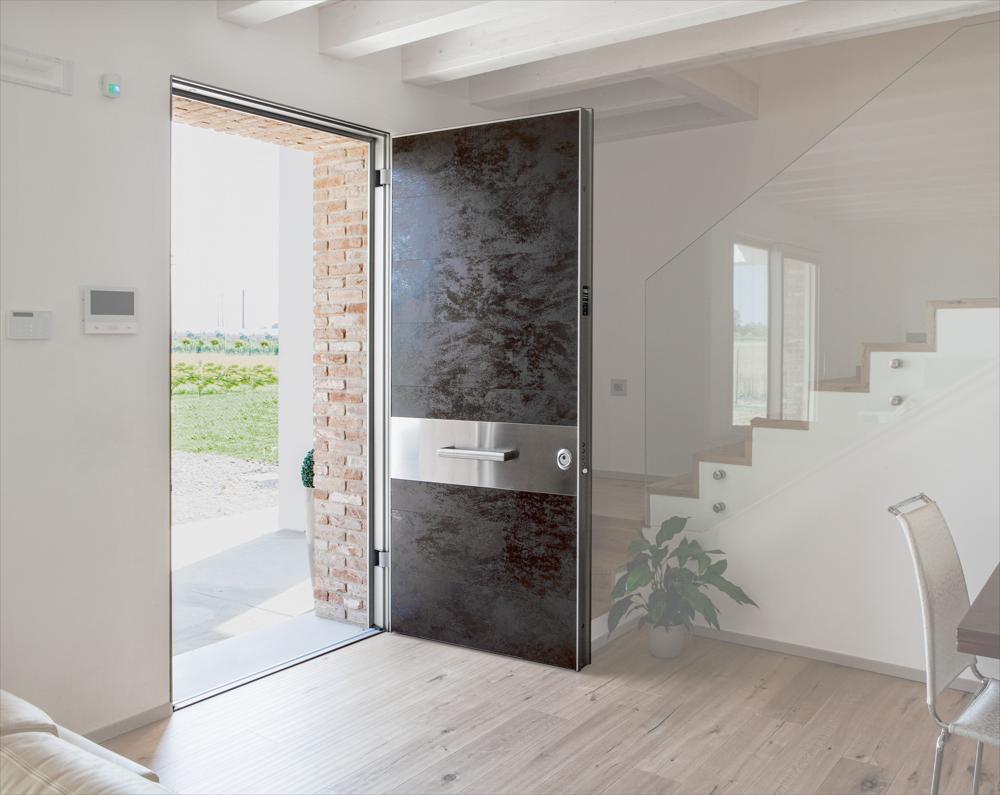

A concentrate of innovation and technology. Tekno is the safety door with concealed hinges characterized by high-end performance and EI 90 or EI120 fire resistance. It can be installed flush with internal wall, flush with external wall, flush with plasterboard wall, interior coplanar with surround.
The door with concealed hinges:
-
Single leaf: maximum feasible size 1300 x 3000 mm (other sizes on request)Version with standard supplied heat barrier frame and leaf
-
Double leaf: maximum feasible size with double leaf 1900 x 3000 mm (other sizes on request)
-
High thermal insulation
-
Fire resistance EI 90 – EI 120 – UL 120
-
Door profiles and frame covering profiles in steel brushed aluminum as standard without visible screws
-
Motorized electronic lock with integrated access control system on request

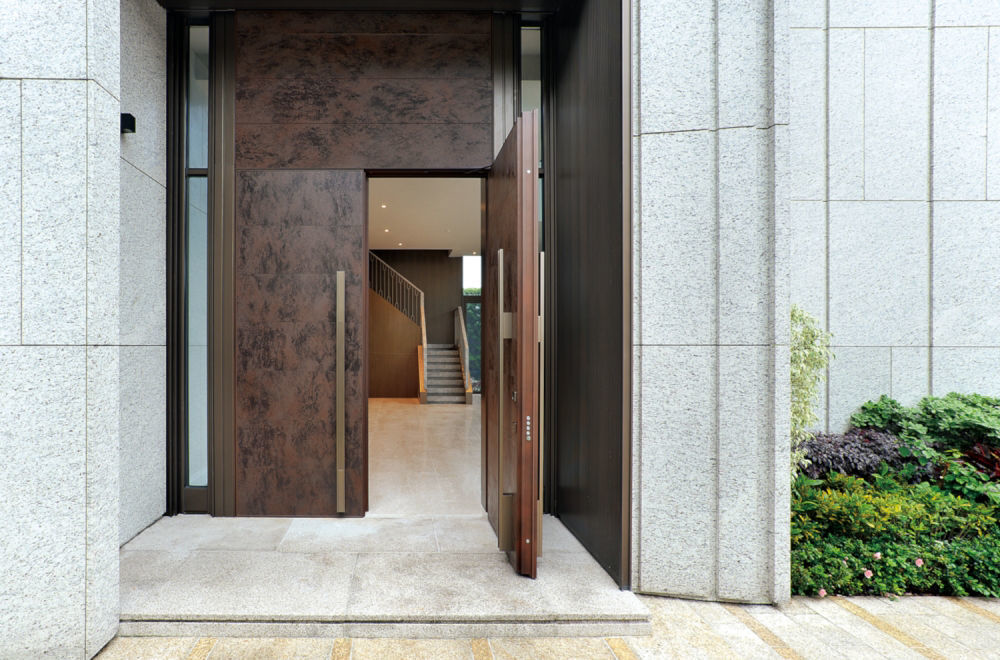

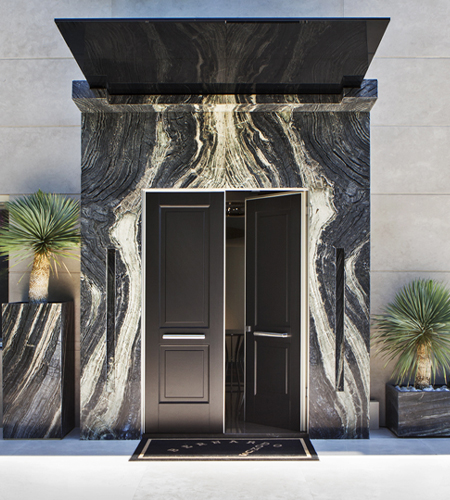

DOUBLE LEAF
Tekno in the double leaf version meets to needs requiring clean shapes, yet solemnity in the architectural style of the entrance.

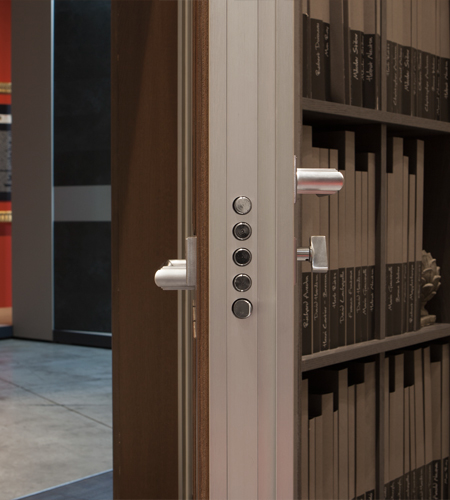

ALUMINUM COVER PROFILES WITHOUT VISIBLE SCREWS
The aluminum finish in brushed steel covers the frame and the door profile. No screw is visible, a special feature that guarantees a thorough cleaning and refined aesthetics.

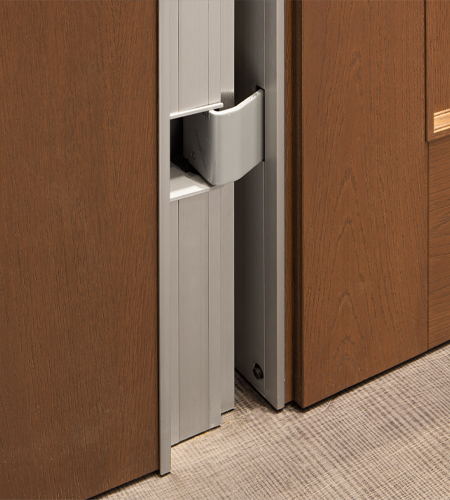

ADJUSTABLE CONCEALED HINGES
Tekno features a 100° opening that comes from an exclusive hinge that is completely invisible when the door is closed. This is a valuable detail that allows designers to express a new sense of strength and essentiality, highlighting the line and finish.
SYNUA WALL SYSTEM - THE WALL CONVEYING TO THE ENVIRONMENT THE AESTHETICS OF OIKOS DOORS
The Synua Wall System exploits the perfect coplanarity of Oikos doors in order to create walls that share the same aesthetic concept. Consisting of modular sectors that can be covered with different materials, SWS creates spectacular wall systems. A wall-door that combines the scenic and aesthetic effect with safety, elegance, and protection.
|
|
|
|
|
THE LOCK AT THE SERVICE OF ARCHITECTURE
Management system configurable with the Oikos Arckey App.
|
|
OWNER'S KEY BOX
All Oikos safety doors are supplied with a building site key to be used for production checks and by technicians entrusted with installation tasks. The owner's keys, on the other hand, are always supplied sealed inside a special elegant box.
|
|
|
|
ADI DESIGN INDEX
Tekno has officially become part of the 2012 Adi Design Index catalog.
|
Specifications
|
Performance
|
Standard
|
Upon request
|
|---|
| Break-In Resistance |
Class 3 |
- |
| Thermal |
1.6 |
1.3 |
| Acoustic |
38dB |
- |
| Air |
2 |
Mose Kit 4 |
| Water |
0 |
Mose Kit 5A |
| Wind |
C4 |
Mose Kit C5 |
| Fire |
- |
EI 60 / VKF 60 / EI 120 / UL-FD 120 |
| Hurricaneproof |
- |
Hurricaneproof Noa |
Shapes

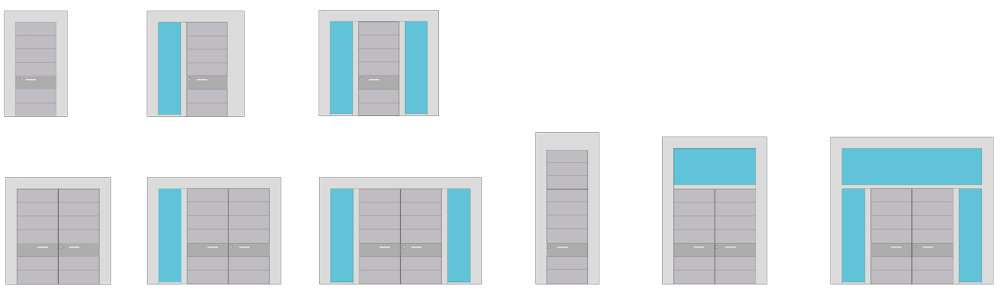

Tekno is available in the following versions: single leaf, double leaf, with side panel, and with transom window.
Coverings
| Line Smooth |
|
Line Carved |
|
Line Tekno |
|
Line Legno Vivo |
|
Line Heartwood |
|
Line Pantographed |
 |
|
 |
|
 |
|
 |
|
|
|
 |
 |
|
 |
|
 |
|
 |
|
|
|
 |
 |
|
 |
|
 |
|
 |
|
|
|
 |
| |
|
 |
|
 |
|
 |
|
|
|
 |
| |
|
|
|
 |
|
 |
|
|
|
 |
| |
|
|
|
 |
|
 |
|
|
|
 |
| |
|
|
|
|
|
|
|
|
|
 |
| |
|
|
|
|
|
|
|
|
|
 |
| |
|
|
|
|
|
|
|
|
|
 |
Optional Features
| OPENING TYPES |
 |
|
 |
| Arckey System |
|

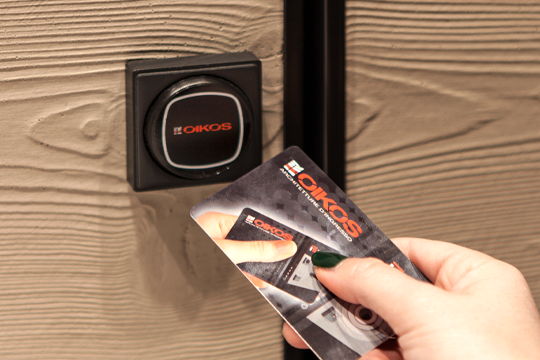

Card Reader |

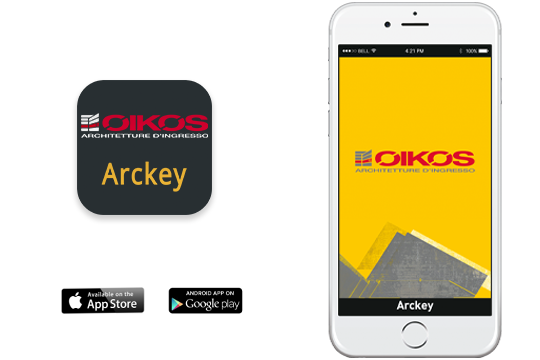

| The Oikos Arckey App is the integrated access management system that allows the electronic opening directly from a smartphone. |
|
The Arckey system foresees, as a complementary system to the door opening, the use of the Oikos Card to be placed directly next to the leaf. |
 |
|
 |
| Touchpad |
|
Fingerprint Reader |
| The leaf opening can take place by entering a code on a touch screen support. |
|
Opening the entrance can be done simply through fingerprint recognition. |
 |

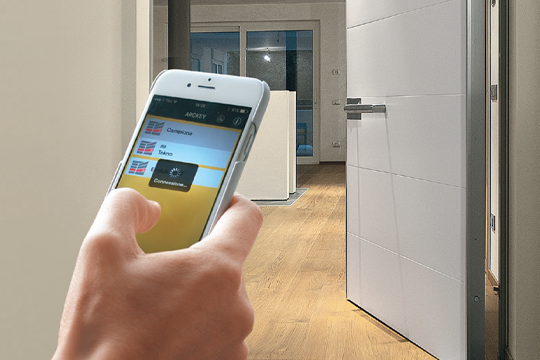

| Smartphone |
| Door opening via smartphone and manageable through the Oikos Tech App. |

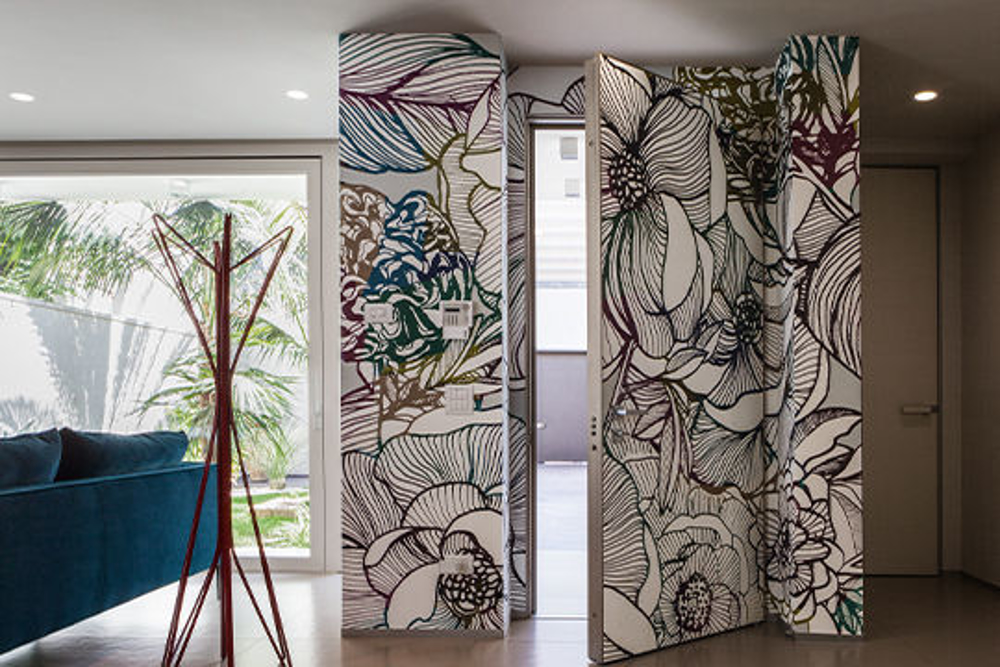

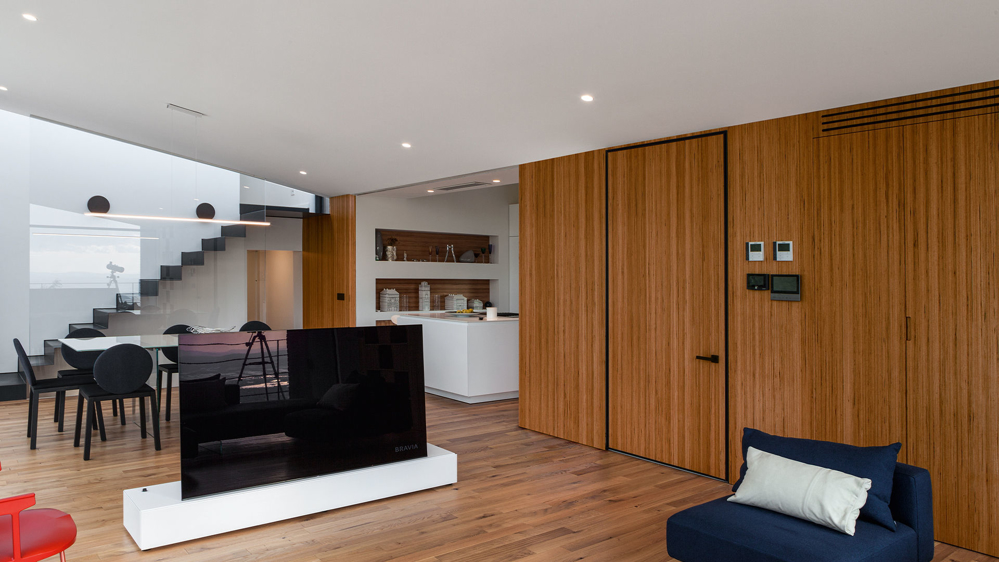

Synua Wall System - boiserie

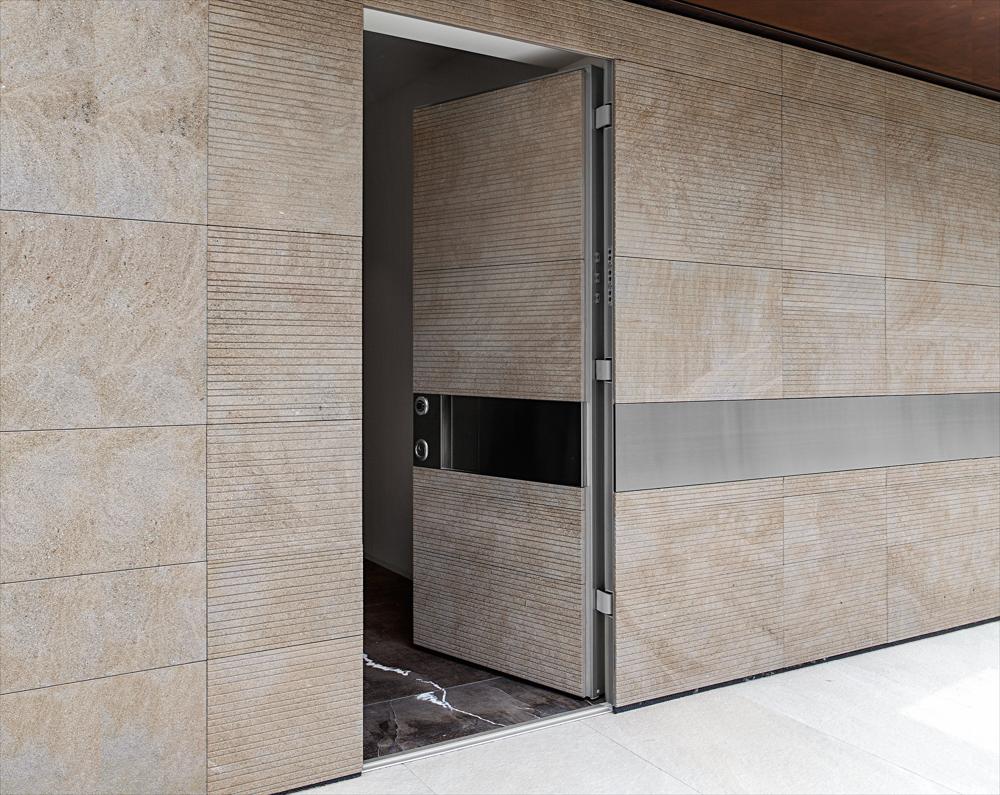

Tekno - SWS boiserie
The Synua Wall System exploits the perfect coplanarity of Oikos doors in order to create walls that share the same aesthetic concept. Consisting of modular sectors that can be covered with different materials, SWS creates spectacular wall systems. A wall-door that combines the scenic and aesthetic effect with safety, elegance, and protection.
FIRE-BARIER
Tekno - Fire Resistance
On request, it is possible to install the E16, EI 120 fire-barrier according to EU standards. The Tekno UL 120 door, certified by the UL laboratory, is instead a guarantee of compliance with the rigorous U.S. standards for the manufacture of doors that can withstand fire for 120 minutes.
HURRICANE-PROOF
Tekno Hurricane proof certification
The Miami Dade-certified Tekno door, issued by the County of Miami, ensures that it meets stringent quality standards in door designs that can withstand extreme wind loads caused by hurricanes.

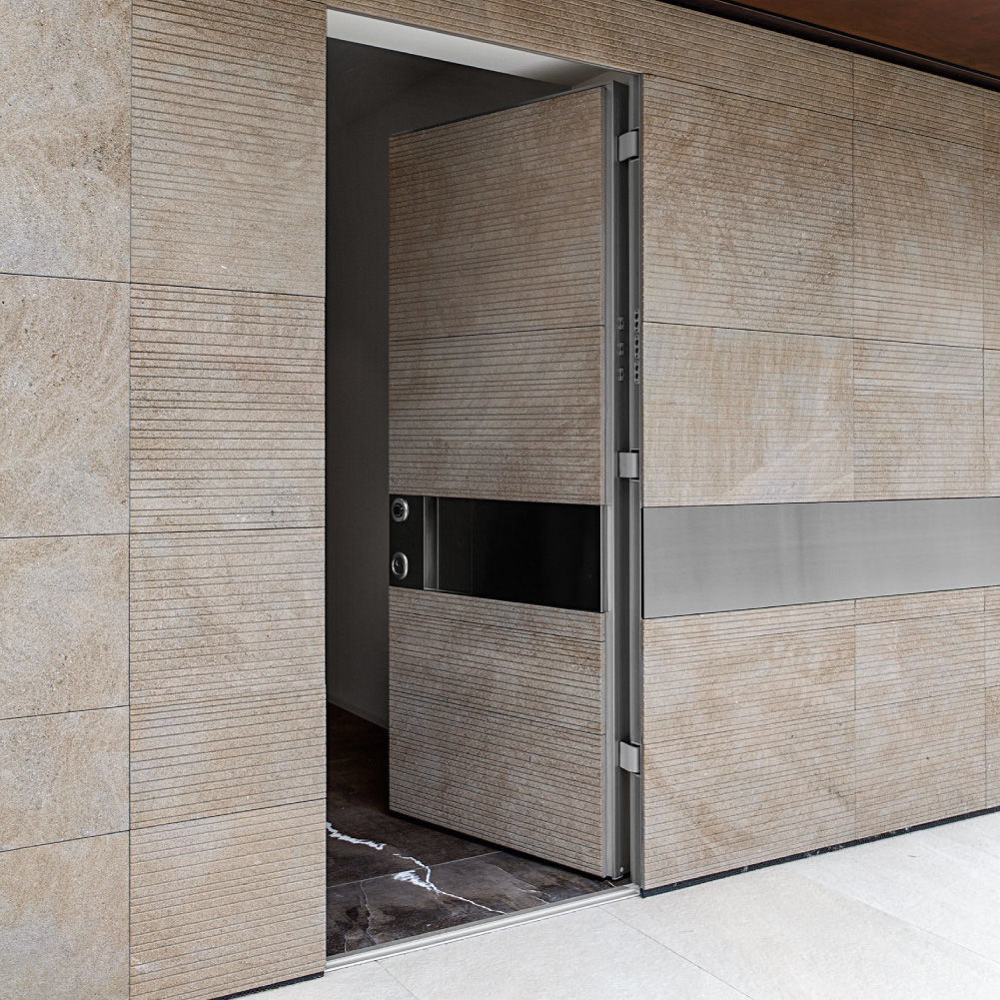

FREE FACADE
Tekno - Free façade
Oikos proposes "free façade", a new architectural solution in which the safety door is inserted in a seamless wall for a perfect integration of the leaf with the overall finishes. No visible opening elements, motorized opening and access via the Oikos Tech App. Free Façade has officially become part the ADI Design Index 2016
