4600 Plus Lift & Slide Sliding Window and Door Systems

For pricing information please send a request.

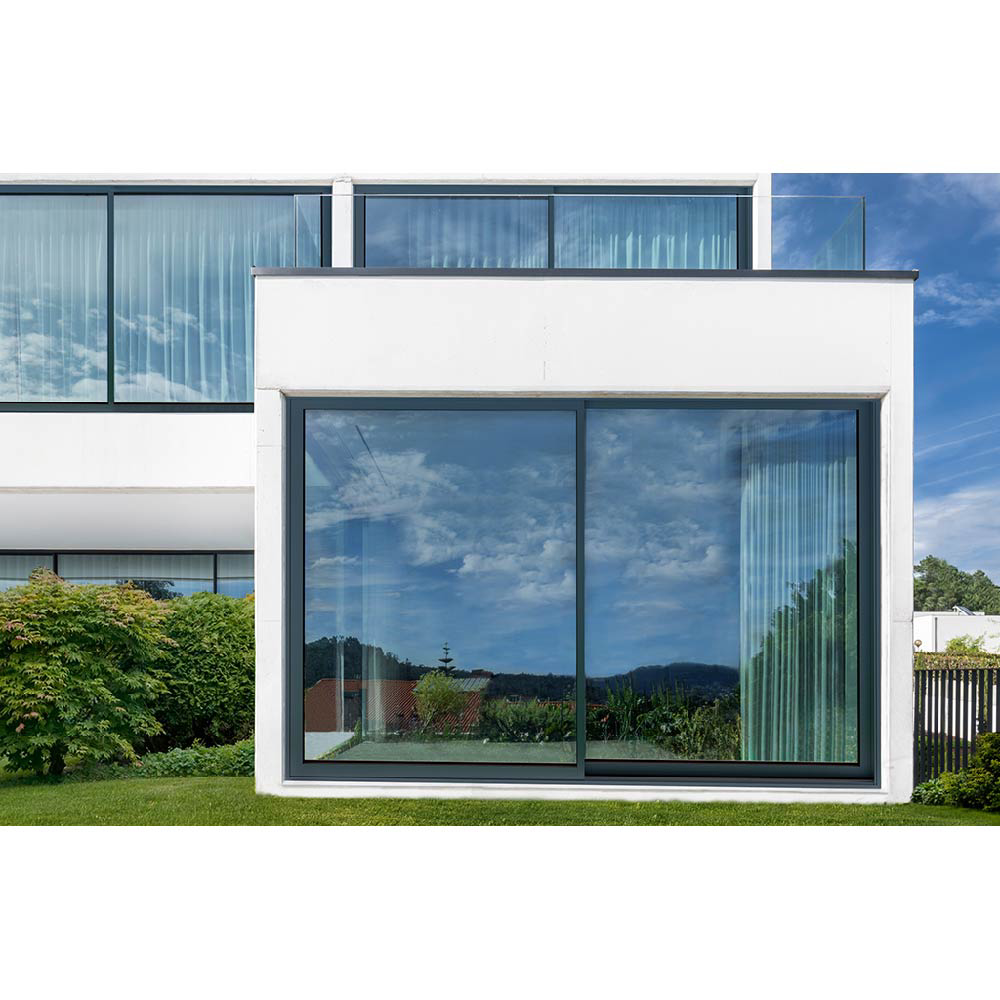

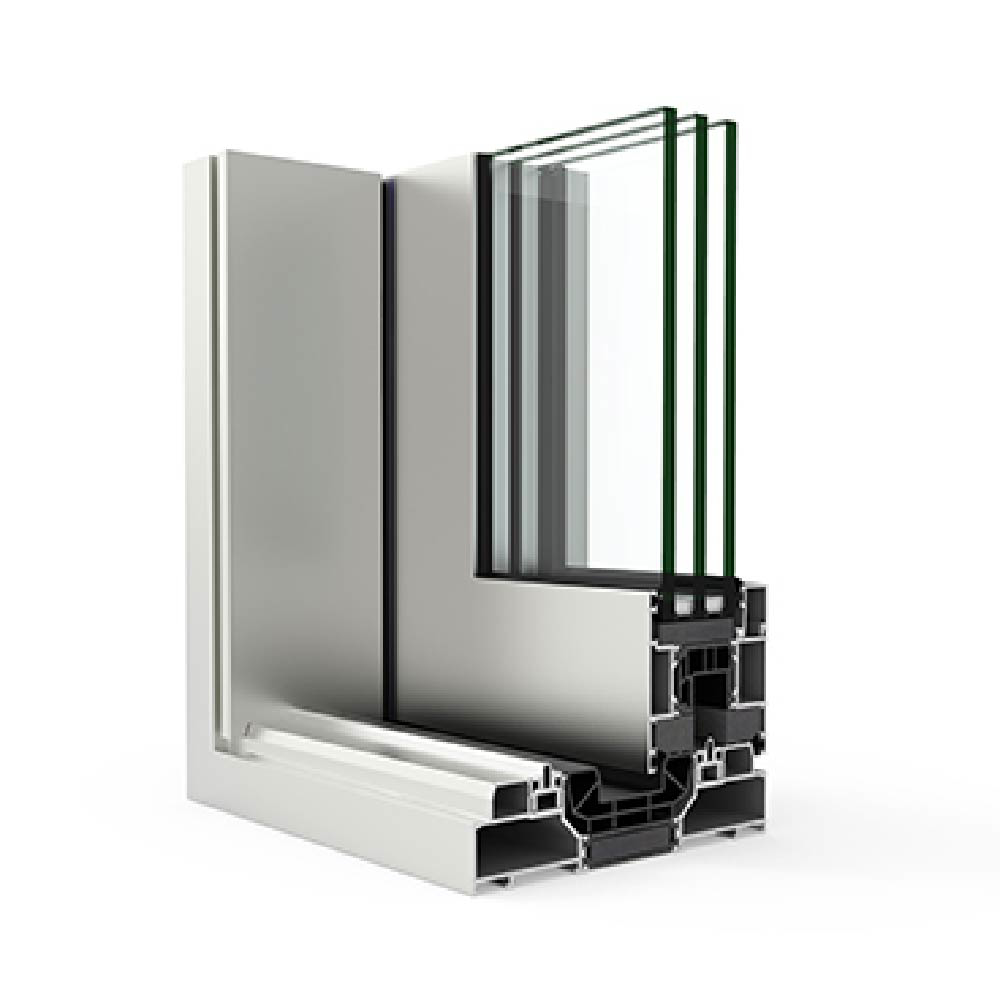

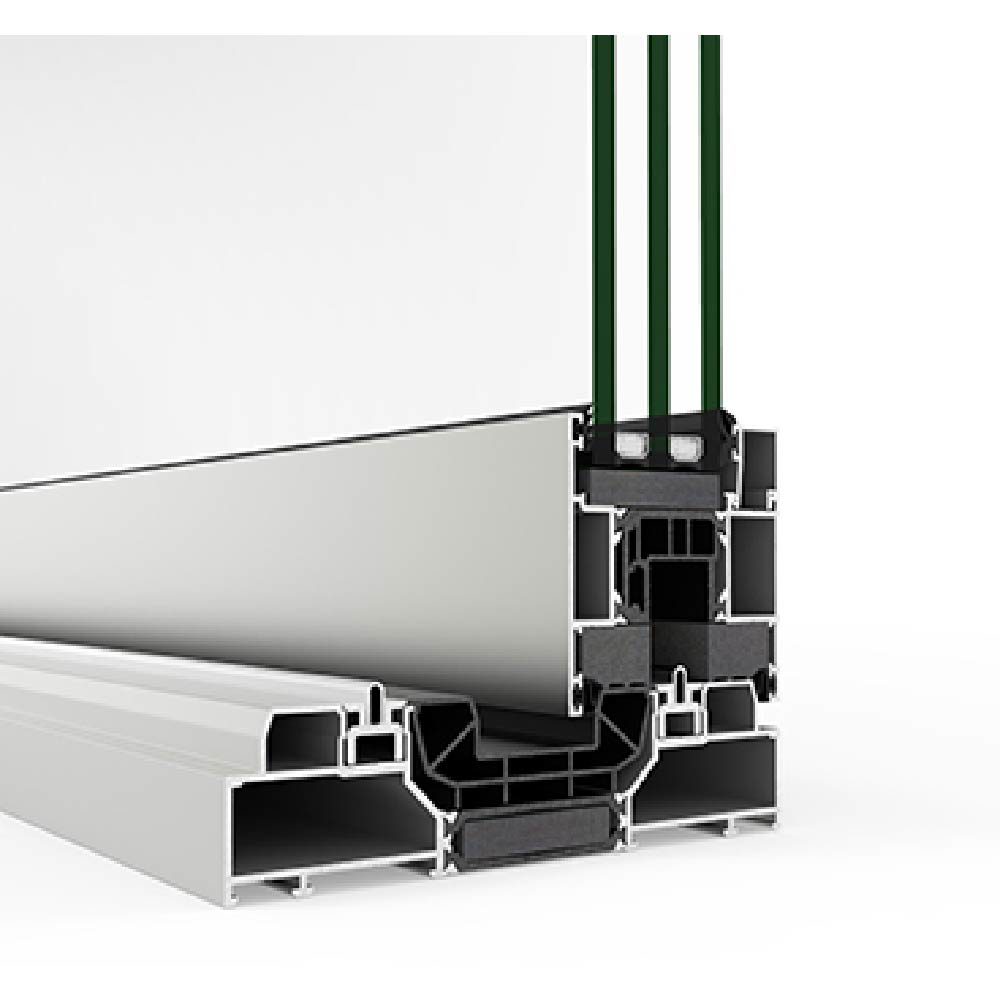

The new 4600 Plus Lift&Slide from Cortizo allows for the covering of large openings while ensuring exceptional thermal insulation. Its 3.15" deep sashes and special polyamides allow it to achieve a Uw transmittance of just 0,65 W/m²K, establishing itself as one of the sliding systems with the best thermal performance on the market.

Shipping: Free

est. delivery:

Description
Downloads

Description

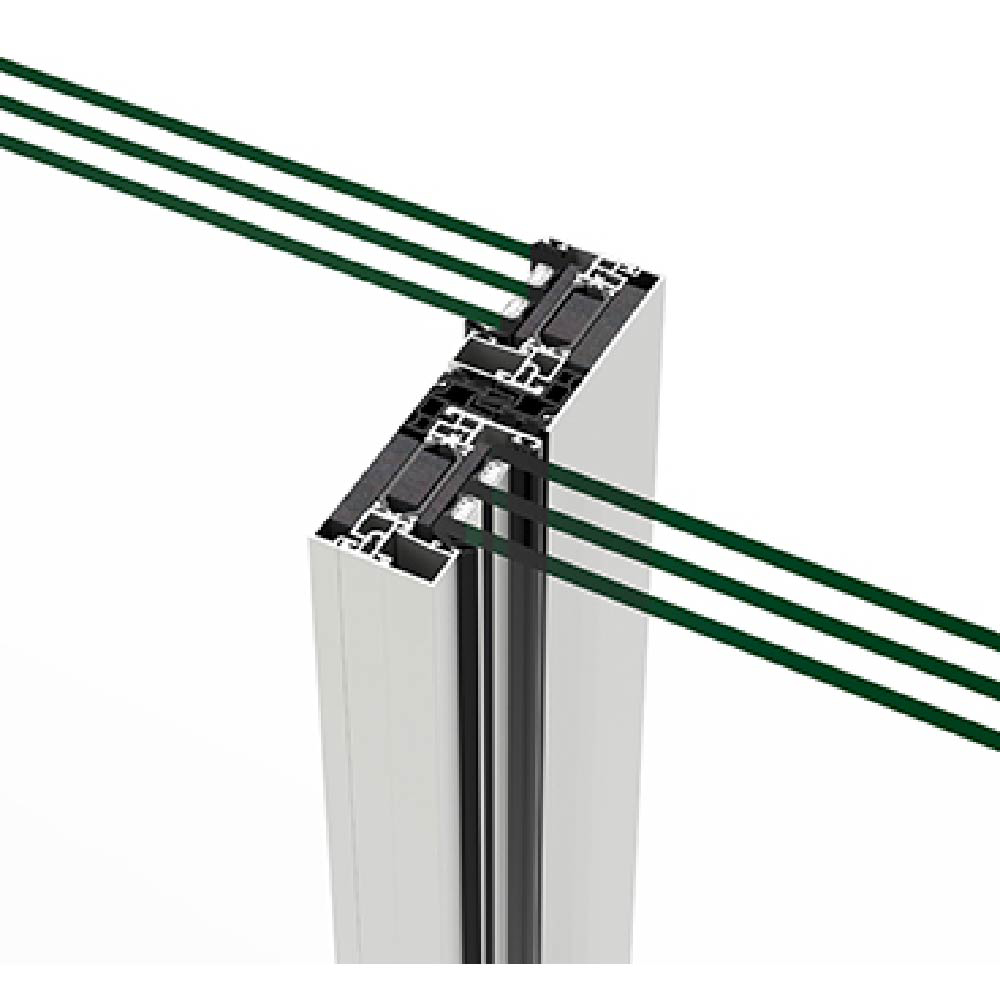

Furthermore, the perimeter interlock profile is reduced to 4.72", allowing for an increased glazed surface and enhancing the entry of natural light into the rooms.

Technical Data

» Glazing
Max. 2.56"

Min. 0.87"

» Opening possibilities
Sliding

1 rail (1 sash + 1 fixed light), 2, 3 & 4 rails

Possibility of 90º opening without mullion

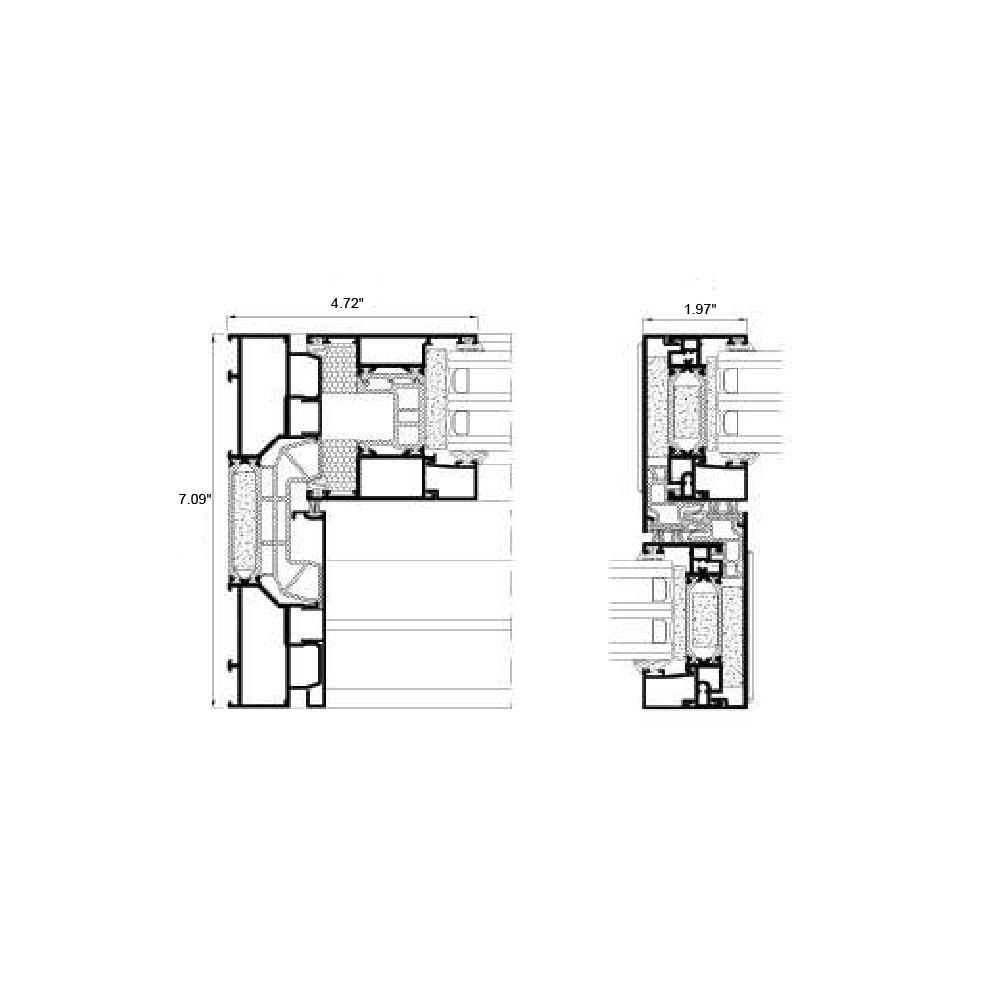

» Sightlines
Frame 7.09" / 11.02" 3 rails /

14.96" 4 rails

Sash 3.15"

» Maximum Sash Dimensions
Width (L) 129.9"

Height (H) 129.9"

» Maximum Sash Weight
400 kg
Consult maximum weight and dimensions according to typologies
