cortizo

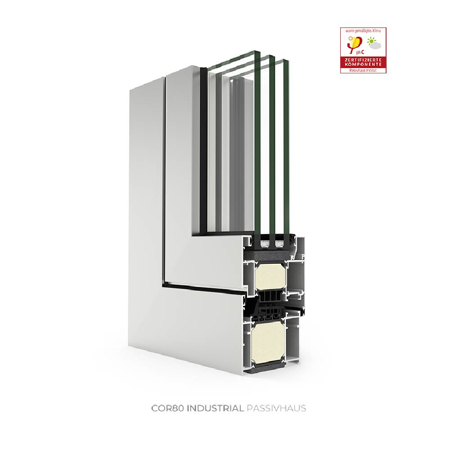

Alu-Steel Hinged Window and Door Systems

For pricing information please send a request.

Inspired by classic line designs, this new system allows to combine aluminum’s outstanding performance values with a steel appearance.

Shipping: Free

est. delivery:

Description
Downloads

Description

Possibilities
» Security hardware
» Concealed hinges
» Concealed drainage

Technical Data

» Glazing
Max. 2.13"
Min. 0.79"

» Opening possibilities
Inward opening
Side hung
Tilt & turn
Tilt only
Outward opening
Side hung

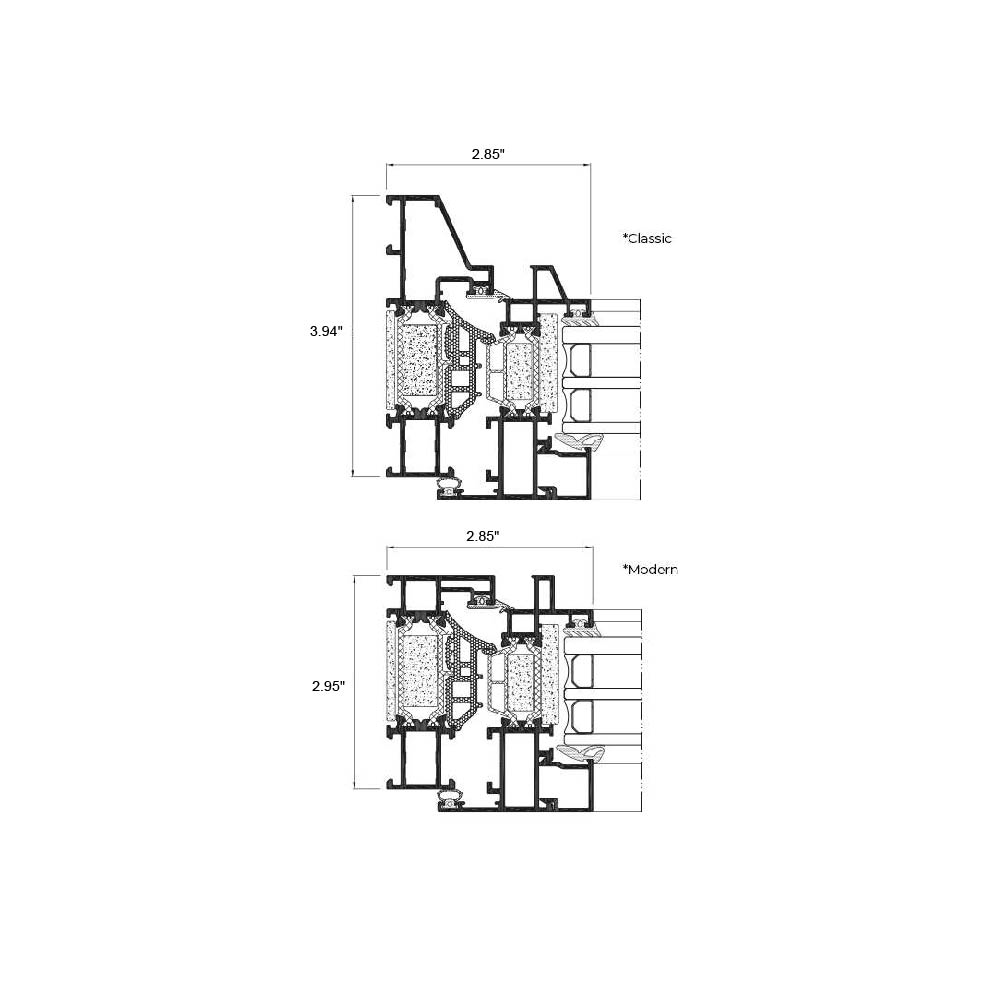

» Sightlines
Modern frame 2.95"
Classic frame 3.94"
Sash 3.27"

» Profile thickness
Window 0.059"

» Polyamide strip length
1.26"-1.54"

» Maximum sash dimensions
Width (L) 59.06"
Height (H) 102.36"

» Maximum sash weight
160 kg

Consult maximum weight and dimensions according to typologies

» Finishes
Possibility of dual color systems
Color powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized

Test Center

» Transmittance
Uw ≥ 0.83 (W/m²K)
Please consult typology, dimensions and glazing

» Acoustic insulation
Rw up to 45 dB

» Air permeability
(EN 12207) Class 4

» Water tightness
(EN 12208) Class E1200

» Wind resistance
(EN 12210) Class C5

Reference test 48.43" × 58.27" / 2 sashes
