Millennium 2000 Door

For pricing information please send a request.

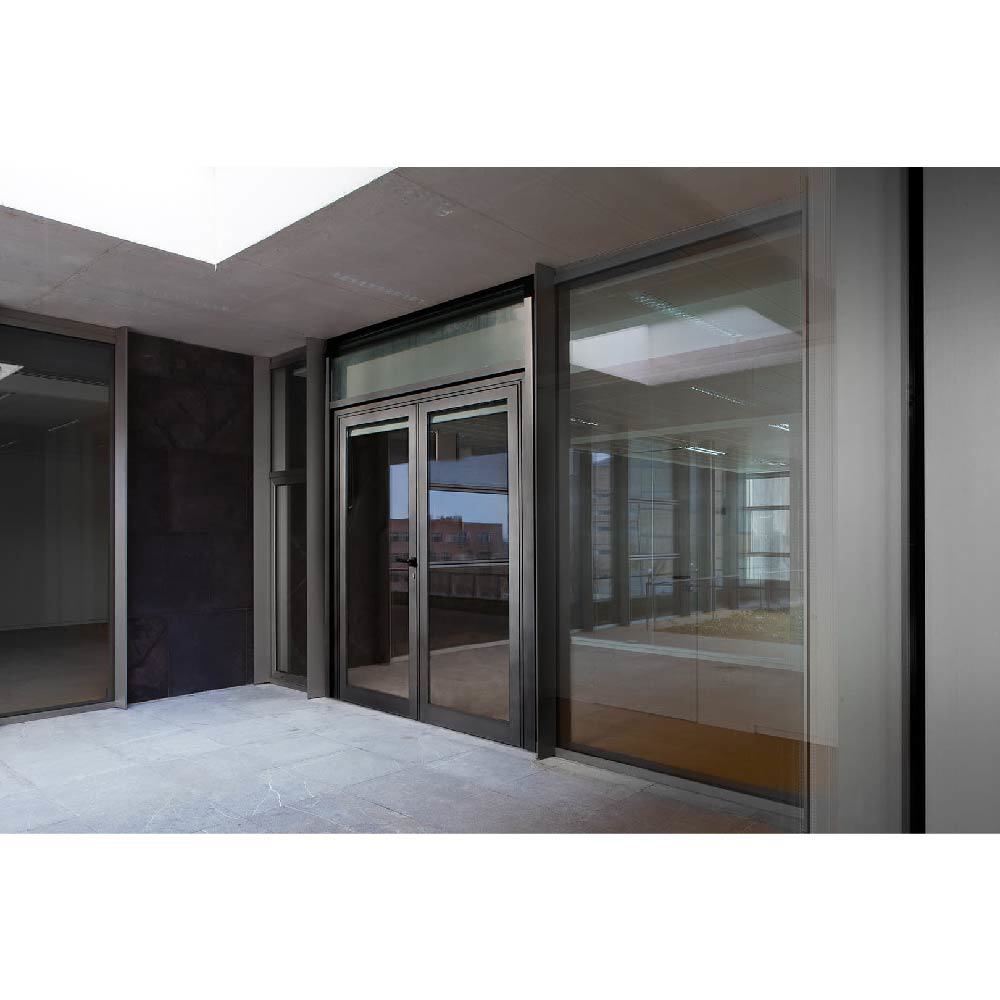

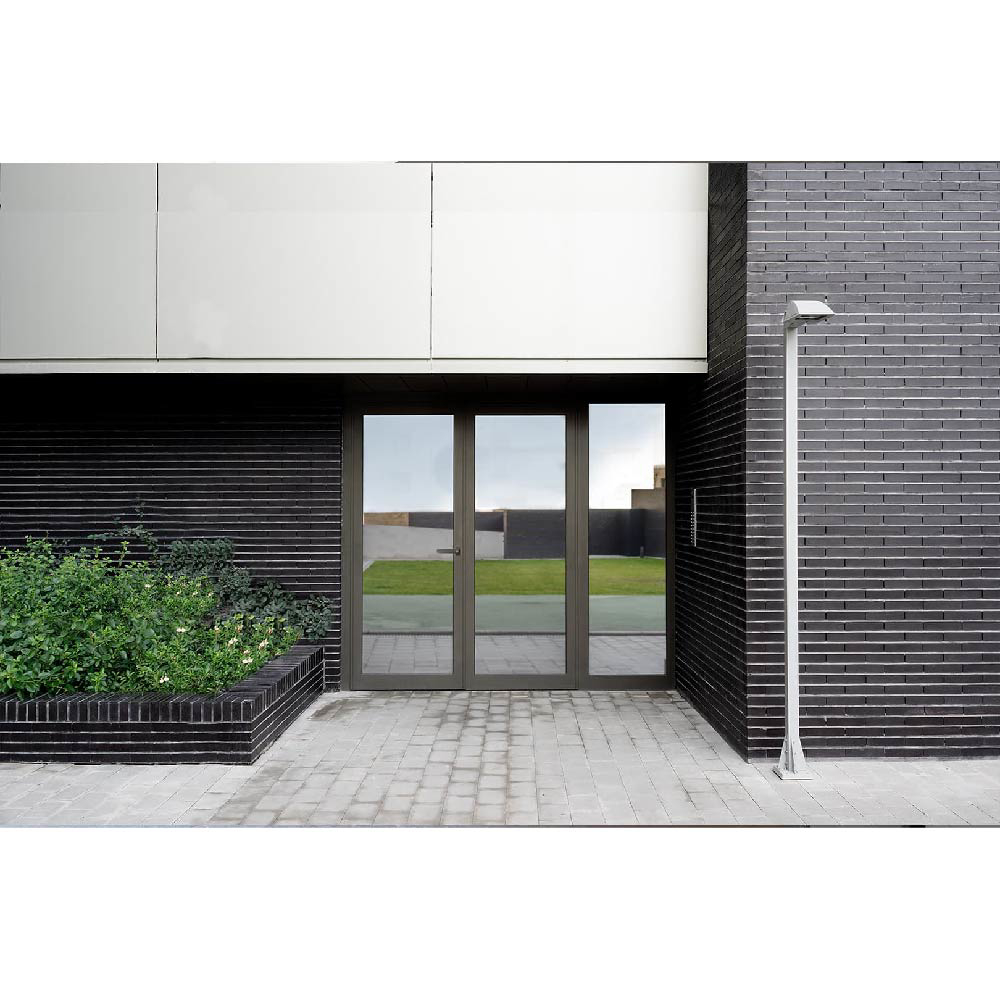

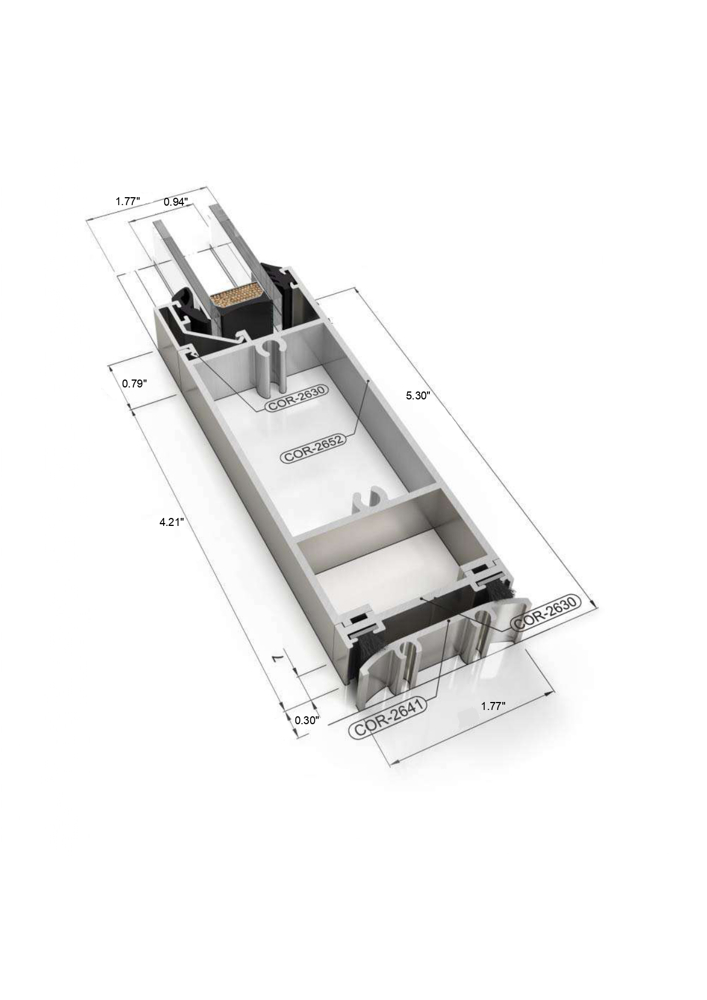

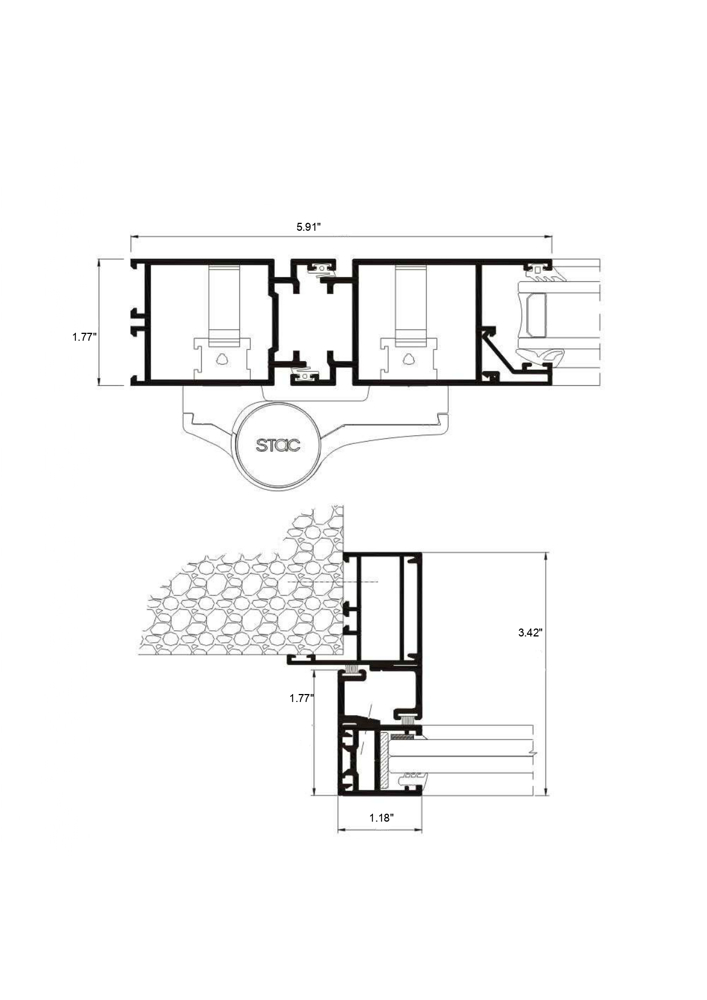

» Coplanar door entry system with frame depth of 1.77" for commercial and residential buildings » Available in 2 versions: - Millennium 2000 door: with double or triple flag hinges of high strength, capable of supporting up to 180 kg. per sash.

Shipping: Free

est. delivery:

close

Estimate shipping

  • Attribute Selection
  • Arrow right
  • Description
  • Downloads

Attribute

close
Size

Description

close

-Millennium 2000 automatic door: This new solution optimizes the room's space, it has been specifically designed to resolve crowded entrances (offices, shopping centers, hospitals…) as it guarantees good pedestrian circulation as well as security in emergency situations.
» Possibility of 1 or 2 sashes, with or without fixed areas, it comes with the option of automatic opening, using two different motor positions; one at 4.72" high and another being minimalist at only 2.76" high.
» Possibility of incorporating a motorization system.



Technical Data

» Maximum glazing thickness

1.18"
» Opening possibilities

Open inwards: 1 & 2 sashes

Open outwards: 1 & 2 sashes

Swing opening: 1 & 2 sashes

Automatic opening: sliding of 1 & 2 sashes. Side hung in and out of 1 sash.

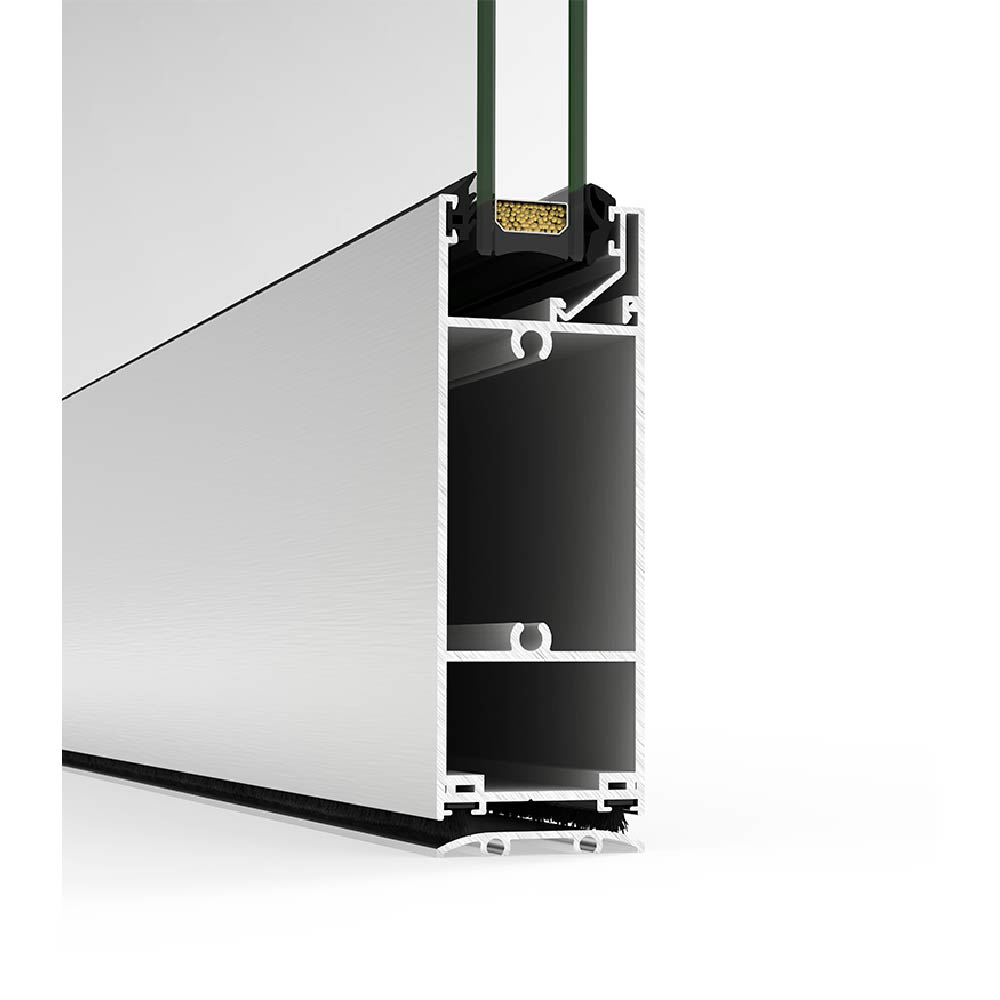

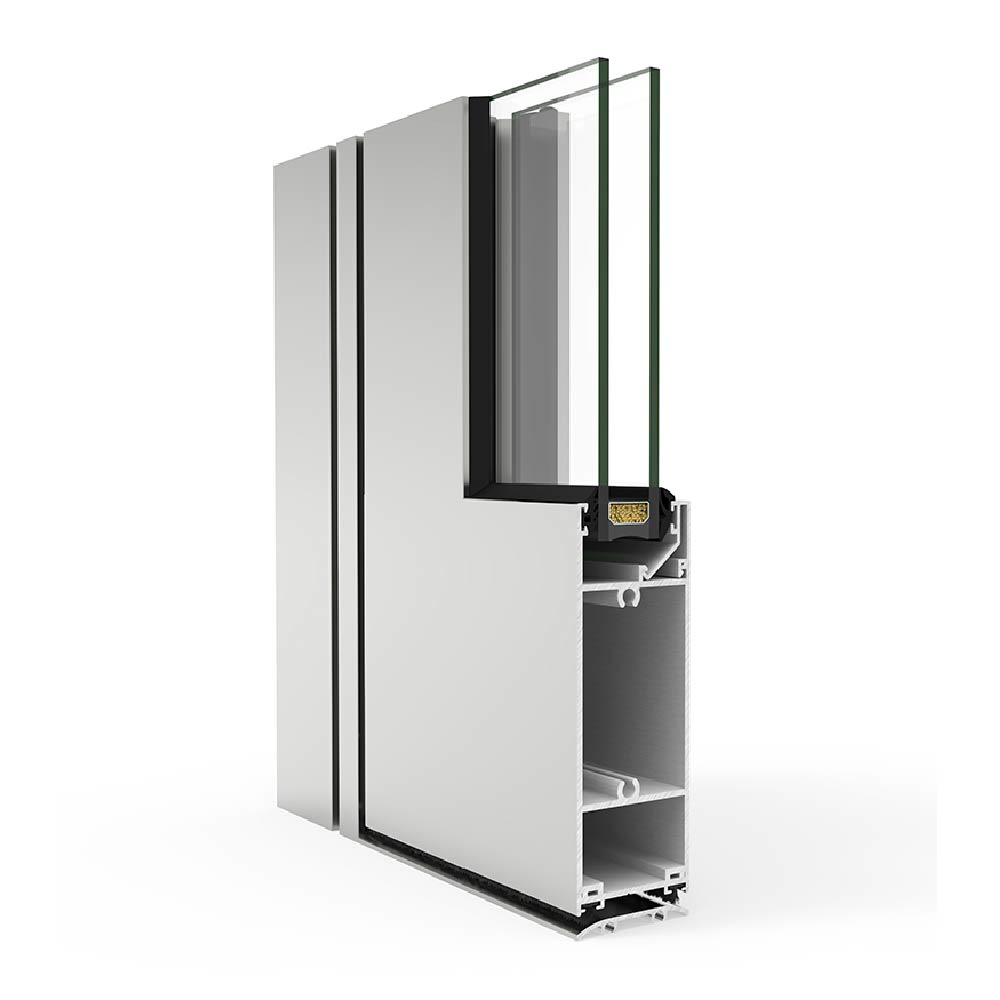

» Profile thickness

Door 0.079"
» Maximum dimensions/sash

Width (L) = 57.09"
Height (H) = 118.11" Side hung door

Width (L) = 78.74"
Height (H)= 118.11" Automatic sliding door

Width (L) = 43.31"
Height (H) = 118.11" Swing door
» Maximum weight/sash

190 kg

120 kg automatic version
Please consult regarding maximum weight and dimensions according to types
»
Finishes

Color powder coating (RAL, mottled and rough)

Wood effect powder coating

Anti-bacterial powder coating

Anodized

Test Center

» Transmittance

Uw from 2.3 (W/m²K)

Please consult typology, dimensions and glazing
» Maximum acoustic insulation

Rw = 38 dB
» Resistance to mild impact

(EN 13049:2003) CLASS 5 (Max)
Test on door reference 70.87" x 86.61" 2 sashes
Laminated glass 3+3
