SG 52 Facade Systems

For pricing information please send a request.

» Wide variety of mullions (from 0.63" to 9.06") and transoms (from 0.89" to 8.09") that solve the different aesthetic and constructive needs of the architectonic sector » Internal seen section: 2.05"

Shipping: Free

est. delivery:

Description
Downloads

Description

» Extensive profile range, their mechanical unions allows for all types of façades to be built (vertically, inclined, 90° corners, corners, polygonal) as well as solving large and heavy glazing modulations
» Water tightness elements: drainage pipettes, tear strip gaskets and vulcanized angles

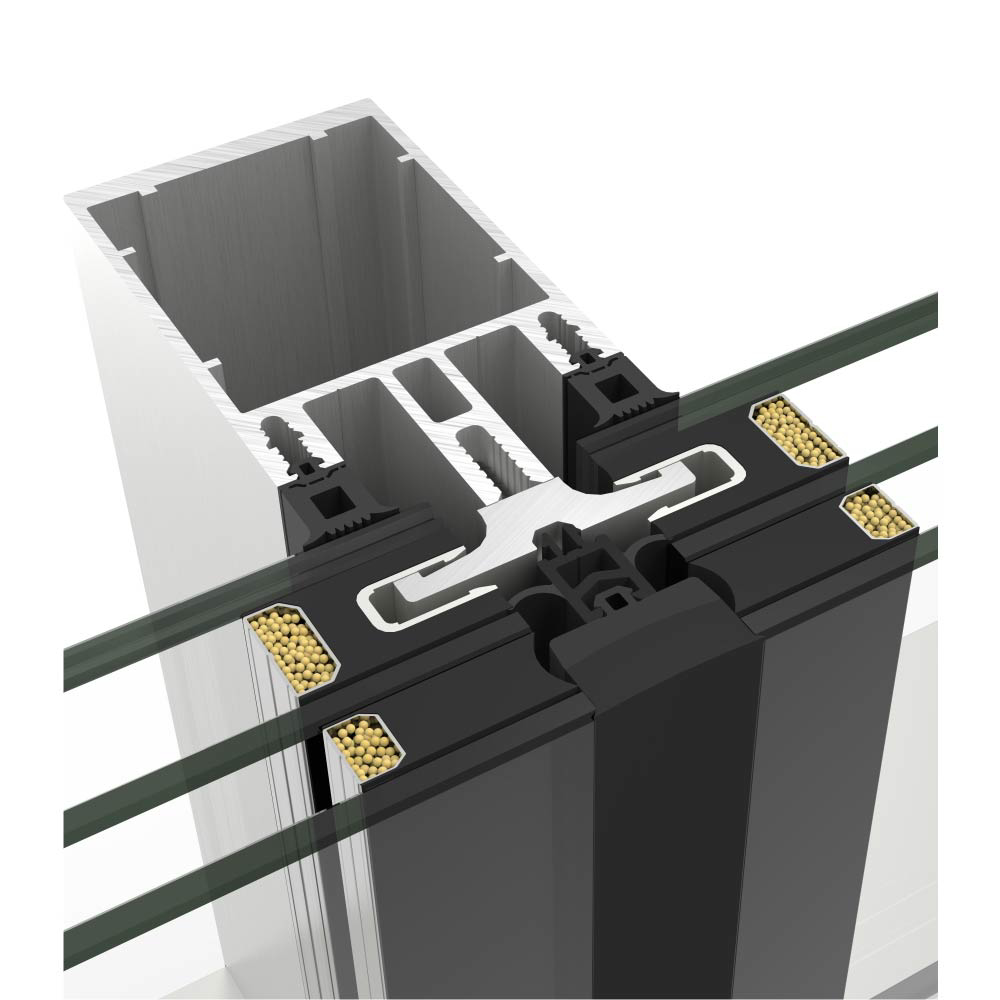

» The fixing of the glazing to the supporting profiles is carried out by using clips. This system requires an additional profile that is fitted into the glazing chamber (U profile)
» It has a “glass only” style on the exterior

Technical Data

» Glazing

Maximum glazing 2.52"

Minimum glazing 0.24"

*Consult us for greater thicknesses
» Opening possibilities

Hidden Top Hung
» Sections

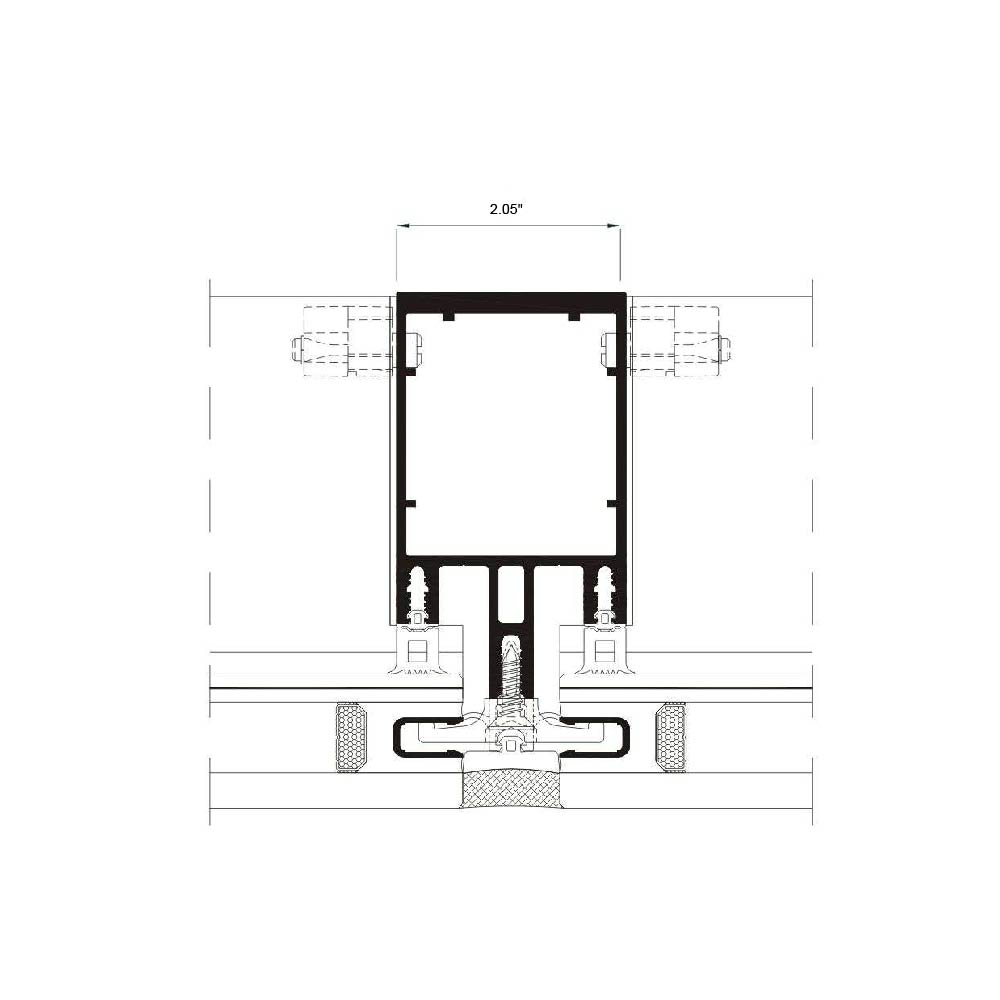

Mullion 2.05"

Transom 2.05"

» Profile thickness

Mullion 0.083" and 0.118"

Transom 0.083"
» Polyamide strip length

0.24", 0.47" & 1.18" stackable profiles
» Minimum / Maximum opening dimensions
