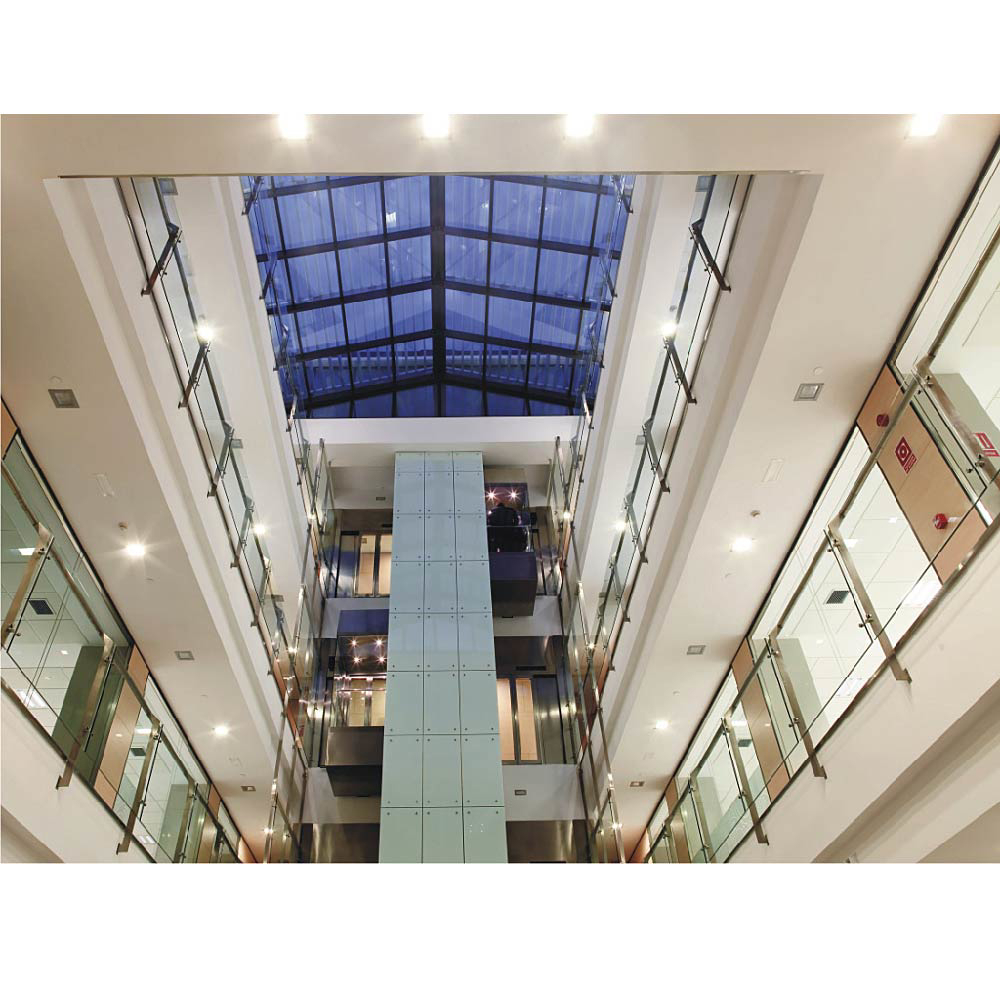

Facade Systems Skylight-Veranda

For pricing information please send a request.

» Wide range of mullions (from 5.12" to 9.84") and transoms (from 1.59" to 10.06") » Internal section of 2.05"

Shipping: Free

est. delivery:

close

Estimate shipping

  • Description
  • Downloads

Description

close

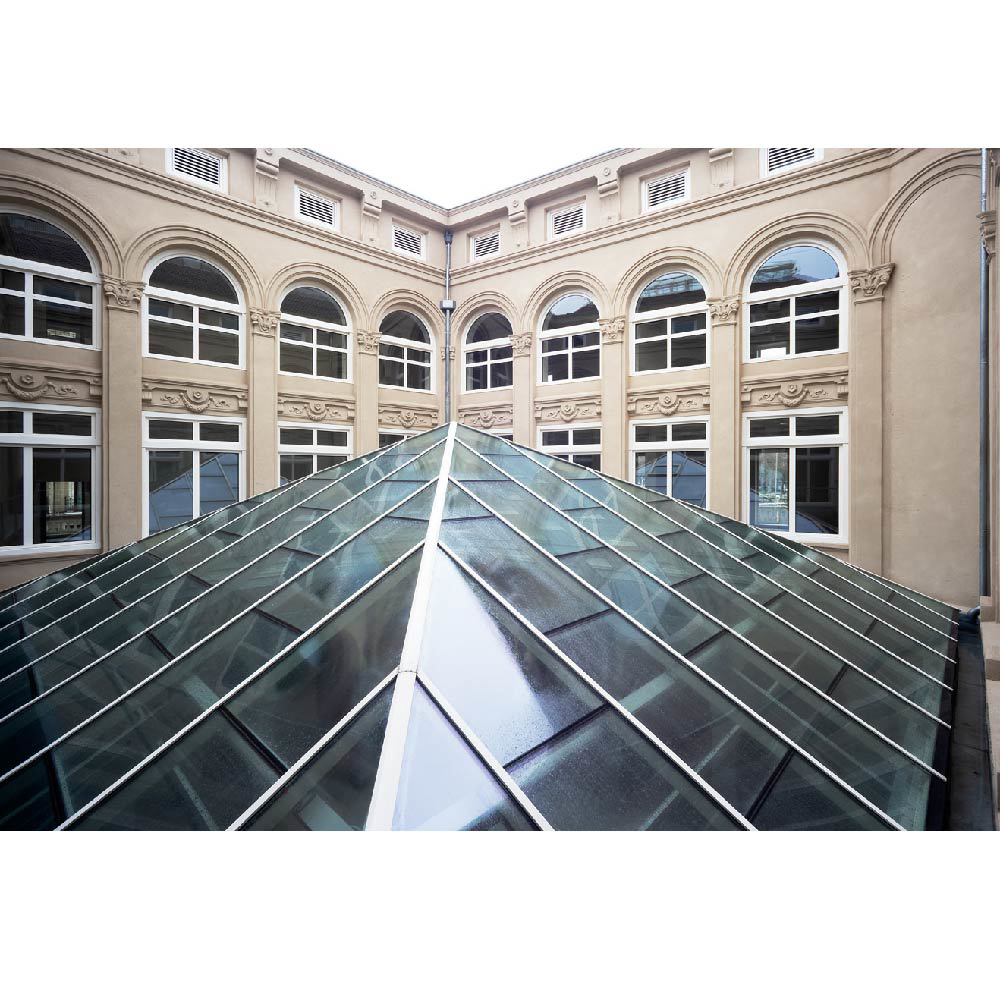

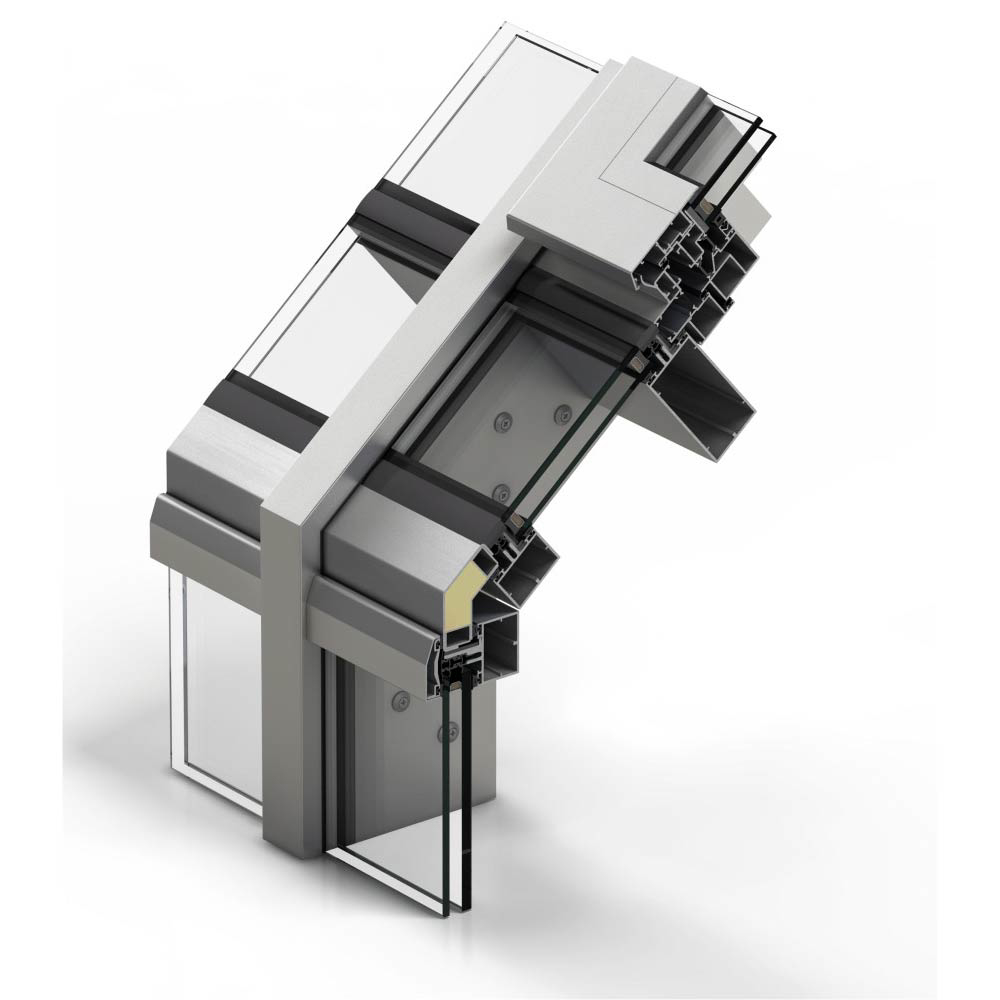

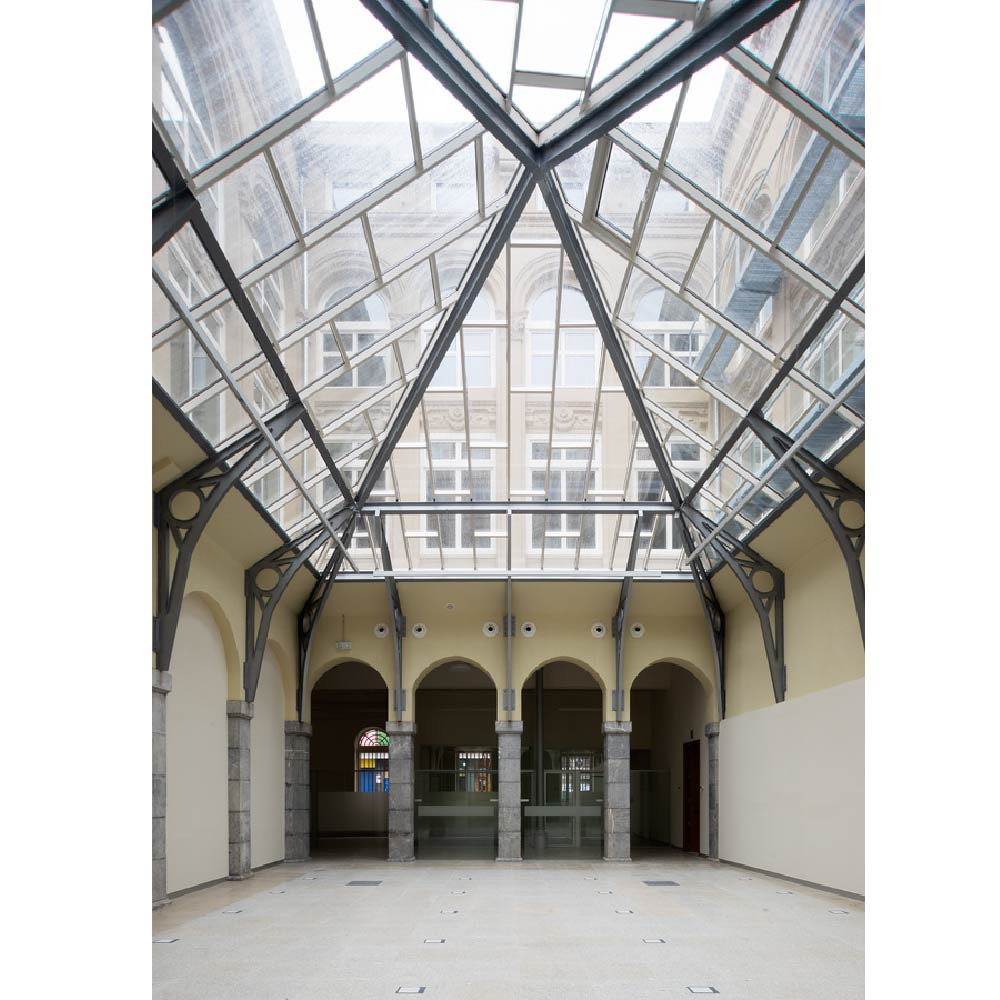

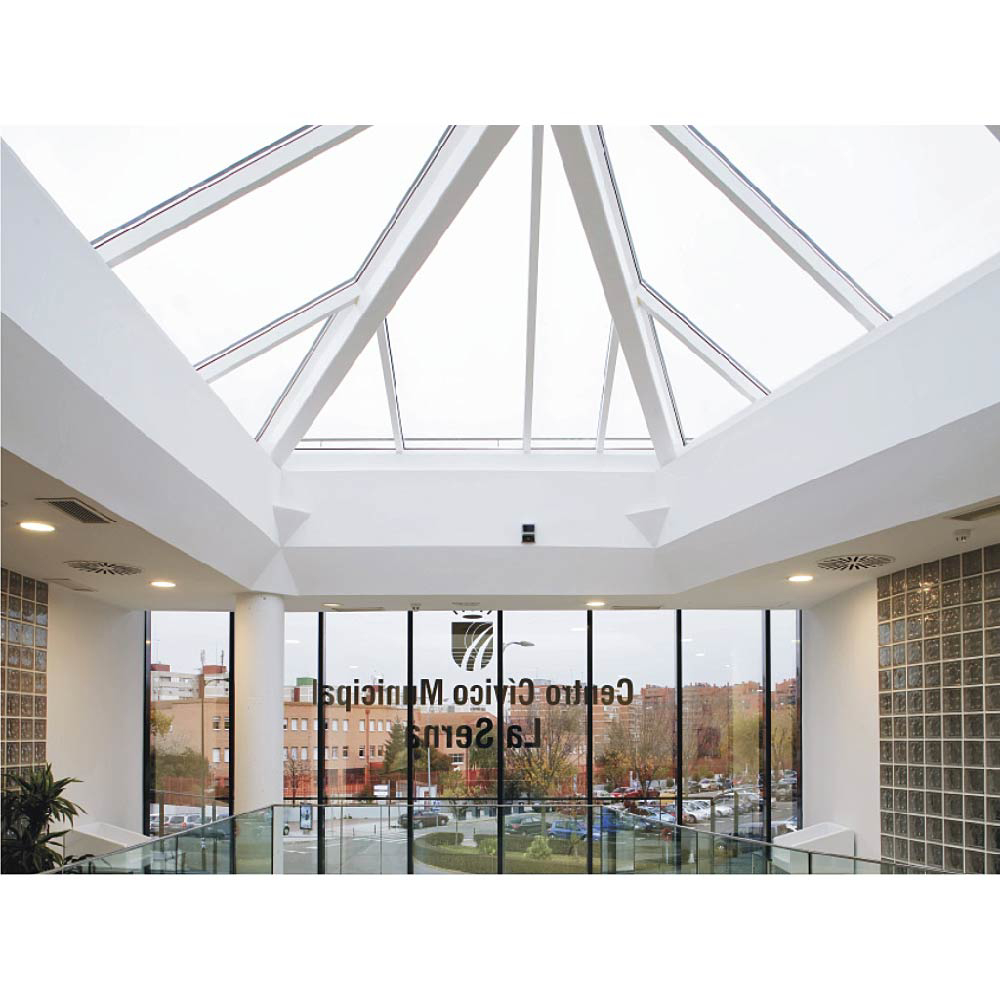

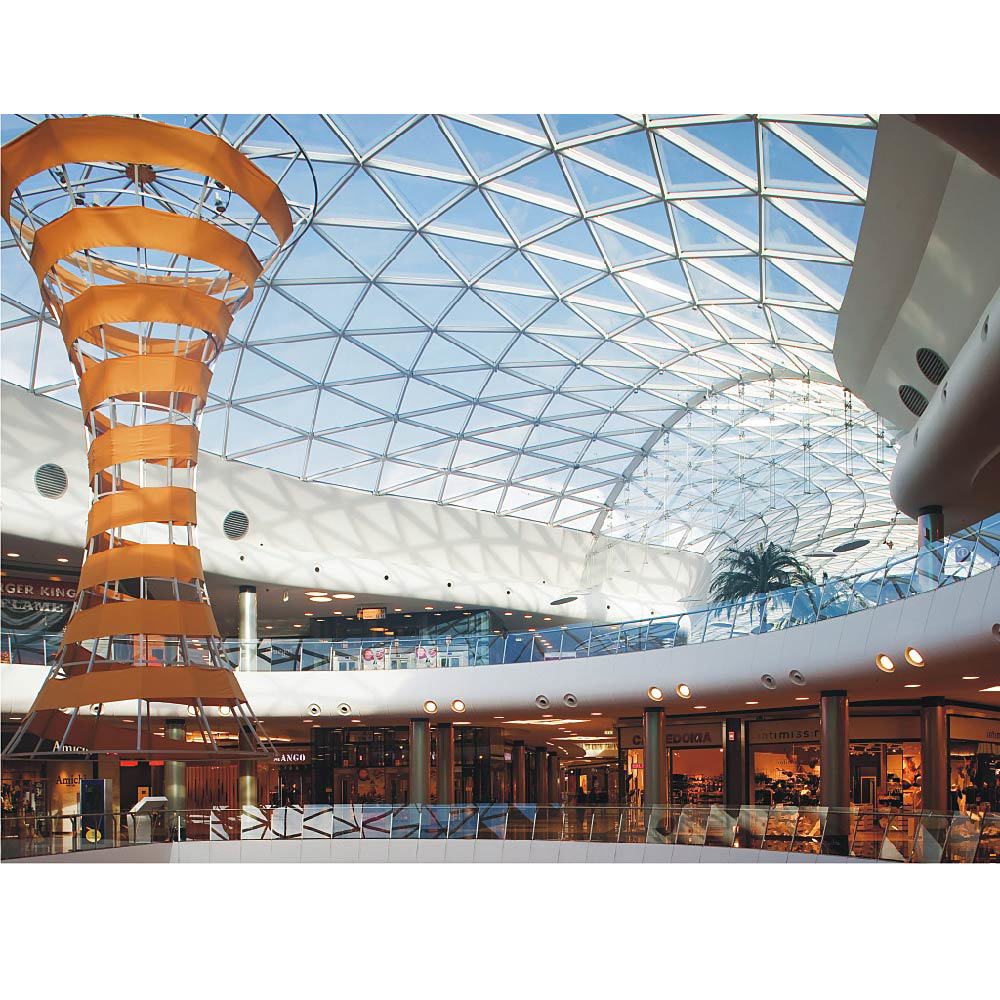

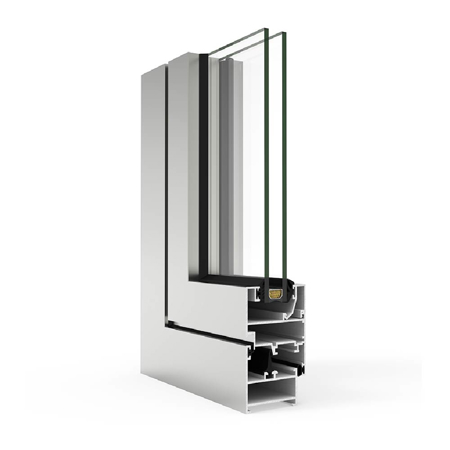

» This skylight system allows for an easy integration of our veranda systems, our hinged windows or our sliding window/door systems.

» It allows the possibility of adding a motorized top hung projecting opening in roof areas



Technical data



» Glazing
Fixed

Maximum 1.97"

Minimum 0.94"


Window roof

Maximum 1.50"

Minimum 0.94"


» Opening possibilities

Motorized top hung projecting

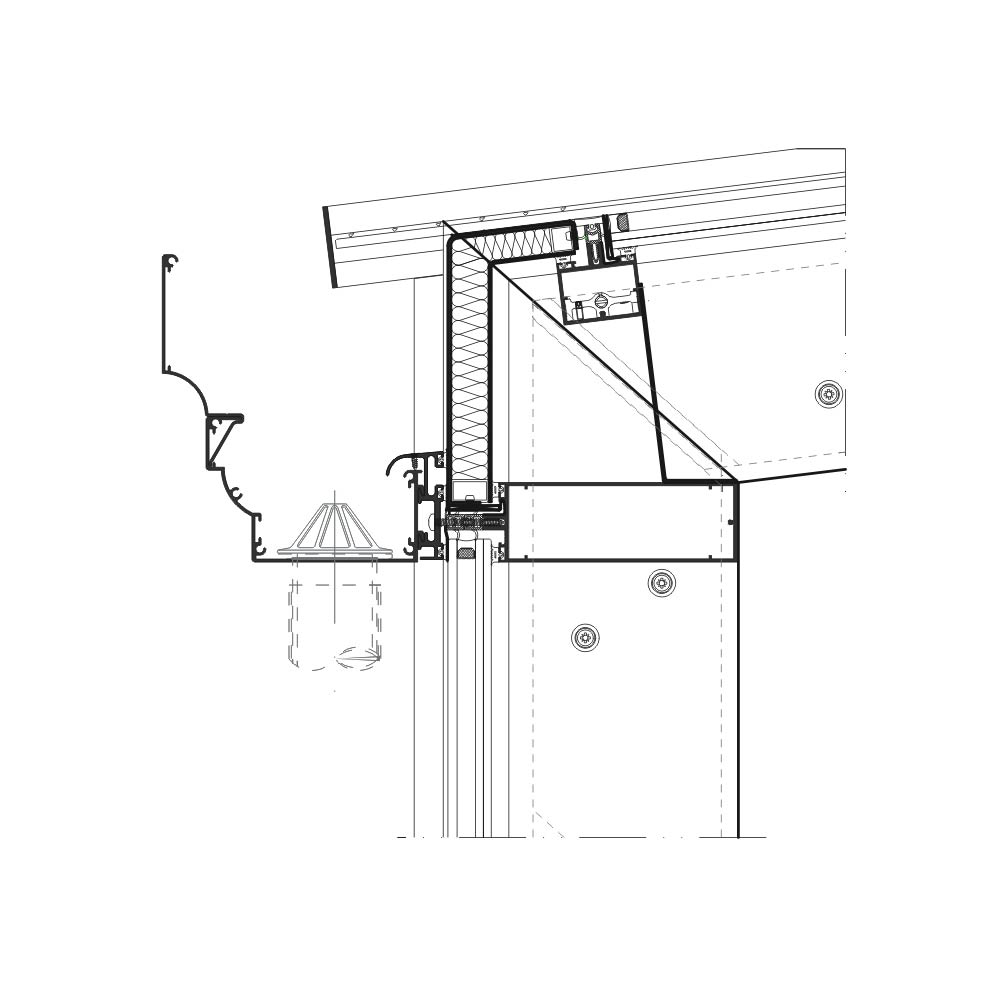

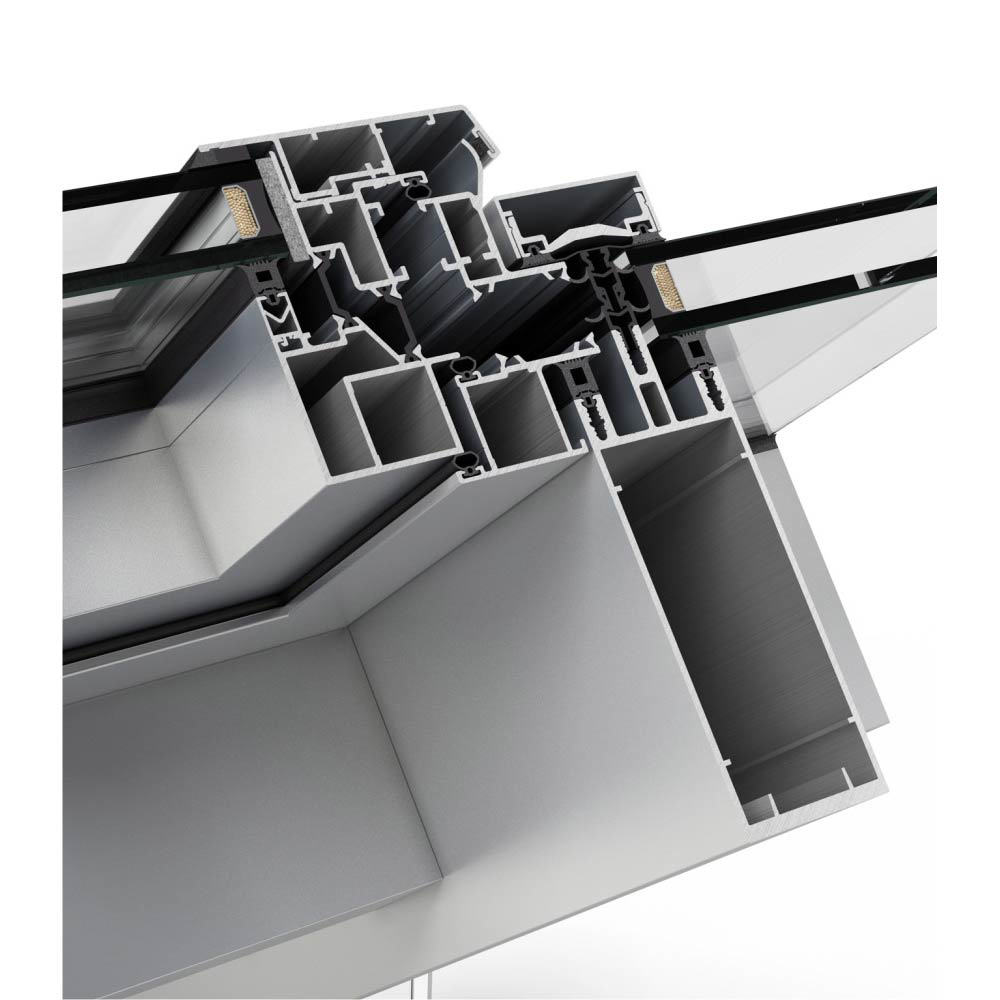

» Sections

Mullion 2.05"

Transom 2.05"
» Profile thickness

Mullion 0.083" and 0.118"

Transom 0.083"
» Minimum incline / slope

Pt = 12% (7º)
» Maximum incline / slope

Pt = 85% (40º)
» Finishes

Powder coating / Anodized



Test Center



» Transmittance

Ucw from 0.6 (W/m²K)

Please consult dimensions and glazing
» Air permeability

(EN 12152) CLASS AE
» Water tightness

(EN 13114) CLASS RE1500
» Wind resistance

(EN 13116) APT
(Design winload 2000 Pa - security wind load 3000 Pa). Test reference 118.11" × 137.80"

Projecting opening test
» Air permeability

(EN 12207) CLASS 4
» Water tightness

(EN 12208) CLASS E2200
» Wind resistance

(EN 12210) C5
Reference test 48.43" x 58.27" 1 sash.
