cortizo

E 170 Lift & Slide PVC

For pricing information please send a request.

» PVC lift & slide system with great thermal insulation properties » Uf from 1.6 Wm²K » Great idea for enclosing large spaces at the same time of guaranteeing maximum luminosity

Shipping: Free

est. delivery:

Description
Downloads

Description

» Stainless steel rails that provide ultra smooth sliding

Technical Data

» Maximum glazing thickness

1.57"
» Opening possibilities

Sliding 2, 3, 4 & 6 sashes

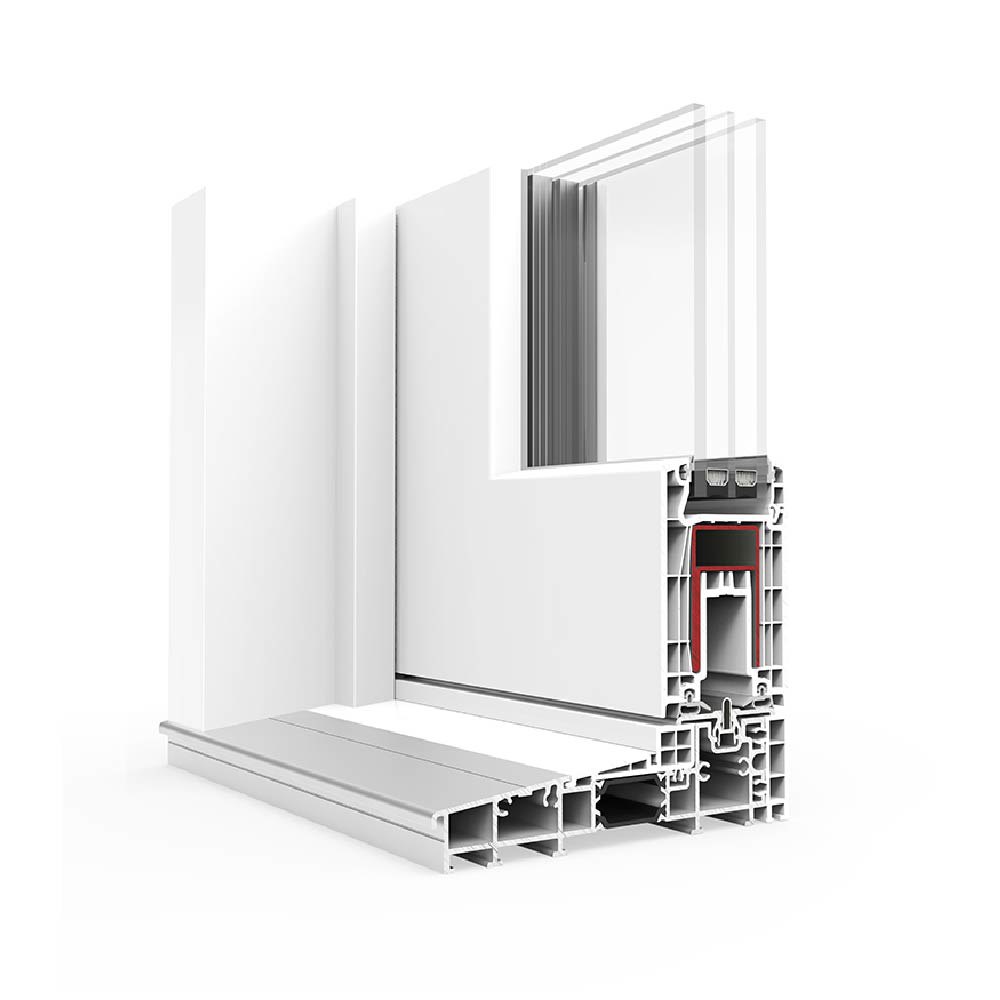

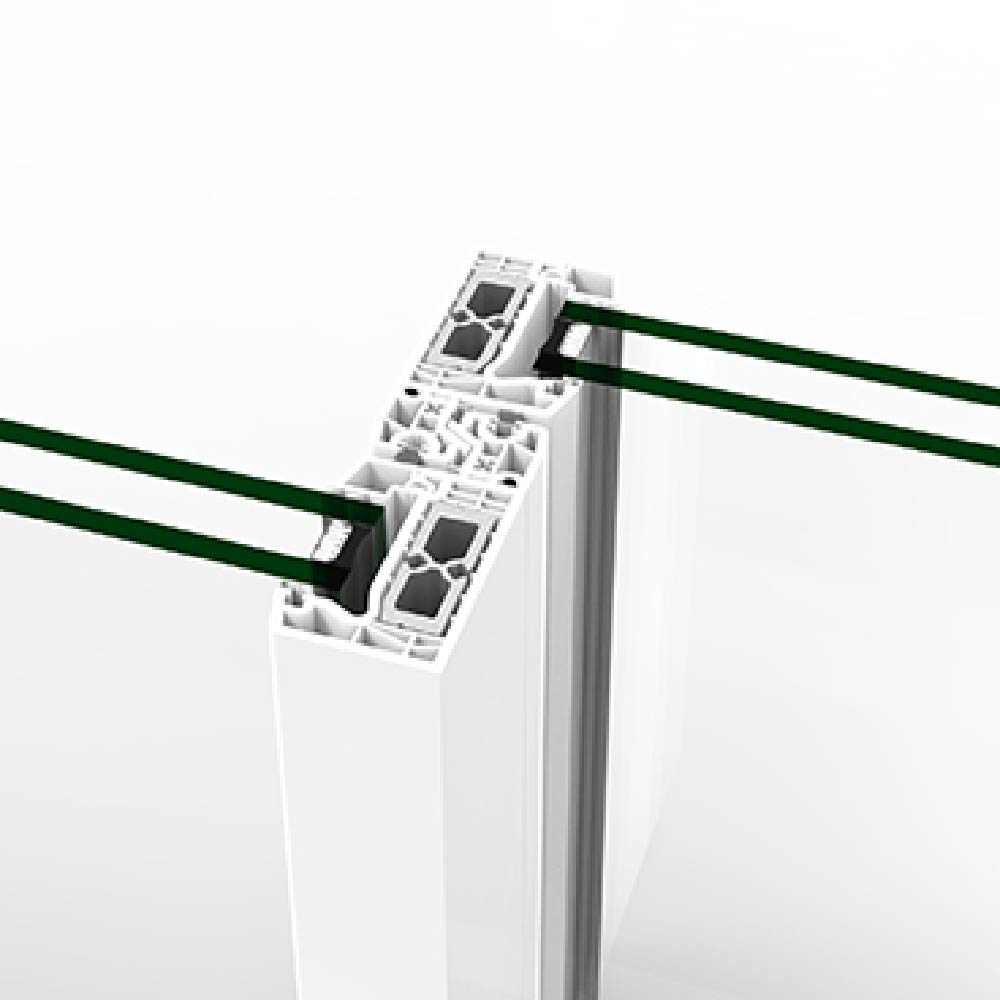

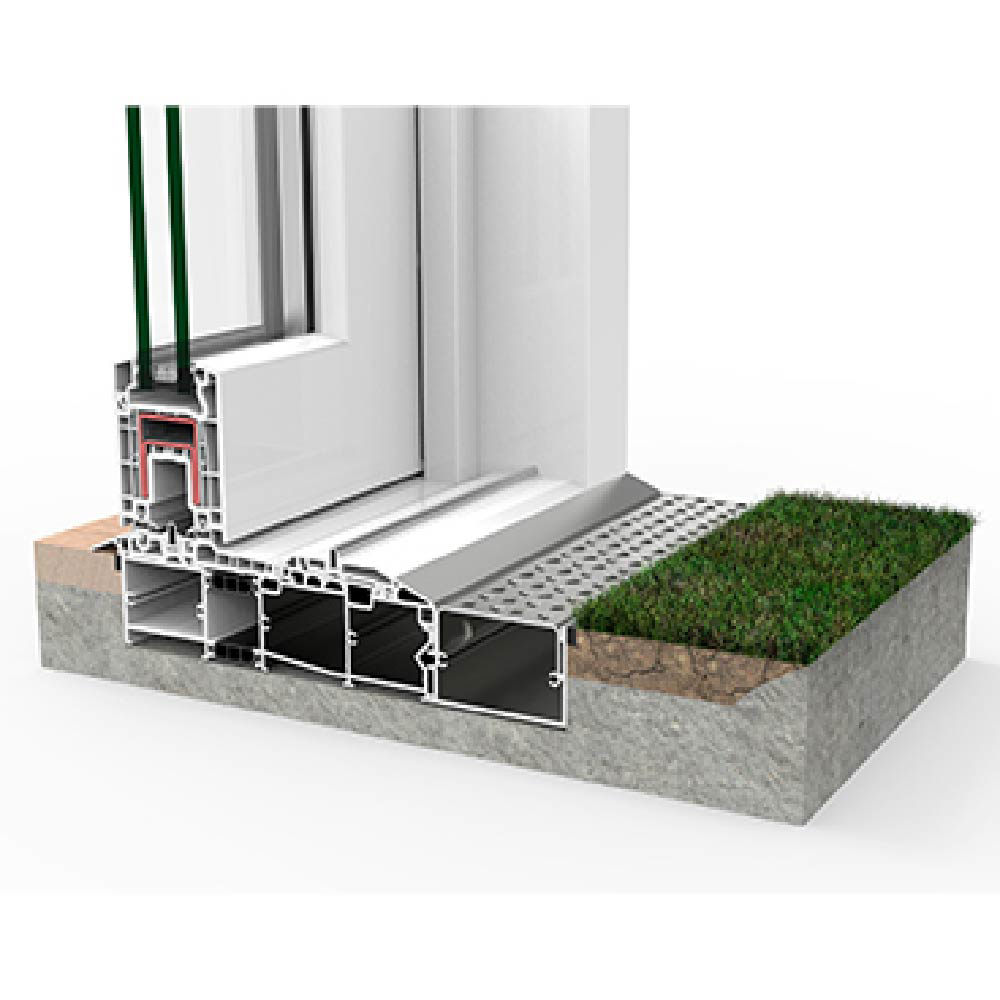

» Sections

Frame 6.69"

Sash 2.76"
» Maximum dimensions/sash

Width (L) = 118.11"
Height (H) = 108.27"

» Maximum weight/sash

STAC: 300 Kg

MACO: 320 Kg
Please consult regarding maximum weight and dimensions according to types
» Finishes

Possibility of dual color systems

White color

Wood effect

Test Center

» Transmittance

Uf ≥ 1,6 (W/m²K)
» Maximum acoustic insulation

Rw = 42 dB
» Air permeability

(EN 12207:2000) CLASS 4
» Water tightness

(EN 12208:2000) CLASS 7A

Reference test: 137.80" × 98.43" 1 sash + 1 fixed
