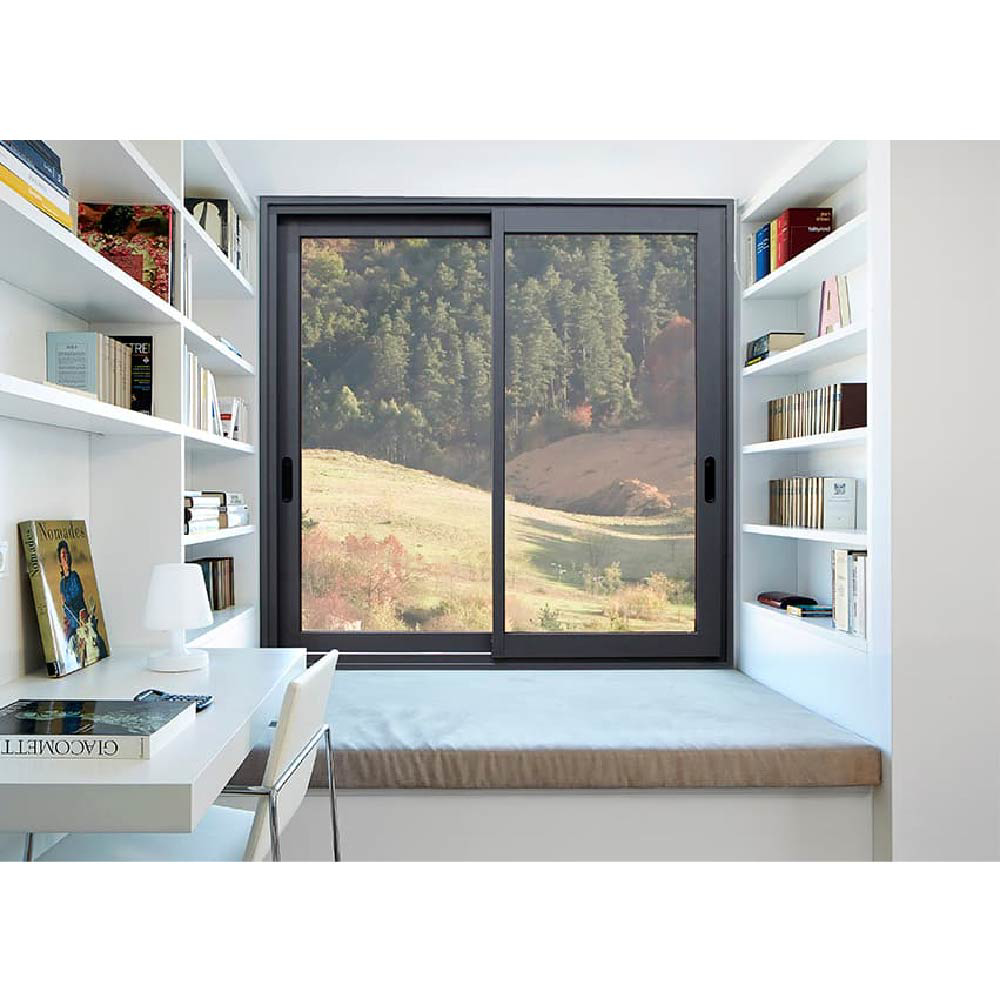

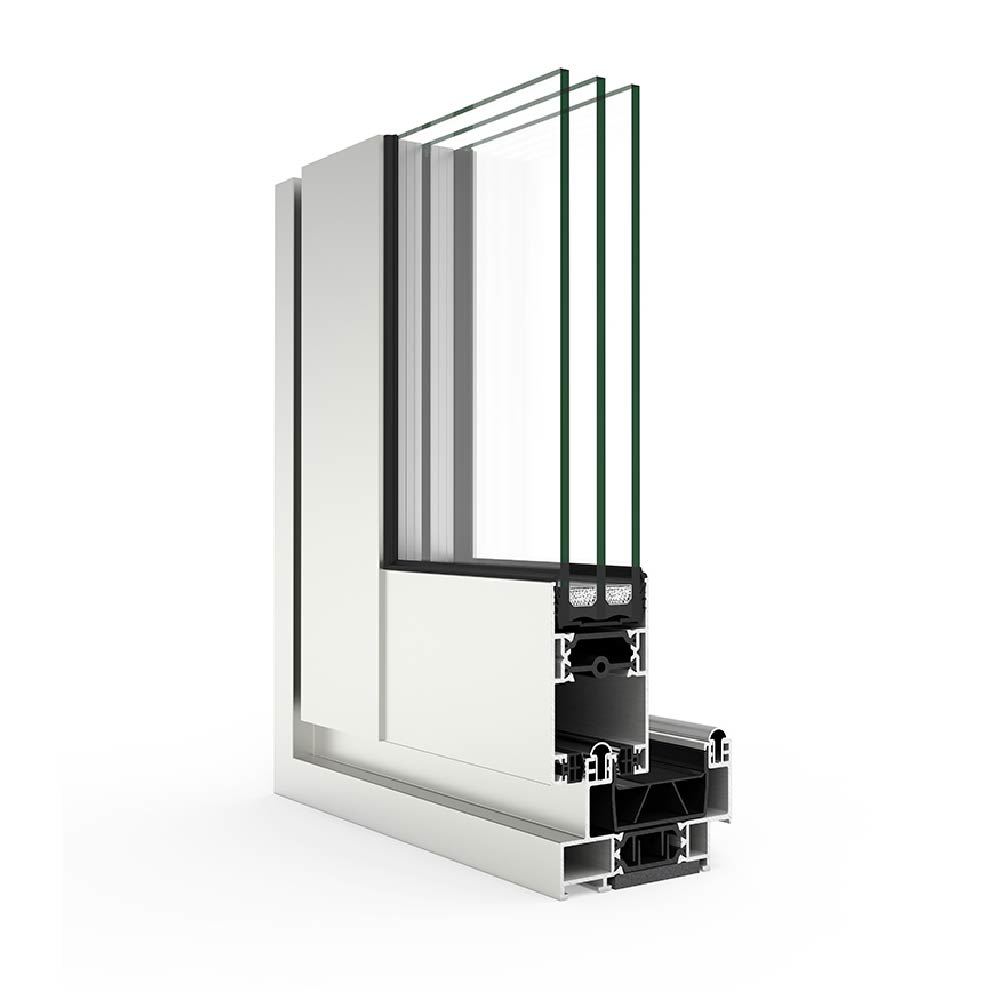

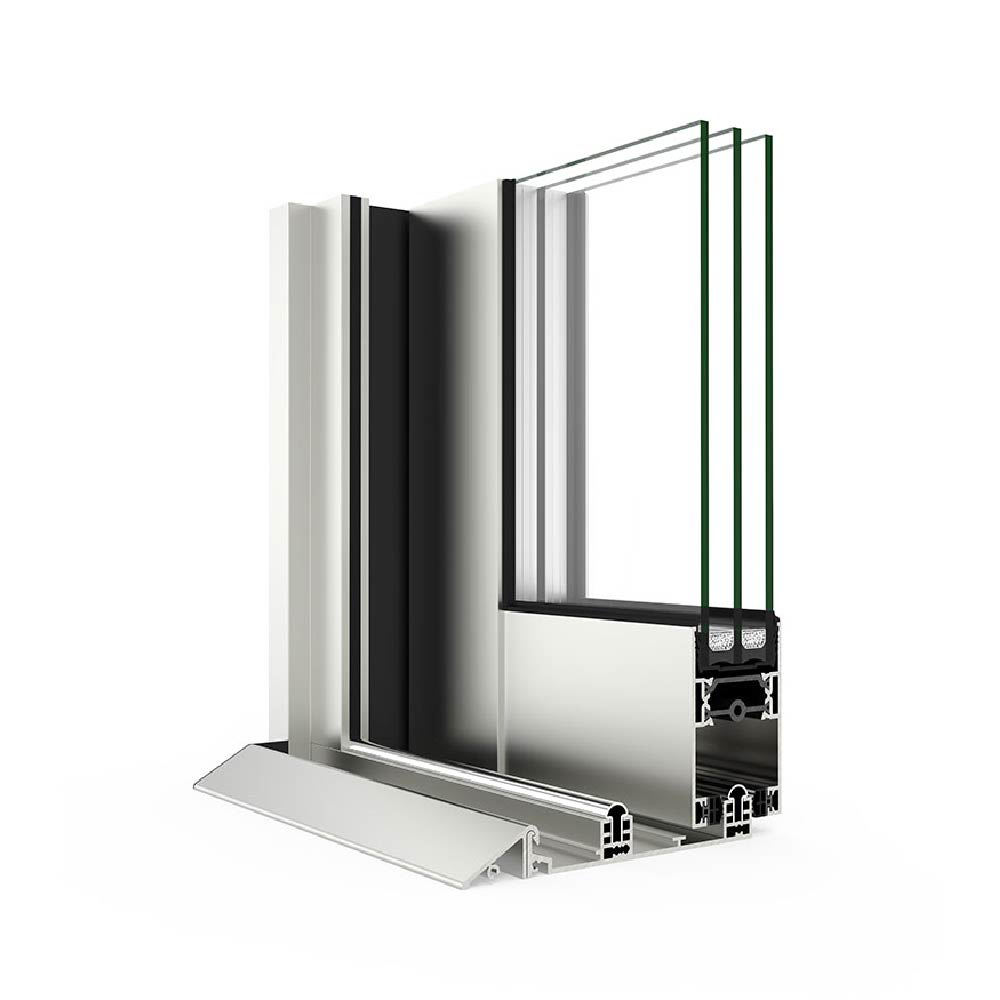

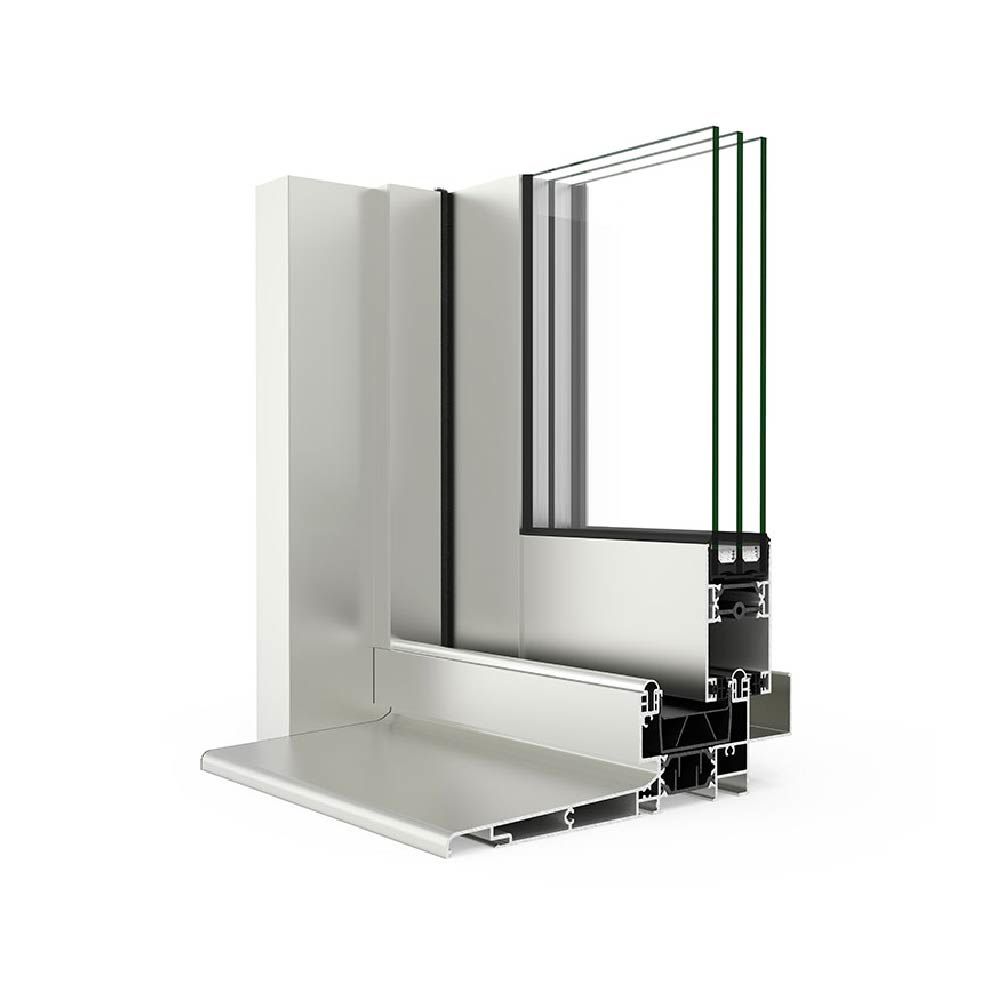

Sliding Window and Door Systems 4900 Sliding HI

For pricing information please send a request.

» Sliding window and door system with straight aesthetic which has a slim interlock of just 1.38". » It allows to have glass thicknesses of up to 1.42", increasing the thermal and acoustic performance.

Shipping: Free

est. delivery:

Description
Downloads

Description

» Its sashes of up to 240 kg can reach the dimensions of 86.61" (W) x102.36" (H).

Technical Data

» Maximum glazing

1.42"
» Opening possibilities

Sliding of 2, 3, 4 & 6 sashes

Possibility of 1, 2, 3 & 4 rails

Pocket possibility

Possibility of interior and exterior corner sash at 90º without mullion

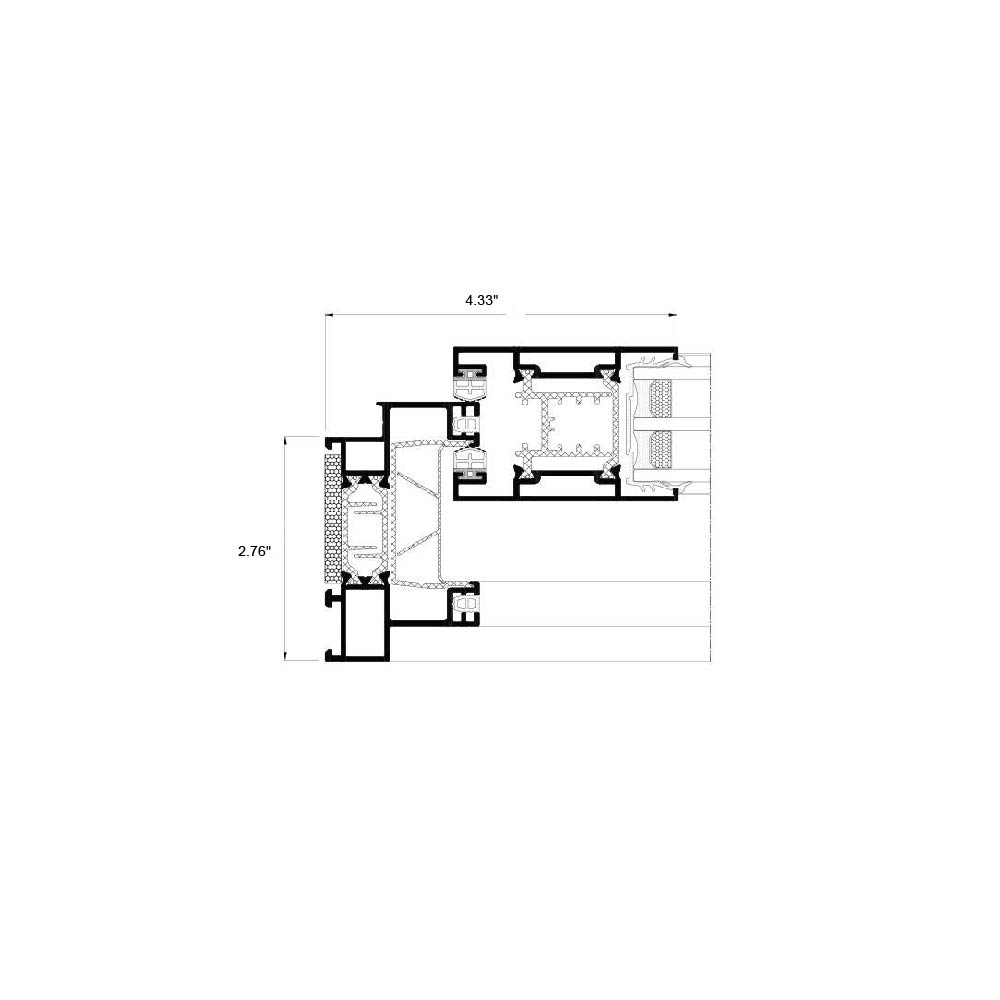

» Sections

Frame 2.76" - 3 Rails 4.96"

Sash 1.89"
» Profile thickness

Window 0.063"
» Polyamide strip length

Frame 1.34"
» Maximum dimensions / Sash

Width (L) = 86.61"
Height (H) = 118.11"
» Maximum weight / Sash

240 kg
Please consult regarding maximum weight and dimensions for other opening types
» Finishes

Possibility of dual color systems

Color powder coating (RAL, mottled and rough)

Wood effect powder coating

Anti-bacterial powder coating

Anodized

Test Center

» Transmittance

Uw from 1.2 (W/m²K)

Please consult typology, dimensions and glazing.
» Maximum acoustic insulation

Rw = 40 dB
» Air permeability

(EN 12207) CLASS 4
» Water tightness

(EN 12208) CLASS 7A
» Wind resistance

(EN 12210) CLASS C5

» DTA certification from CSTB lab
Avis technique

Reference test: 70.87" × 86.61", 2 sashes.
