cortizo

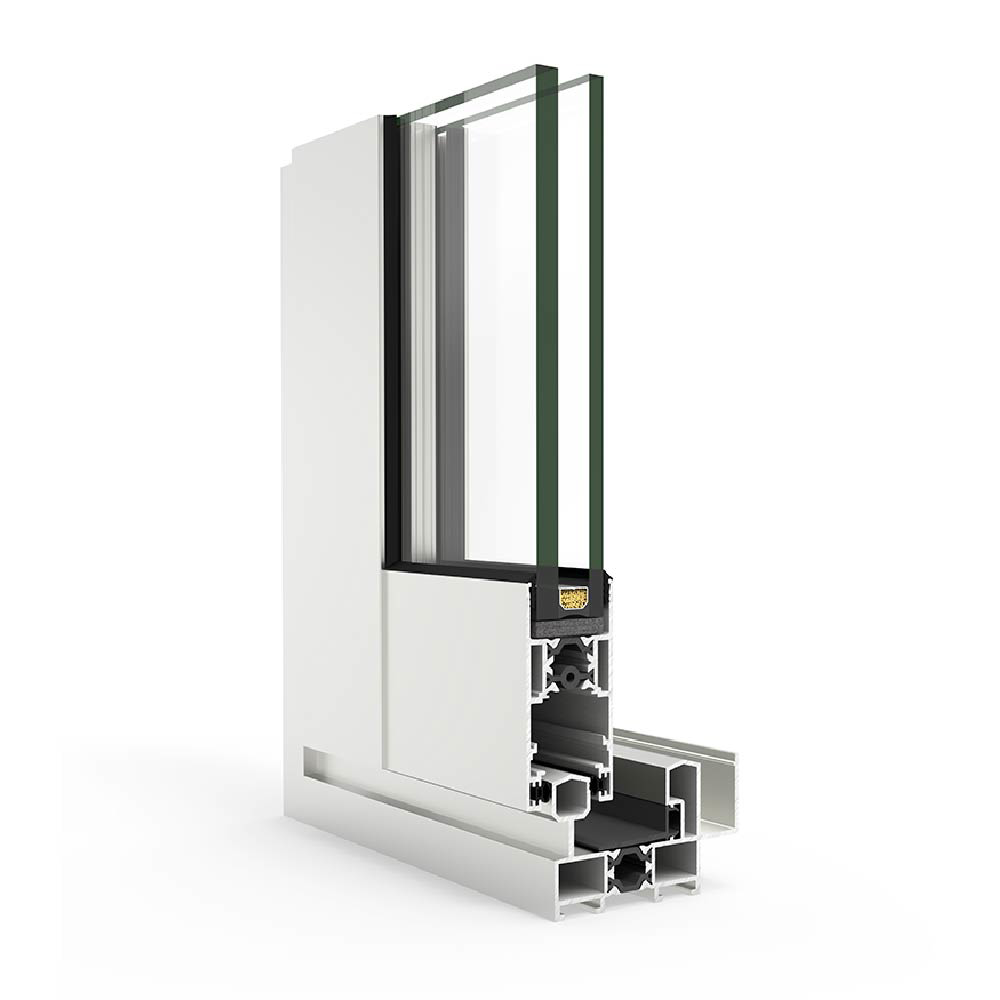

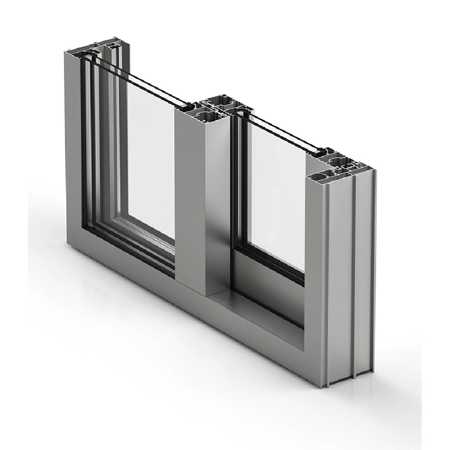

4200 Sliding Sliding Window and Door Systems

For pricing information please send a request.

» A versatile system with thermal bridge » 45º frame encounters » 45º or 90º sash encounters » Curved or straight sashes

Shipping: Free

est. delivery:

Description

» Possibility of pocket system

Technical Data

» Maximum glazing thickness

1.02"
» Opening possibilities

Sliding of 2, 3, 4 & 6 sashes

Possibility 3 rails

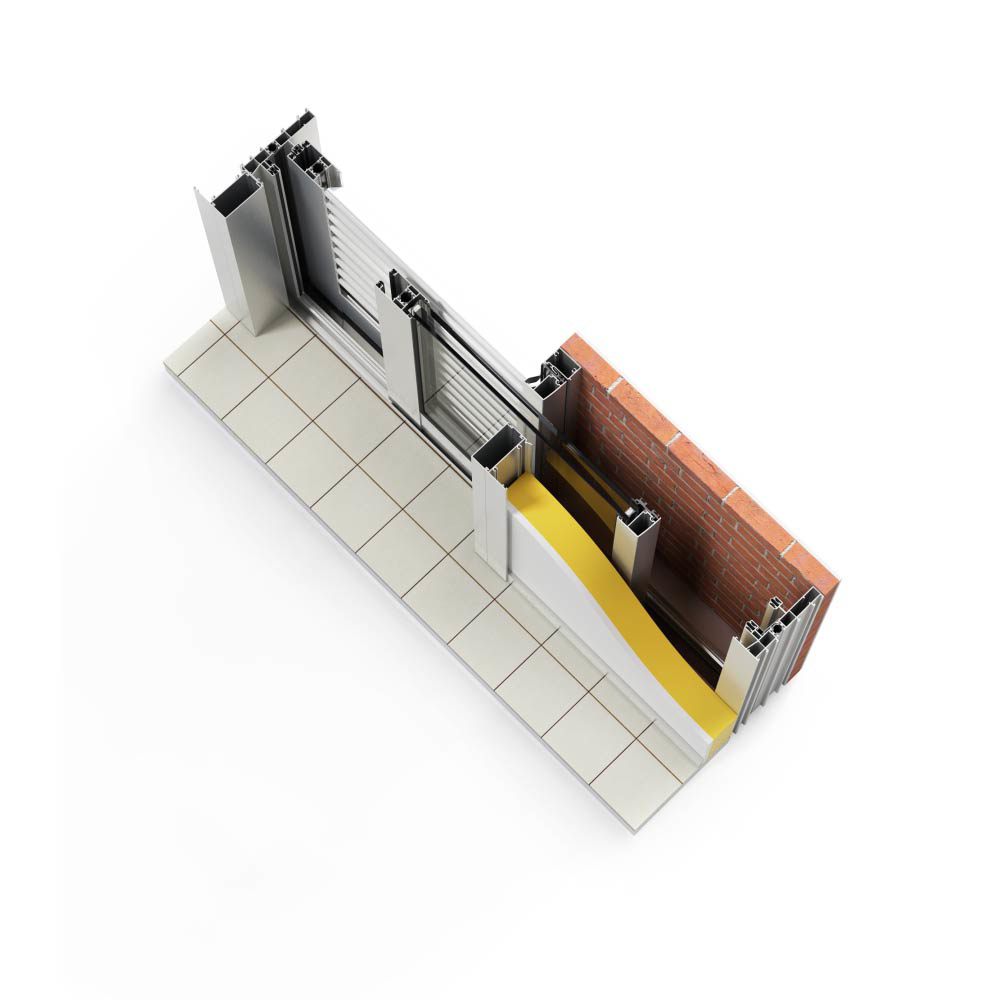

Pocket system

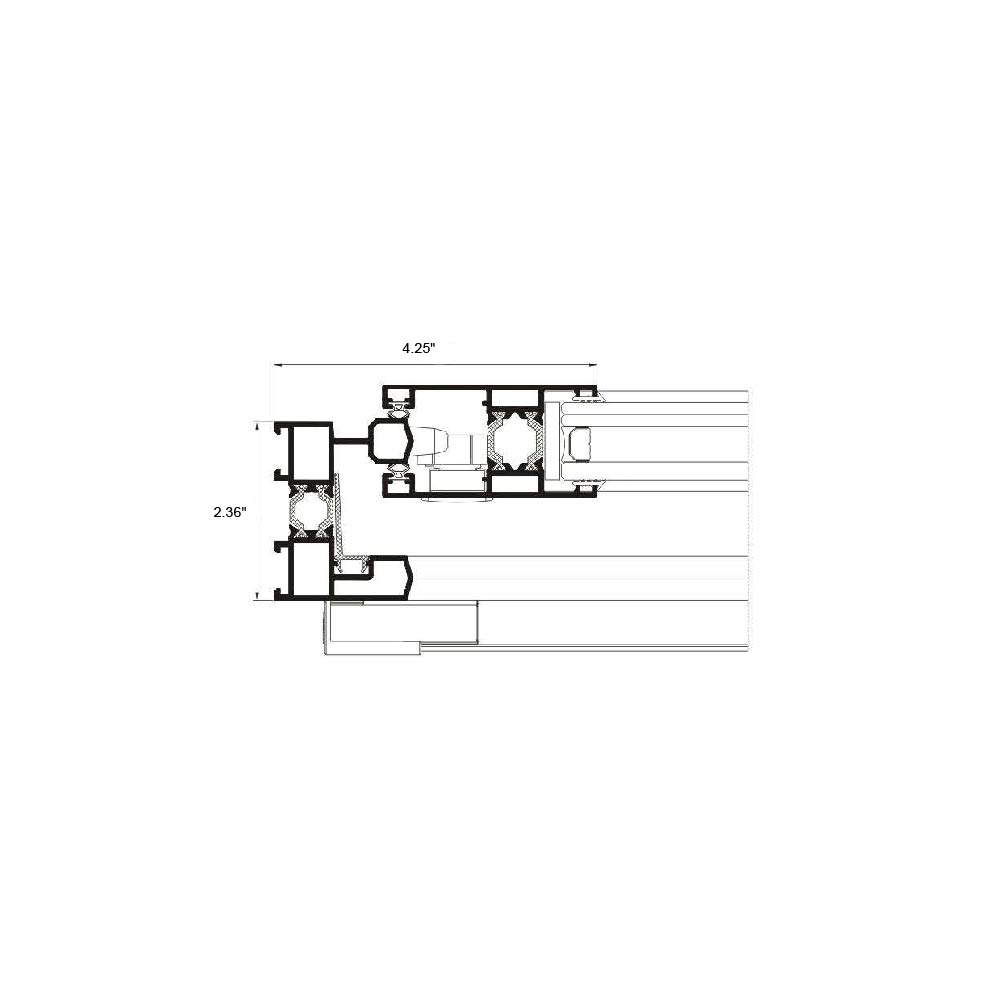

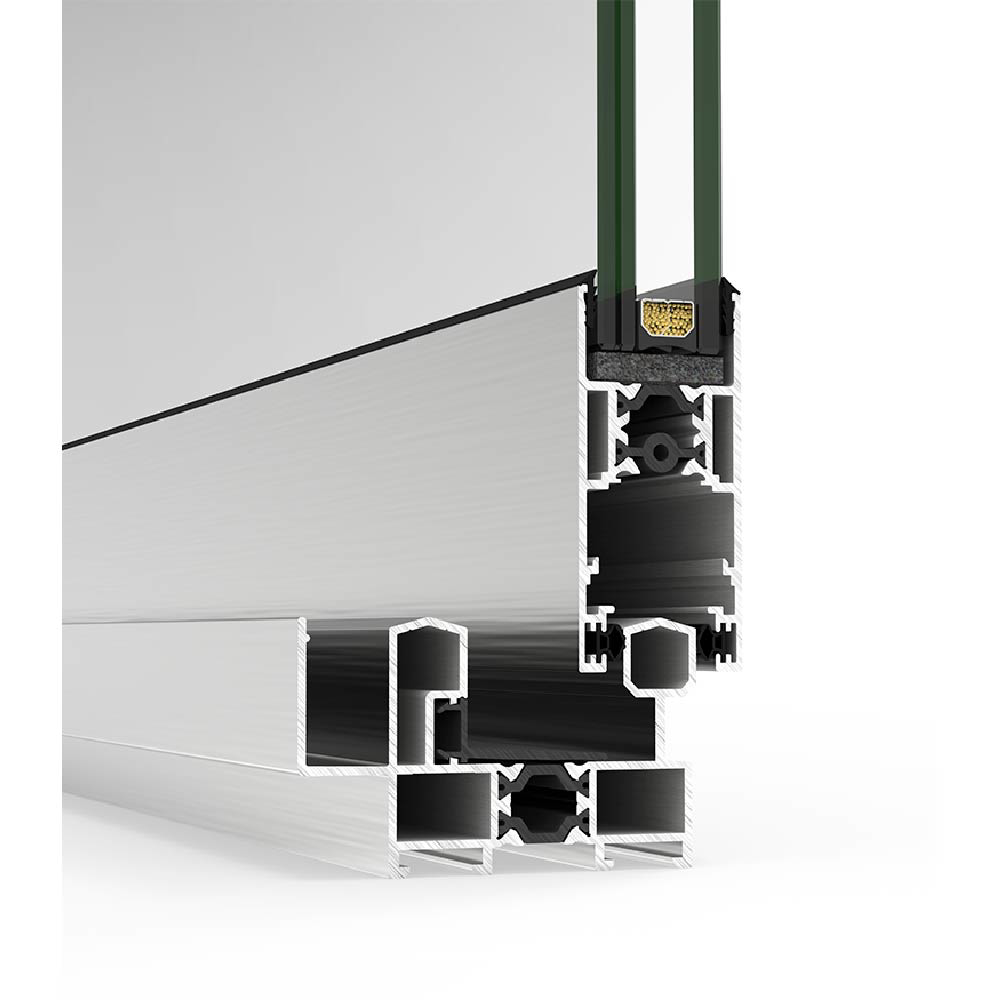

» Sections

Frame 2.36", 2.56", 2.64" & 3.15" - 3 rails 4.17" & 4.96"

Sash 1.30" & 1.46"
» Profile thickness

Window 0.059"
» Polyamide strip length

From 0.57" to 0.79"
» Maximum dimensions/sash

Width (L) = 86.61"
Height (H) = 102.36"
» Maximum weight/sash

45º sash encounter 100 kg

90º sash encounter 200 kg
Please consult regarding maximum weight and dimensions for other opening types
» Finishes

Possibility of dual color systems

Color powder coating (RAL, mottled and rough)

Wood effect powder coating

Anti-bacterial powder coating

Anodized

Test Center

» Transmittance

Uw from 1.5 (W/m²K)

Please consult typology, dimensions and glazing
» Maximum acoustic insulation

Rw = 39 dB
» Air permeability

(EN 12207:2000) CLASS 3
» Water tightness

(EN 12208:2000): CLASS 7A
» Wind resistance

(EN 12210:2000) CLASS C5
Reference test 47.24" x 47.24" 2 sashes
