» Outstanding thermal and acoustic performance

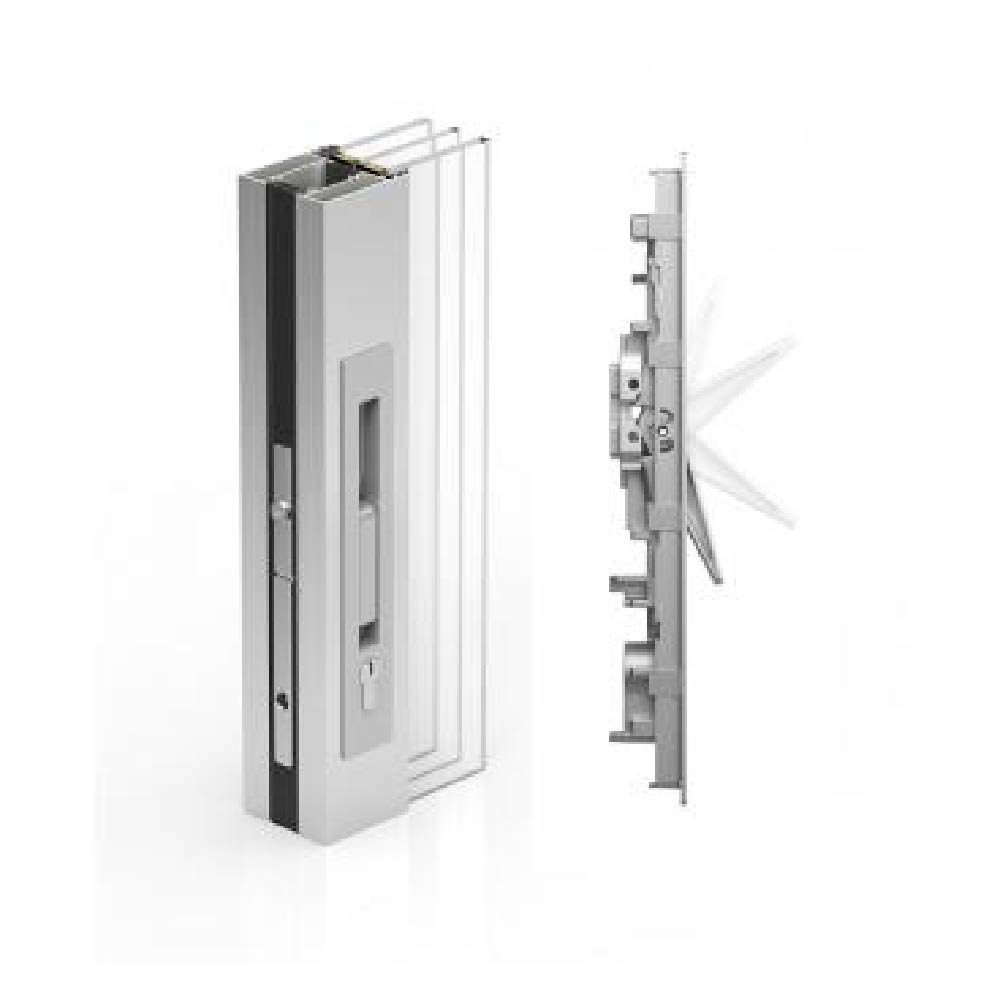

» It comes with the possibility of motorized opening for sashes up to 700 kg, and manual opening for up to 400 kg. Additionally, it allows to place multipoint lock systems by operating rod, with or without key

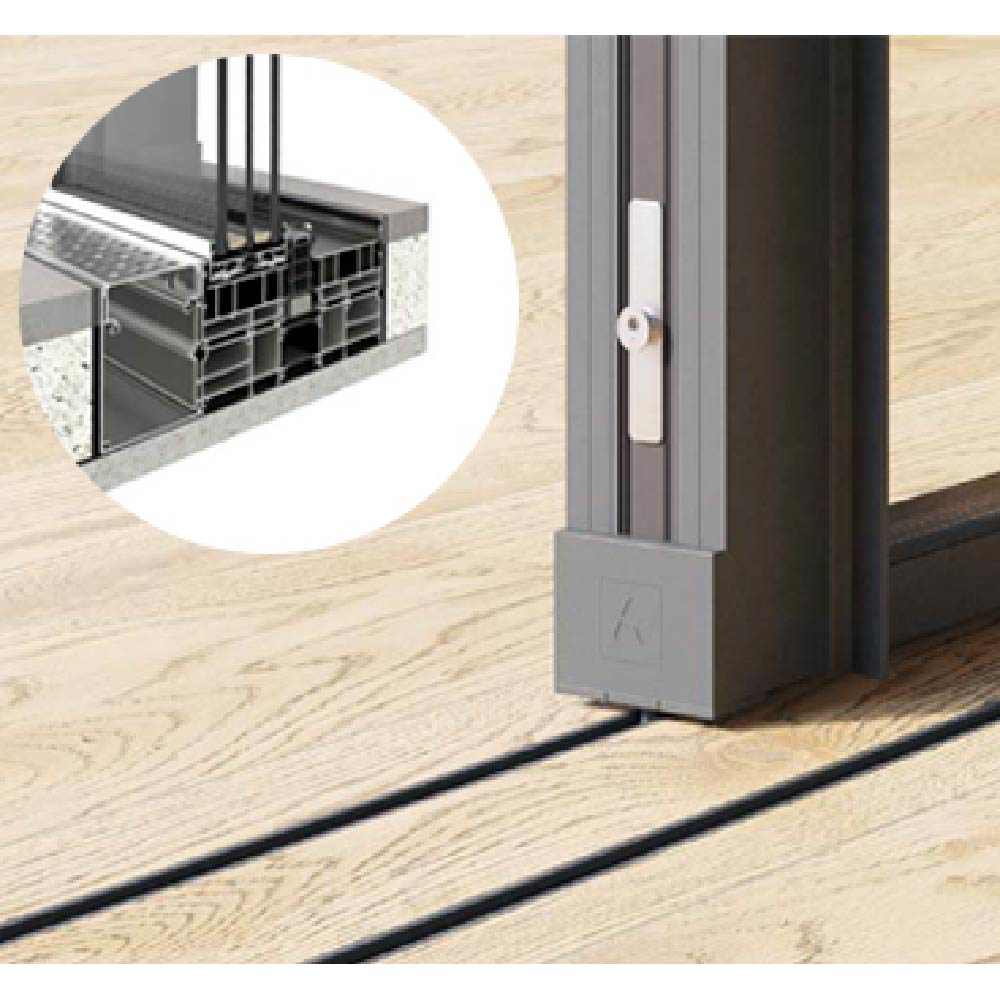

» The rollers are placed in the frame, and the sashes count with a stainless steel reinforced rolling area which makes the sliding movement smoother
» Possibility of corner sash encounters at 90º without needing a mullion
» The motorized version allows to completely hide the sash within the frame in closing position
Technical Data
» Maximum glazing thickness
2.20"
» Opening possibilities
Sliding of 2, 4 or 6 sashes
Up to 4 rail configurations
1 sash + 1 fixed / 2 sashes + 1 fixed
Possibility of corner sash encounters at 90º without mullions
Pocket solution possibility 1,2,3, and 4 sashes

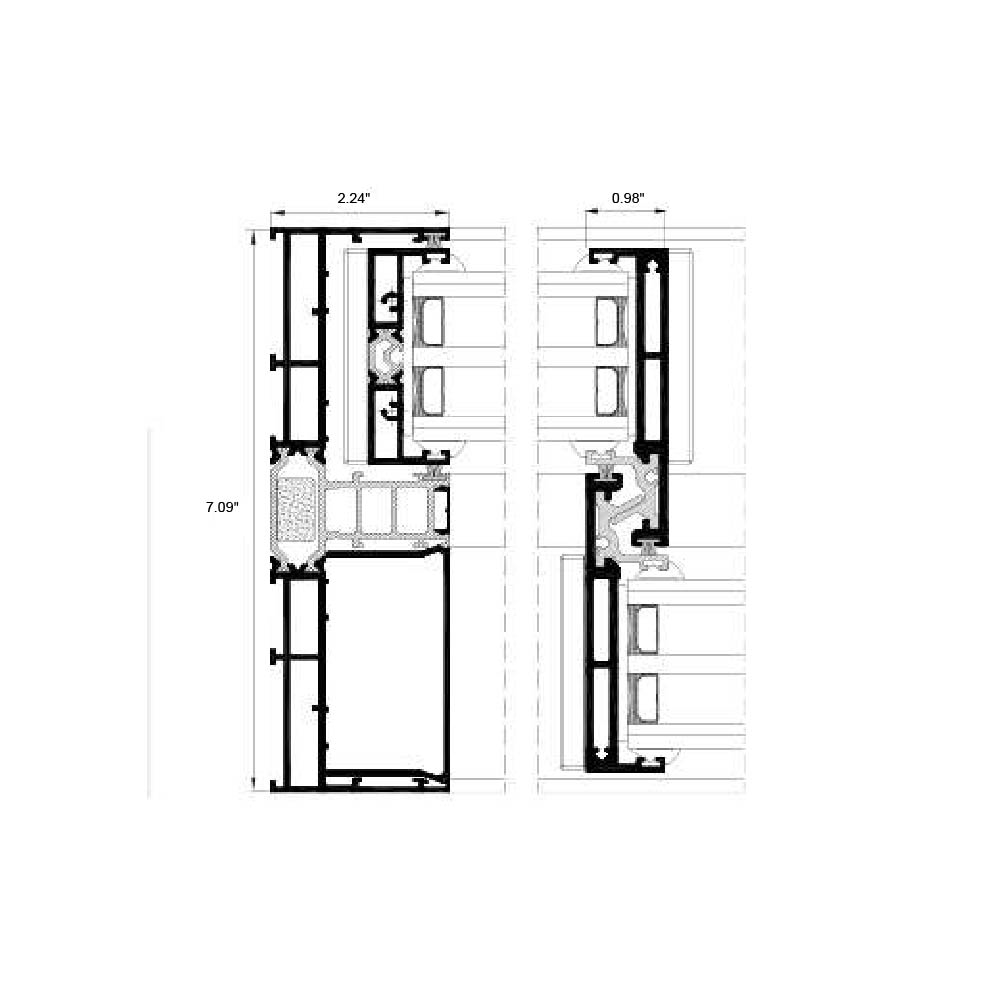

» Sections
Frame – 7.09" - 10.95" 3 rails
Sash – 2.72"
» Profile thickness
Door 0.079"
» Polyamide strip length
from 0.71" to 1.57"
» Maximum dimensions/sash
Width (L) = 157.48"
Height (H) = 157.48"
Glass surface ≤ 14 m²
» Maximum weight/sash
400 kg Manual
700 kg Motorized
Please consult regarding maximum weight and dimensions for other opening types
» Finishes
Possibility of dual color systems
Color powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized
Test Center
» Transmittance
Uw from 0.9 (W/m²K)
Please consult typology, dimensions and glazing
» Maximum acoustic insulation
Rw = 43 dB
» Air permeability
(EN 12207:2000) CLASS 4
» Water tightness
(EN 12208:2000) CLASS 7A* / 9A**
» Wind resistance
(EN 12210:2000) CLASS C3* / C4**
*Reference test: Balcony 157.48" x 118.11" 2 sashes.
**Reference test: 157.48" x 118.11" 1 sash + 1 fixed
