cortizo

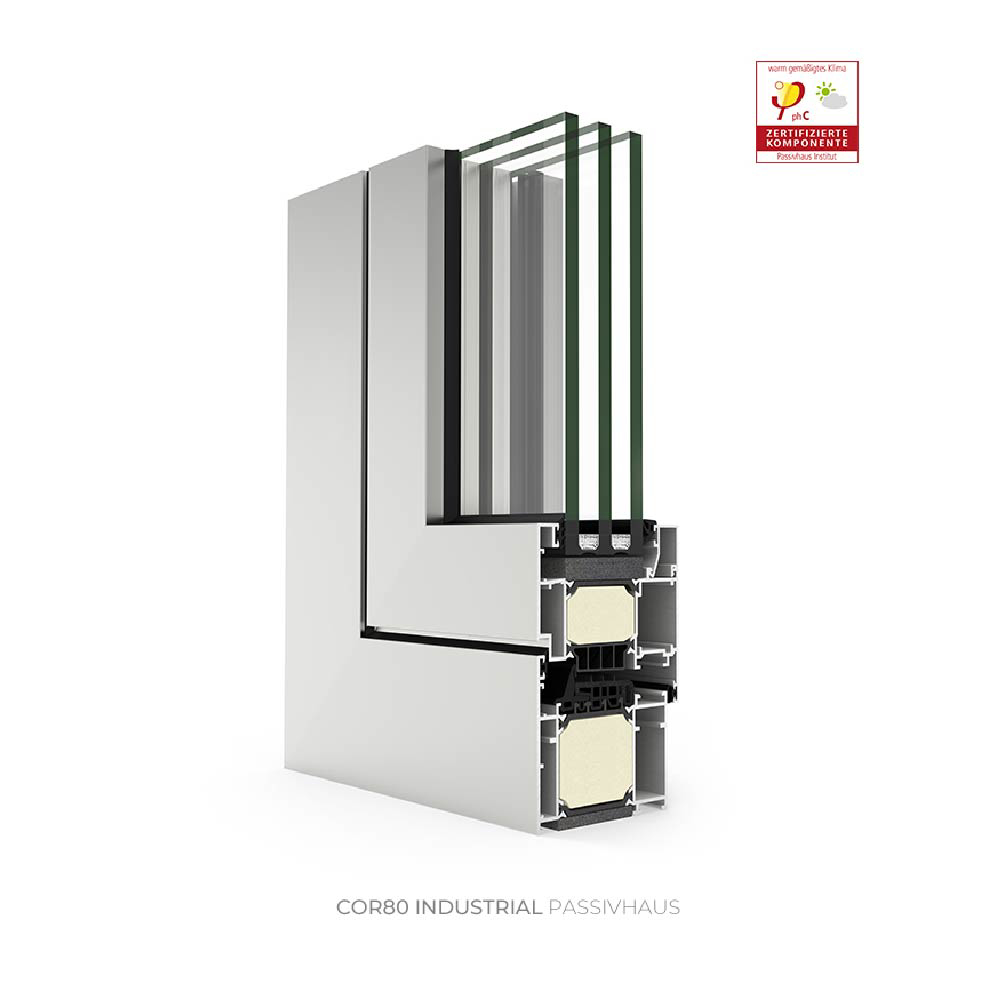

Hinged Window and Door Systems COR 80 Industrial Passivhaus

For pricing information please send a request.

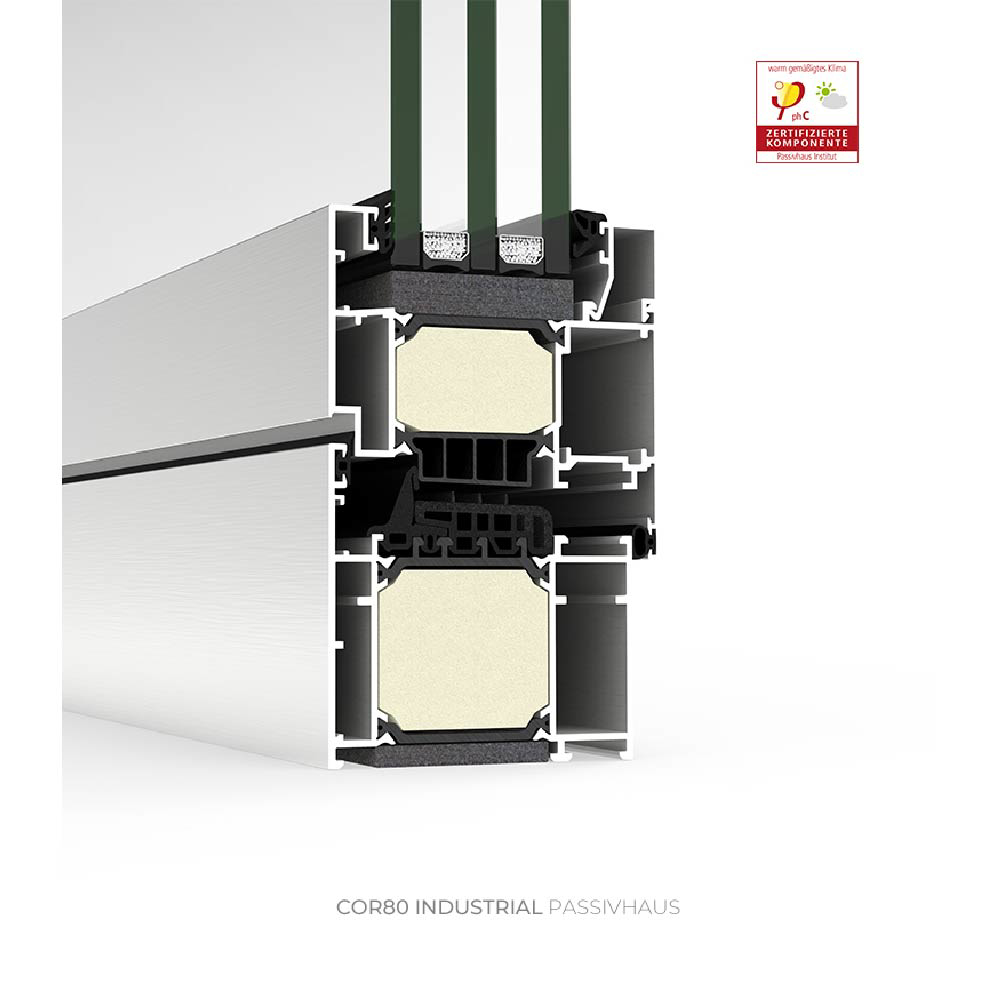

Certified for the warm-temperate category, this system offers exceptional thermal insulation thanks to its special foams on the frame and sash. With a transmittance value Uw from just 0.66 W/m²K, it is an ideal solution for buildings with low energy consumption.

Shipping: Free

est. delivery:

Description
Downloads

Description

Possibilities
» Security hardware
» Concealed hinges

Technical Data

» Glazing
Max. 2.56"
Min. 0.98"

» Opening possibilities
Inward opening
Side hung
Tilt & turn
Tilt & parallel
Tilt only

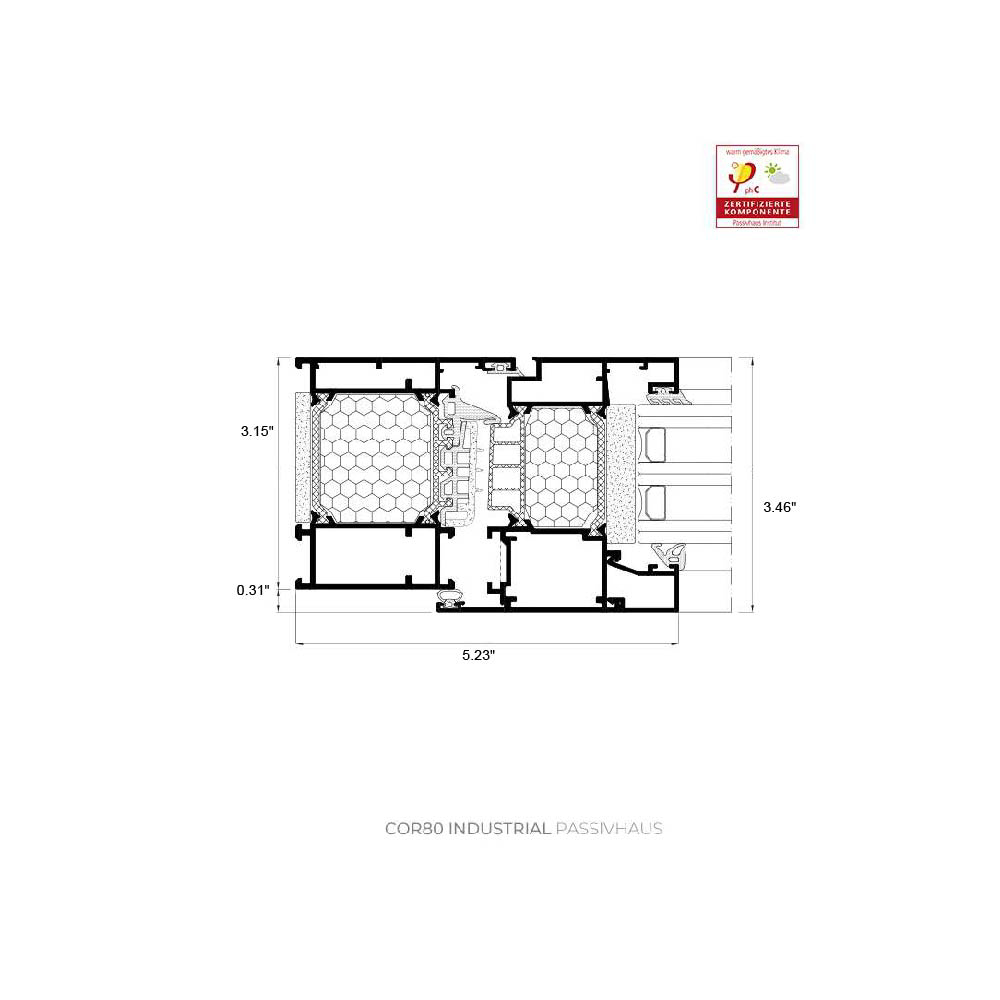

» Sightlines
Frame 3.15"
Sash 3.46"

» Profile thickness
0.063"

» Polyamide strip length
1.77"

» Maximum sash dimensions
Width (L) 59.06"
Height (H) 102.36"

» Maximum sash weight
160 kg

» Aesthetic possibilities
Sash: Straight / Bead: Straight or curved

Consult maximum weight and dimensions according to typologies.

» Finishes
Possibility of dual color systems
Color powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized

Test Center

» Transmittance
Uw ≥ 0.66 (W/m²K)
Consult maximum weight and dimensions according to typologies

» Acoustic insulation
Rw up to 46 dB

» Air permeability
(EN 12207) Class 4

» Water tightness
(EN 12208) Class E1950

» Wind resistance
(EN 12210) Class C5
Reference test 48.43" x 58.27" / 2 sashes
