COR 70 Evolution Hinged Window and Door Systems

For pricing information please send a request.

Hinged system with groove 16 destined for the industrial production of windows, doors and balconies.

Shipping: Free

est. delivery:

Description
Downloads

Description

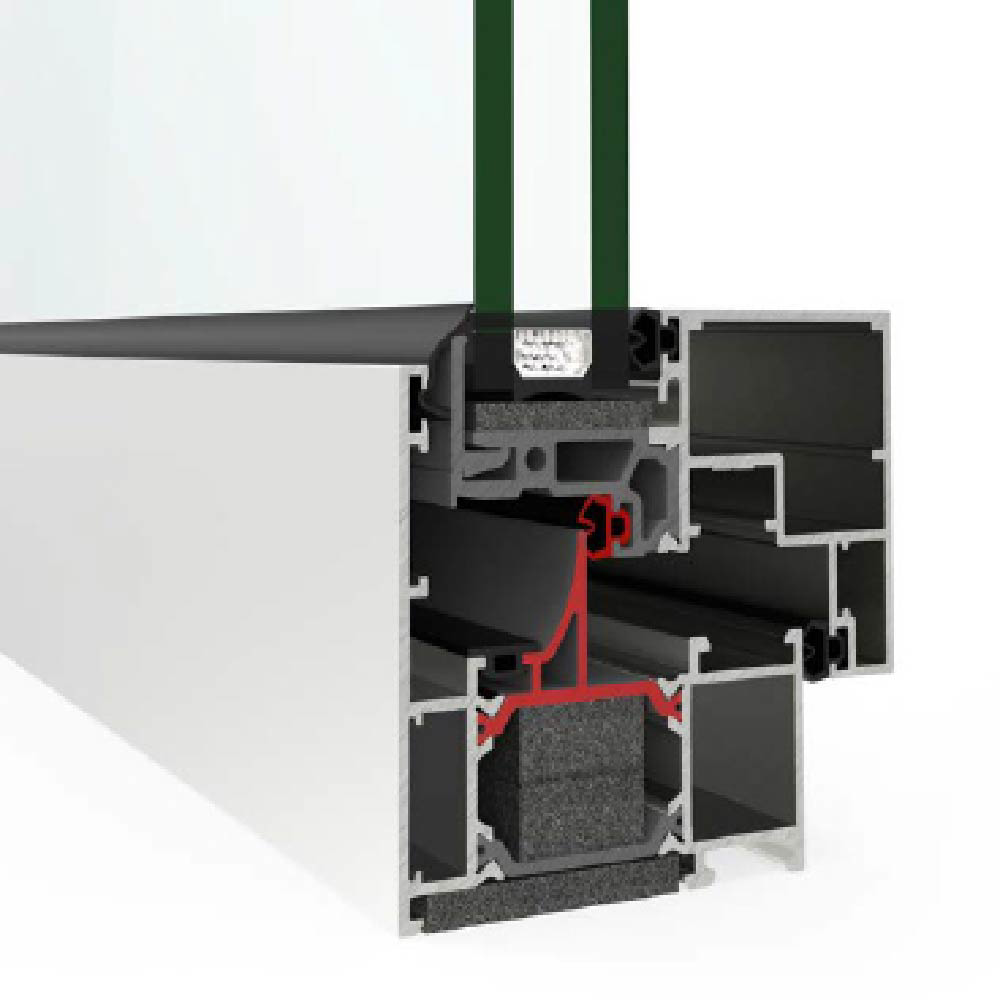

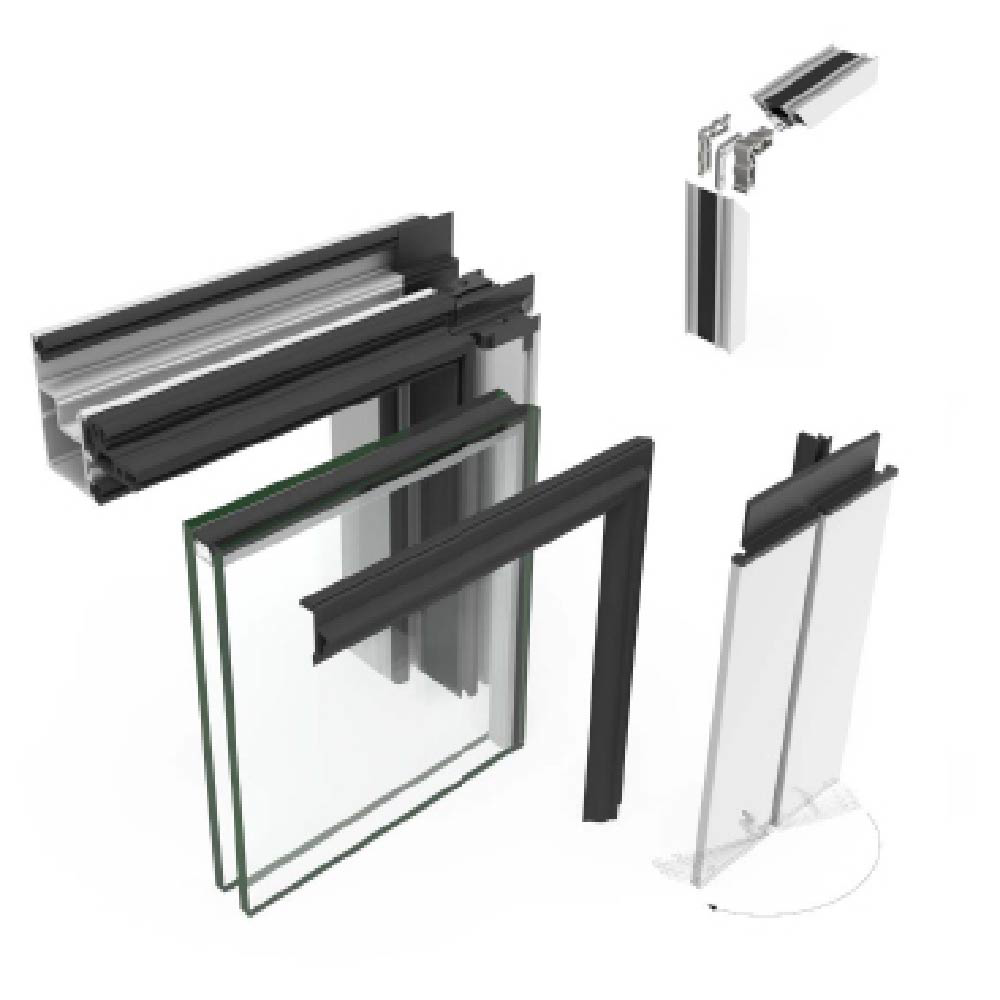

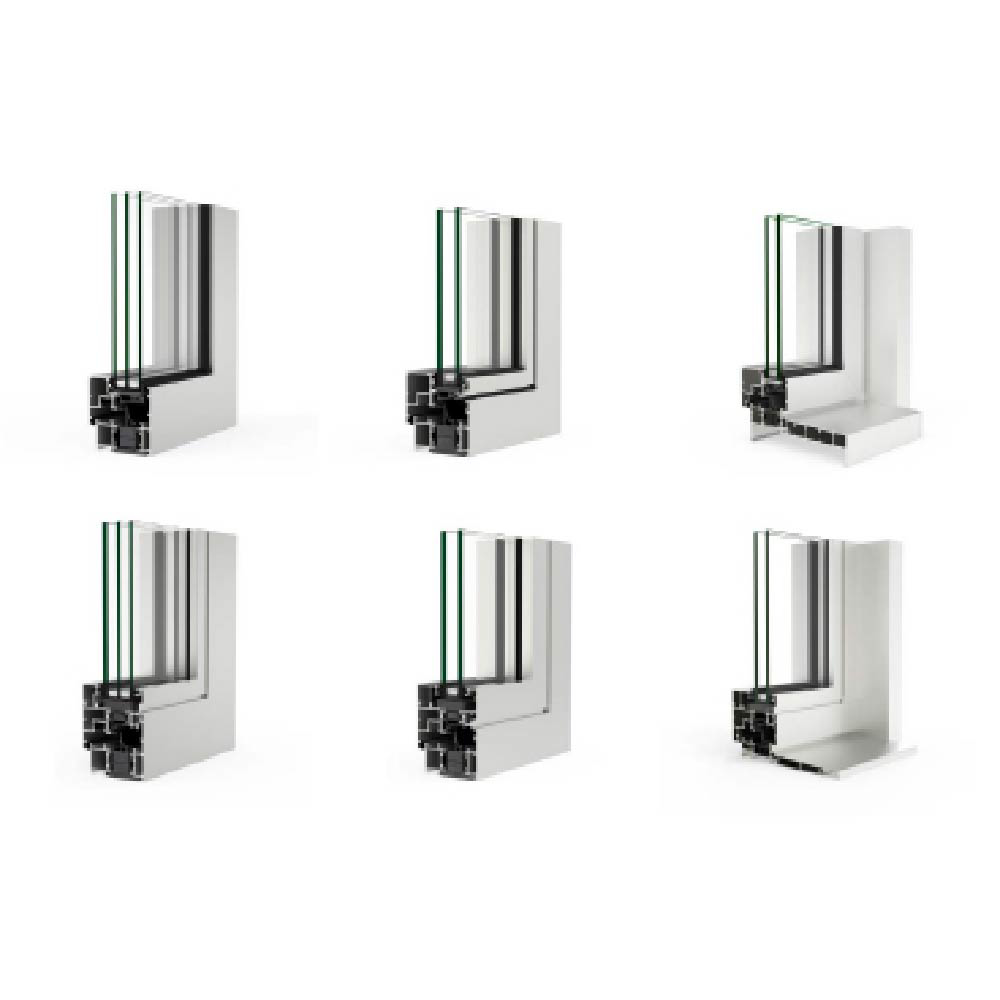

In order to reduce the manufacturing period, this new series offers the possibility of using pre-assembled gaskets, assembling cleats and a central floating mullion with a two-piece hidden sash, which allows the glazing of double-sash windows on site. COR 70 Evolution is presented in a version of hidden or half-hidden sash with monoblock frames, in straight cut or perimetral, aiming at facilitating the on-site installation.

Possibilities
» Security hardware
» Concealed hinges
» Concealed handle

Technical Data

» Glazing
Hidden sash 1.42"
Half hidden sash 2.48"

» Opening possibilities

Inward Opening
Side hung
Tilt & turn
Tilt only

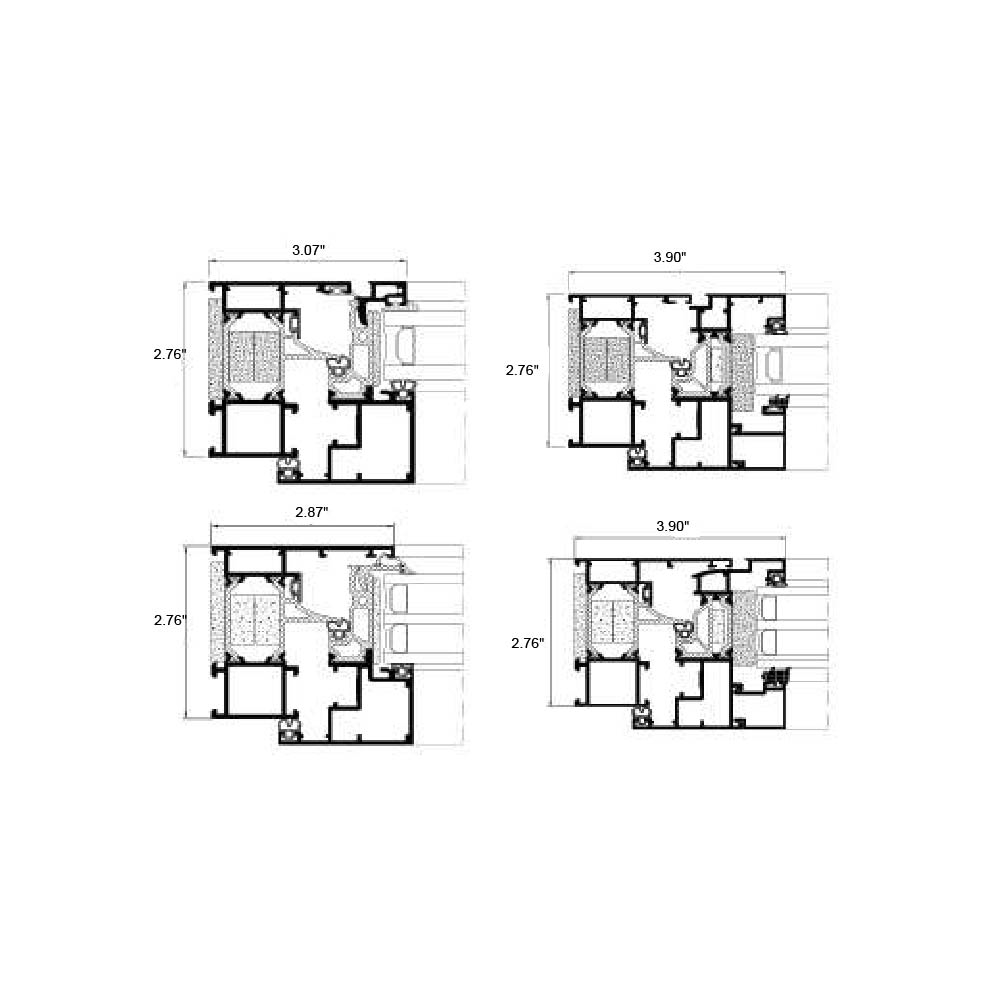

» Sightlines

Hidden sash
Frame 2.76"- 9.13"
Sash 2.85" – 3.17"

Half hidden sash
Frame 2.76"- 9.13"
Sash 3.17" – 3.49"

» Maximum Sash Dimensions

Hidden sash
Width (L) 51.18"
Height (H) 94.49"

Half hidden sash
Width (L) 59.06"
Height (H) 102.36"

» Maximum Sash Weight
150 Kg

Consult maximum weight and dimensions according to typologies

» Finishes
Possibility of bicolor systems
Color powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized

Test Center

» Transmittance
Uw ≥ 0.81 (W/m²K)

» Acoustic insulation
Rw up to 43 dB

» Air permeability
Class 4

» Water tightness

Clase E1500

» Wind resistance
Class C5

Reference test 48.43" × 58.27" / 2 sashes
