A 84 Hinged PVC

For pricing information please send a request.

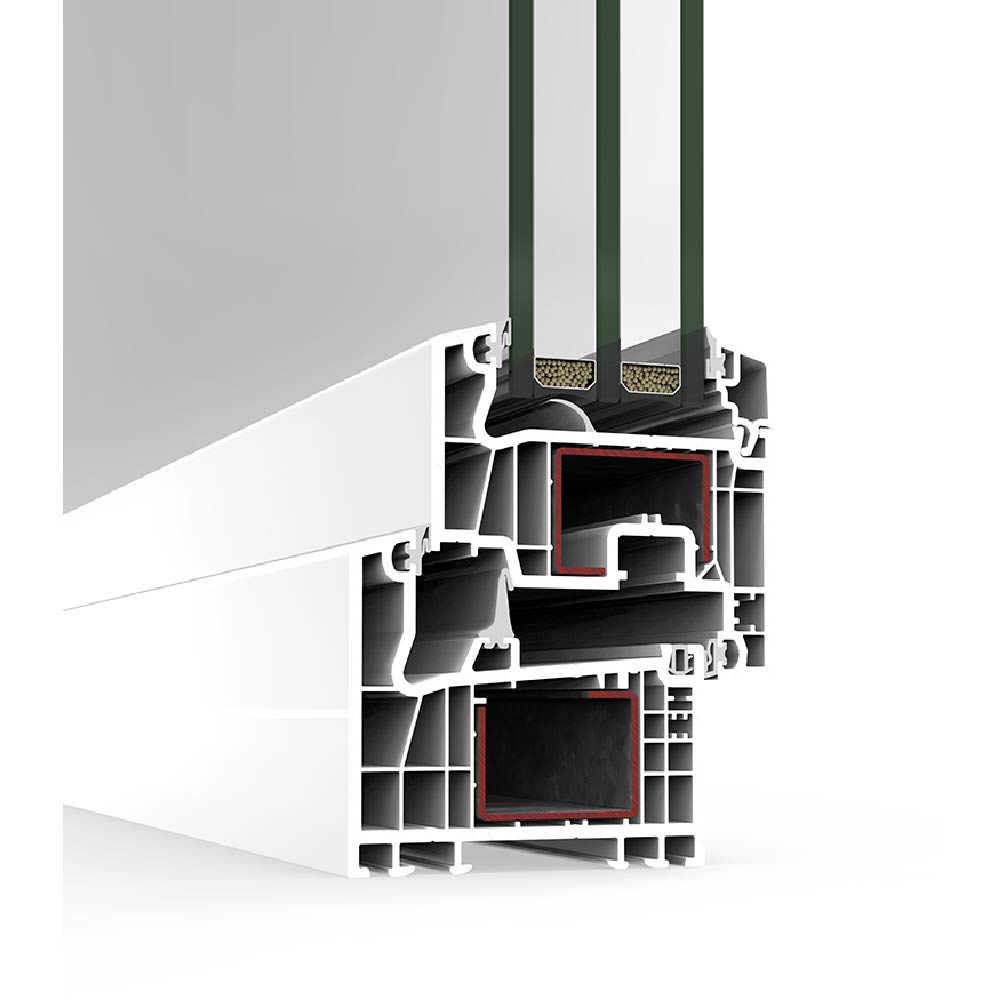

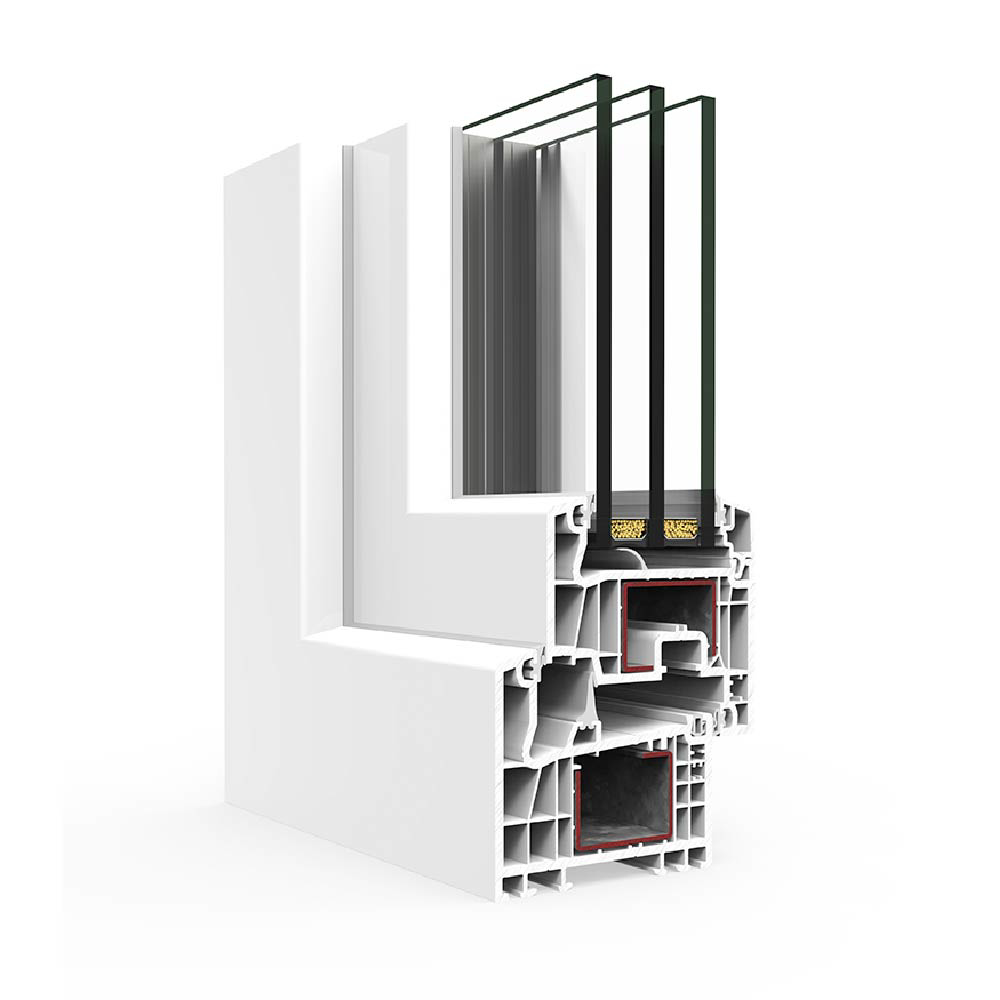

» Hinged window system of PVC with a frame depth of 3.31" » 6 profile inner chambers in both the frame and the sash, allows for great energy efficiency » Transmittance Uf from 1.16 W/m²K

Shipping: Free

est. delivery:

Description
Downloads

Description

» Central sash encounter of only 5.71". Smaller seen section. Maximum luminosity

Technical Data

» Maximum glazing thickness

2.13"
» Opening possibilities

Inwards:

Side hung, turn & tilt and bottom hung

Outwards:

Side-hung

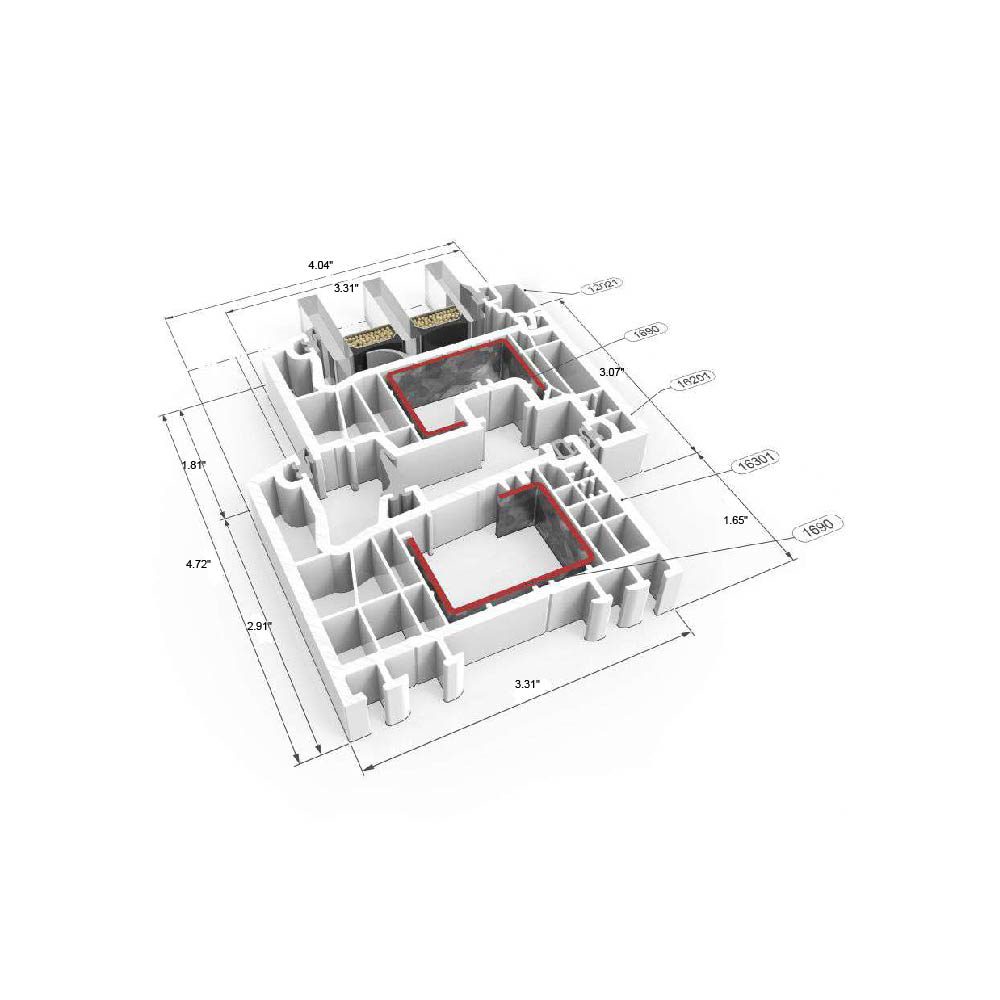

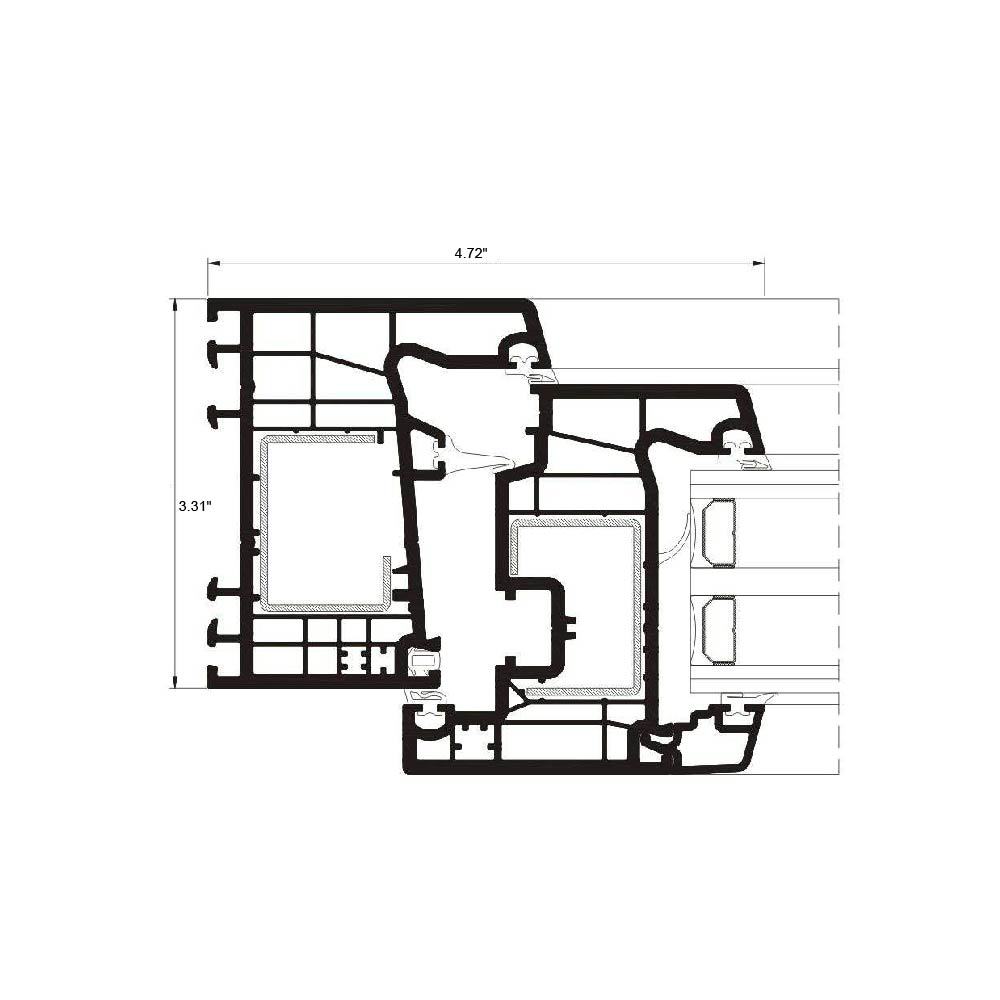

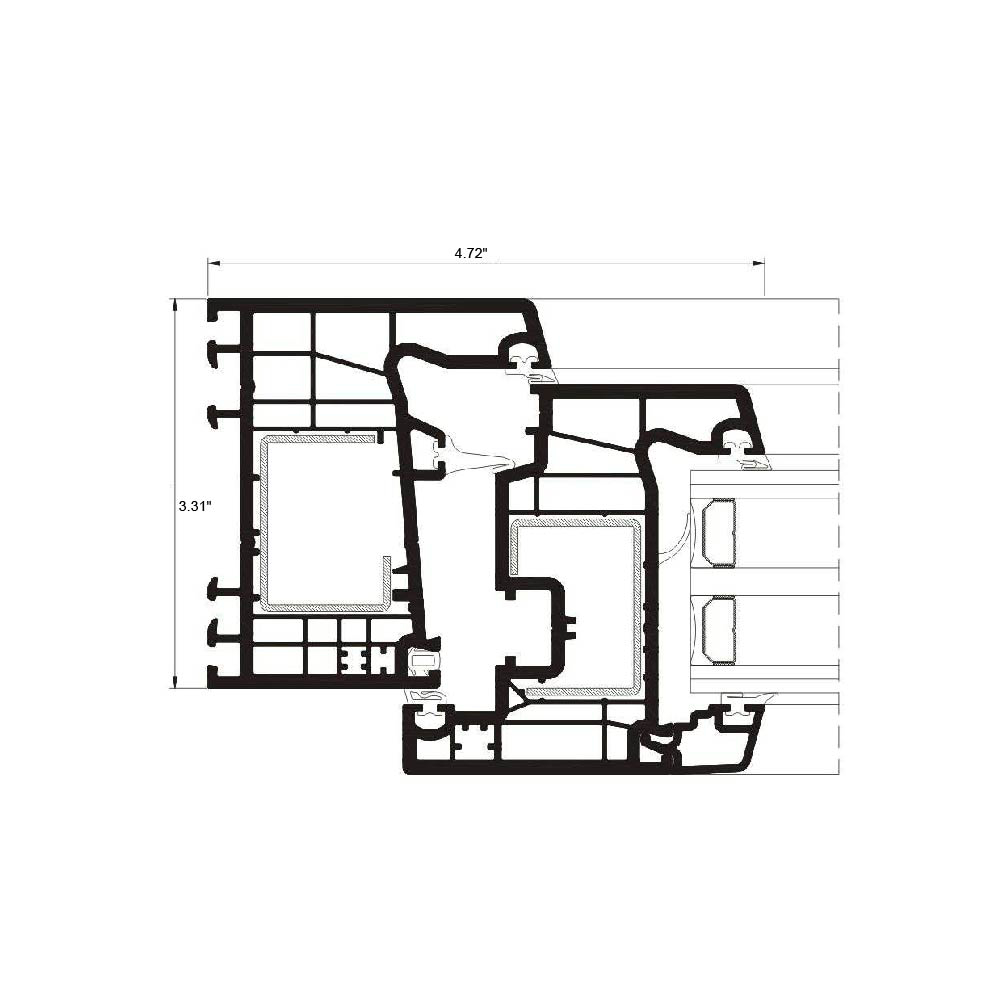

» Sections

Frame – 3.31" / Sash – 3.31"

» Maximum dimensions/sash

Window

Width (L) = 17.72"-55.11"

Height (H) = 17.72"-96.46"

Balcony

Width (L) = 25.59"-55.12"

Height (H) = 23.62"-98.43"

Door

Width (L) = 27.56"-51.18"

Height (H) = 23.62"-98.43"

» Maximum weight/sash

Window 130 kg

Balcony 130 kg

Door 160 kg
Please consult regarding maximum weight and dimensions according to types.
» Finishes

Possibility of dual color systems
White Color
Wood effect

Test Center

» Transmittance

Uf ≥ 1,16 (W/m²K)
» Maximum acoustic insulation

Rw = 46 dB
» Air permeability

(EN 12207) CLASS 4
» Water tightness

(EN 12208) CLASS E1500
» Wind resistance

(EN 12210) CLASE C5

Reference test 48.43" × 58.27" 2 Sashes.
