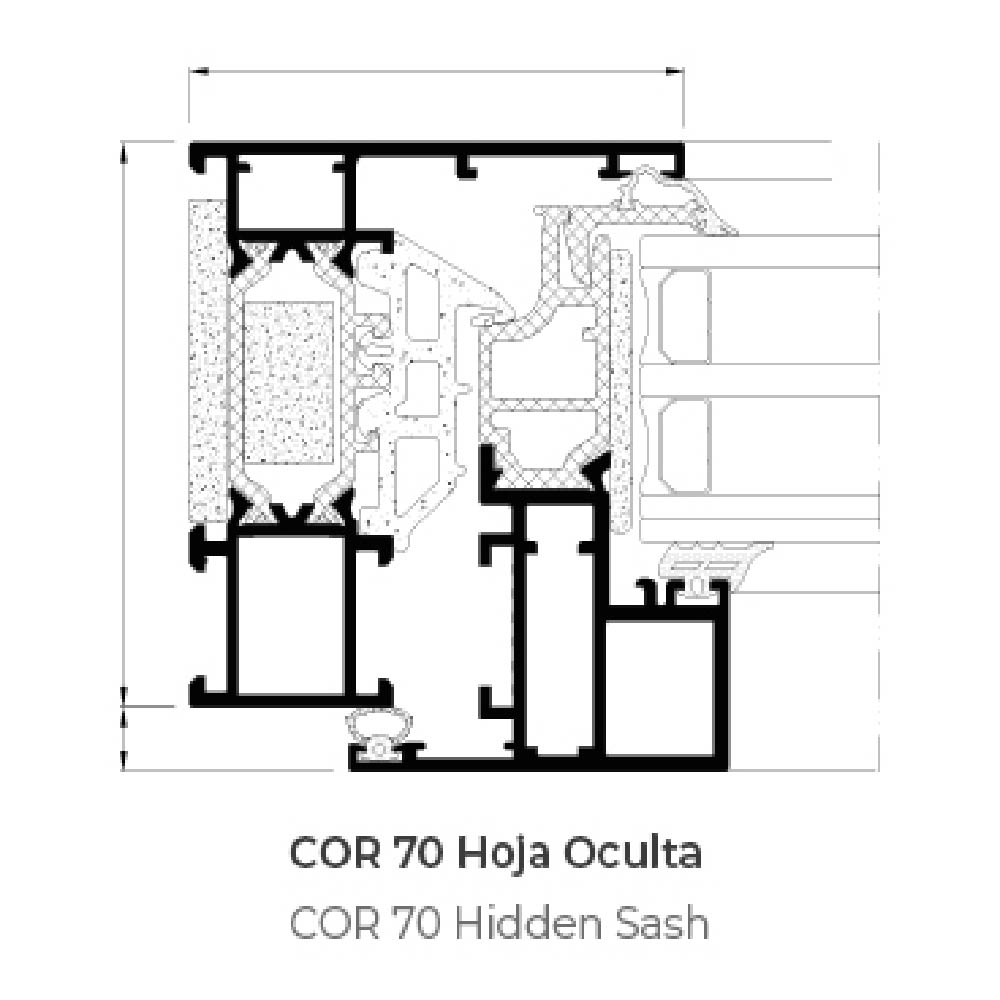

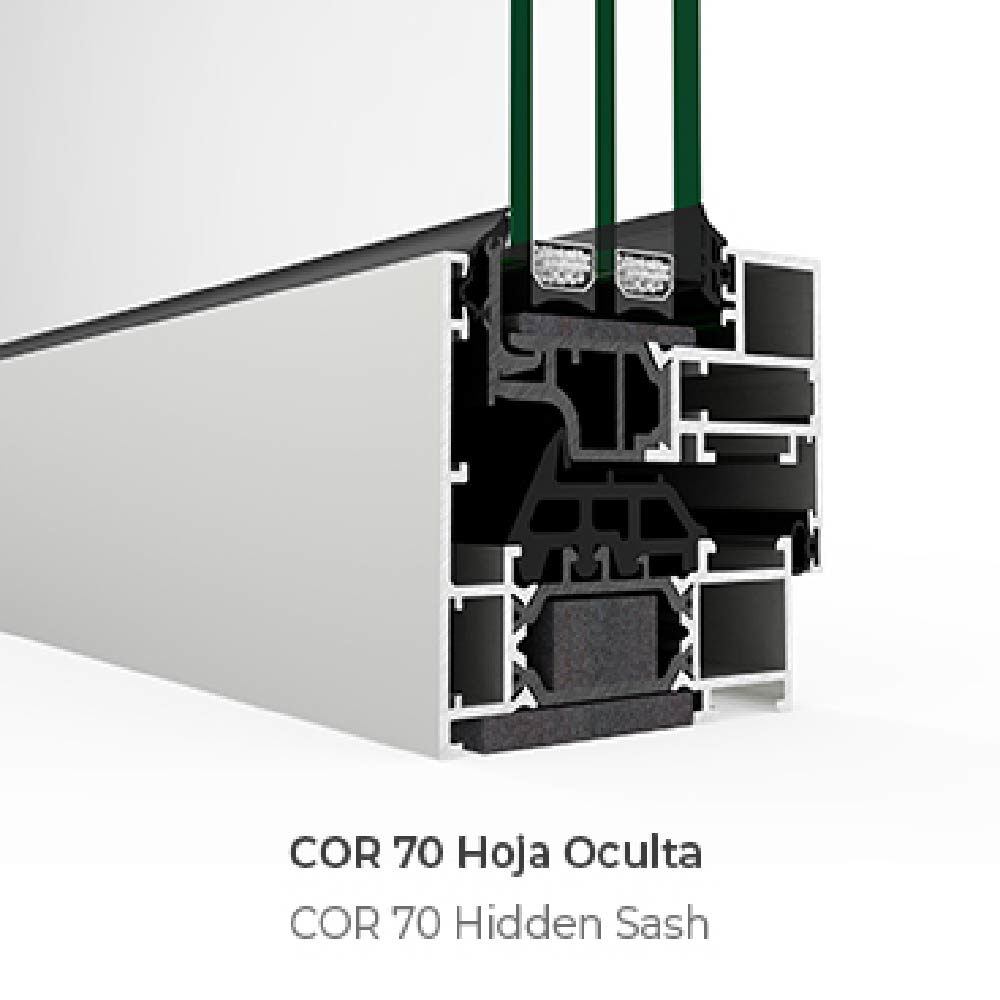

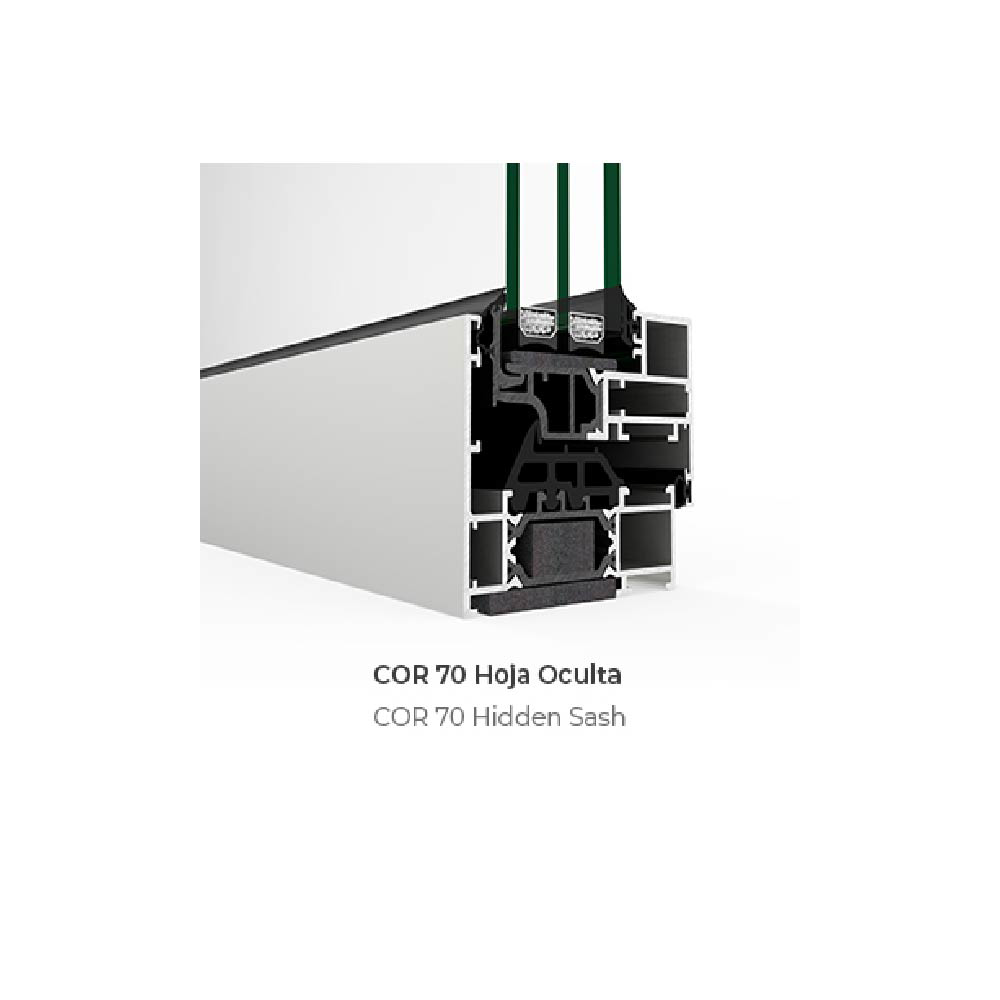

Hinged Window and Door Systems COR 70 Hidden Sash

For pricing information please send a request.

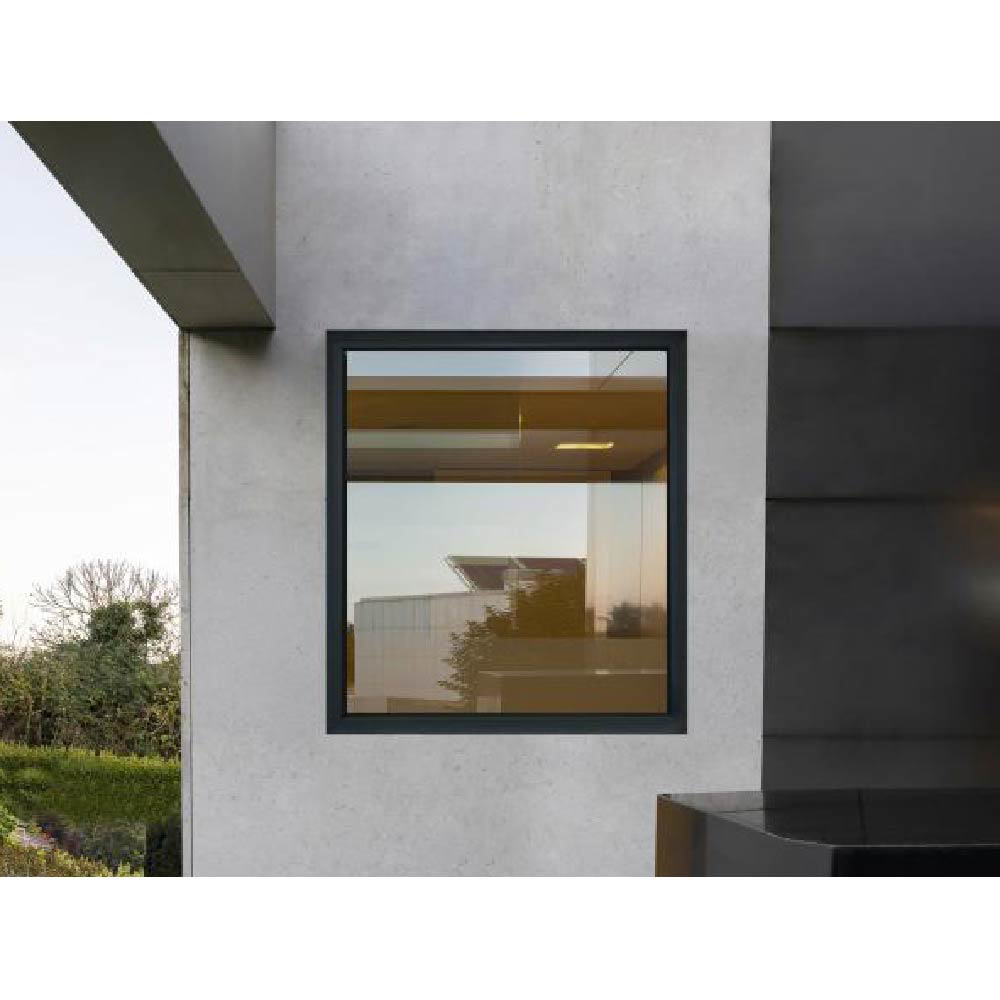

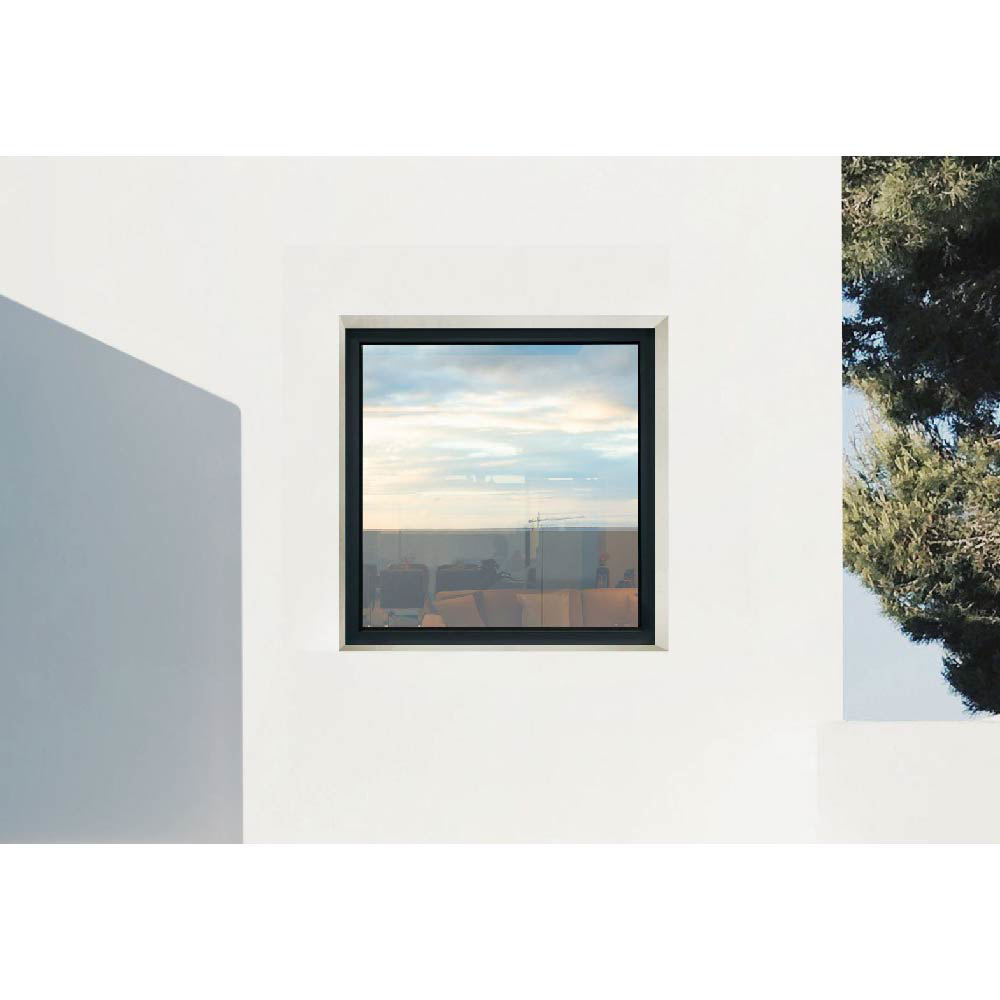

It could be a painting, but is a window. This is how we can describe the COR 70 Hidden Sash which, like the 3.15" version, has a sightline of only 2.60" and allows the incorporation of the ARCH INVISIBLE handle, concealed hinges and the drainage solution. Any element that breaks the visual harmony of the ensemble is discarded.

Shipping: Free

est. delivery:

close

Estimate shipping

  • Description
  • Downloads

Description

close

Minimizes the aesthetic impact of the window components.

Compatible with all the 2.76" frame depth systems.

It features a gasket at the bottom of the frame to evacuate the water, replacing the face drainage.

Facilitates window fabrication, Inward Opening allowing to place the base of the frame on the site itself.

Possibilities
» Security hardware
» Concealed hinges
» Concealed drainage
» Concealed handle

Technical Data

» Glazing
Max. 1.57"
Min. 1.02"

» Opening possibilities

Inward opening

Side hung

Tilt & turn

Tilt only

Parallel Sliding

» Sightlines
Frame 2.76"
Sash 2.76"

» Profile thickness
Window 0.075"

» Polyamide strip length
1.38"

» Maximum sash dimensions

Standard Solution
Width (L) 51.18"
Height (H) 94.49"

HD Hinges (Side Hung)
Width (L) 47.24"
Height (H) 137.80"

» Maximum sash weight
160 kg

Consult maximum weight and dimensions according to typologies.

» Finishes
Possibility of dual color systems
Color powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized

Test Center

» Transmittance

Uw ≥ 0.84 (W/m²K)

Consult maximum weight and dimensions according to typologies

» Acoustic insulation
Rw up to 46 dB

» Air permeability
(EN 12207) Class 4

» Water tightness
(EN 12208) Class E1650

» Wind resistance
(EN 12210) Class C5

» Security test PAS24
Passed

» CSTB Laboratory DTA Certification
Avis technique - Ref. 6/17-2363

» ATG Certification
Ref. 3204

Reference test AEV 48.43" x 58.27" / 1 sash
Security test: Reference test 43.31" × 94.49" / 1 sash
