Facade Systems Sliding Roof

For pricing information please send a request.

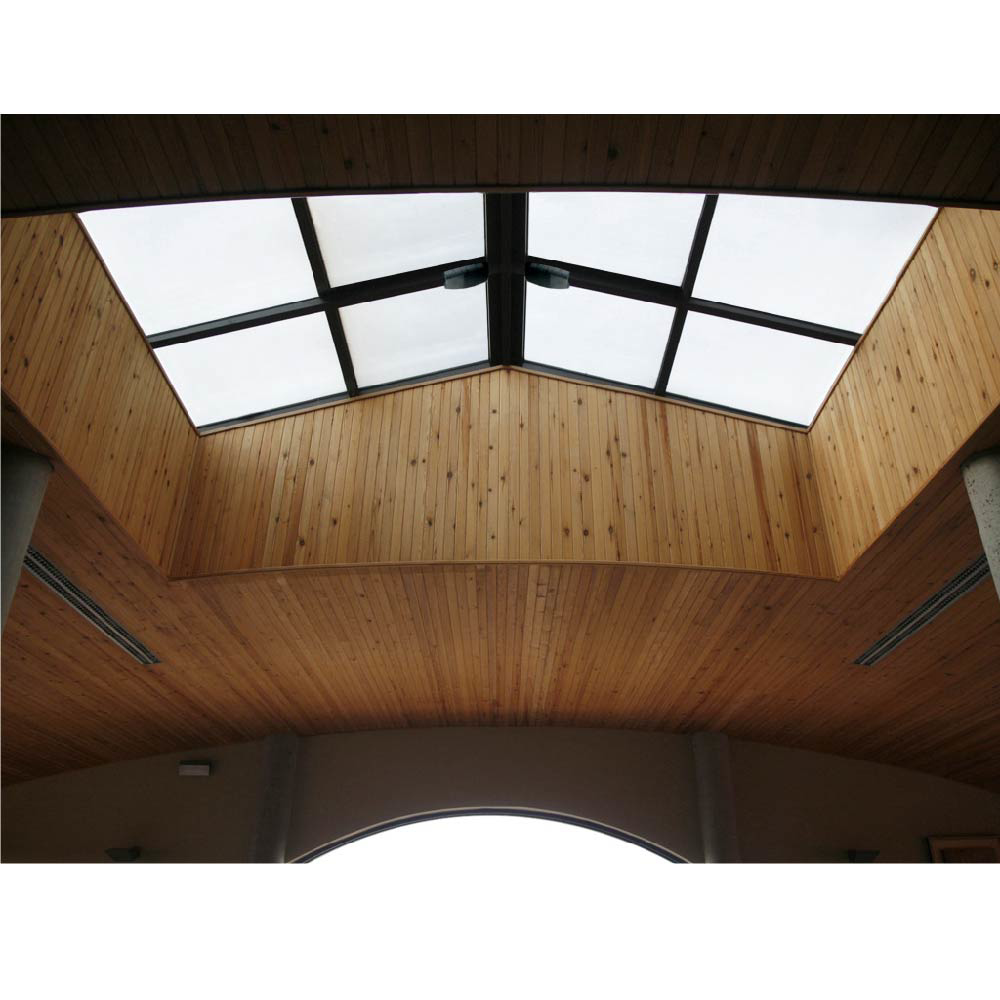

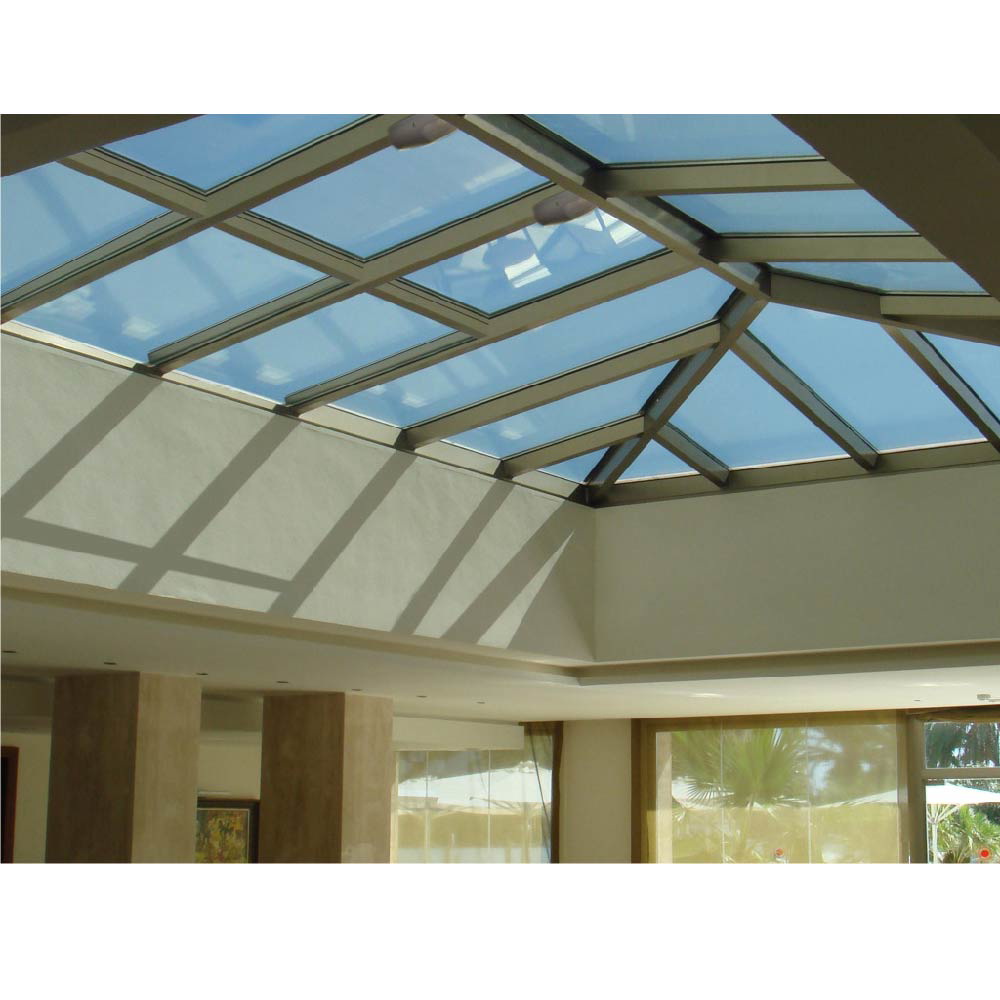

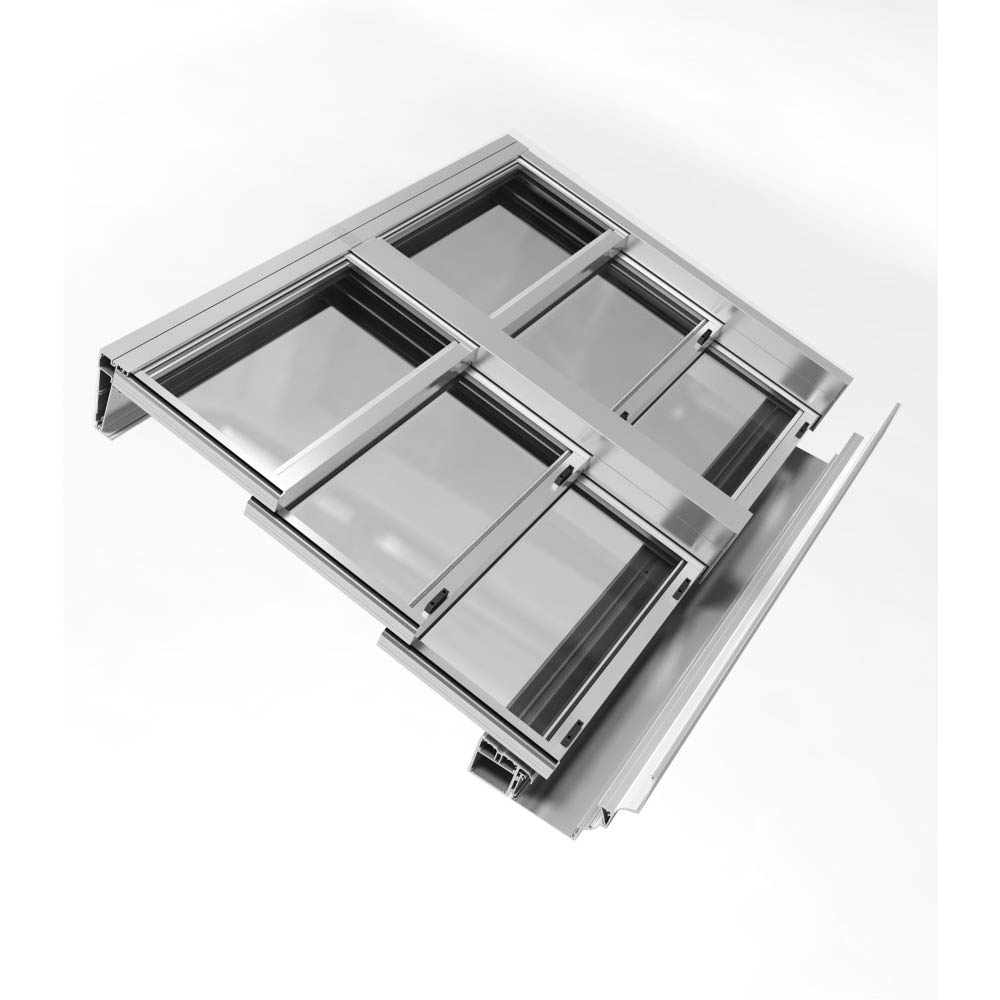

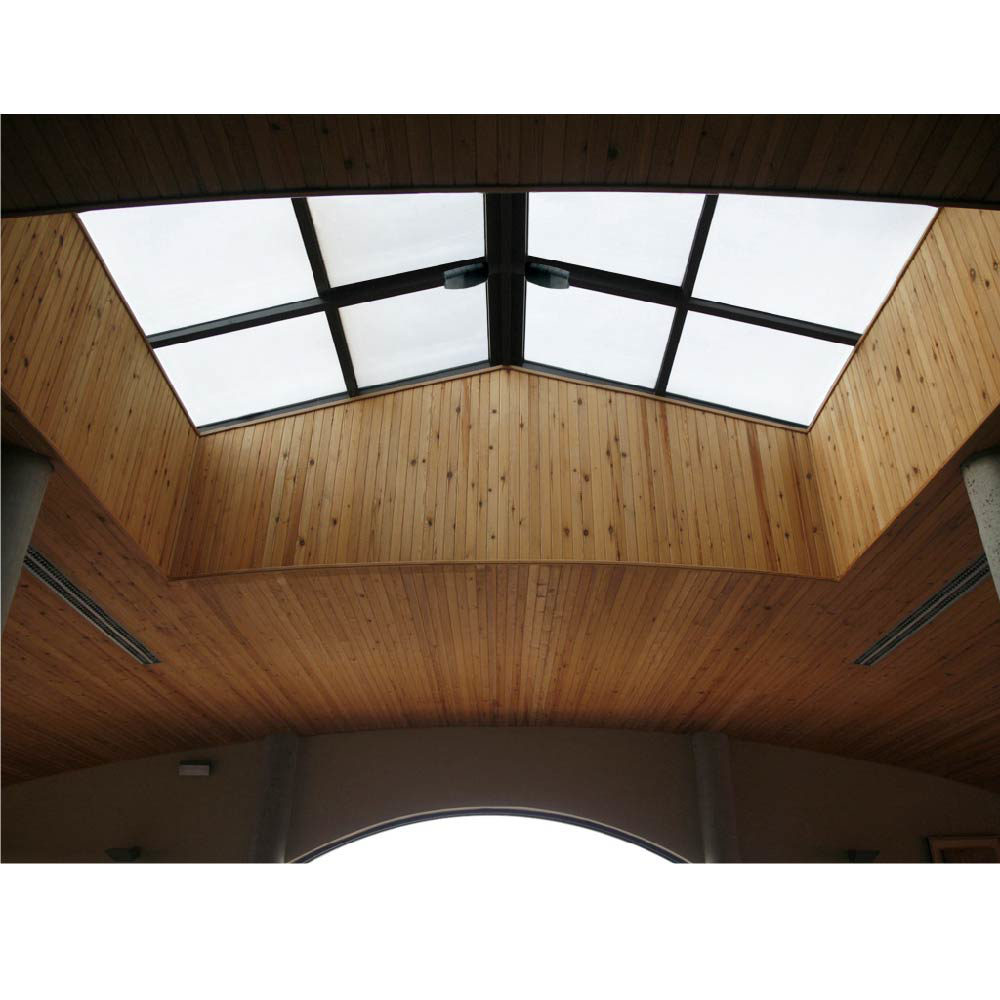

» Sliding and automatic adjustable roof system » Combination of styles, robustness, convenience and great performance » Maximum opening possibility of 66% of the surface area. This system provides good ventilation and allows for a total entry of light from above

Shipping: Free

est. delivery:

close

Estimate shipping

  • Description
  • Downloads

Description

close

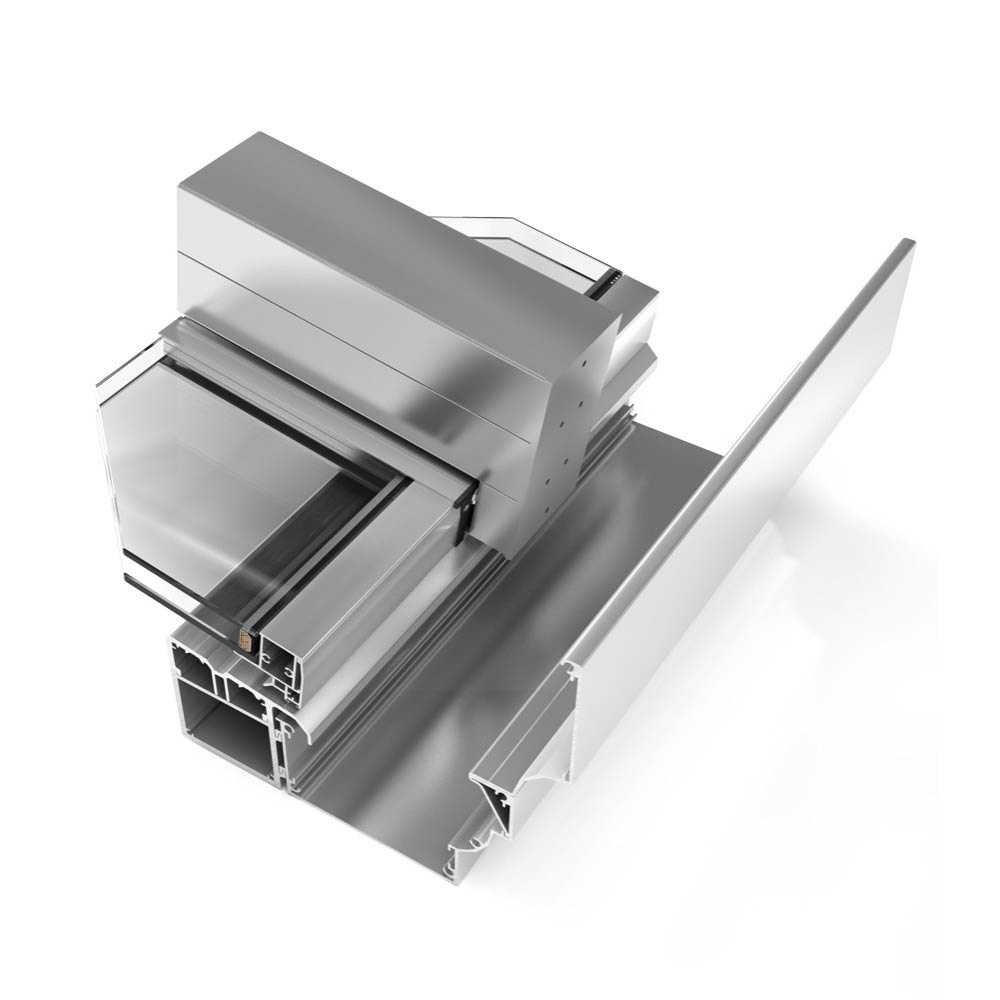

» It has all types of complementary profiles to facilitate water collection and drainage that guarantee total water tightness

Technical Data



» Incline / Slope

Profiles prepared for an inclination of 8,5° (15%)
» Maximum roof distance

189.0"
» Minimum roof distance

122.0"
» Roof's width

Unlimited when joining modules
» Glazing possibilities

0.98" cellular polycarbonate

 0.95" sandwich panel

0.95" glass. (4 tempered/ 12 /4+4)
» Opening possibilities

Sliding: 2 sashes and 1 fixed module and multiple falls

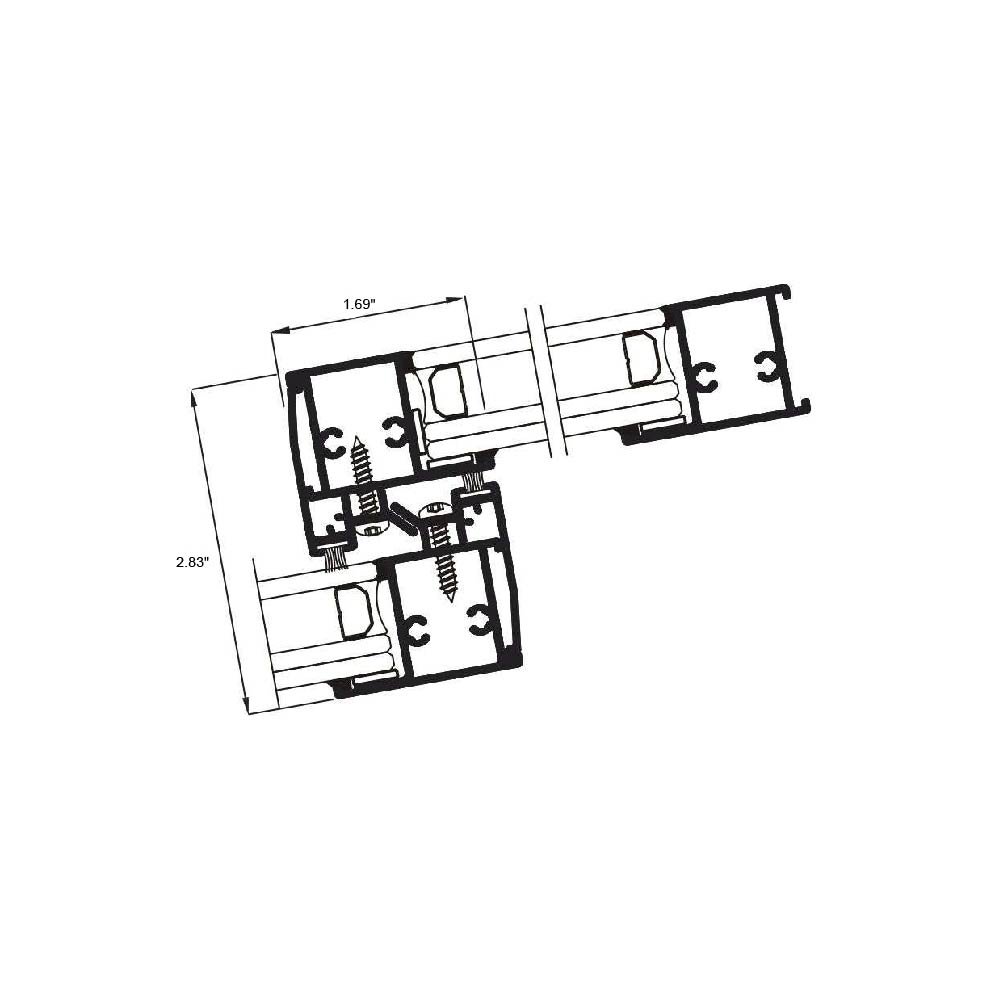

» Sections

Frame – 5.24" / Sash – 1.10"
» Profile thickness

Sashes 0.059"
» Maximum dimensions

Polycarbonate and sandwich panel:
Width (L) = 90.55"

Glazing:

Width (L)= 47.24"
Height (H) = 62.99"
» Maximum weight

75 kg
» Finishes

Color powder coating (RAL, mottled and rough)

Wood effect powder coating

Anti-bacterial paint

Anodizing



Test Center



Roof system watertightness test

Class APT
During the 6 hr. test, end of test and 24 hrs. following the same,

no drips or humidity were detected in the enclosed area.

Test reference: 169.3" x 163.8" in 3 adjustable rows, 9 sashes

and 4/12/4+4 glass
