cortizo

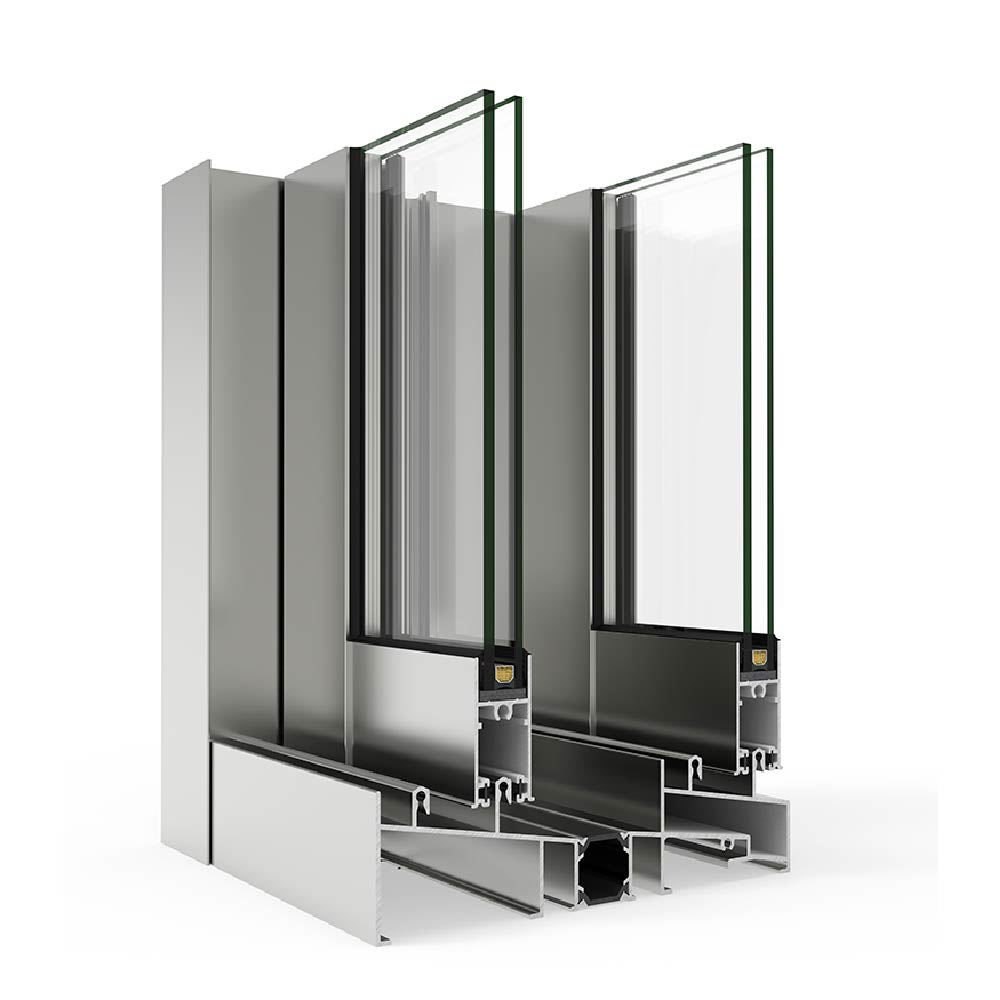

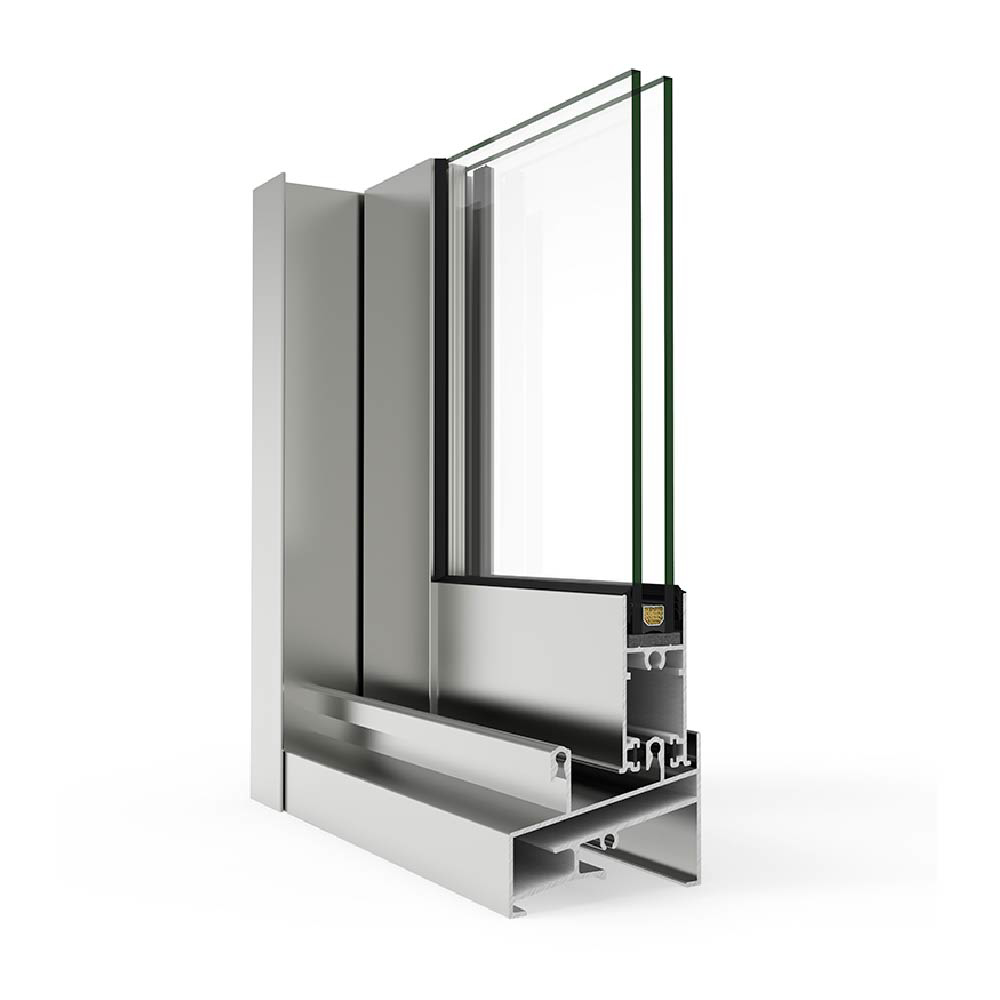

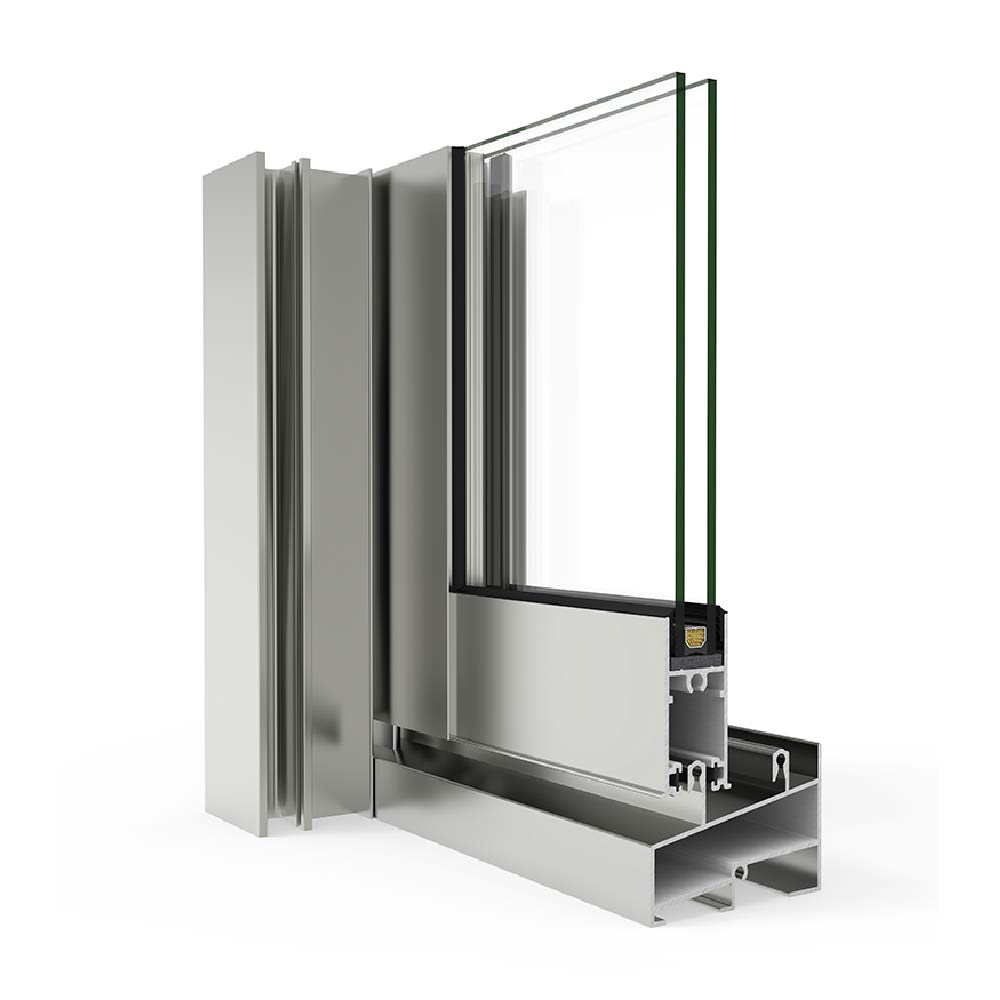

5000 Sliding Sliding Window and Door Systems

For pricing information please send a request.

» Sliding window system » Possibility of sliding system with double thermal bridge and window blinds brackets.

Shipping: Free

est. delivery:

Description
Downloads

Description

Technical Data

» Maximum glazing thickness

0.71"
» Opening possibilities

Sliding of 2, 3, 4 & 6 sashes

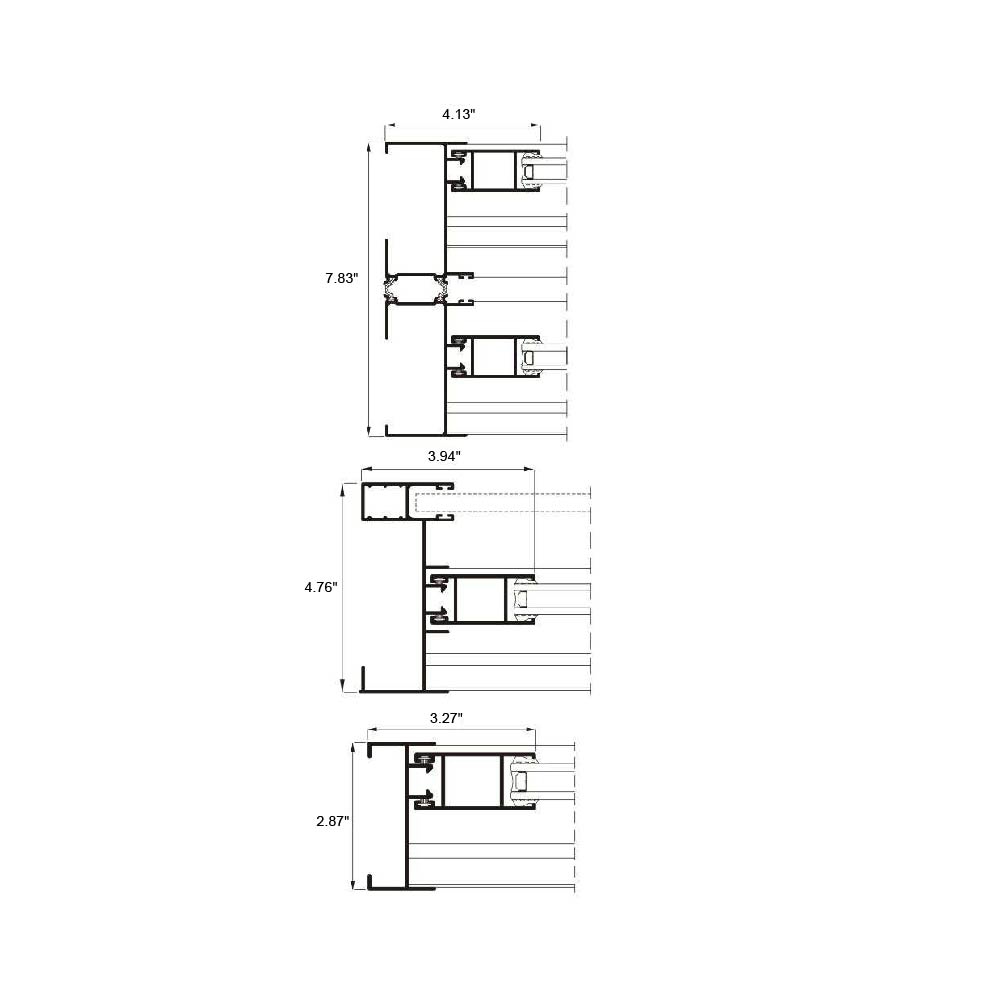

» Sections

Double: Frame 7.83" - Sash 1.10"

Integral: Frame 4.76" - Sash 1.10"

Standard: Frame 4.76" - Sash 1.10"
» Profile thickness

Window 0.059"
» Polyamide strip length (Double window version)

0.63" & 0.79"
» Maximum dimensions/sash

Width (L) = 62.99"
Height (H) = 102.36"
» Maximum weight/sash

80 kg
Please consult regarding maximum weight and dimensions for other opening types
» Finishes

Possibility of dual color systems

Color powder coating (RAL, mottled and rough)

Wood effect powder coating

Anti-bacterial powder coating

Anodized

Test Center

» Transmittance

Double Uw from 1.3 (W/m²K)

Integral Uw from 2.3 (W/m²K)

Standard Uw from 2.3 (W/m²K)

Please consult typology, dimensions and glazing

» Maximum acoustic insulation

Double Rw = 40 dB

Integral Rw = 34 dB

Standard Rw = 34 dB
» Air permeability

(EN 12207:2000) CLASS 4
» Water tightness

(EN 12208:2000) CLASS 9A
» Water tightness

(EN 12210:2000) CLASS *C5-**C4
*Reference test integral & standard windows 47.24" x 47.24" 2 sashes
**Reference test double windows: 49.21" x 59.06" 2 sashes
