Hinged Window and Door Systems COR 80 Industrial

For pricing information please send a request.

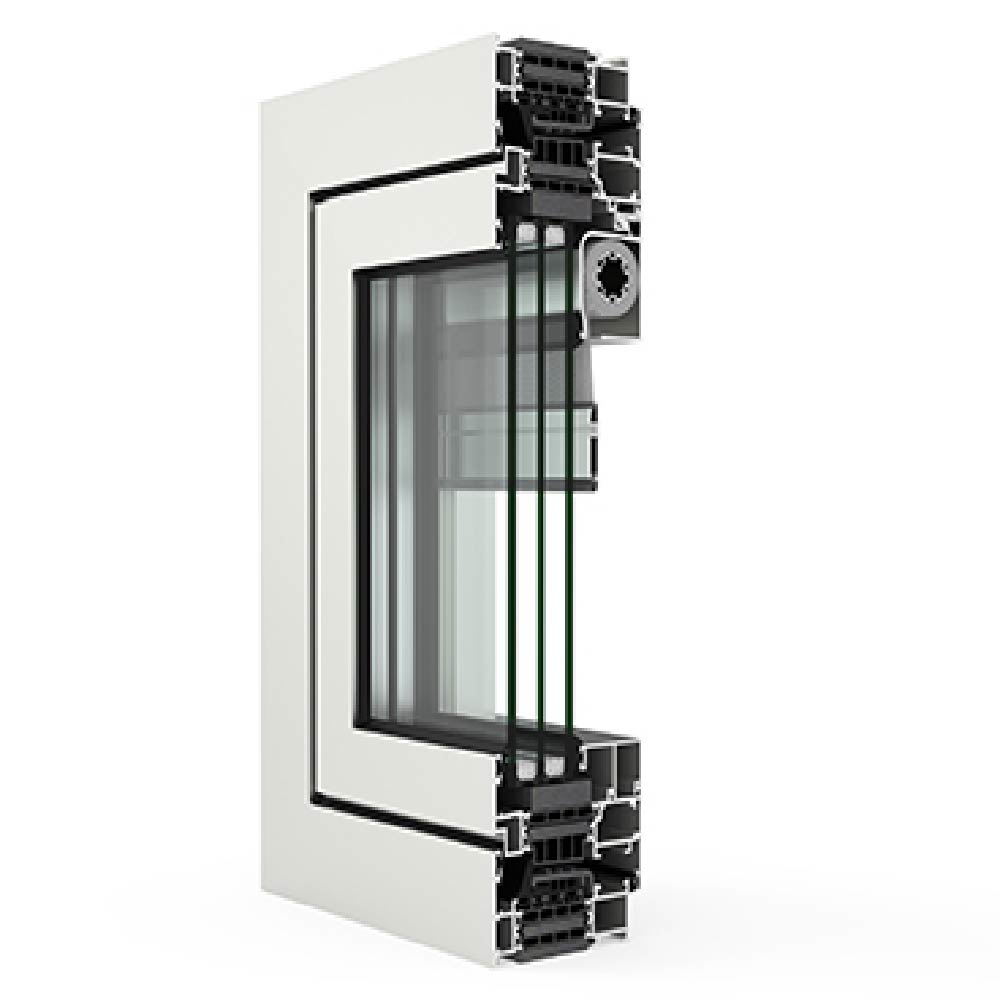

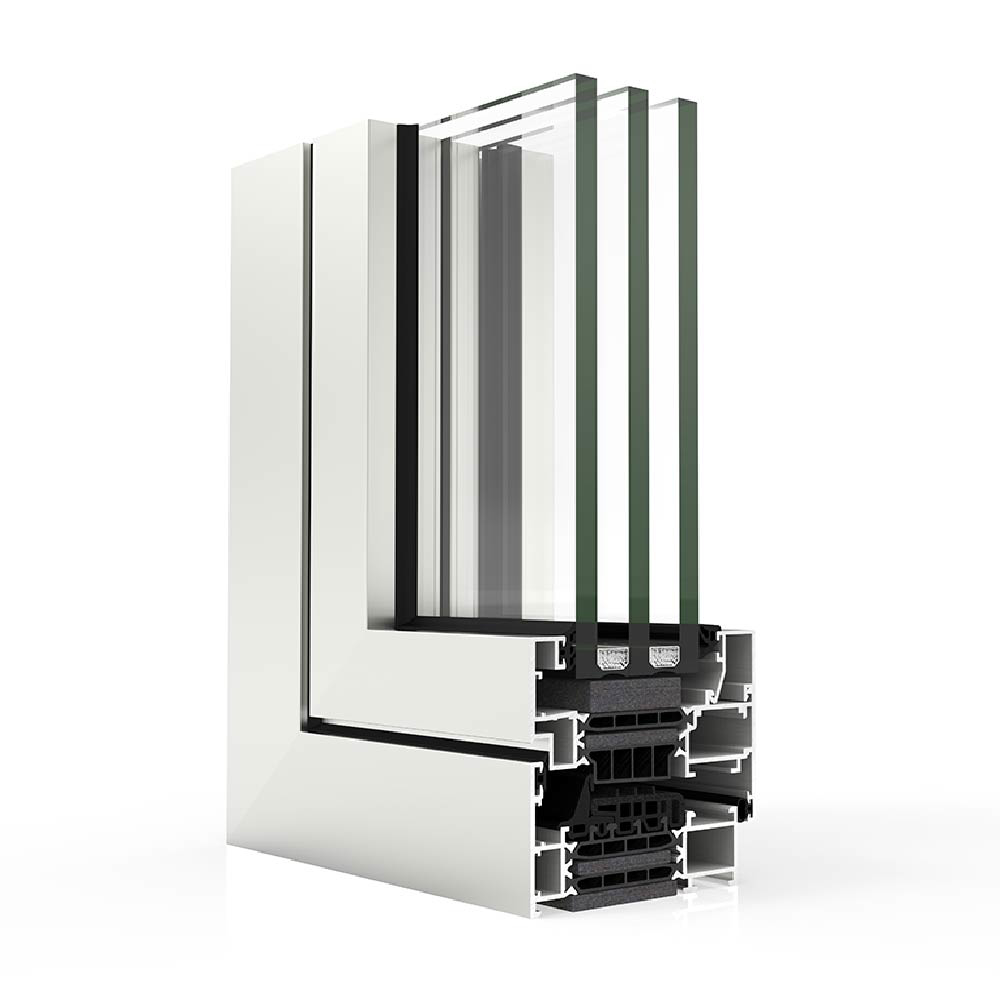

With a 3.15" frame depth, the COR 80 Industrial series responds to the most severe climatic requirements thanks to its thermal break with 1.77" tubular polyamide strips and the incorporation of polyolefin both around the glass and between the frame and sash.

Shipping: Free

est. delivery:

Description
Downloads

Description

Possibilities
» Security hardware
» Concealed hinges
» Concealed drainage
» Blind integrated glazing bead

Technical Data

» Glazing
Max. 2.87"
Min. 0.63"

» Opening possibilities
Inward opening

Side hung

Tilt & turn

Parallel Sliding

Tilt only

Outward opening
Side hung
Top hung

» Sightlines
Frame 3.15"
Sash 3.46"

» Profile thickness
Window 0.059"

Balcony 0.063"

» Polyamide strip length
1.77"

» Maximum sash dimensions
Width (L) 59.06"
Height (H) 102.36"

» Maximum sash weight
160 kg

» Aesthetic possibilities
Sash: Straight / Bead: Straight or curved

Consult maximum weight and dimensions according to typologies.

» Finishes
Possibility of dual color systems
Color powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized

Test Center

» Transmittance
Uw ≥ 0,71 (W/m2K)
Consult maximum weight and dimensions according to typologies

» Acoustic insulation
Rw up to 46 dB

» Air permeability
(EN 12207) Class 4

» Water tightness
(EN 12208) Class E1950

» Wind resistance
(EN 12210) Class C5
Reference test 48.43" x 58.27" / 2 sashes
