COR 3000 Hinged Window and Door Systems

For pricing information please send a request.

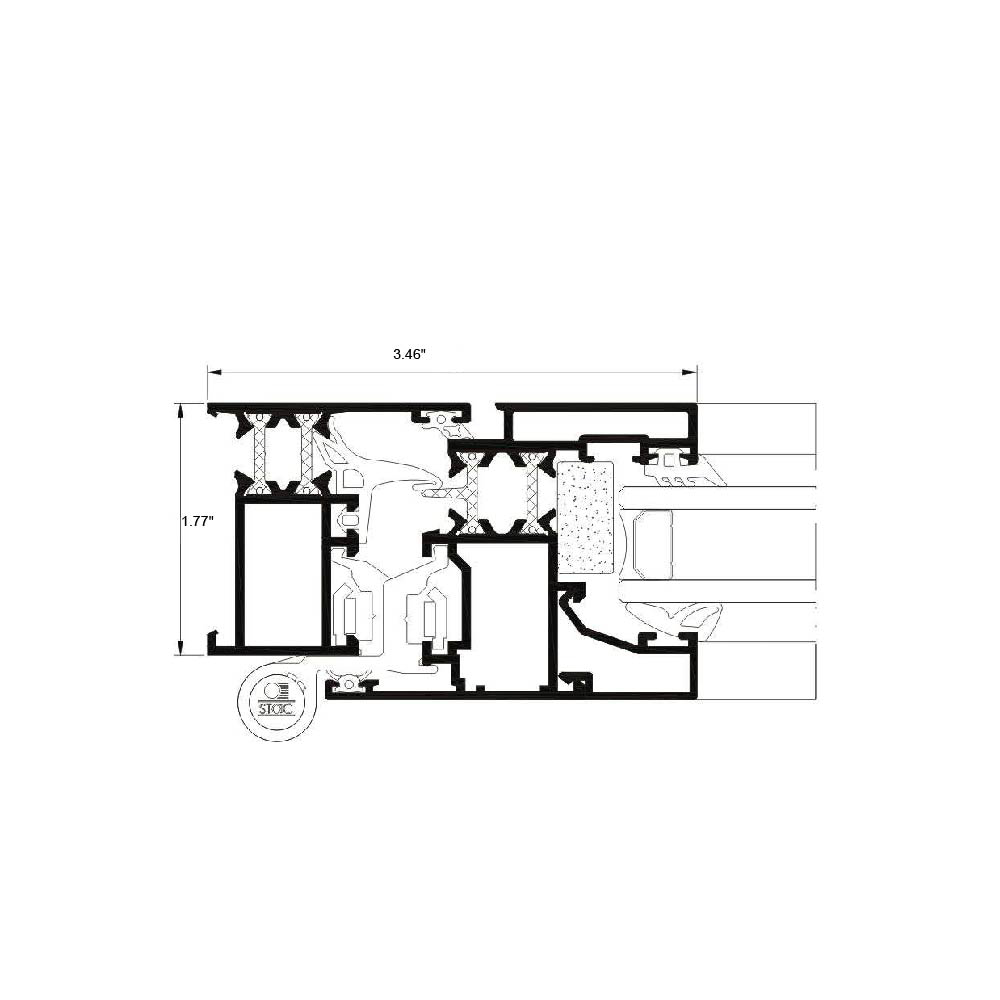

Hinged system with a 1.77" frame depth and a thermal break zone of 0.57". This is a versatile system, suitable for mild climates, and with a large variety of opening possibilities.

Shipping: Free

est. delivery:

Description
Downloads

Description

Possibilities
» Security hardware
» Concealed hinges

Technical Data

» Glazing
Max. 1.22"
Min. 0.12"

» Opening possibilities

Inward opening

Side hung

Tilt & turn

Parallel Sliding

Bottom hung

Outward opening
Side hung
Top hung
Pivoting of either horizontal or vertical axis

» Sightlines
Frame 1.77"
Sash 2.09"

» Profile thickness
Window 0.059"
Door 0.067"

» Polyamide strip length
0.57"

» Maximum sash dimensions
Width (L) 59.06"
Height (H) 94.49"

» Maximum sash weight
120 kg

» Aesthetic possibilities
Sash: Straight or curved / Bead: Straight or curve

Consult maximum weight and dimensions according to typologies.

» Finishes
Possibility of dual color systems
Color powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized

Test Center

» Transmittance
Uw ≥ 1.3 (W/m^²K)
Consult maximum weight and dimensions according to typologies

» Acoustic insulation
Rw up to 46 dB

» Air permeability
(EN 12207) Class 4

» Water tightness
(EN 12208) Class 9A

» Wind resistance
(EN 12210) Class C5

Reference test 46.46" × 46.46" / 2 sashes
