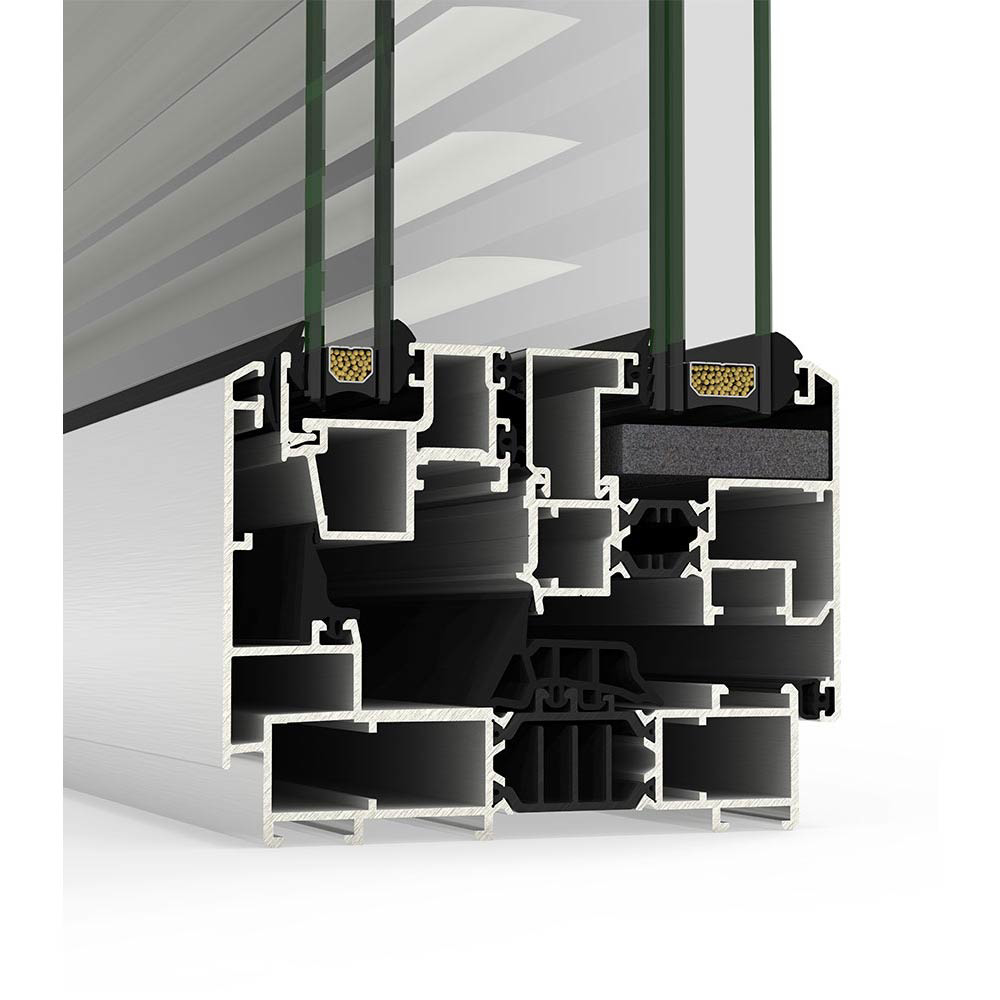

COR Urban C16 Hinged Window and Door Systems

For pricing information please send a request.

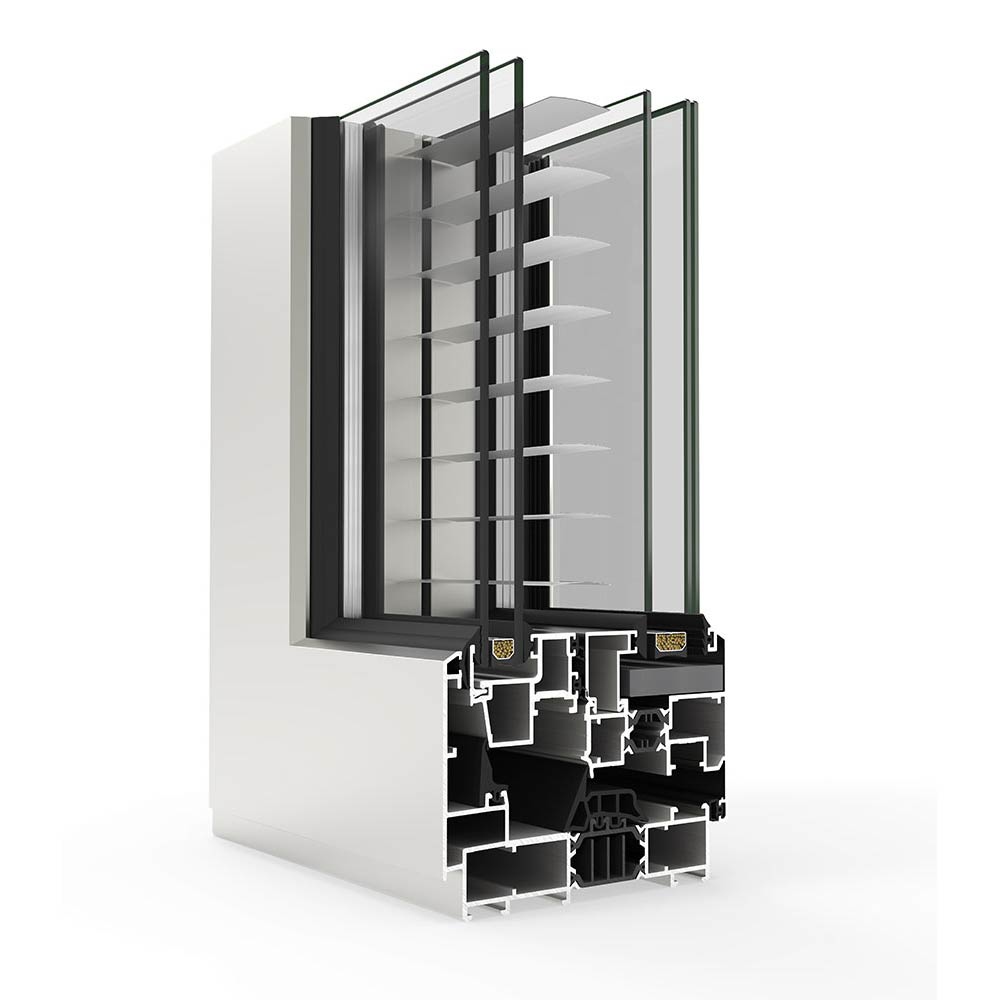

This system is especially suitable for buildings located in areas with high acoustic activity. This thermally broken window with double hidden sash of 4.80", quadruple glazing and 4 gaskets, enables a noise reduction of up to 50 dB.

Shipping: Free

est. delivery:

Description
Downloads

Description

Possibilities
» Security hardware

Technical Data

» Glazing
Internal sash: Max. 1.50", Min. 0.51"
External sash: Max. 0.87", Min. 0.43"

» Opening possibilities

Inward opening
Side hung
Tilt & turn

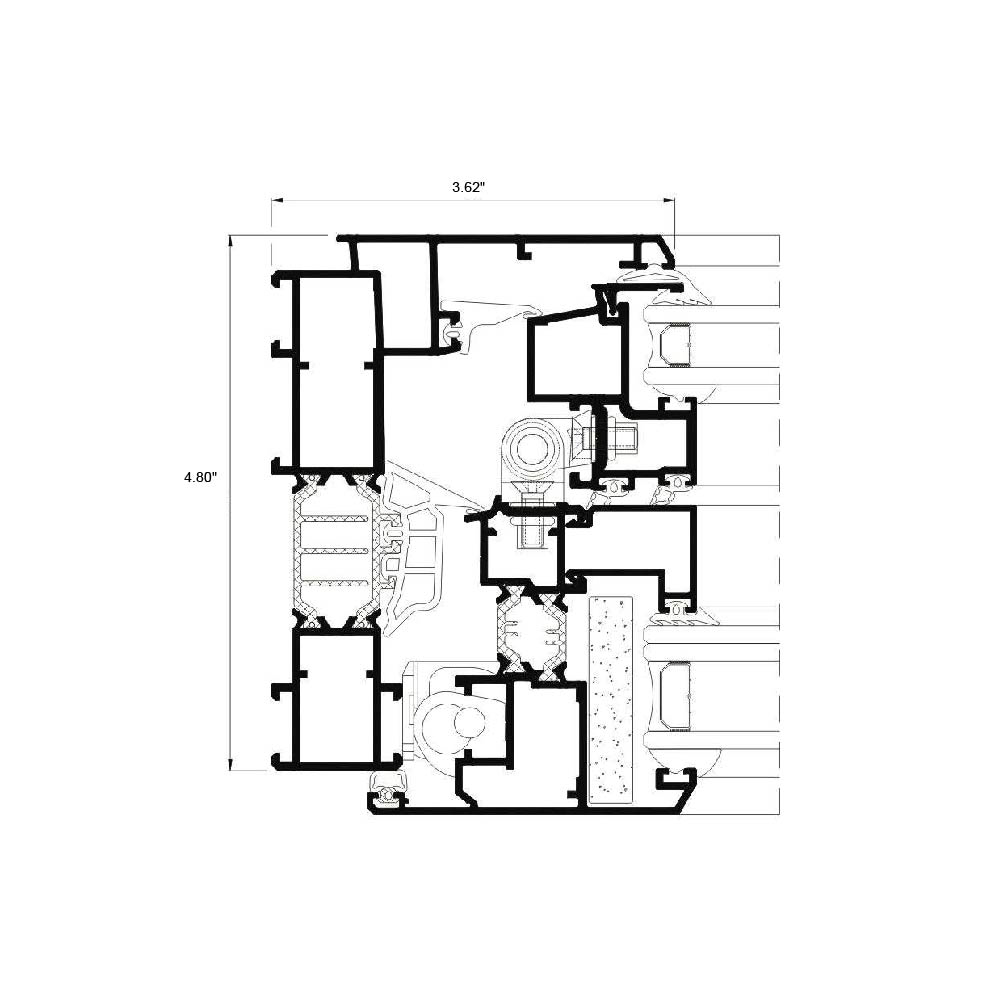

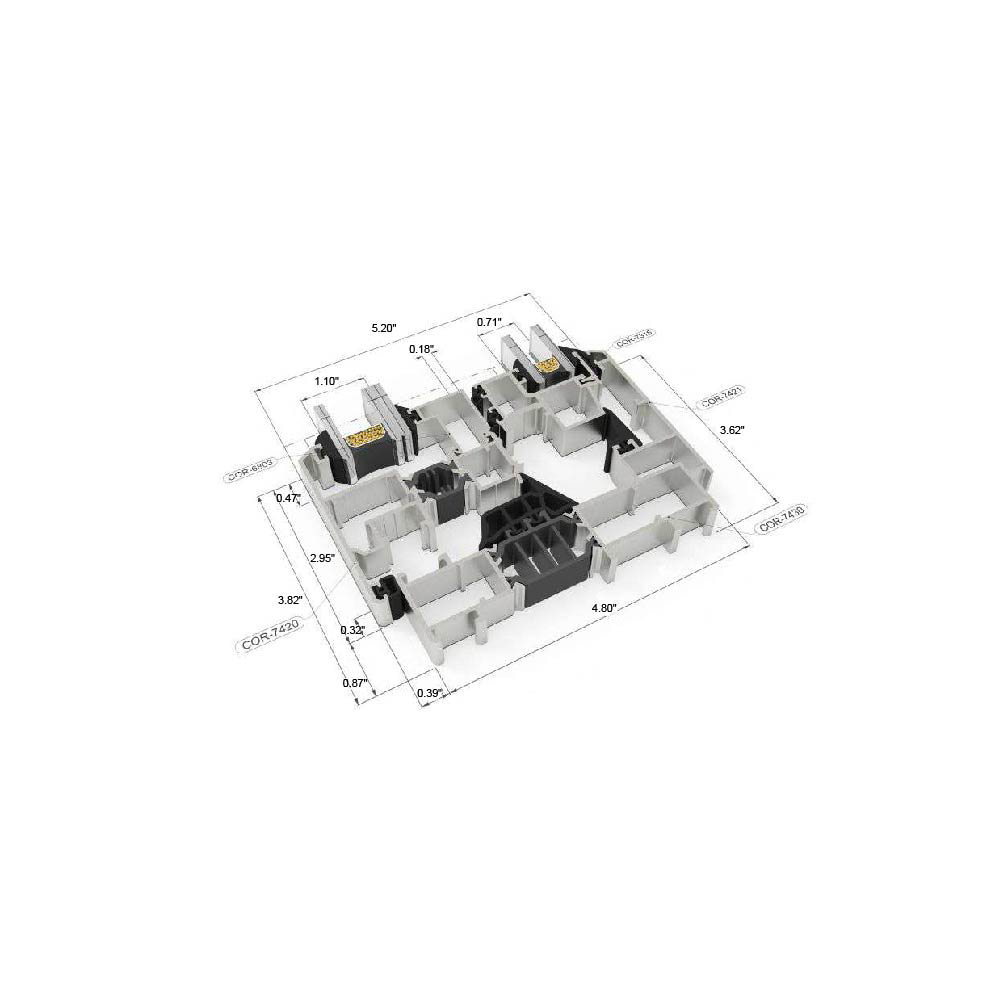

» Sightlines
Frame 4.80"
Sash 4.76"

» Profile thickness
Window 0.063"

» Polyamide strip length
Frame 1.38"
Sash 0.79"

» Maximum sash dimensions
Width (L) 47.24"
Height (H) 86.61"

» Maximum sash weight
150 kg

» Aesthetic possibilities
Sash: Chamfered / Bead: Chamfered

Consult maximum weight and dimensions according to typologies.

» Finishes
Possibility of dual color systems
Color powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized

Test Center

» Transmittance
Uw ≥ 1.2 (W/m²K)
Consult maximum weight and dimensions according to typologies

» Acoustic insulation
Rw up to 50 dB

» Air permeability
(EN 12207) Class 4

» Water tightness
(EN 12208) Class E1650

» Wind resistance
(EN 12210) Class C5

Reference test 48.43" × 58.27" / 1 sash
