COR 70 C16 ST Hinged Window and Door Systems

For pricing information please send a request.

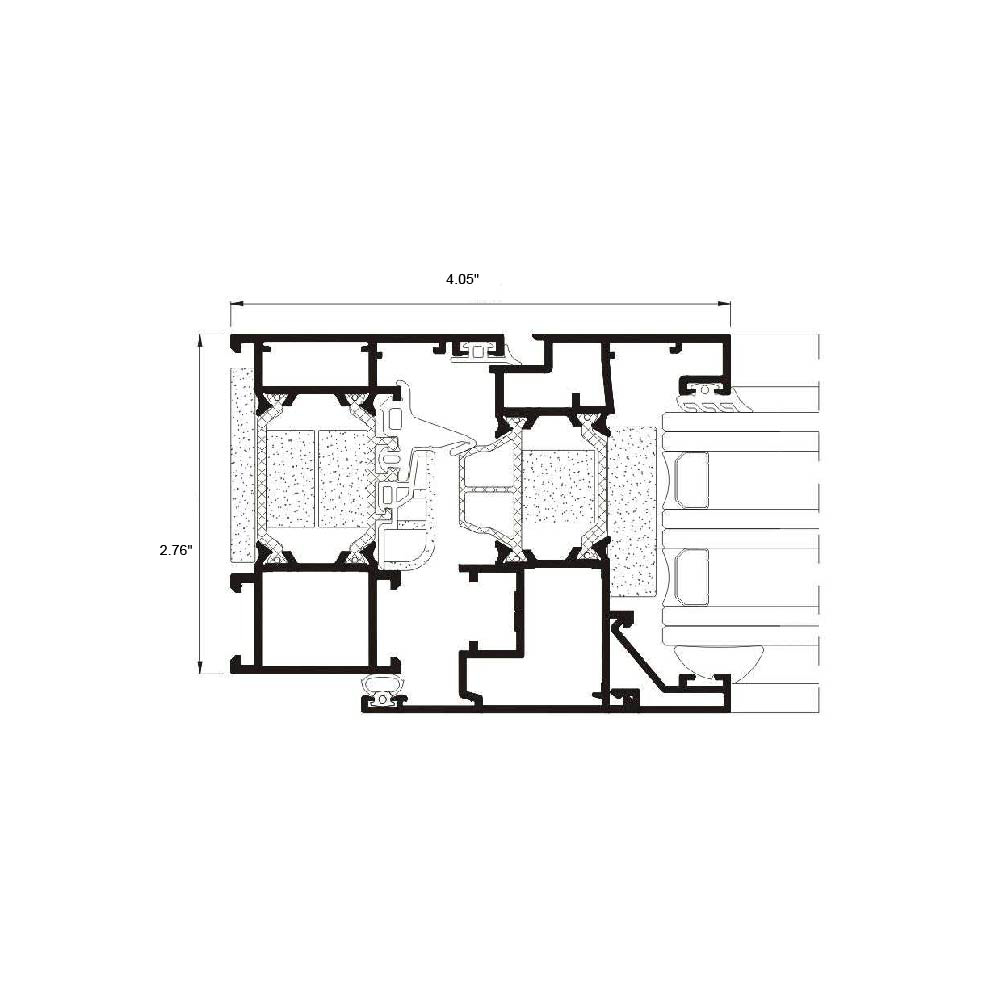

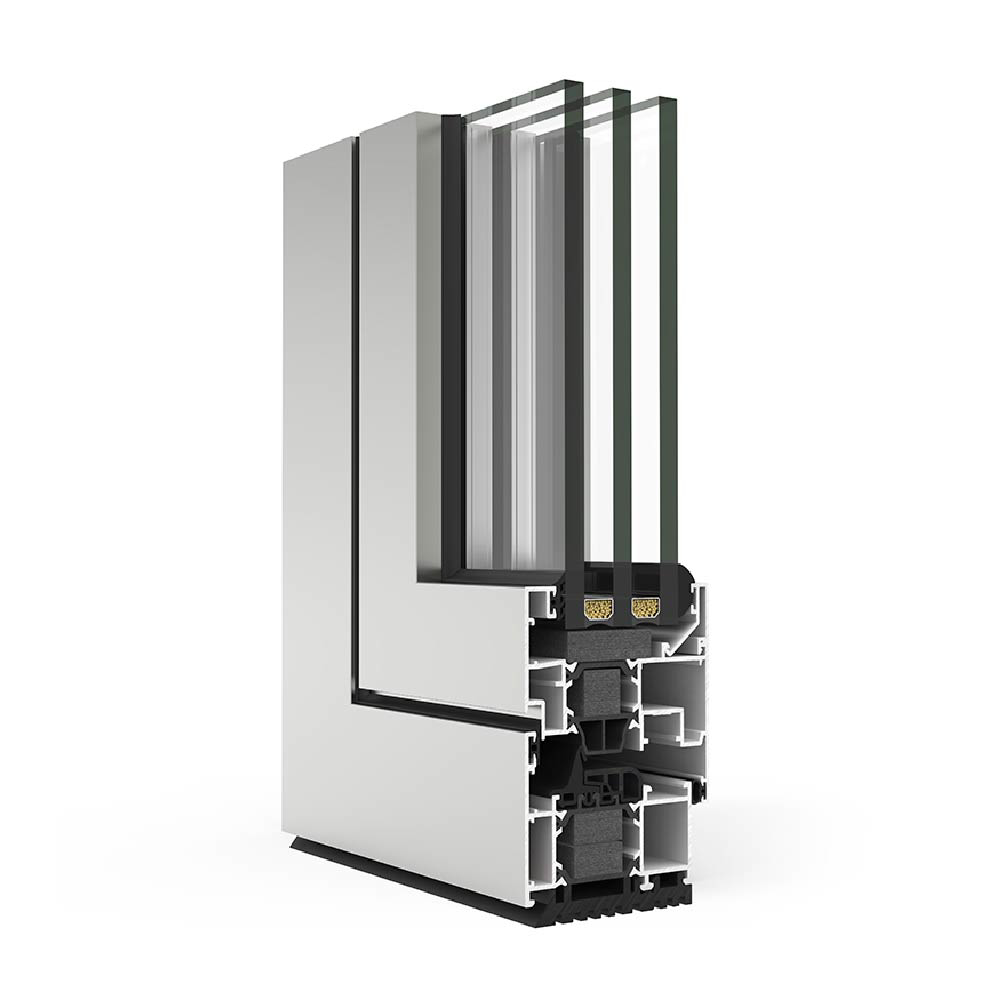

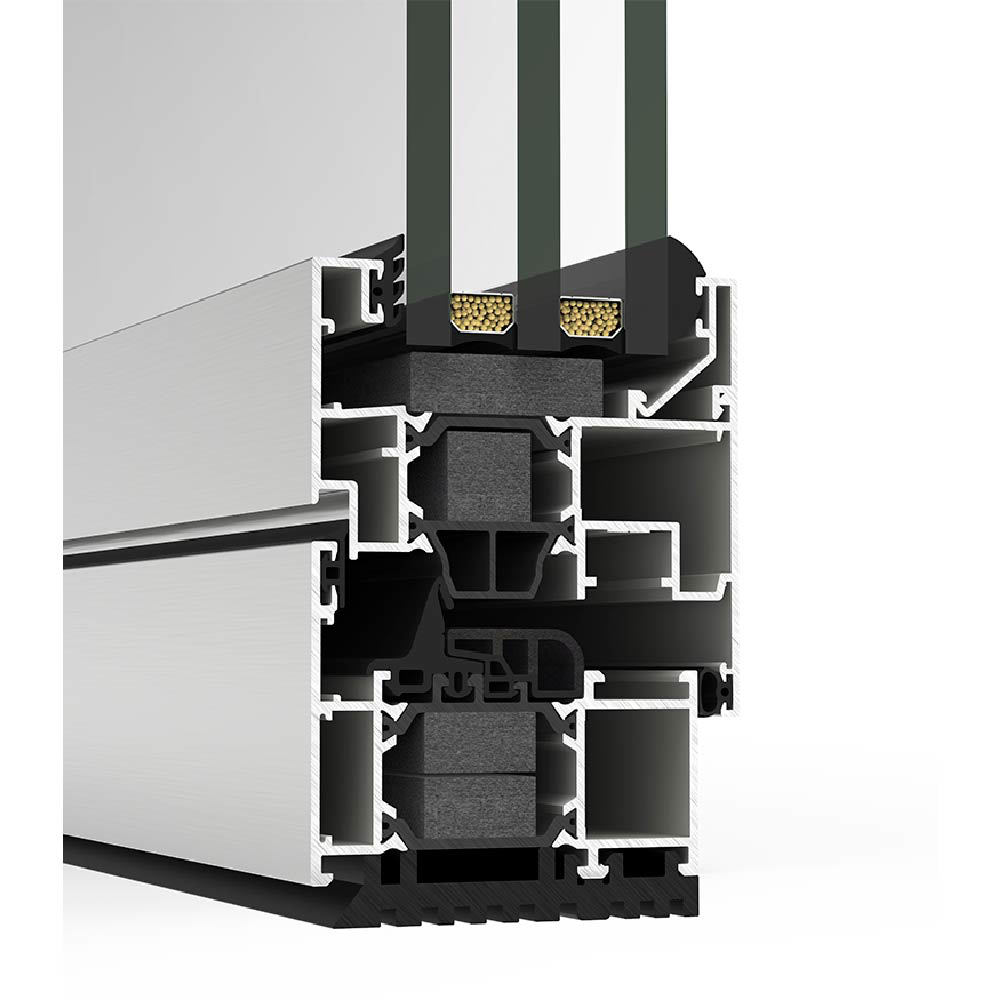

Hinged system with a 2.76" frame depth compatible with any standard 16 groove hardware. It features a 1.38" thermal break zone in the frame and 1.18" in the sash, providing it with great thermal and acoustic performance.

Shipping: Free

est. delivery:

Description
Downloads

Description

Possibilities
» Security hardware
» Concealed hinges
» Concealed drainage
» Accessibility

Technical Data

» Glazing
Max. 2.17"
Min. 0.59"

» Opening possibilities

Inward opening
Side hung
Tilt & turn
Tilt & parallel
Bottom hung

Outward opening
Side hung (door)

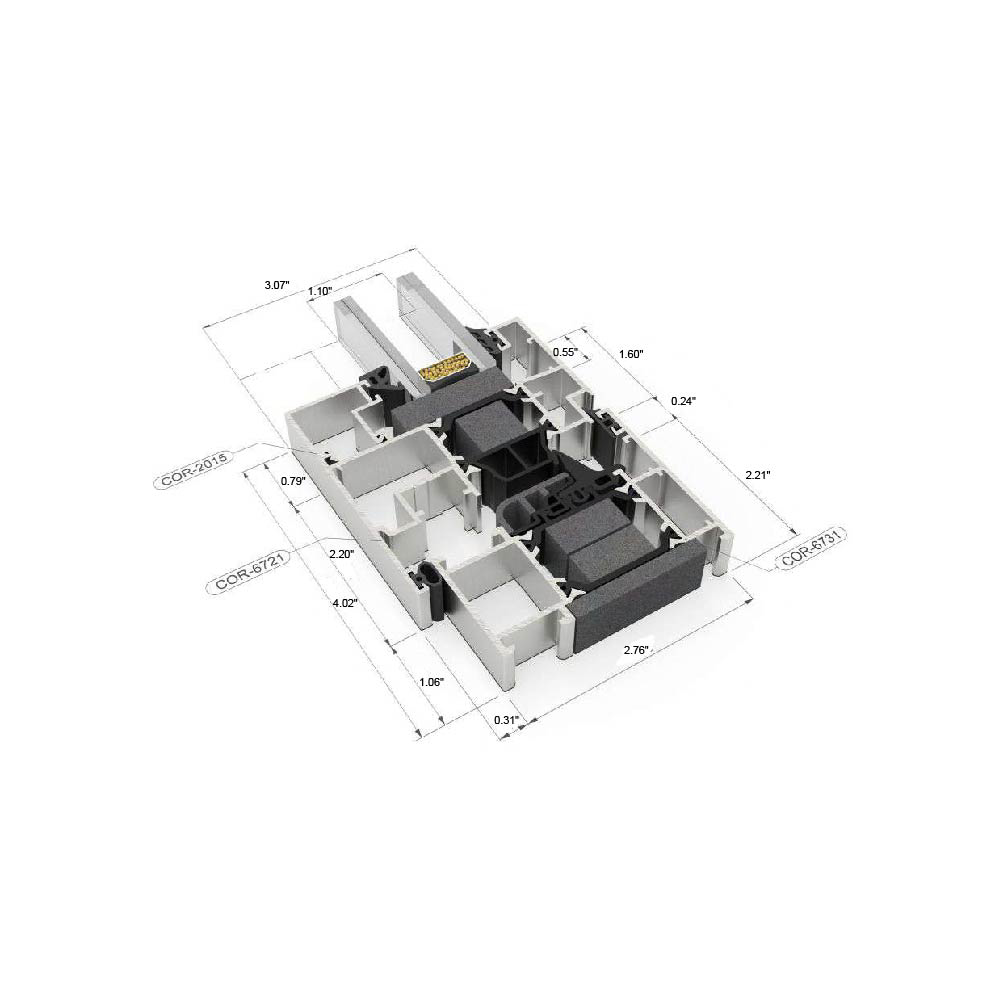

» Sightlines
Frame 2.76"
Sash 3.07"

» Profile thickness
Window 0.059"

» Polyamide strip length
Frame 1.38"
Sash 1.18"

» Maximum sash dimensions
Width (L) 59.06"
Height (H) 102.36"

» Maximum sash weight
150 kg

» Aesthetic possibilities
Sash: Straight / Bead: Straight or curved

Consult maximum weight and dimensions according to typologies.

» Finishes
Possibility of bicolor systems
Color powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized

Test Center

» Transmittance
Uw ≥ 0.9 (W/m²K)
Consult maximum weight and dimensions according to typologies

» Acoustic insulation
Rw up to 46 dB

» Air permeability
(EN 12207) Class 4

» Water tightness
(EN 12208) Class E1500

» Wind resistance
(EN 12210) Class C5

» CSTB Laboratory DTA Certification
Avis technique - Ref. 6/17-2363

Reference test 48.43" × 58.27" / 2 sashes
