COR 3500 Hinged Window and Door Systems

For pricing information please send a request.

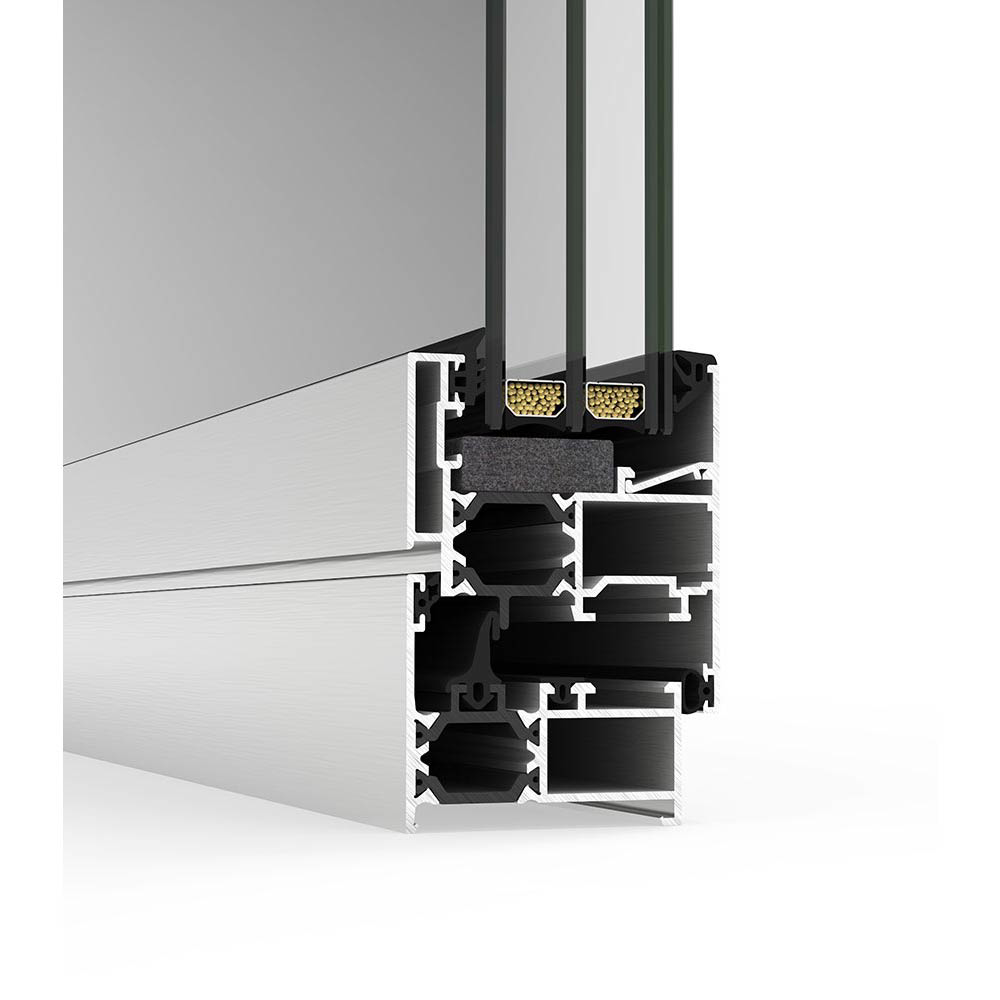

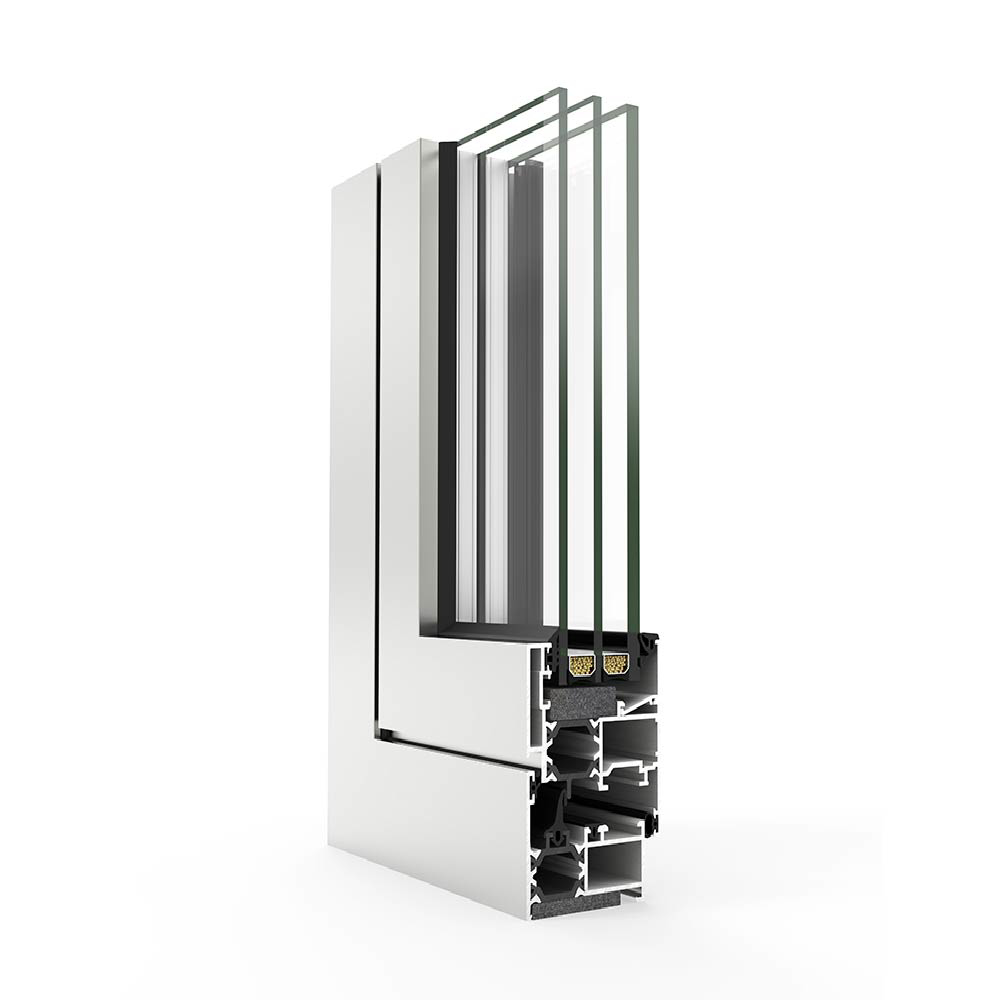

Hinged system with a frame depth of 2.13", a 0.94" thermal break zone, and a maximum glazing capacity of 1.61". These features grant this system optimal thermal and acoustic performances: Uw from 1.0 W/m²K, and up to 46 dB of noise reduction.

Shipping: Free

est. delivery:

Description
Downloads

Description

Possibilities
» Security hardware
» Concealed hinges
» Accessibility

Technical Data

» Glazing
Max. 1.61"
Min. 0.20"

» Opening possibilities

Inward opening

Side hung

Tilt & turn

Parallel Sliding

Bottom hung

Outward opening
Side hung
Top hung

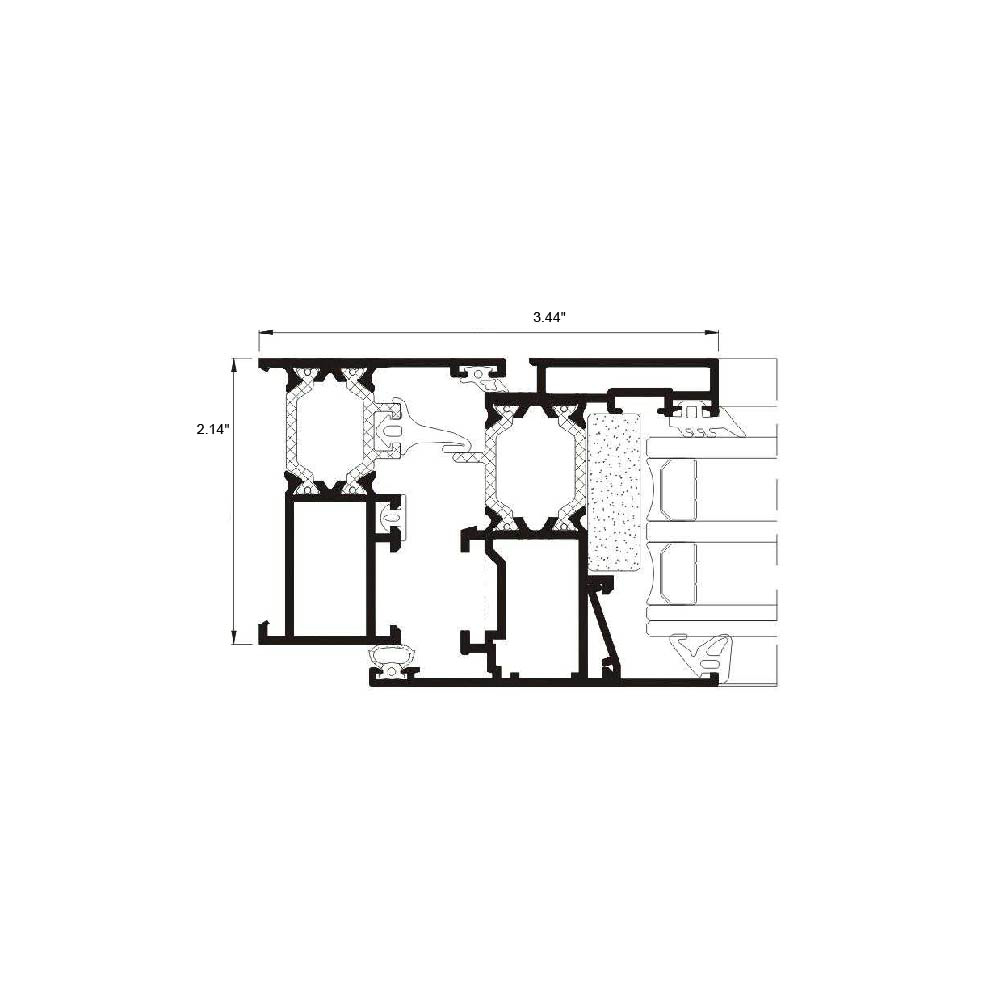

» Sightlines
Frame 2.13"
Sash 2.48"

» Profile thickness
Window 0.059"
Door 0.067"

» Polyamide strip length
0.94"

» Maximum sash dimensions
Width (L) 59.06"
Height (H) 94.49"

» Maximum sash weight
120 kg

» Aesthetic possibilities
Sash: Straight or curved / Bead: Straight or curve

Consult maximum weight and dimensions according to typologies.

» Finishes
Possibility of dual color systems
Color powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized

Test Center

» Transmittance
Uw ≥ 1.0 (W/m^²K)
Consult maximum weight and dimensions according to typologies

» Acoustic insulation
Rw up to 46 dB

» Air permeability
(EN 12207) Class 4

» Water tightness
(EN 12208) Class E1200

» Wind resistance
(EN 12210) Class C5
Reference test 47.24" × 47.24" / 2 sashes
