cortizo

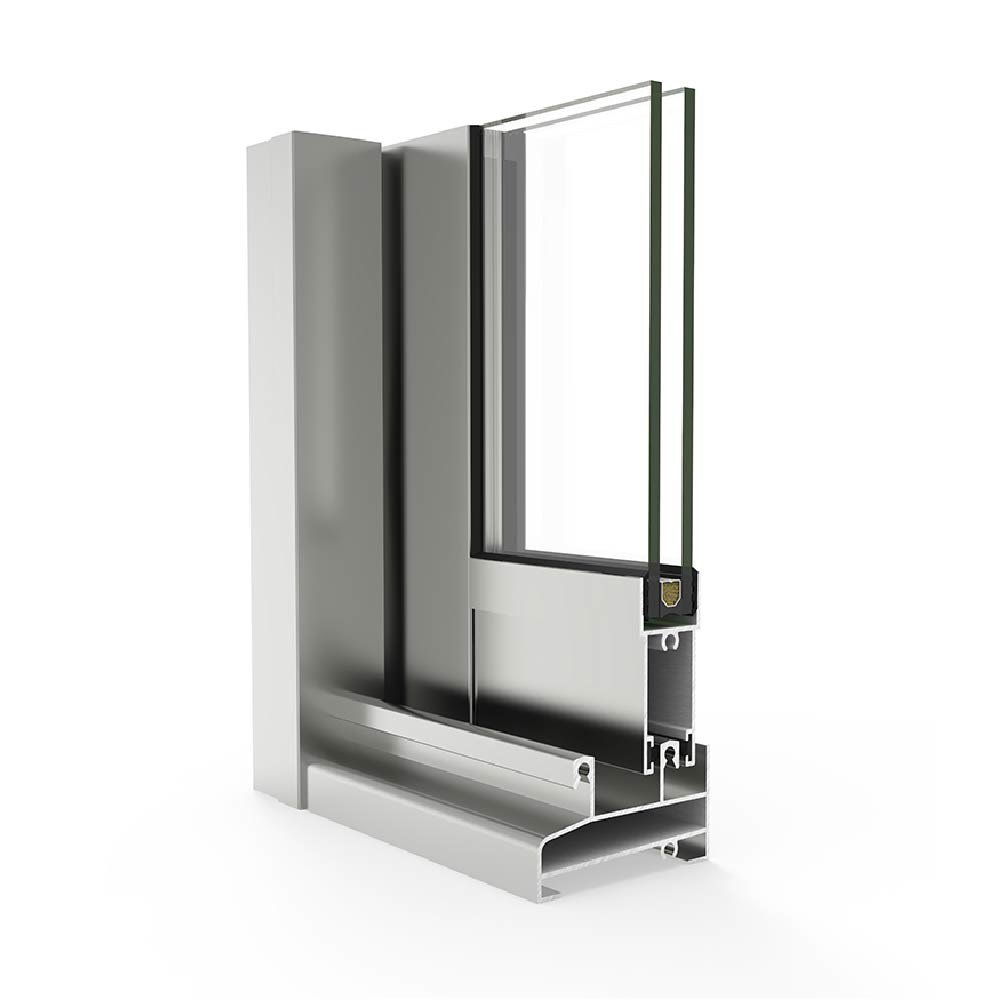

6200 Sliding Sliding Window and Door Systems

For pricing information please send a request.

» Sliding window system » 2.36" of frame depth » Sash 0.87"

Shipping: Free

est. delivery:

Description

Technical Data

» Maximum glazing thickness

0.59"
» Opening possibilities

Sliding of 2, 3, 4 & 6 sashes

Possibility 3 rails

Possibility double window

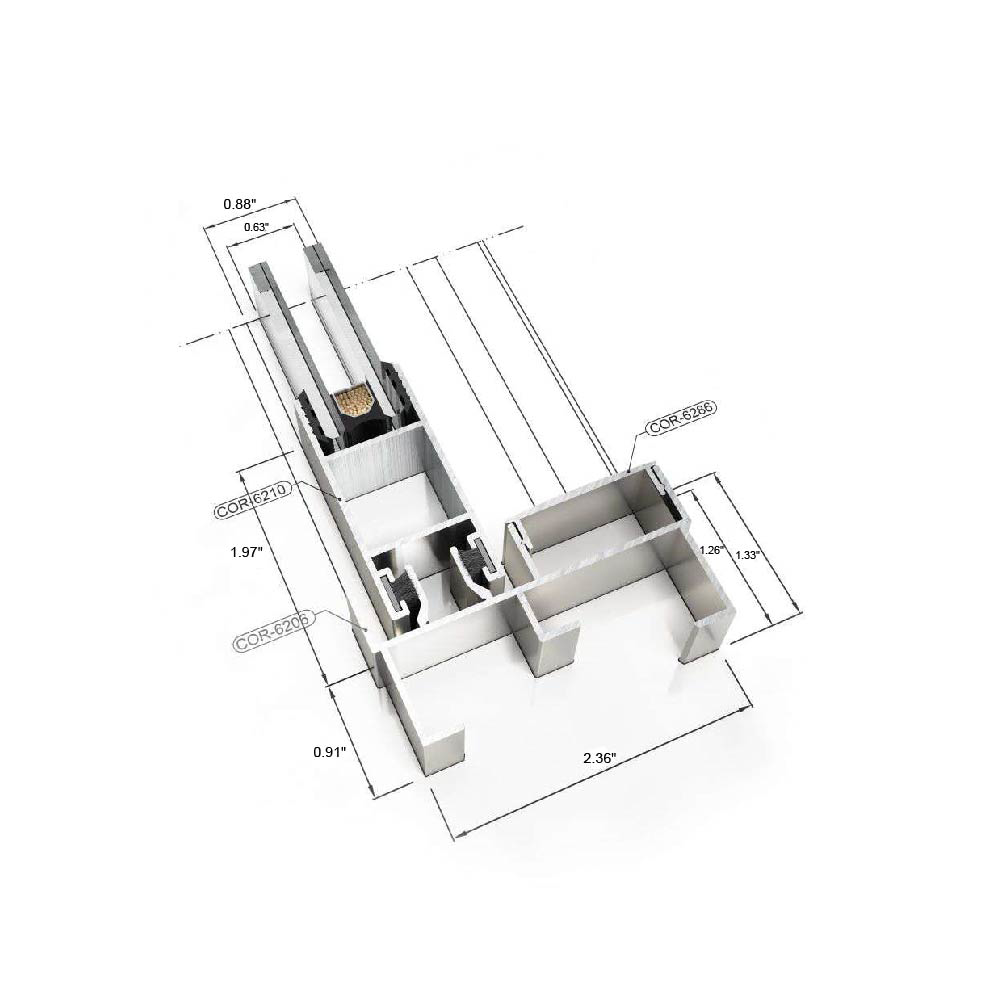

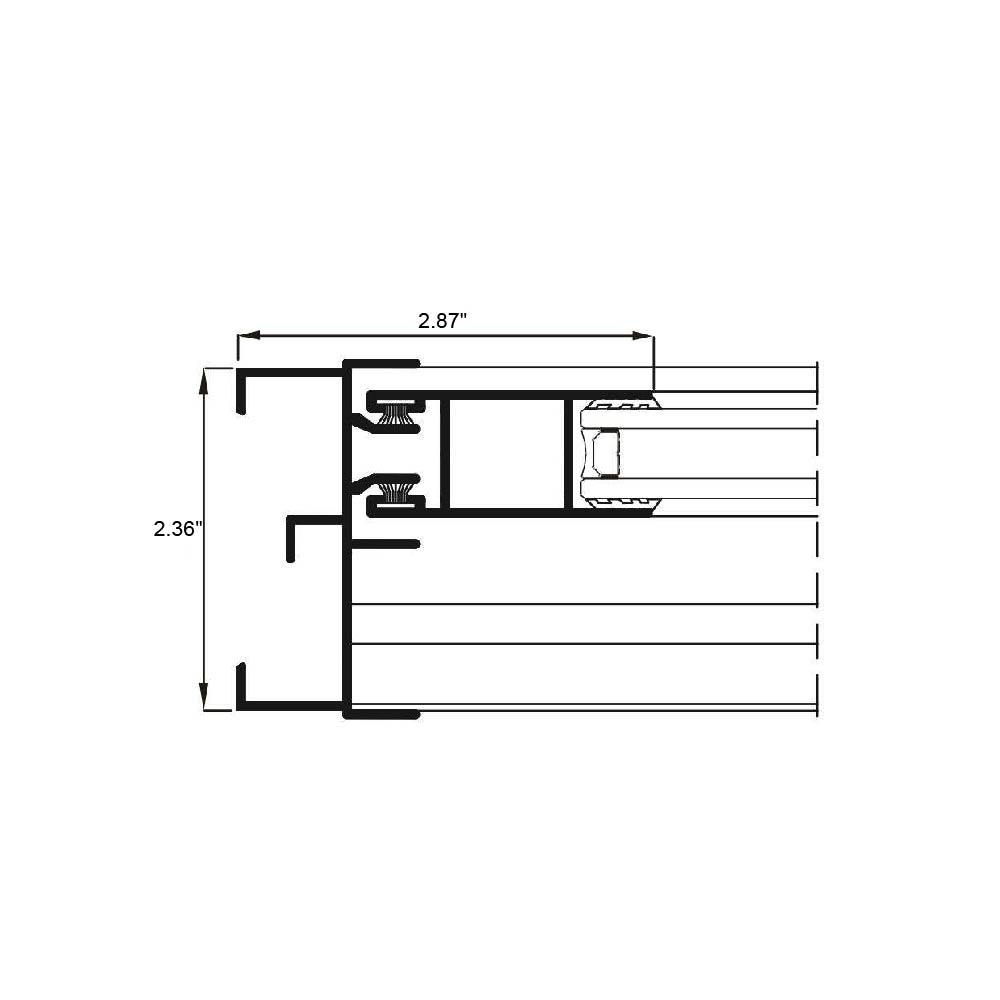

Frame – 2.36" / Sash – 0.87"
» Profile thickness

Window 0.049"
» Maximum dimensions/sash

Width (L) = 31.50"
Height (H) =62.99"

Window

Width (L) = 31.50"
Height (H) = 82.68"

Balcony

» Maximum weight/sash

80 kg
Please consult regarding maximum weight and dimensions for other opening types
» Finishes

Color powder coating (RAL, mottled and rough)

Wood effect powder coating

Anti-bacterial powder coating

Anodized

Test Center

» Transmittance

Uw from 3.2 (W/m²K)

Please consult typology, dimensions and glazing

» Maximum acoustic insulation

Rw = 35 dB
» Air permeability

(EN 12207:2000) CLASS 3
» Water tightness

(EN 12208:2000) CLASS 7A
» Wind resistance

(EN 12210:2000) CLASS C3

Reference test 47.24" x 47.24" 2 sashes
