Casement Hinged Window and Door Systems

For pricing information please send a request.

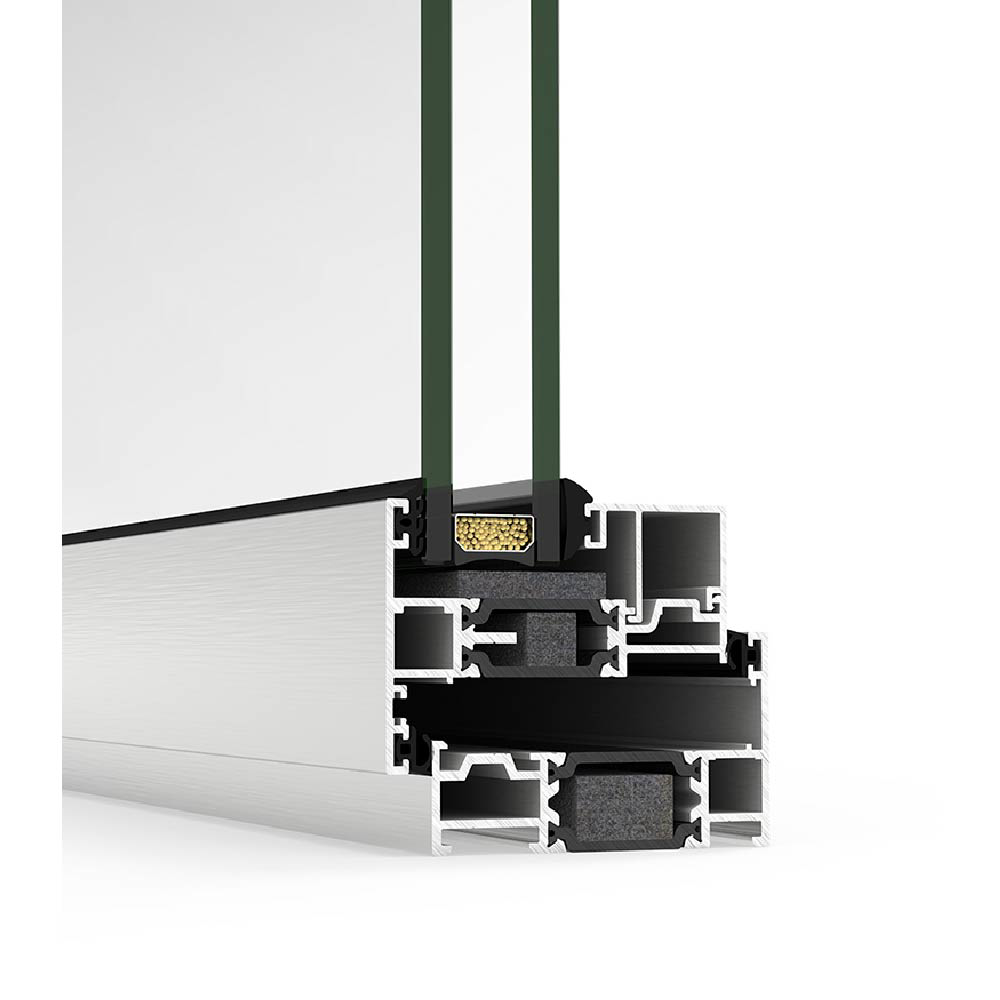

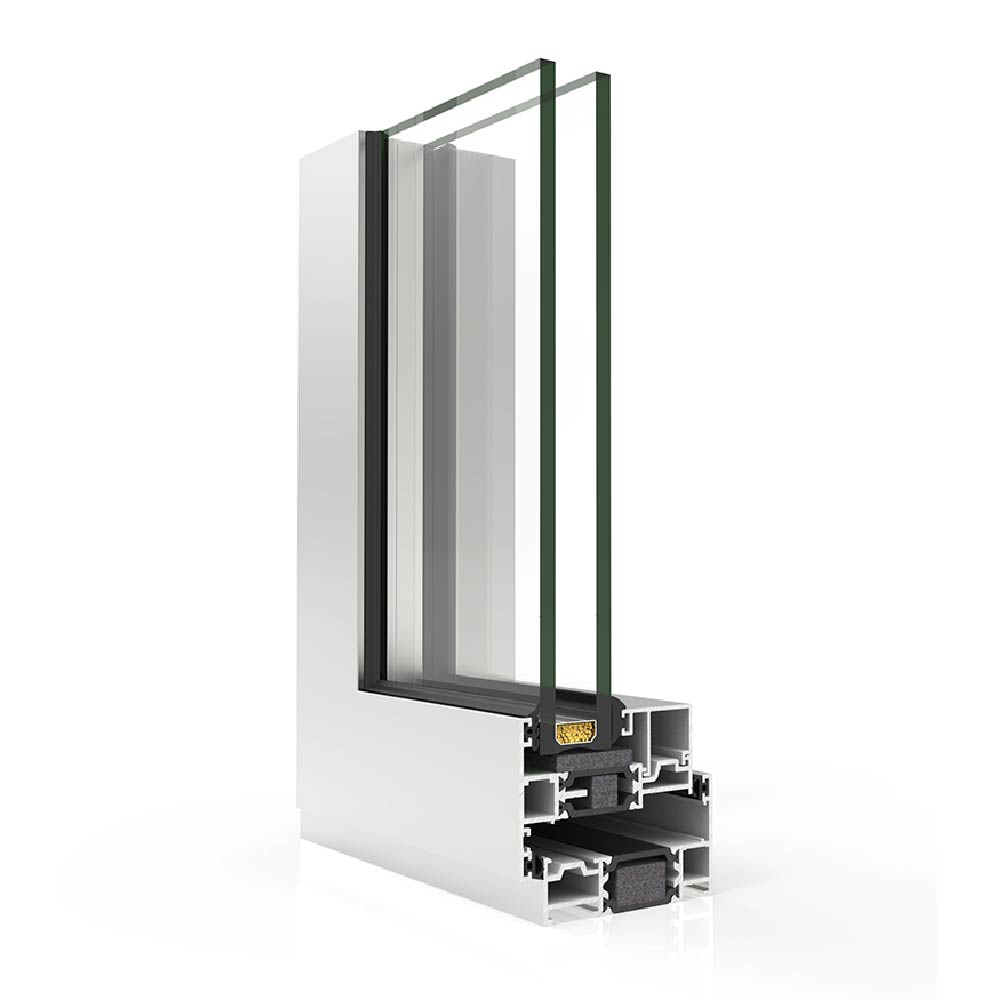

Thermally broken window that allows for both side hung and top hung outward openings. This solution, with a thermal break zone of 1.26" and a transmittance Uw from 1.0 W/ m²K, has the British security certification PAS 24, being especially suitable for this market.

Shipping: Free

est. delivery:

Description
Downloads

Description

Possibilities
» Security hardware
» Concealed hinges

Technical Data

» Glazing
Max. 1.73"
Min. 0.91"

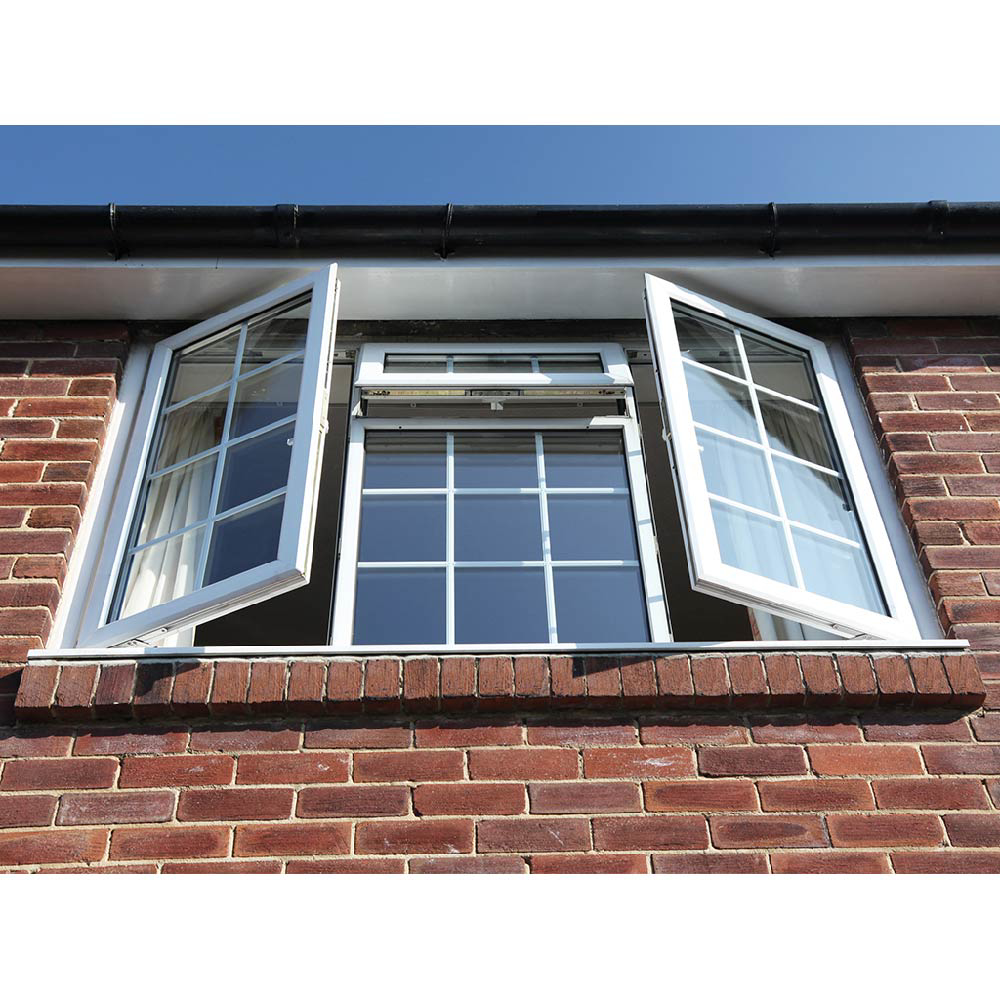

» Opening possibilities

Outward opening
Side hung
Top hung

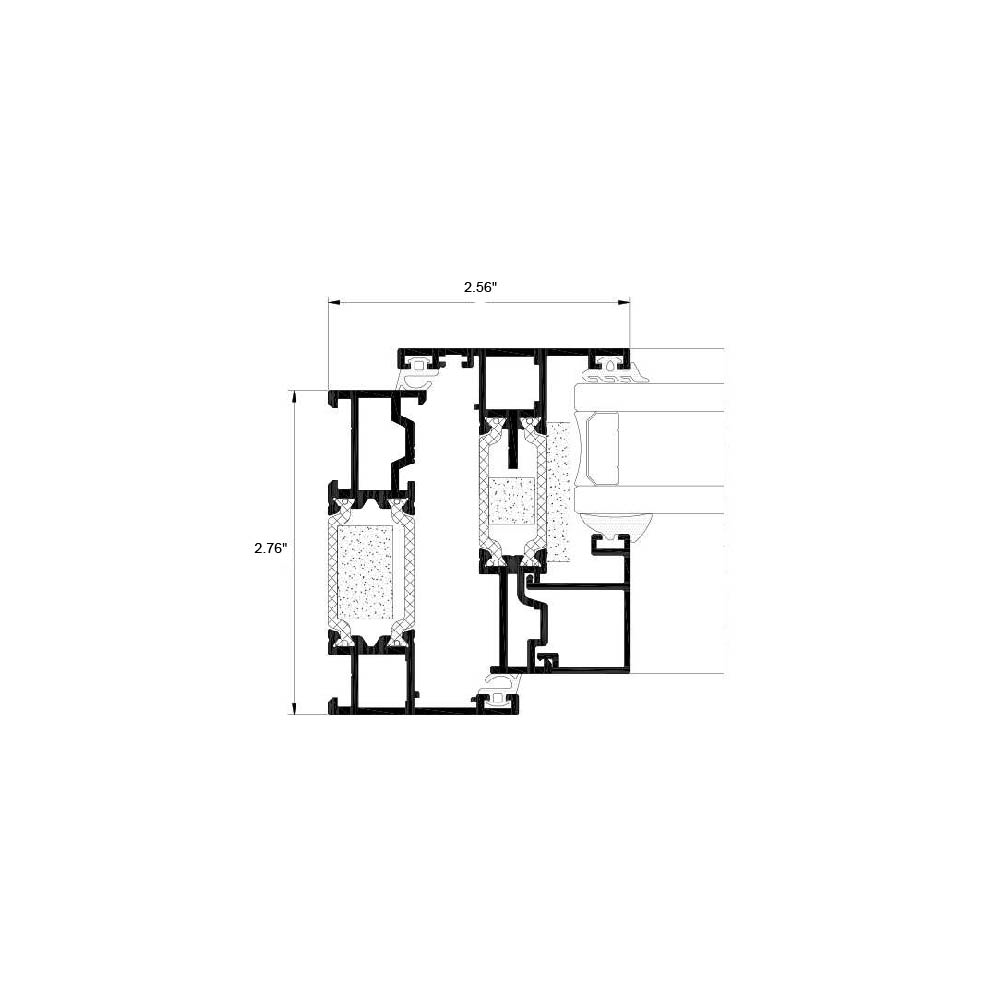

» Sightlines
Frame 2.76"
Sash 2.76"

» Profile thickness
Window 0.063"

» Polyamide strip length
1.26"

» Maximum sash dimensions

Slim sash (Side hung)
Width (L) 37.40"
Height (H) 51.18"

Slim sash (Top hung)
Width (L) 47.24"
Height (H) 51.18"

Heavy duty sash (Side hung)
Width (L) 29.53"

Height (H) 68.90"

Heavy duty sash (Top hung)
Width (L) 70.87"
Height (H) 70.87"

» Maximum sash weight
Side hung Slim sash: 35 kg
Top hung Slim sash: 50 kg
Side Hung Heavy duty sash: 42 kg
Top Hung Heavy duty sash: 100 kg

Consult maximum weight and dimensions according to typologies.

» Finishes
Possibility of dual color systems
Color powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized

Test Center

» Transmittance
Uw ≥ 0.9 (W/m²K)
Consult maximum weight and dimensions according to typologies

» Acoustic insulation
Rw up to 45 dB

» Air permeability
(EN 12207) Class 4

» Water tightness
(EN 12208) Class E1200

» Wind resistance
(EN 12210) Class CE2400

» Security test PAS24
Passed

Reference test 56.69" × 52.36" / 1 sash + 1 fixed light
Security test: Reference test 56.69" × 52.36" / 1 sash + 1 fixed light
