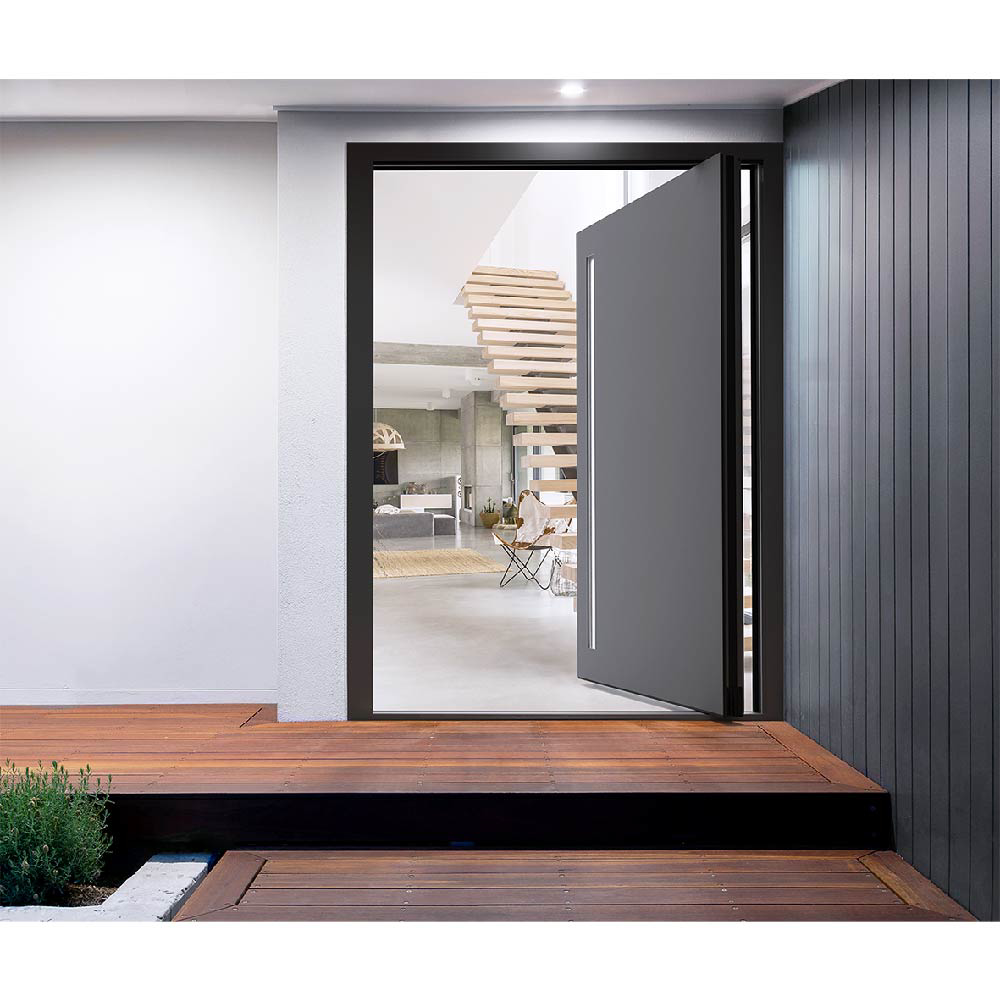

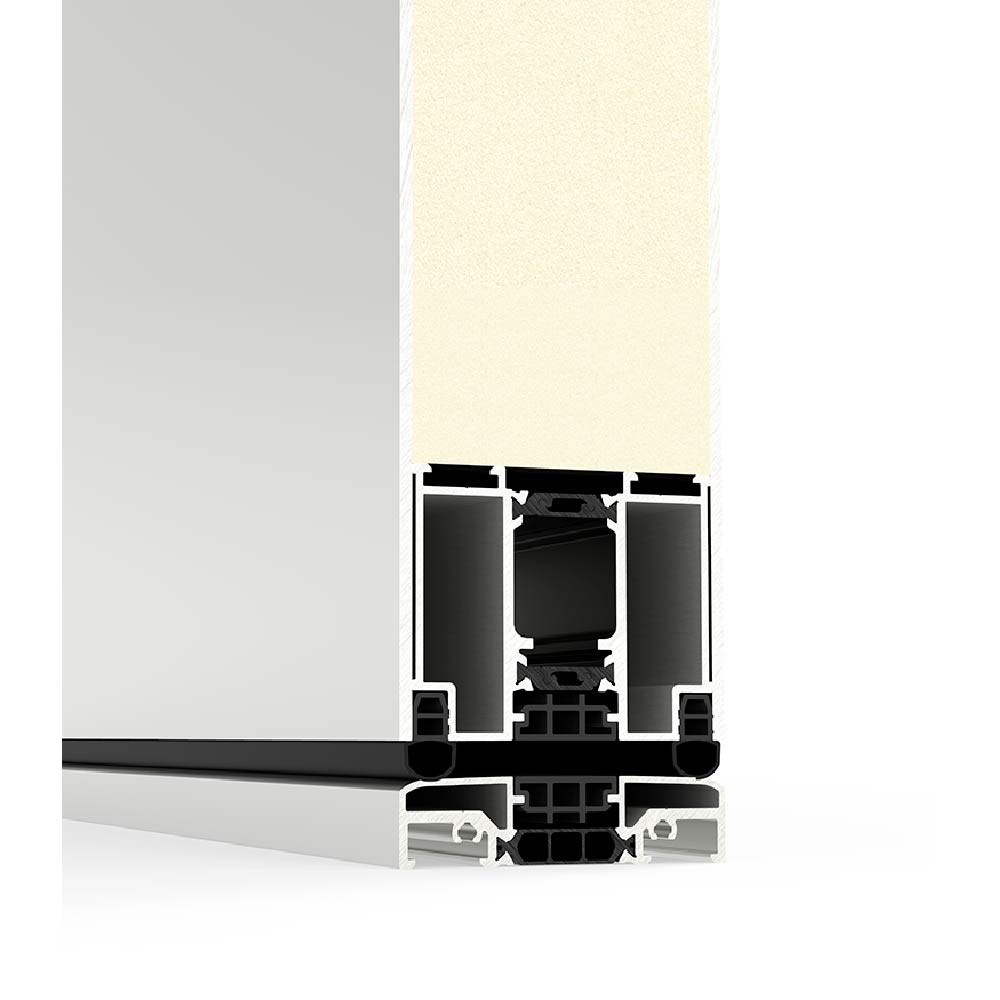

Millennium Plus Pivot Door

For pricing information please send a request.

This new entrance door from CORTIZO answers the latest design trends. The system is designed to allow large pivot openings suitable for contemporary architectural projects, and it offers excellent thermal and acoustic performance along with minimalistic sightlines.

Shipping: Free

est. delivery:

close

Estimate shipping

  • Attribute Selection
  • Arrow right
  • Description
  • Downloads

Attribute

close
Size

Description

close

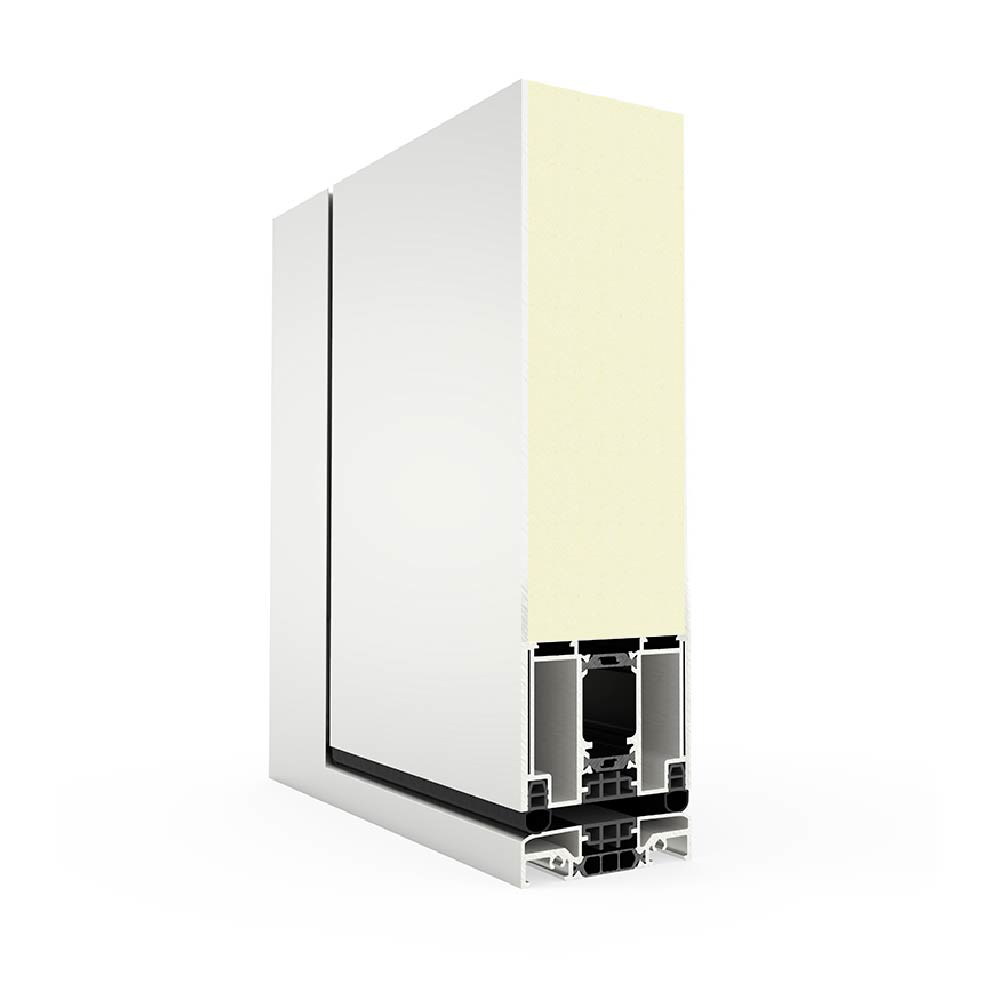

Technical Data

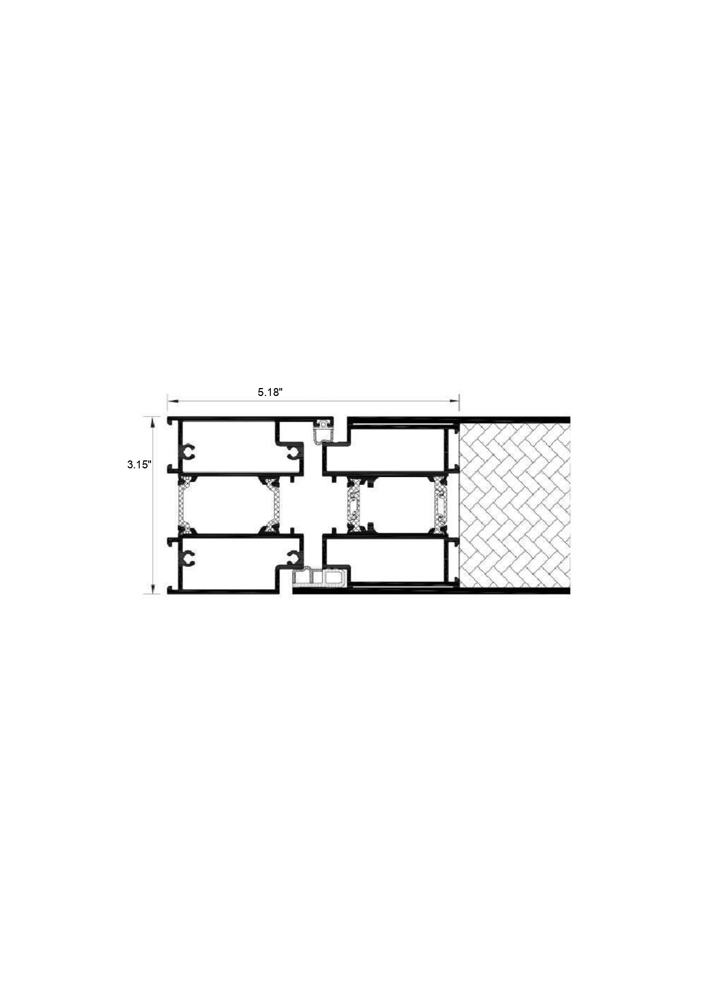

» Sightlines
Frame 3.15"
Sahs 3.15"

» Opening possibilities
Pivoting

» Panel
3.15"

» Profile Thickness
Door 0.079"

» Polyamide Strip Length
0.94" / 1.02"

» Maximum Sash Dimensions
Width (L) 82.68" (66.93" + 15.75")
Height (H) 118.11"

» Maximum Sash Weight
250 kg

Consult maximum weight and dimensions according to typologies
*Measure from the pivot axis

» Finishes
Possibility of dual color systems
Color powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized



Test Center

» Transmittance
UD ≥ 0.86 (W/m2K)

» Air permeability
(EN 12207) Class 4

» Water tightness
(EN 12208) Class 5A

» Wind resistance
(EN 12210) Class C5


Reference test 47.24" × 78.74" / 1 Sash
