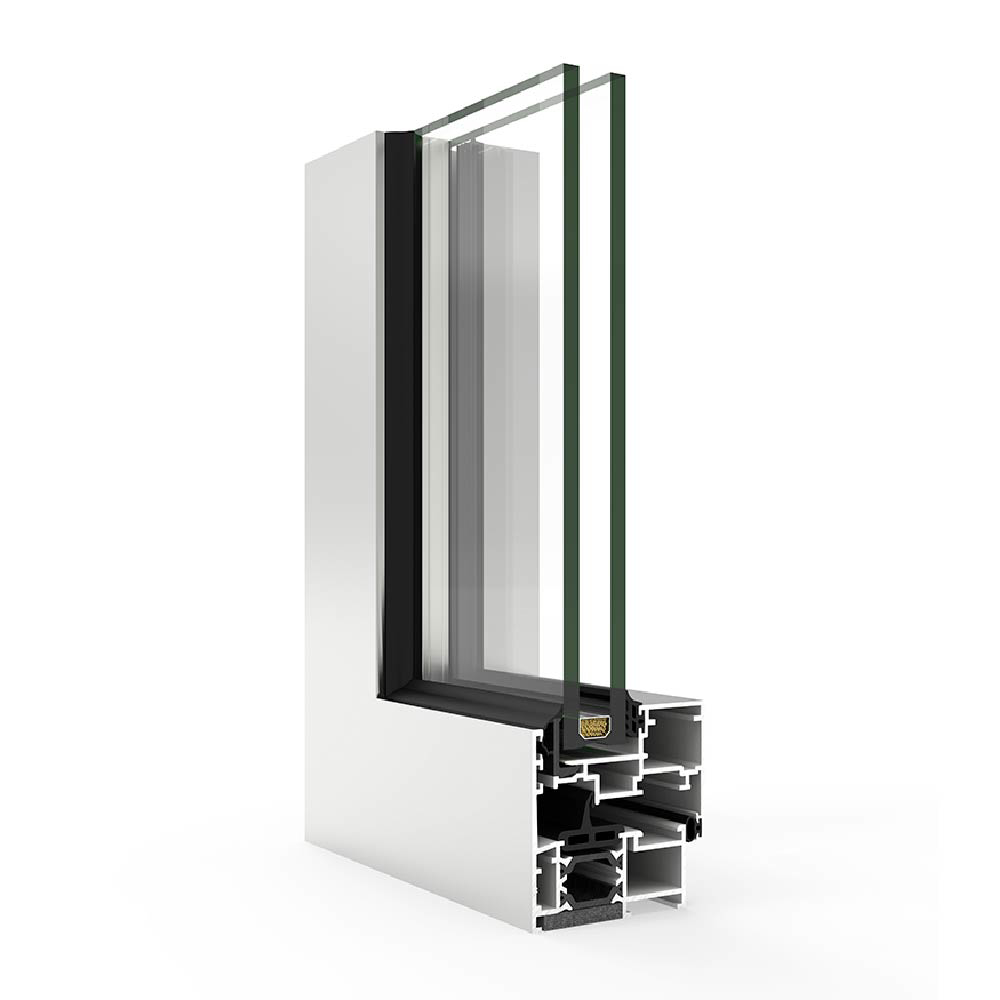

COR 60 Hidden Sash Hinged Window and Door Systems

For pricing information please send a request.

Minimalism for avant-garde projects. It has an interlock profile of only 2.48", COR 60 Hidden Sash is presented as a hinged system that allows for more glazed surface.

Shipping: Free

est. delivery:

Description
Downloads

Description

Possibilities
» Security hardware
» Concealed hinges

Technical Data

» Glazing
Max. 1.34"
Min. 0.63"

» Opening possibilities
Inward opening
Side hung
Tilt & turn
Bottom hung

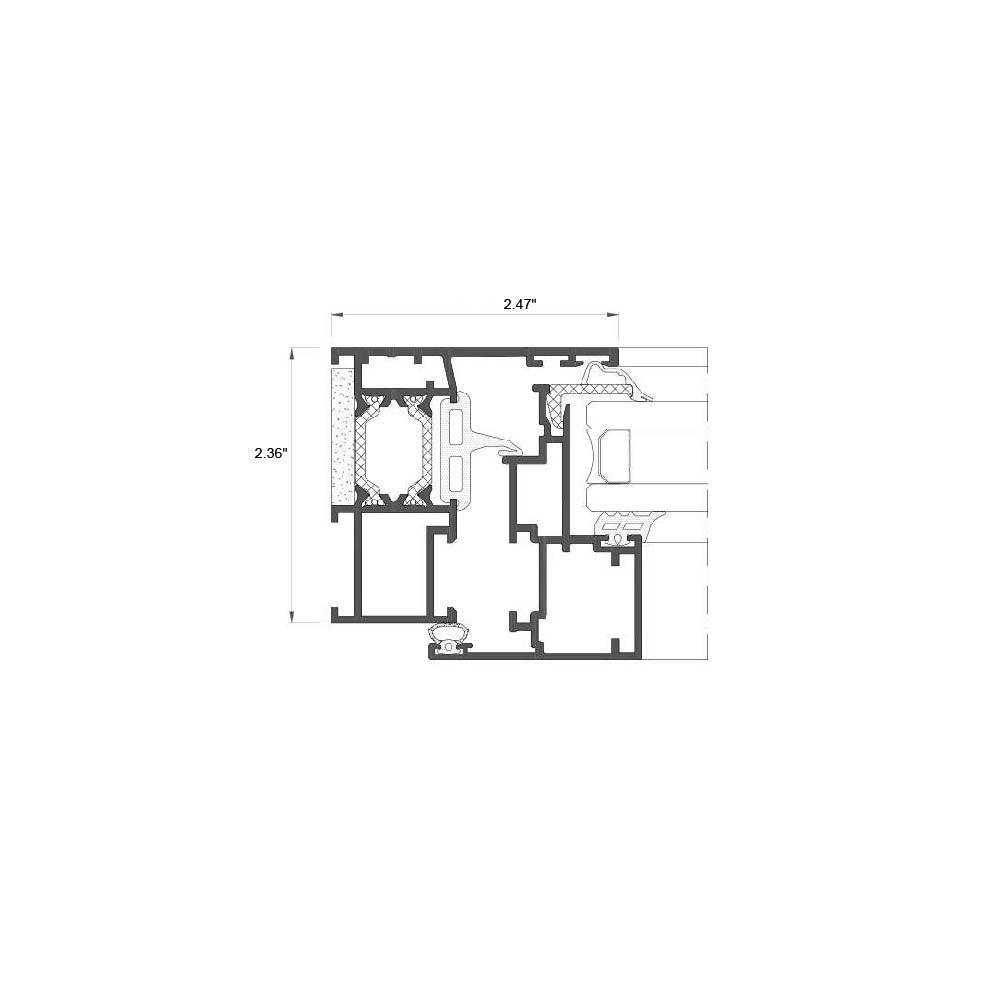

» Sightlines
Frame 2.36"
Sash 2.36"

» Profile thickness
Window 0.063"
Balcony 0.063"

» Polyamide strip length
0.94"

» Maximum sash dimensions
Width (L) 51.18"
Height (H) 94.49"

» Maximum sash weight
160 kg

Consult maximum weight and dimensions according to typologies.

» Finishes
Possibility of dual color systems
Color powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized

Test Center

» Transmittance
Uw ≥ 1.5 (W/m²K)
Consult maximum weight and dimensions according to typologies

» Acoustic insulation
Rw up to 41 dB

» Air permeability
(EN 12207) Class 4

» Water tightness
(EN 12208) Class 9A

» Wind resistance
(EN 12210) Class C5

Reference test 47.24" × 45.67" / 1 sash
