TPV 52 Facade Systems

For pricing information please send a request.

» Wide variety of mullions (from 0.63" to 9.06") and transoms (from 0.89" to 8.09") that solve the different aesthetic and constructive needs of the architecture sector » Internal seen section 2.05"

Shipping: Free

est. delivery:

Description
Downloads

Description

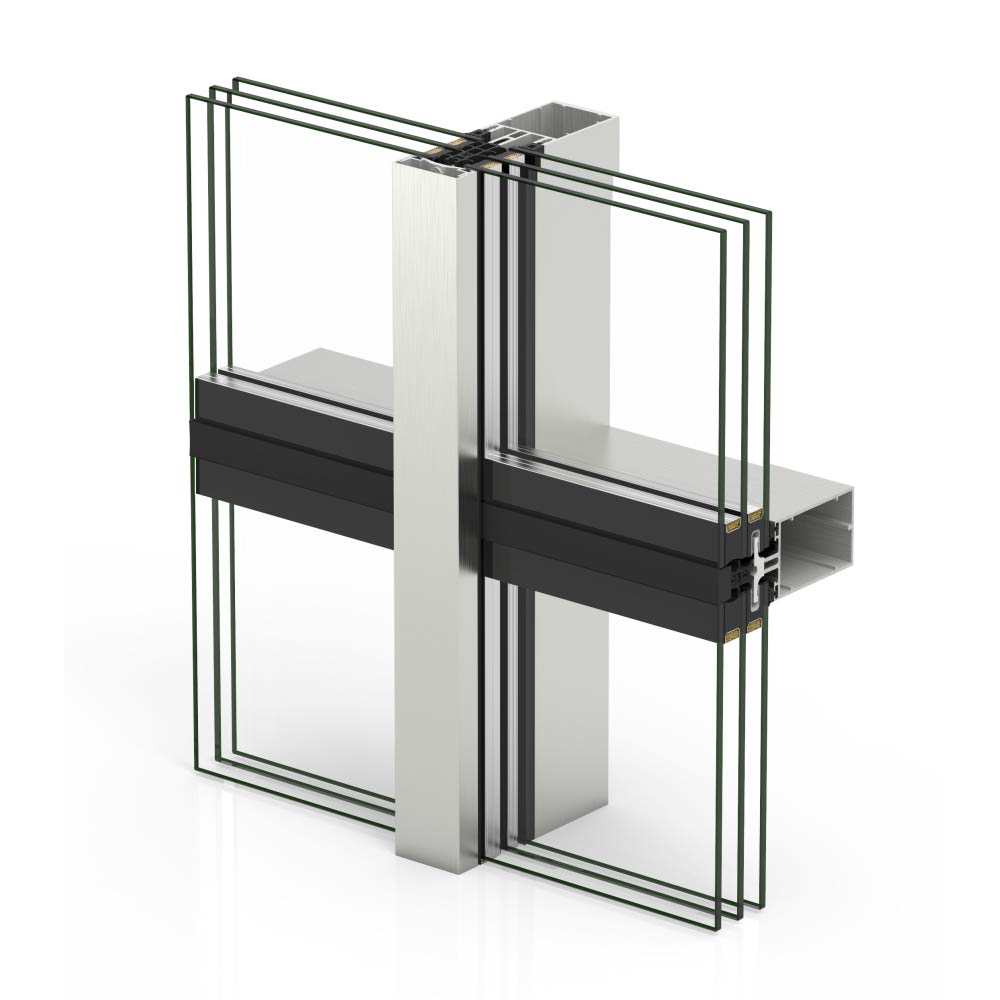

» Extensive profile range, their mechanical unions allow for all types of façades to be built (vertically, inclined, 90° corners, corners, polygonal) as well as solving large and heavy glazing modulations
» Water tightness elements: drainage pipettes, tear strip gaskets and vulcanized angles

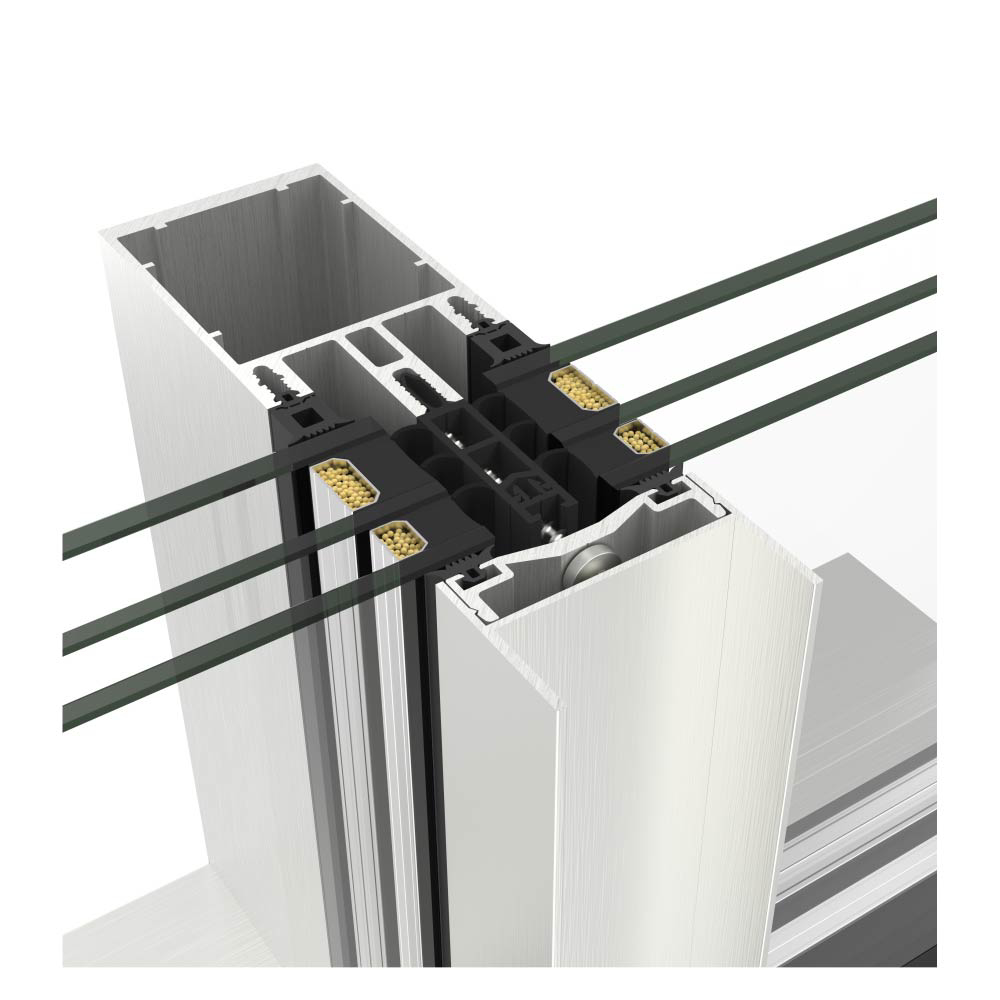

» Mixed system that evolved from the combination of the TP 52 and the SG 52 systems. It maintains the pairing of the pressed profile and the cover profile on the horizontal gaskets, and it uses clips and the U-profile for its vertical edge

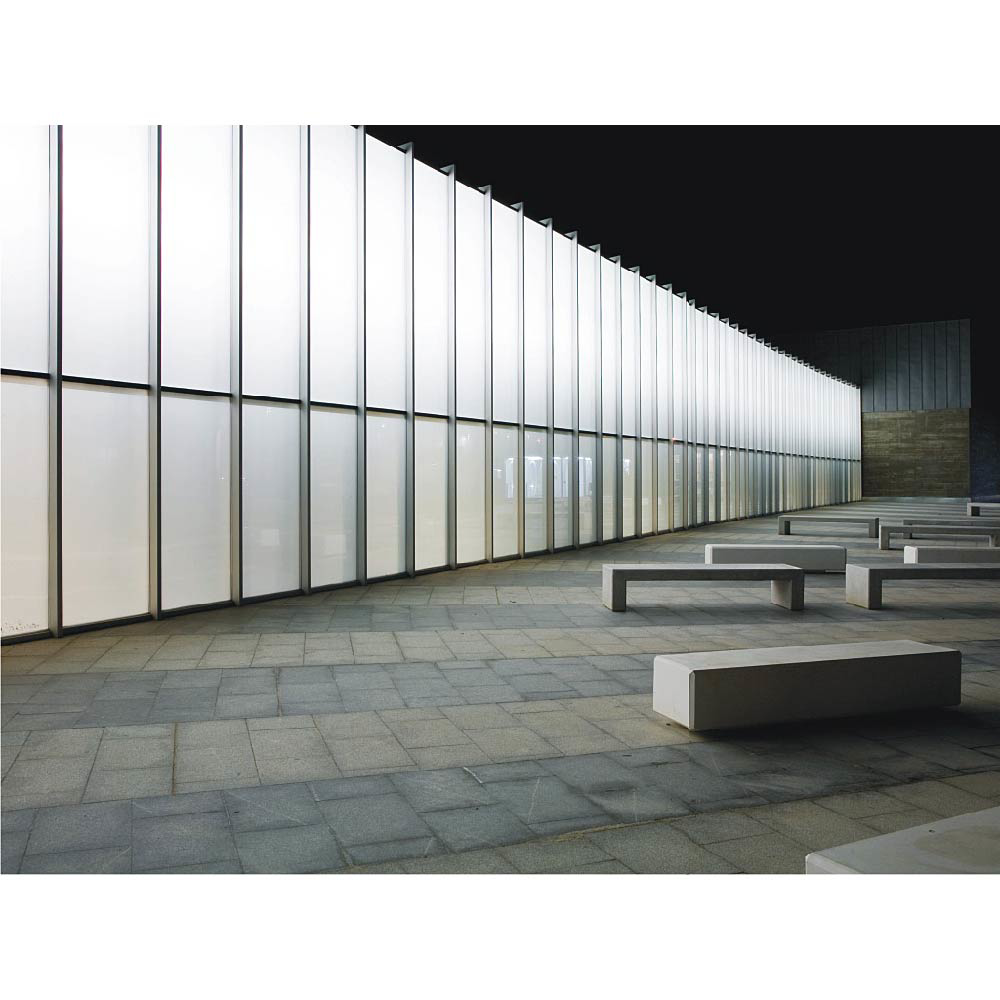

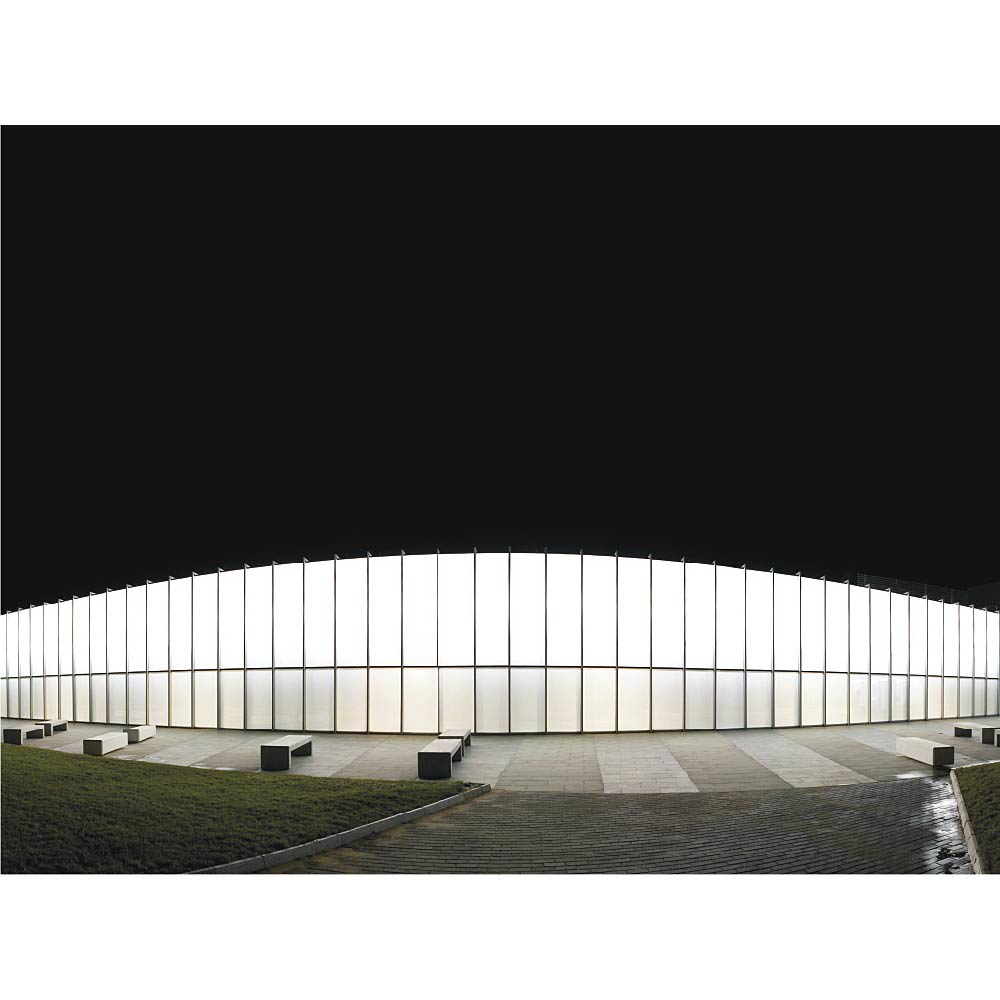

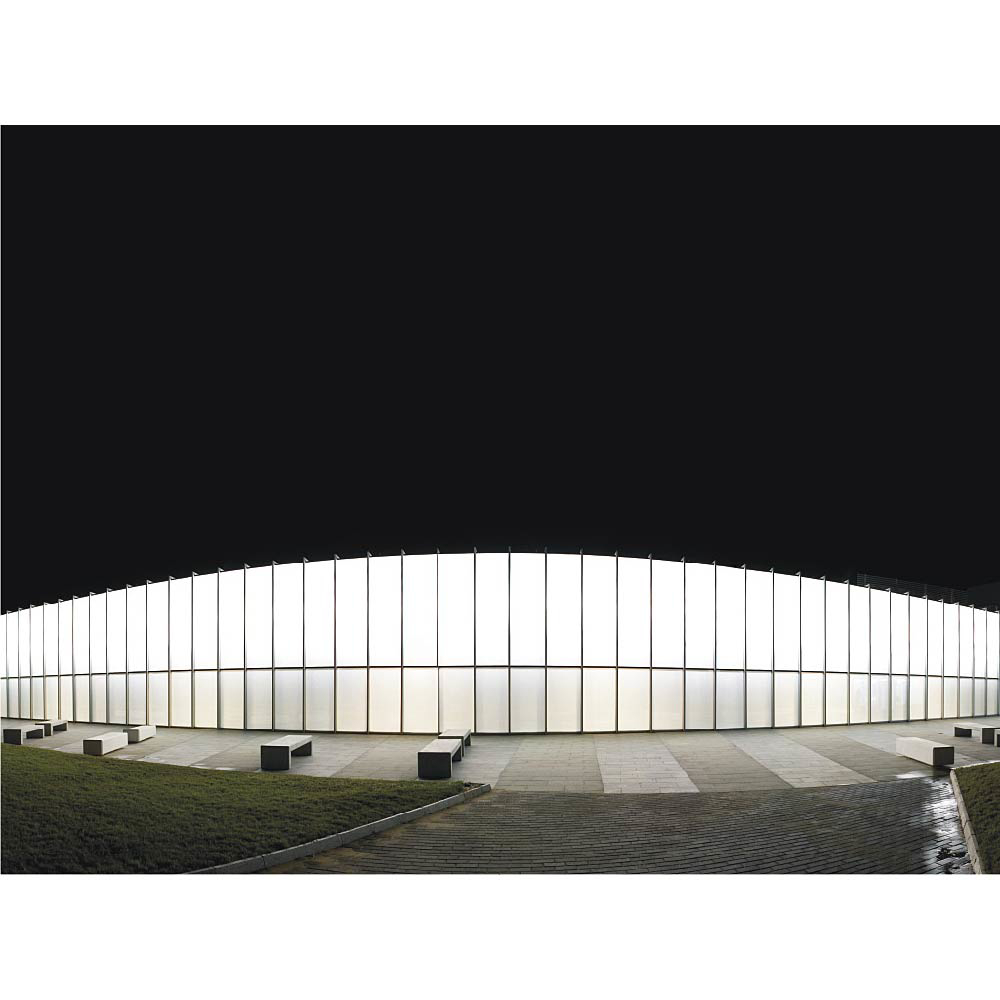

» This system highlights for its vertical lines

Technical data

» Glazing

Maximum glazing 2.52"

Minimum glazing 0.24"

*Consult us for greater thicknesses
» Opening possibilities

Hidden Top Hung

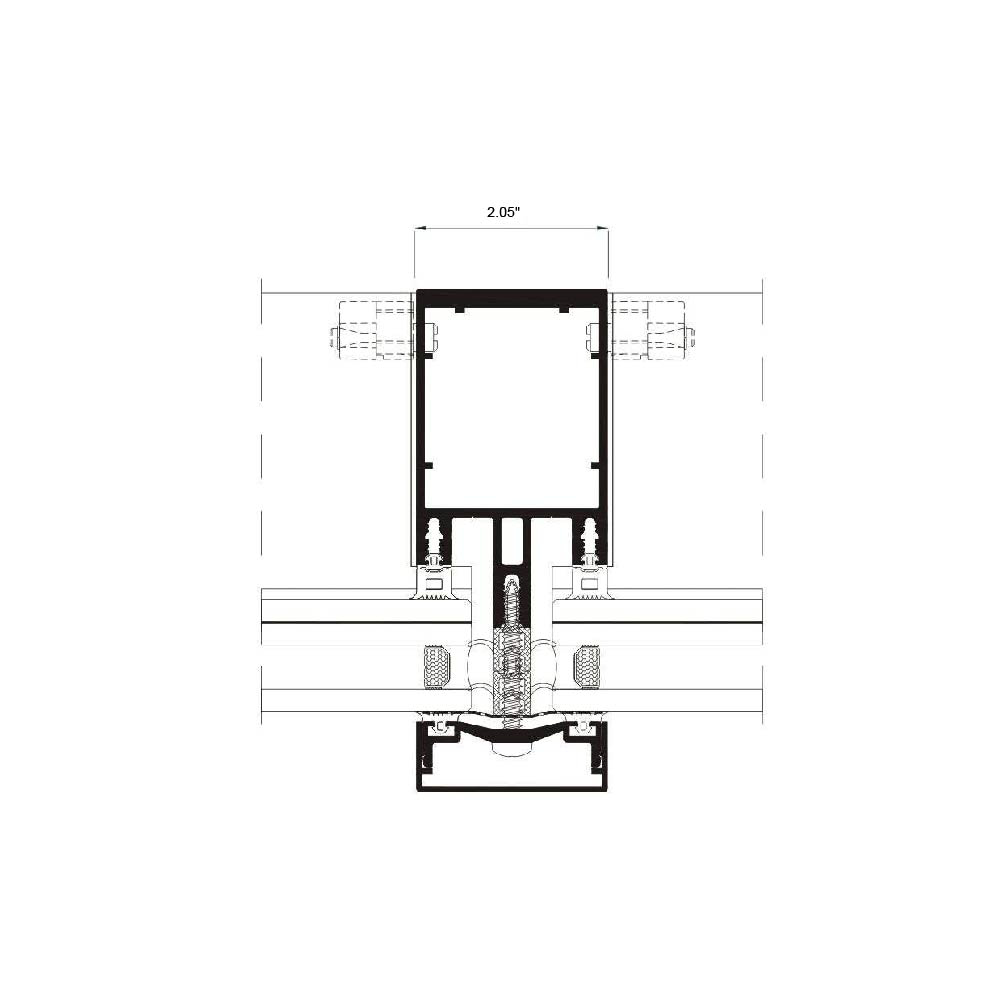

» Sections

Mullion 2.05"

Transom 2.05"

» Profile thickness

Mullion 0.083" and 0.118"

Transom 0.083"
» Polyamide strip length

0.24", 0.47" & 1.18" stackable profiles
