» Extensive profile range, their mechanical unions allows for all types of façades to be built (vertically, inclined, 90° corners, corners, polygonal) as well as solving large and heavy glazing modulations
» Water tightness elements: drainage pipettes, tear strip gaskets and vulcanized angles

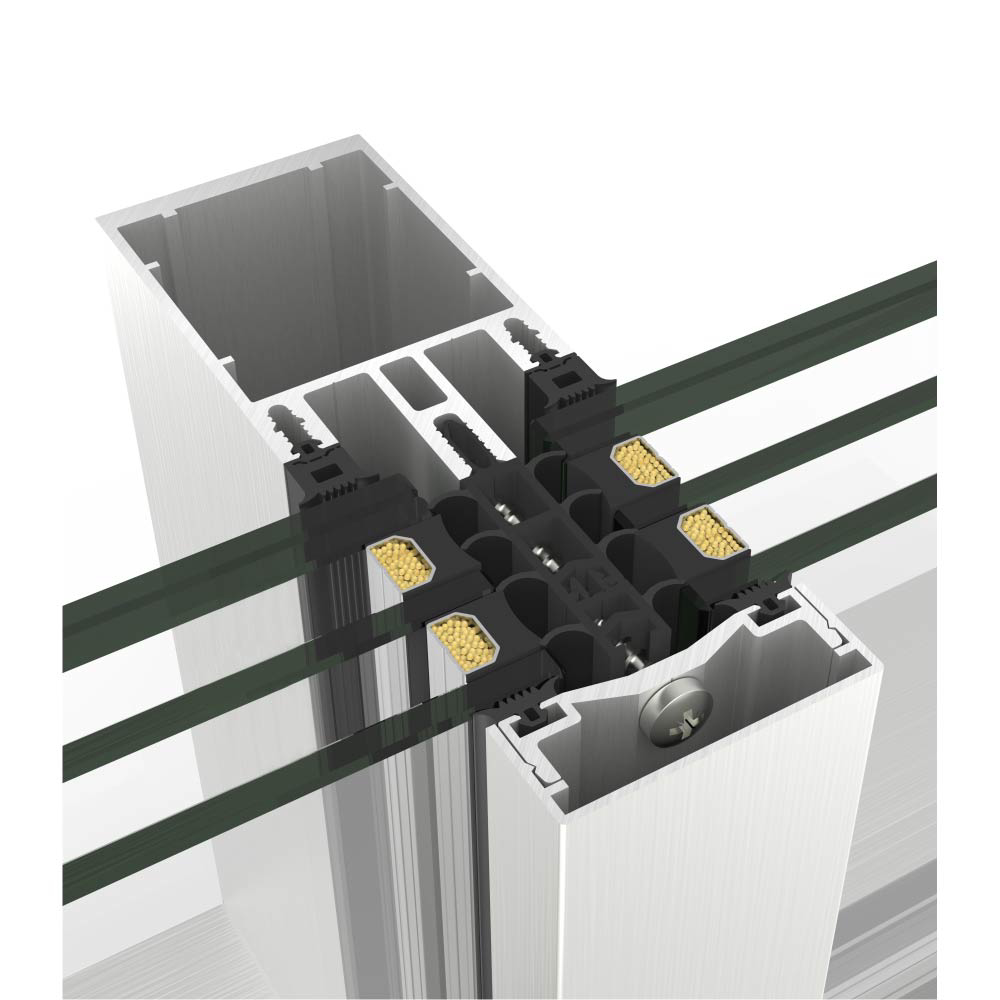

» In order to fix the glass to the supporting profiles, a pressed profile is needed, this profile is screwed to the mullions and transoms, and covered with a embellisher profile (cover profile)
» Excellent thermal and acoustic properties
Technical Data
» Glazing
Maximum glazing 2.52"
Minimum glazing 0.16"
*Consult us for greater thicknesses
» Opening possibilities
Hidden turn&tilt
Hidden side hung
hidden top hung projecting

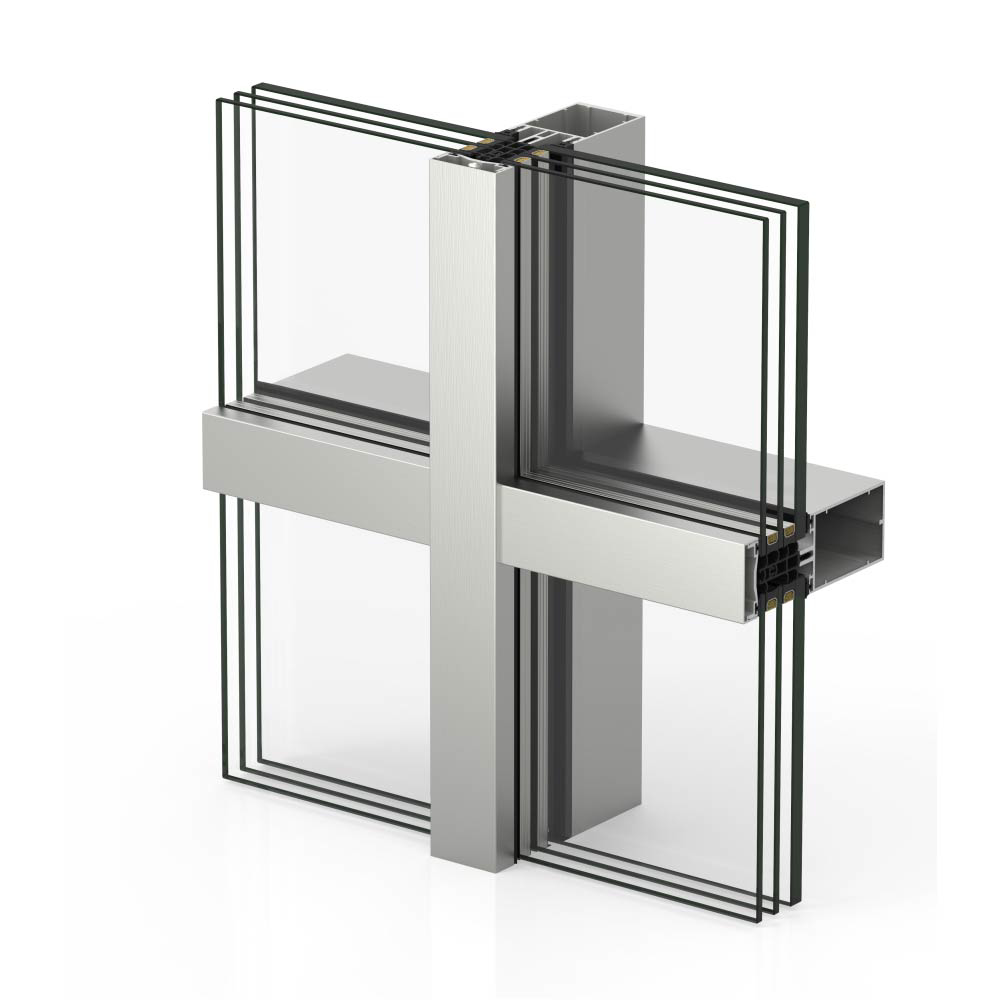

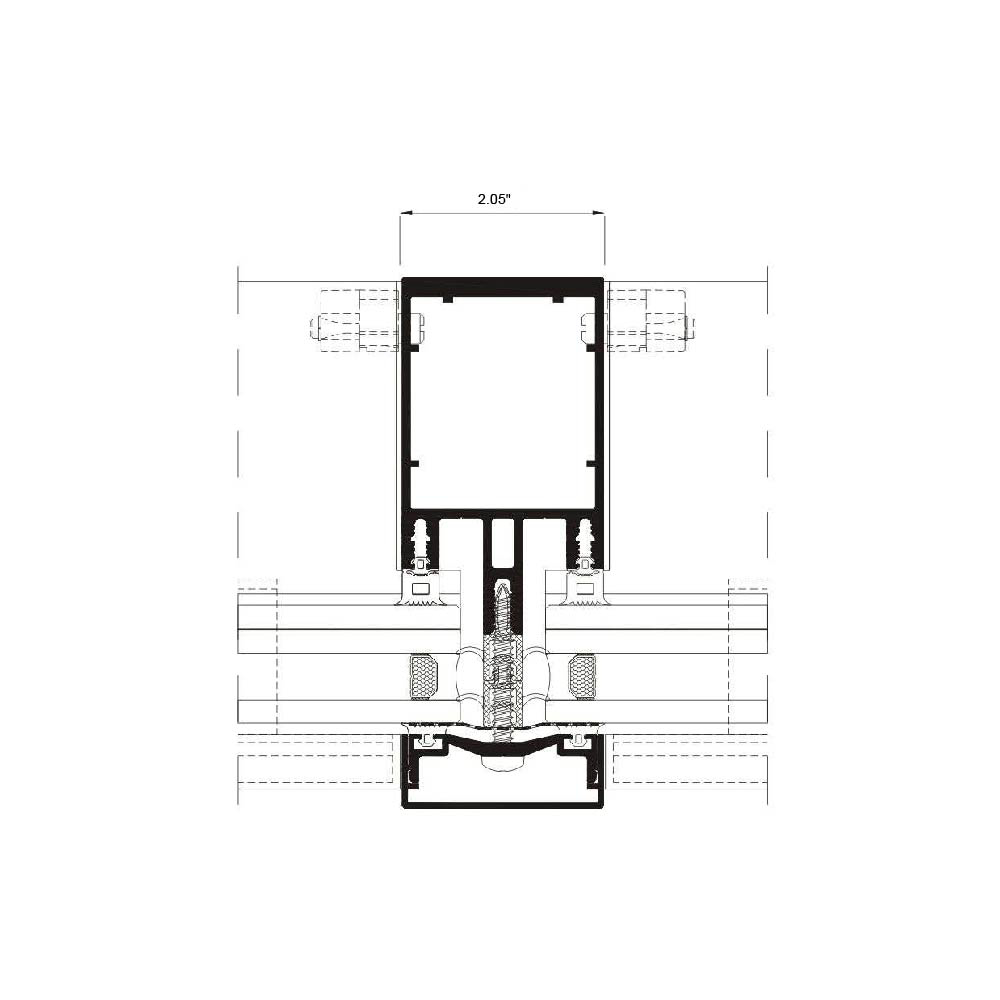

» Sections
Mullion 2.05"
Transom 2.05"
» Profile thickness
Mullion 0.083" and 0.118"
Transom 0.083"
» Polyamide strip length
0.24", 0.47" & 1.18" stackable profiles
» Minimum / Maximum opening dimensions
Hidden Top hung
Min. Width (L) = 19.69"
Min. Height (H) = 25.59"
Max. Width (L) = 98.43"
Max. Height (H) = 98.43"
Hidden Parallel Projecting
Min. Width (L) = 20.87"
Min. Height (H) = 20.87"
Max. Width (L) = 78.74"
Min. Height (H) = 118.11"
Hidden Side Hung / Turn&Tilt
Min. Width (L) = 19.69"
Min. Height (H) = 23.62"
Max. Width (L) = 55.12"
Min. Height (H) = 74.80"
» Maximum weight / sash
Hidden Top hung 180 kg
Hidden Parallel Projecting 200 kg
Hidden Side Hung / Turn&Tilt 100 kg
» Maximum weight of fixed lights
750 kg
Consult maximum weight and dimensions according to typologies
» Covers
3.35" deep elliptical cover
H shape cover, 1.34" deep
Rectangular cover: 0.55", 0.75" , 3.94" & 5.71" deep
Pyramid shape cover, 6.10" deep
» Finishes
Powder coating / Anodized
Test Center
» Transmittance
Ucw from 0.6 (W/m²K)
Please consult dimensions and glazing
» Certification CWCT British Standard
» Air permeability
(EN 12152) CLASS AE
» Water tightness
(EN 13114) CLASS RE1500
» Wind resistance
(EN 13116) APT
(Design loading 2000 Pa - security loading 3000 Pa). Test reference 118.11" × 137.80".
