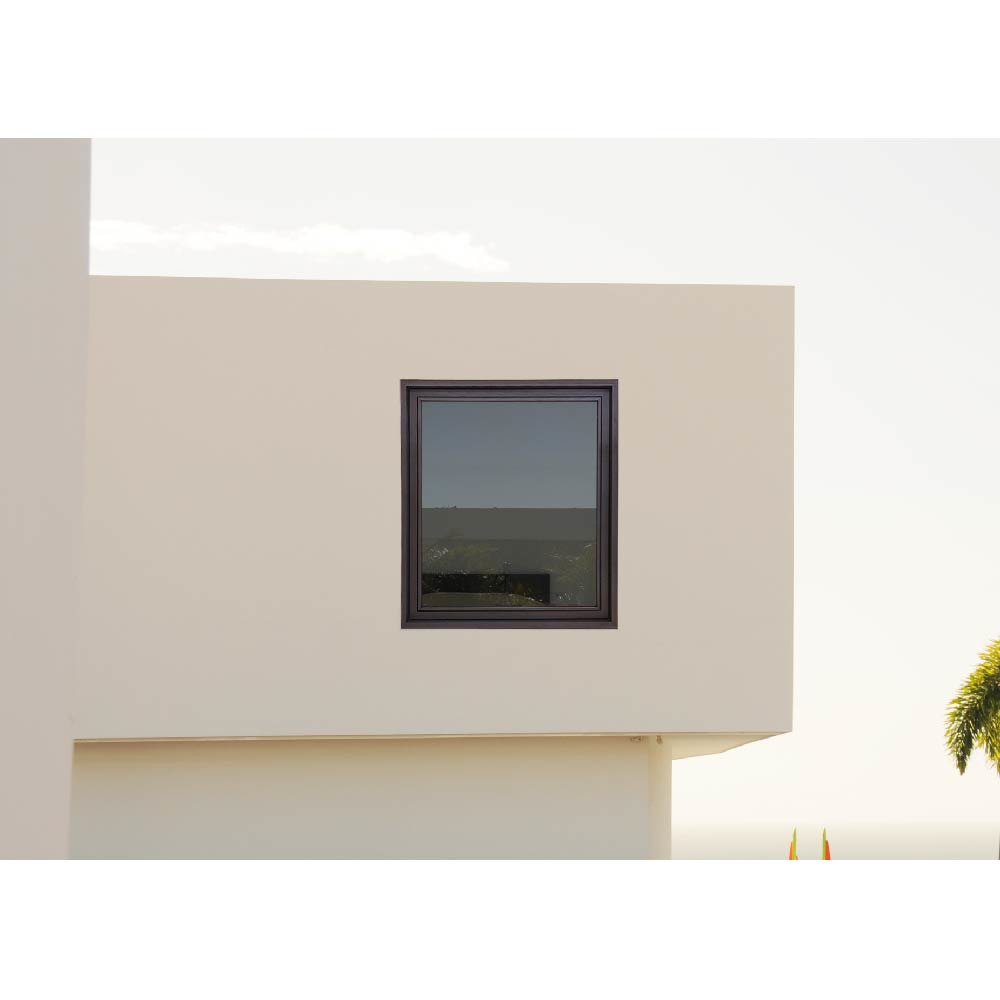

Hinged Window and Door Systems COR 70 OC Half - Hidden Sash

For pricing information please send a request.

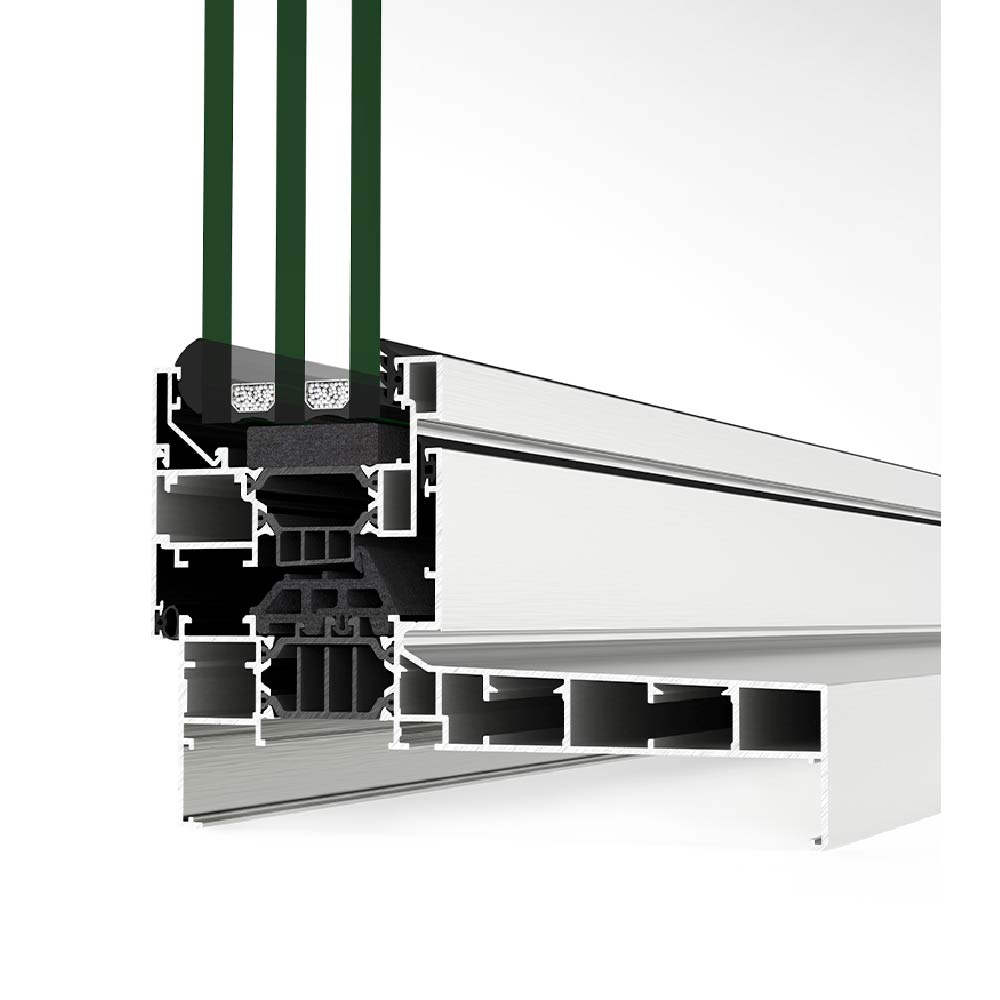

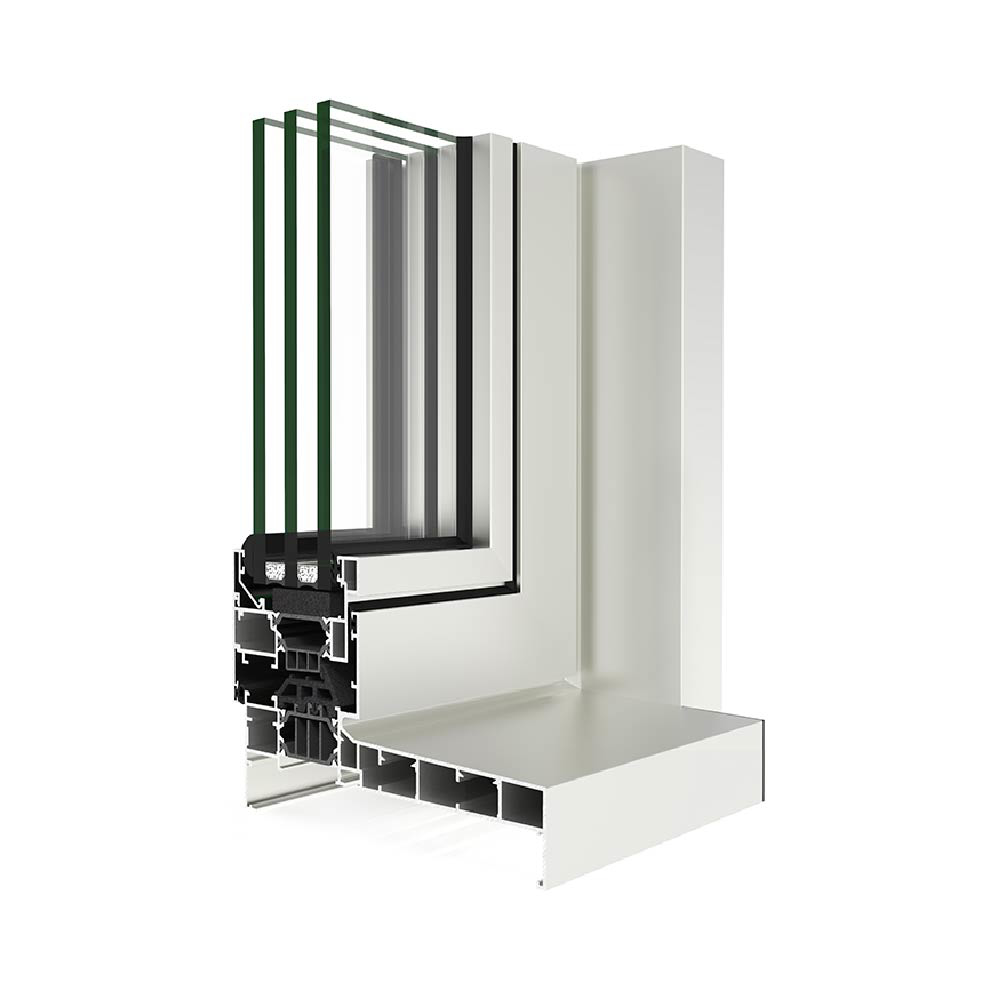

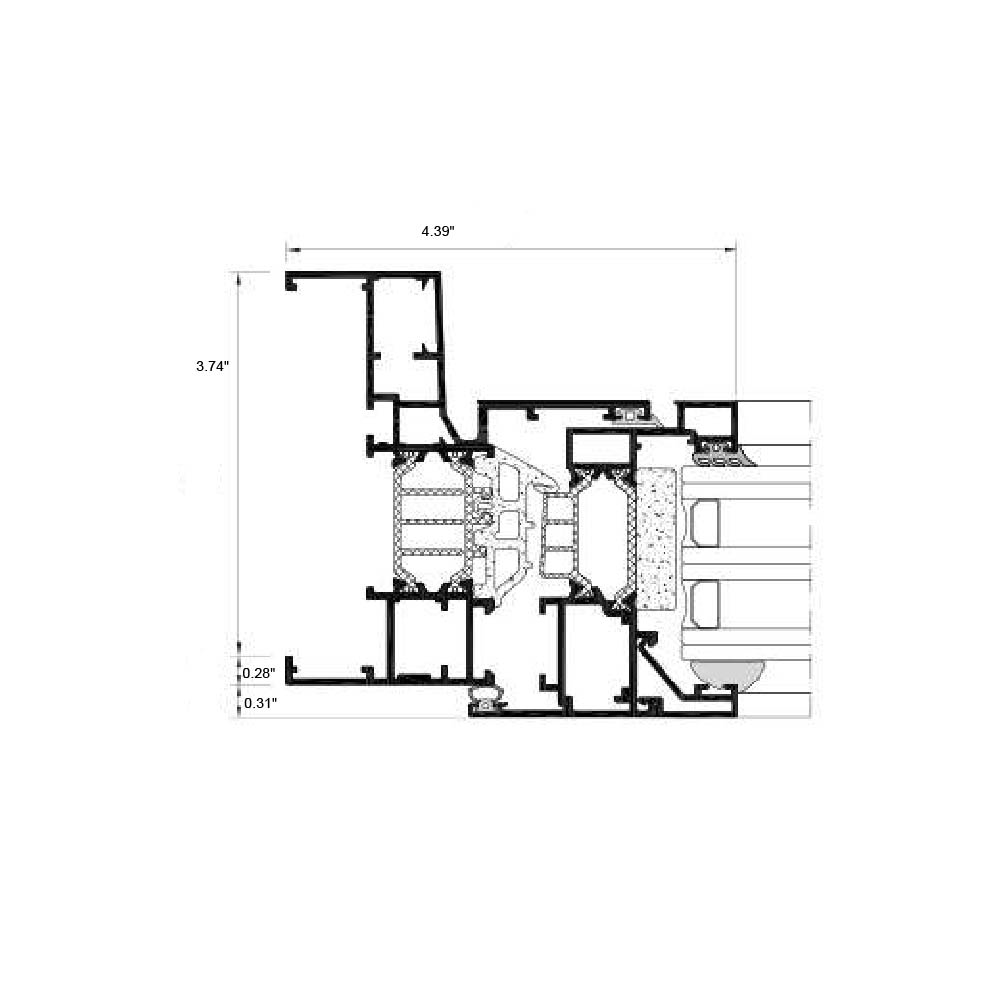

The half-hidden sash version of the COR 70 HS allows to expand the aesthetic possibilities of this series with Monoblock frame available at straight or 45° cut.

Shipping: Free

est. delivery:

close

Estimate shipping

  • Description
  • Downloads

Description

close

Possibilities
» Security hardware
» Concealed hinges
» Concealed handle
» Concealed drainage

Technical Data

» Glazing
Max. 2.17"
Min. 0.59"

» Opening possibilities
Inward opening
Side hung
Tilt & turn
Tilt only

» Sightlines
Frame 2.76"- 9.13"
Sash 3.07"

» Profile thickness
Window 0.059"

» Polyamide strip length
1.26" - 1.38"

» Maximum sash dimensions
Width (L) 39.37"
Height (H) 66.93"

» Maximum Sash Weight
160 kg


Consult maximum weight and dimensions according to typologies

» Finishes
Possibility of dual color systems
Color powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized

Test Center

» Transmittance
Uw ≥ 1.0 (W/m2K)
Please consult typology, dimensions and glazing

» Acoustic insulation
Rw up to 46 dB

» Air permeability
(EN 12207) Class 4

» Water tightness
(EN 12208) Class E1800

» Wind resistance
(EN 12210) Class C5

» CSTB Laboratory DTA Certification
Avis technique - Ref. 6/17-2363

Reference test 48.43" × 58.27" / 2 sashes
