cortizo

Mediterranean Balcony Sliding Window and Door Systems

For pricing information please send a request.

» Balcony system with straight style in frames and sashes » Possibility of single or dual rail » Hidden rail in the fixed zones » Both the frames and the sashes meet at a 45º encounter

Shipping: Free

est. delivery:

Description
Downloads

Description

» Possibility of pocket system

Technical Data

» Maximum glazing thickness

1.18"
» Opening possibilities

Single rail sliding 1 sash + 1 fixed & 2 sashes + 2 fixed

Dual rail sliding 2, 3 & 4 sashes

Pocket system 1 & 2 sashes

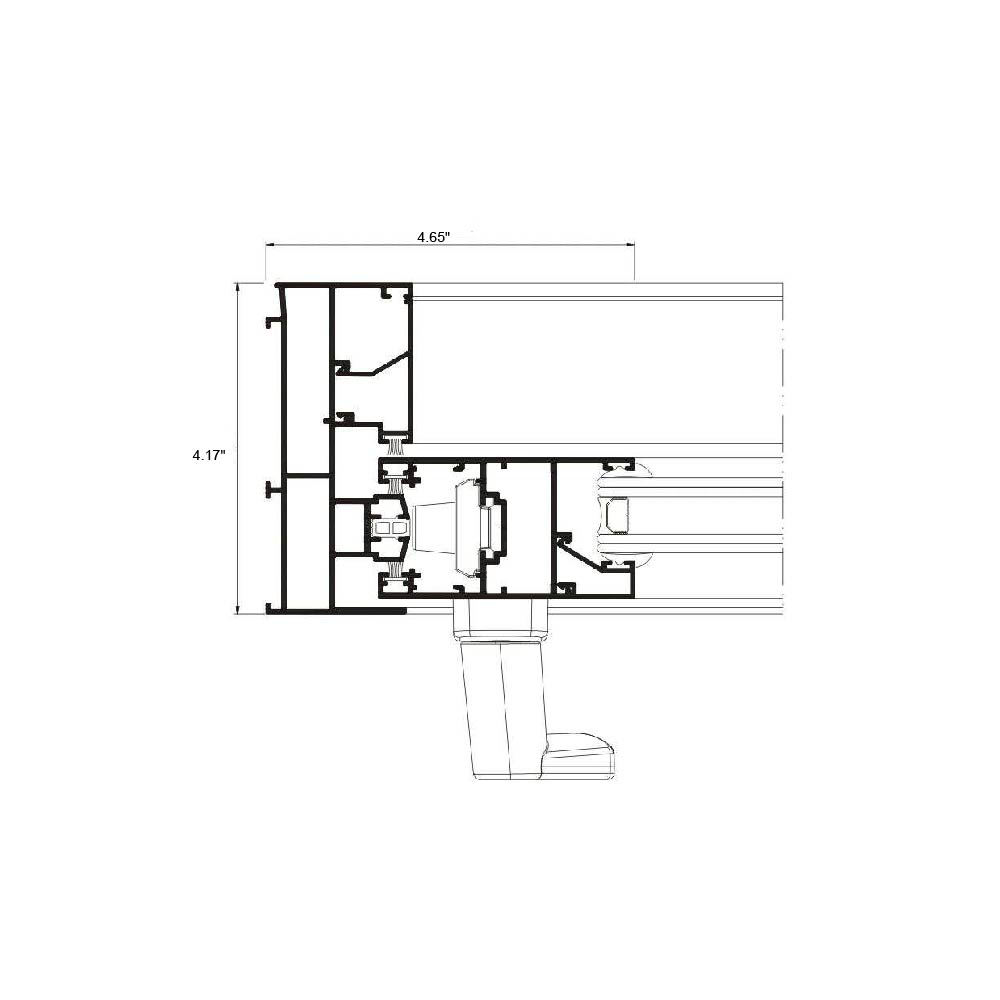

» Sections

Frame 4.17"

Sash 1.77"
» Profile thickness

Balcony 0.059"
» Maximum dimensions/sash

Width (L) = 86.61"
Height (H) = 102.36"
» Maximum weight/sash

240 kg
Please consult regarding maximum weight and dimensions for other opening types
» Finishes

Possibility of dual color systems

Color powder coating (RAL, mottled and rough)

Wood effect powder coating

Anti-bacterial powder coating

Anodized

Test Center

» Transmittance

Uw from 2.1 (W/m²K)

Please consult typology, dimensions and glazing

» Maximum acoustic insulation

Rw = 35 dB
» Air permeability

(EN 12207:2000) CLASS 3
» Water tightness

(EN 12208:2000) CLASS 8A
» Wind resistance

(EN 12210:2000) CLASS C4

Reference test 58.66" x 48.82" 1 Sash + 1 Fixed
