Millennium Plus 80 Door

For pricing information please send a request.

» Coplanar door entry system with straight lines and frame depth of 3.15" » It allows for the set-up of an emergency exit with anti-panic devices according to EN 179 & EN 1125 regulations » Transmittance from 0.8 W/m²K

Shipping: Free

est. delivery:

Description
Downloads

Description

» Maximum glazing: 2.52"
» Possibility of hidden hinges

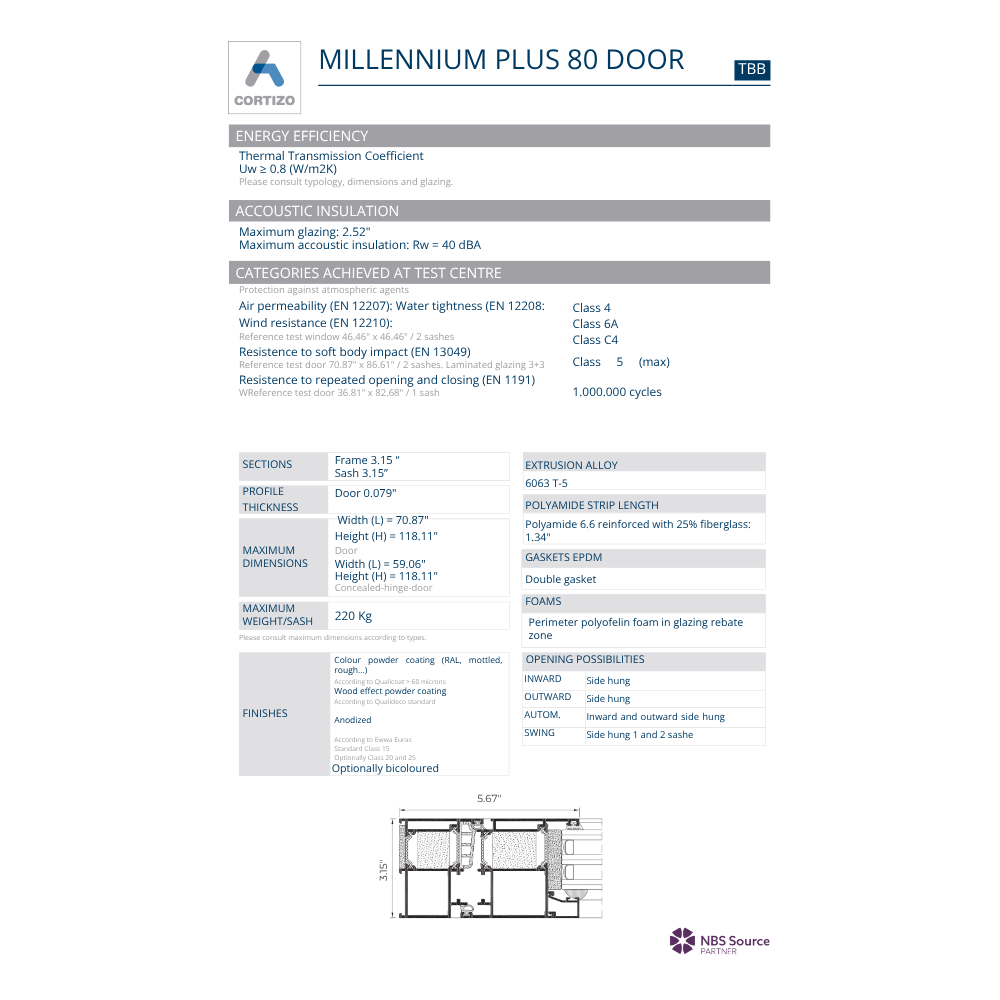

Technical Data

» Maximum glazing thickness

2.52"
» Opening possibilities

Inward opening: Side hung 1 or 2 sashes.

Outward opening: Side hung 1 or 2 sashes

Automatic opening: Internal and external hinged single sash

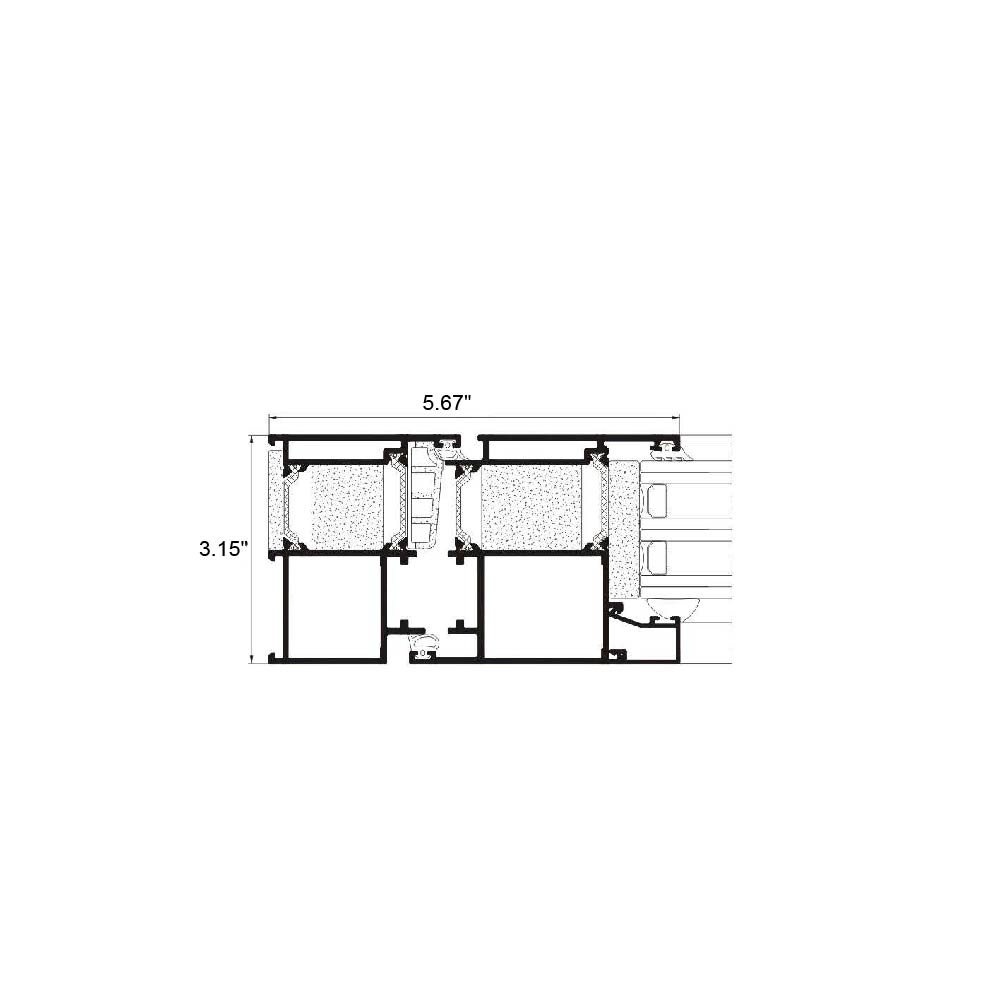

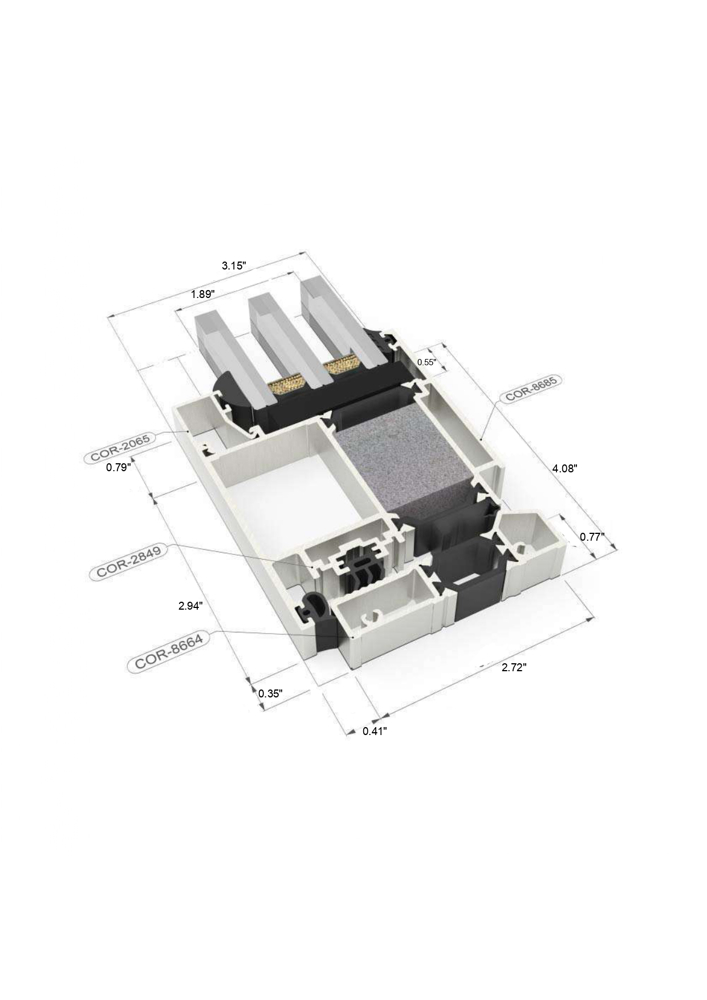

» Sections

Frame – 3.15" / Sash – 3.15"
» Profile thickness

Door 0.079"
» Polyamide strip length

1.34"

» Maximum dimensions/sash

Width (L) = 70.87"
Height (H) = 118.11"

Door

Width (L) = 59.06"
Height (H) = 118.11"

Hidden hinges door
» Maximum weight/sash

220 kg

Please consult regarding maximum weight and dimensions according to types

» Finishes

Possibility of dual color systems

Color powder coating (RAL, mottled and rough)

Wood effect powder coating

Anti-bacterial powder coating

Anodized

Test Center

» Transmittance

Uw from 0.8 (W/m²K)

Please consult typology, dimensions and glazing
» Maximum acoustic insulation

Rw = 40 dB
» Air permeability

(EN 12207) CLASS 4
» Water tightness

(EN 12208) CLASS 6A
» Wind resistance

(EN 12210) CLASS C4
Door test reference 47.24" x 90.55" 1 sash
» Resistance to mild impact

(EN 13049) CLASS 5 (max)

Test on door reference 70.87" x 86.61" 2 sashes. Laminated glass 3+3
» Resistance to repeated openings and closings

(EN 1191) 1,000,000 cycles

Test on door reference 82.68" x 86.61" 2 sashes.
