Facade Systems Unit 66 Modular

For pricing information please send a request.

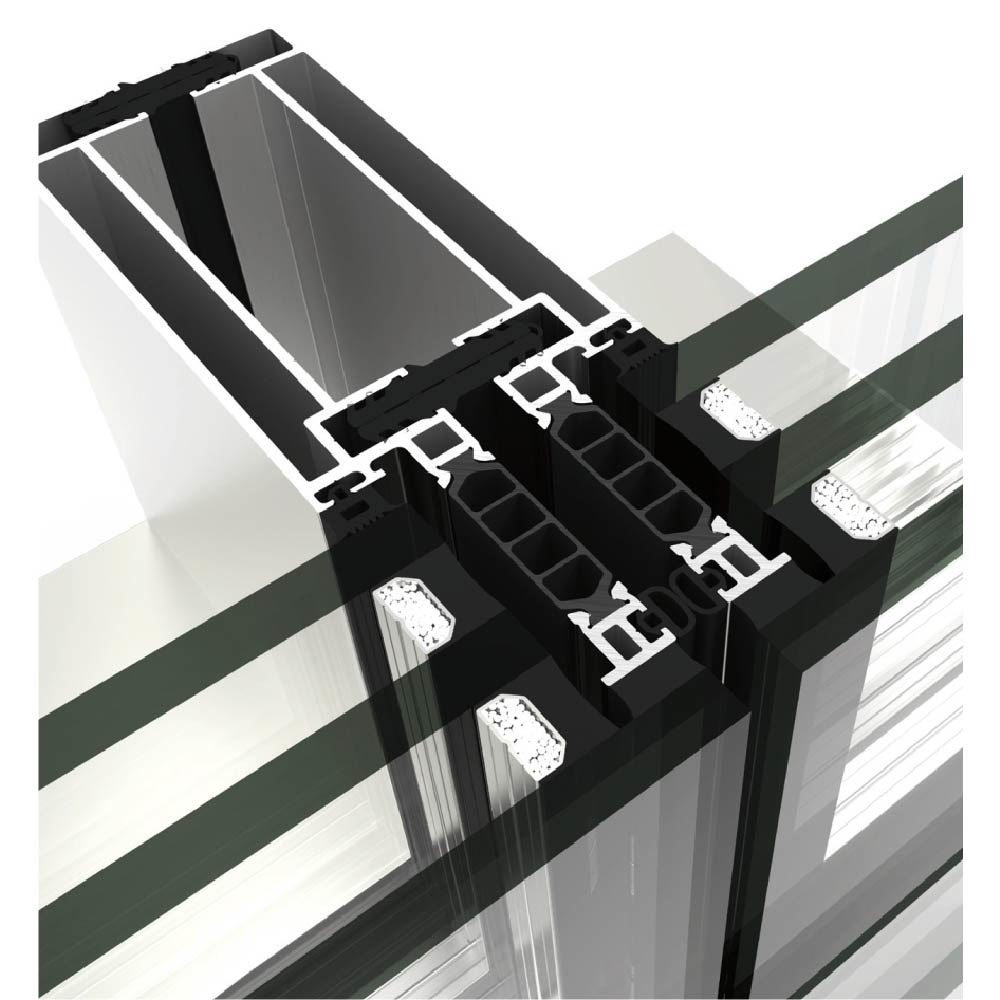

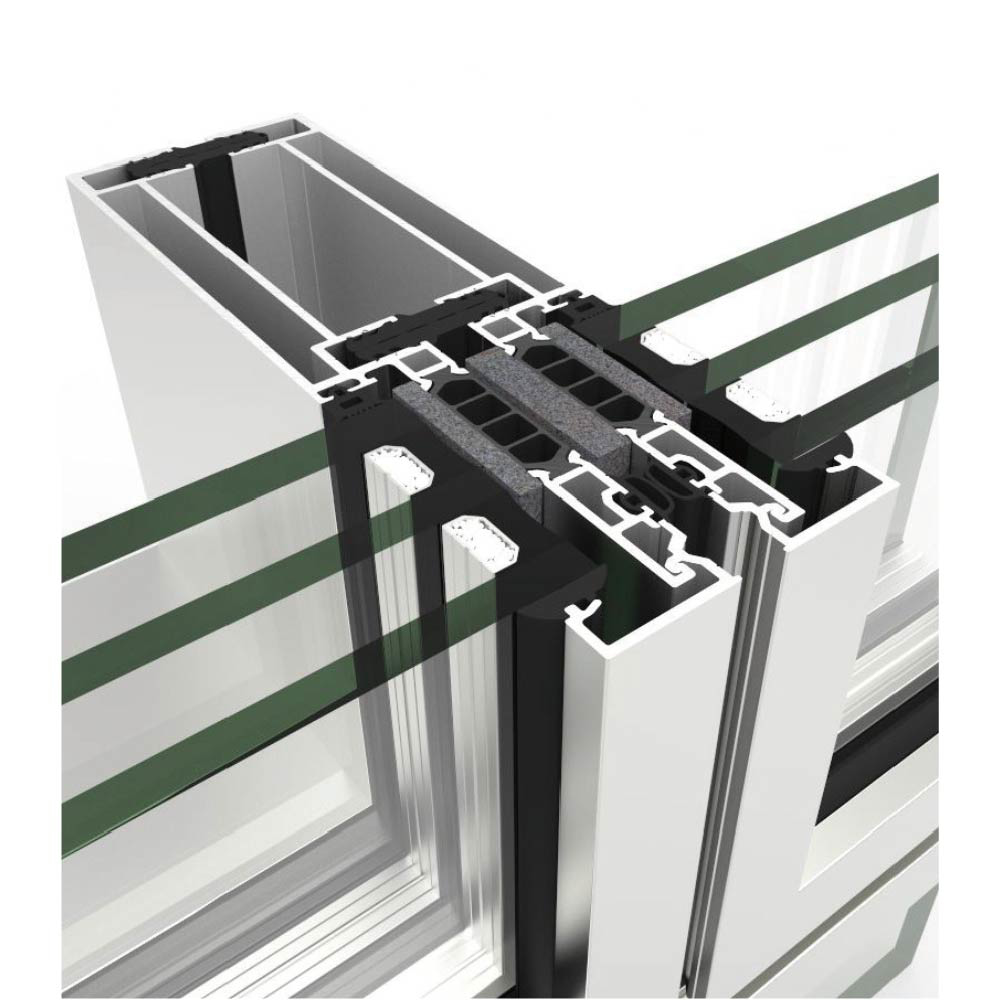

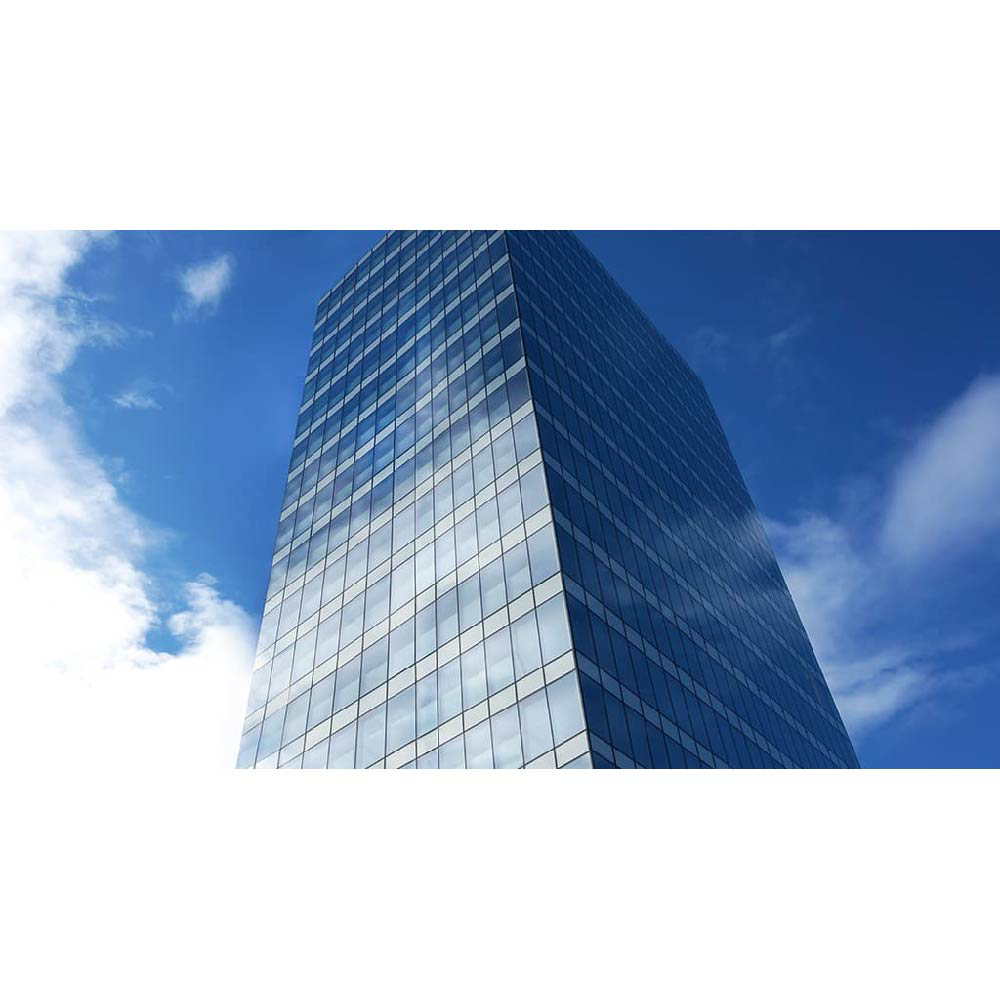

Thermally broken faƧade system suitable for high rise enclosure projects. This solution combines excellent performance with a wide range of custom designs, offering great aesthetic versatility with option of ā€œglass onlyā€ or ā€œseen profileā€ with an interlock profile of 2.60".

Shipping: Free

est. delivery:

close

Estimate shipping

  • Description
  • Downloads

Description

close

Ā Its fixing bracket has three-dimensional regulation, facilitating its installation.

Technical Data

Ā» Glazing
2.28"

Ā» Opening possibilities
Outward opening
Hidden top hung
Hidden parallel opening

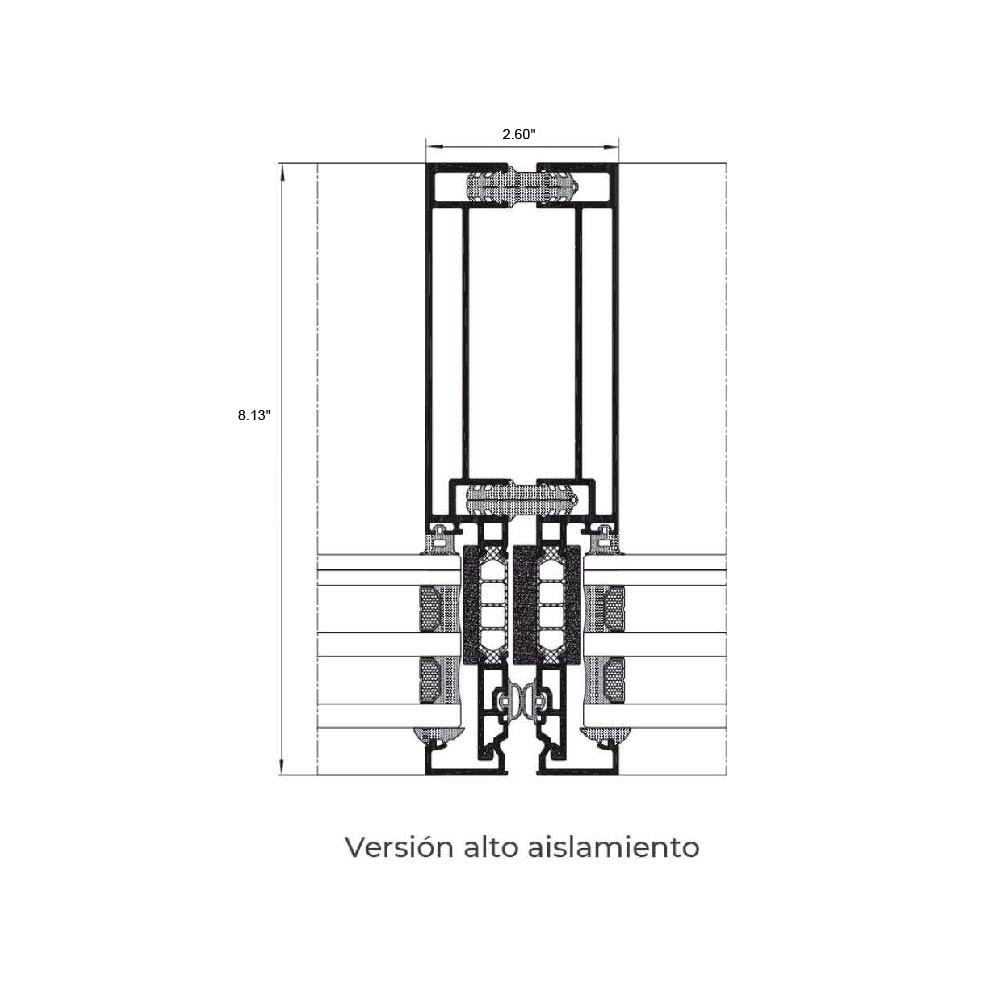

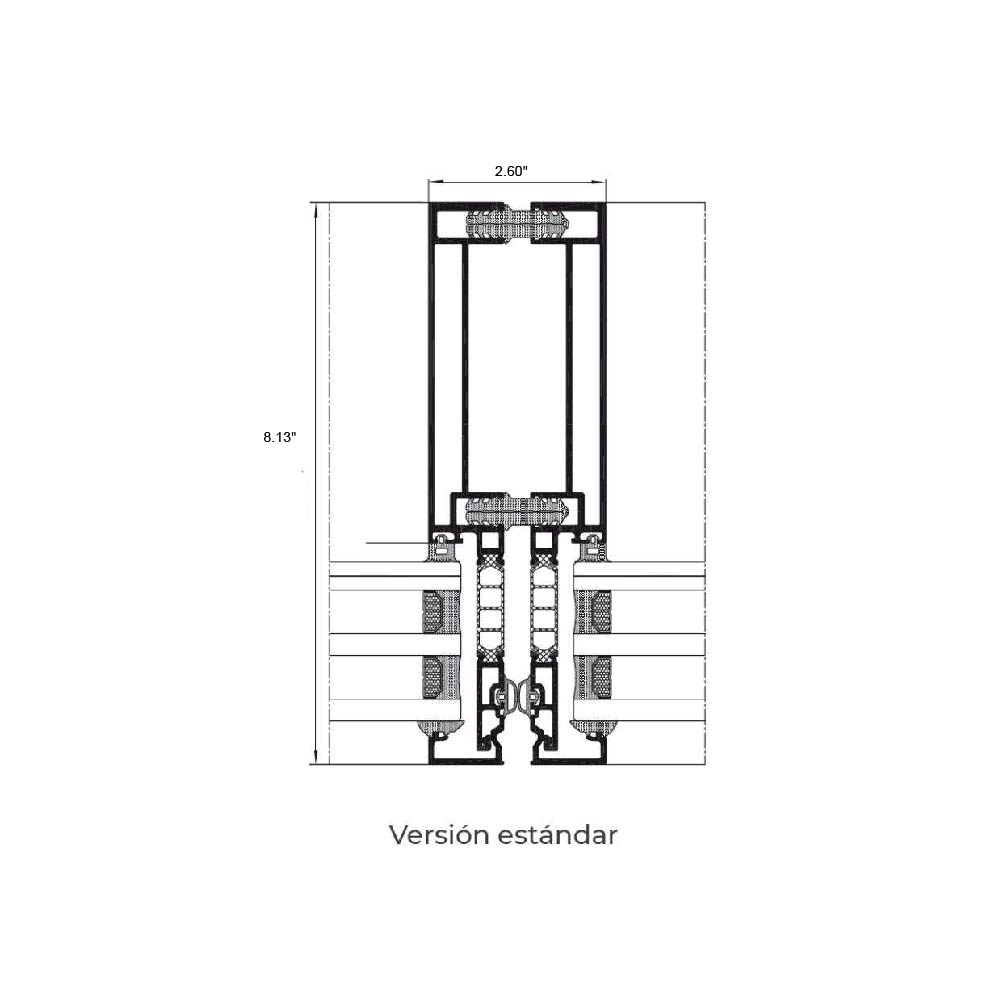

Ā» Interlock profile
2.60"Ā orĀ 2.99"

Ā» Thermal break zone
0.98" -Ā 1.57"

Ā» Separation between modules
0.39" orĀ 0.79"

Ā» Maximum dimensions

Width (L) 59.06 "

Height (H)Ā 145.67"

Ā» Maximum weight
350 kg

Consult maximum weight and dimensions according to typologies

Ā» Finishes
Possibility of dual color systems
Color powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized

Ā

Test Center

Ā

Ā» Transmittance
Ucw ≄ 0.6 (W/m2K)

Ā» Air permeability
(EN 12207) Class AE

Ā» Water tightness
(EN 12208) Class RE1200

Ā» Wind resistance*
PASSED

Ā» Impact resistance
I5 / E5

*Design loading 2000 Pa-Security loading 3000 Pa
