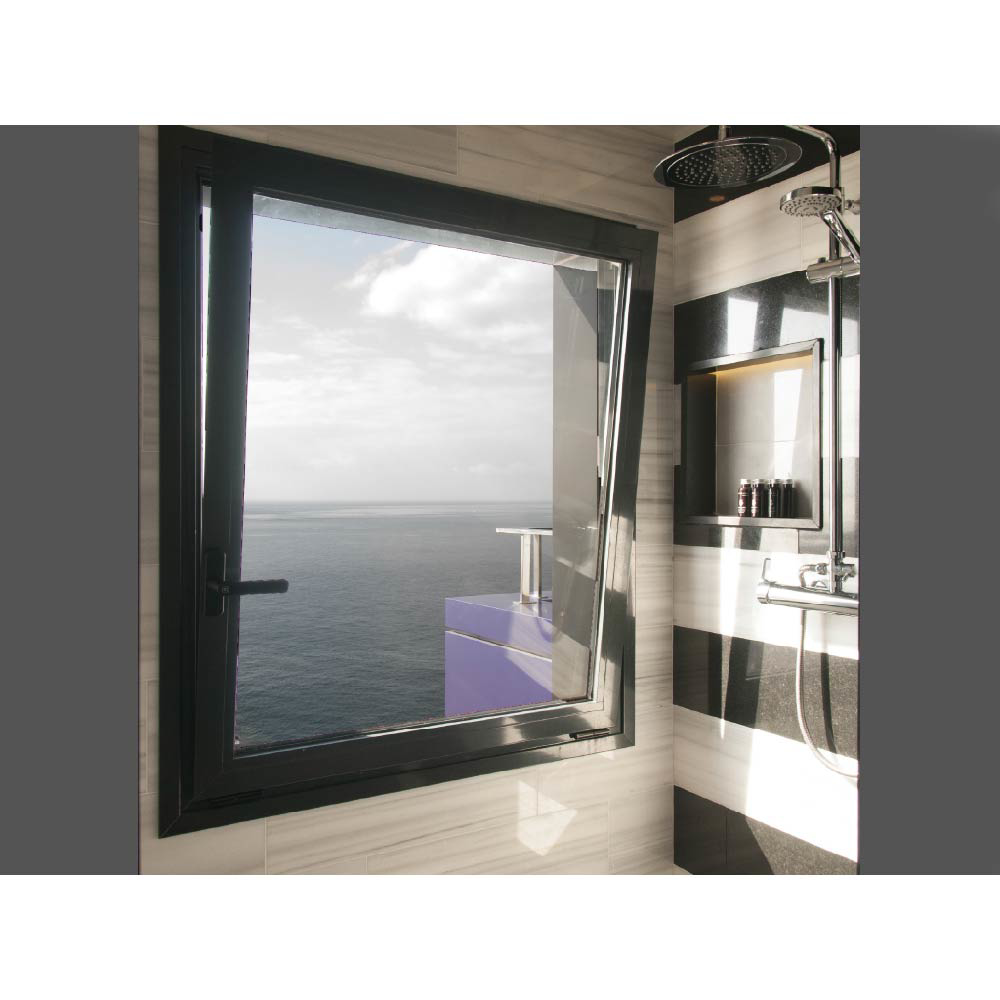

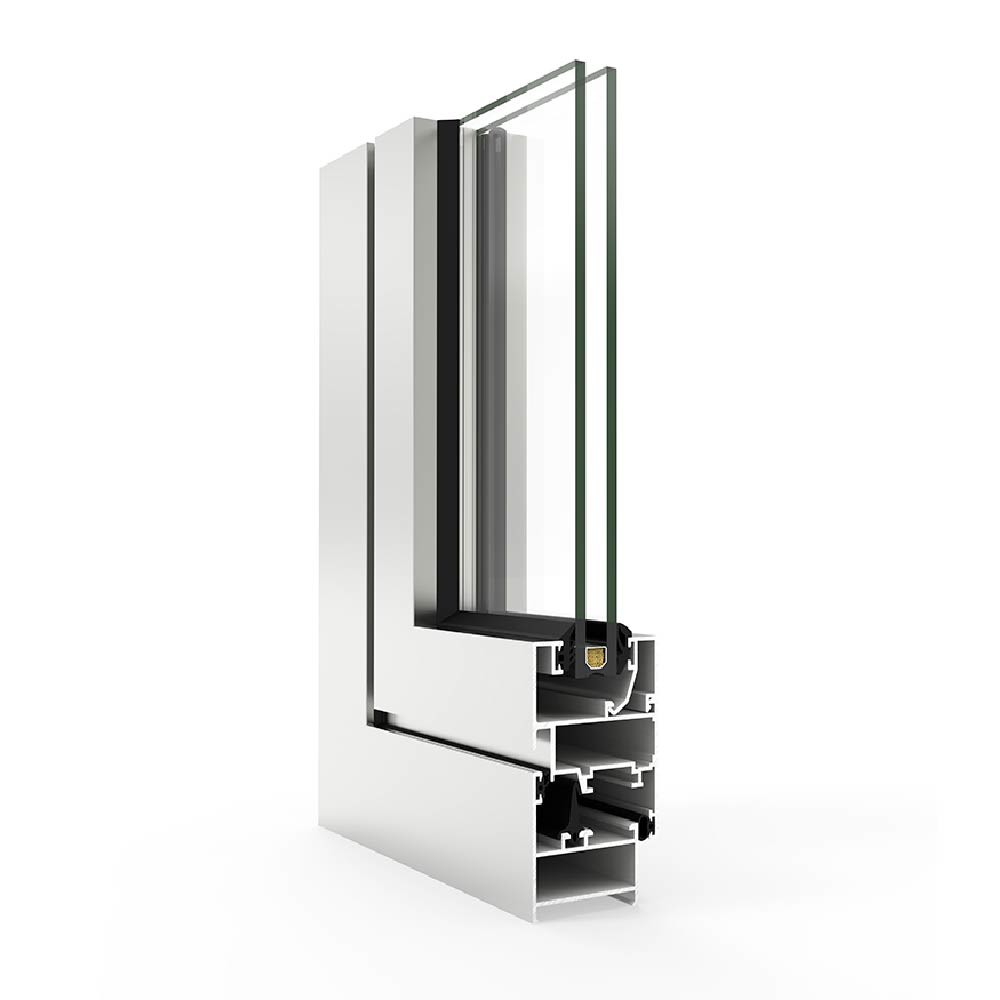

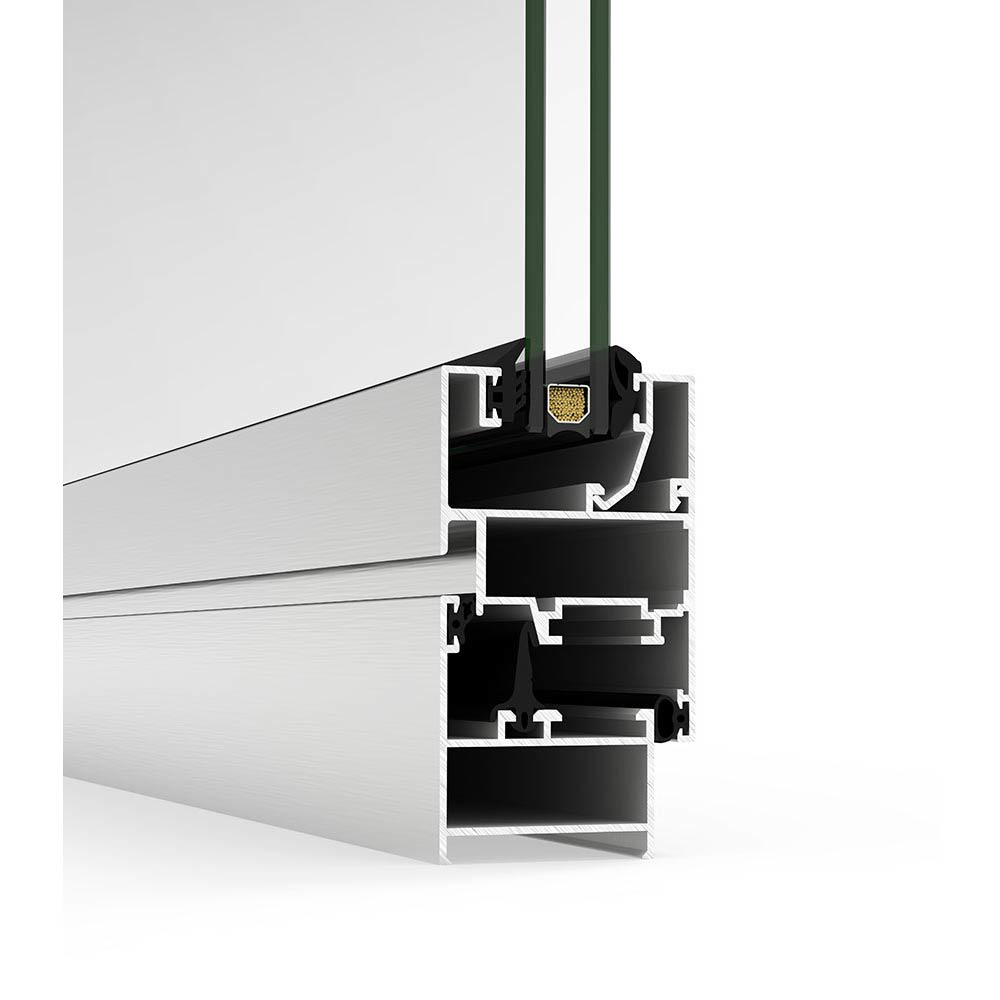

COR 2300 Hinged Window and Door Systems

For pricing information please send a request.

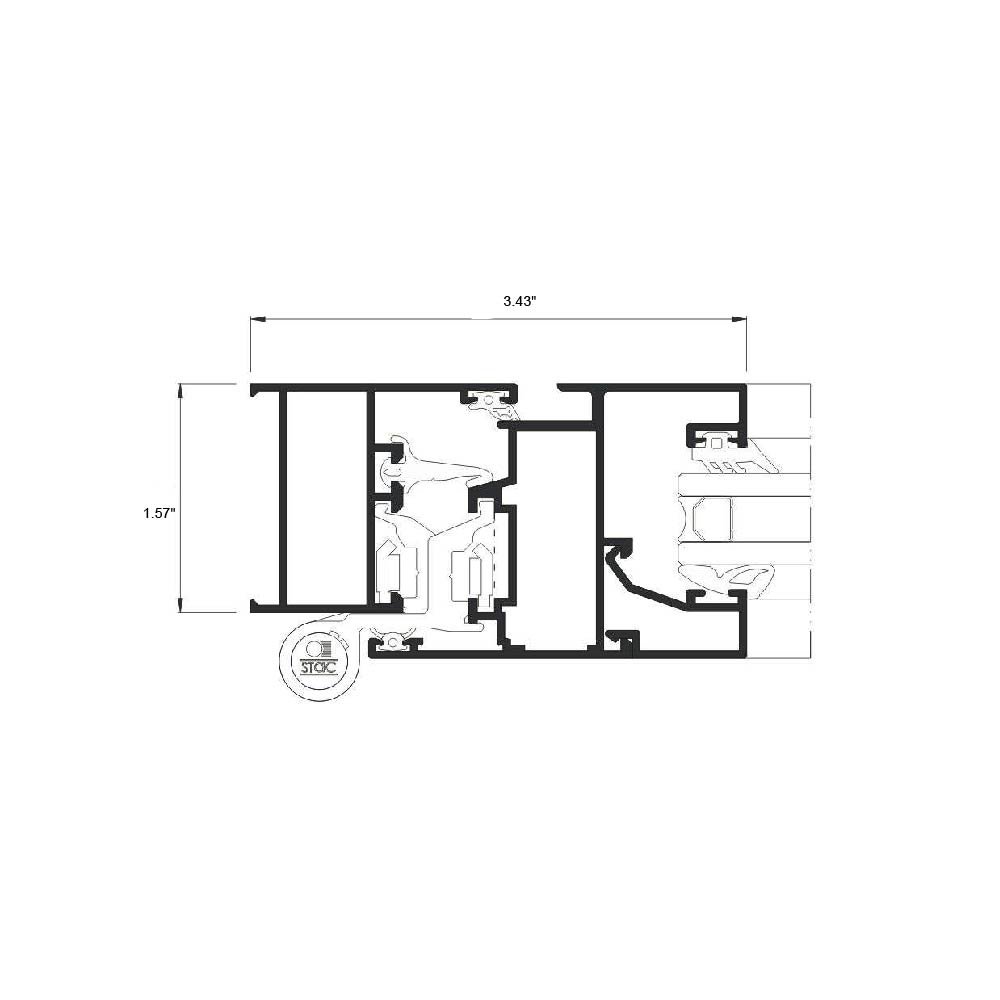

Hinged system with a frame depth of 1.57" and a reduced profile thickness.

Shipping: Free

est. delivery:

Description
Downloads

Description

Possibilities
» Security hardware
» Concealed hinges

Technical Data

» Glazing
Max. 1.02"
Min. 0.16"

» Opening possibilities

Inward opening

Side hung

Tilt & turn

Parallel Sliding

Bottom hung
Outward opening
Side hung
Top hung
Pivoting of either horizontal or vertical axis

» Sightlines
Frame 1.57"
Sash 1.89"

» Profile thickness
Window 0.051"
Door 0.055"

» Maximum sash dimensions
Width (L) 59.06"
Height (H) 94.49"

» Maximum sash weight
120 kg

» Aesthetic possibilities
Sash: Straight or curved / Bead: Straight or curve

Consult maximum weight and dimensions according to typologies.

» Finishes
Possibility of dual color systems
Color powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized

Test Center

» Transmittance
Uw ≥ 2.0 (W/m^²K)
Consult maximum weight and dimensions according to typologies

» Acoustic insulation
Rw up to 39 dB

» Air permeability
(EN 12207) Class 4

» Water tightness
(EN 12208) Class 9A

» Wind resistance
(EN 12210) Class C5

Reference test 43.50" × 47.64" / 2 sashes
