cortizo

Sliding Window and Door Systems 2000 Perimetral Sliding

For pricing information please send a request.

» Sliding system in which all its frames and sashes meet at a 45º encounter » Possibility of straight, chamfered and curved sashes

Shipping: Free

est. delivery:

Description

Technical Data

» Maximum glazing thickness

0.67"
» Opening possibilities

Sliding of 2, 3, 4 & 6 sashes

Possibility 1 rail

Possibility 3 rail

Pocket solution possibility 1 & 2 sashes

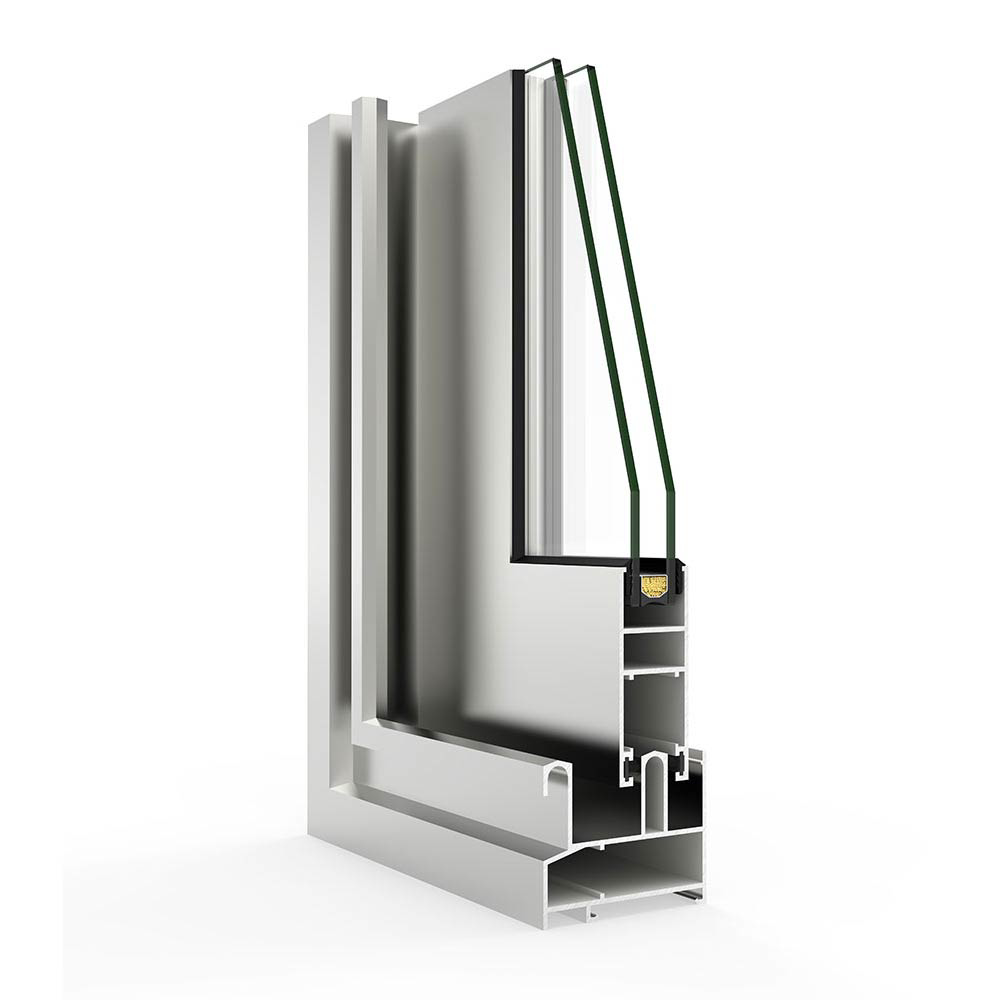

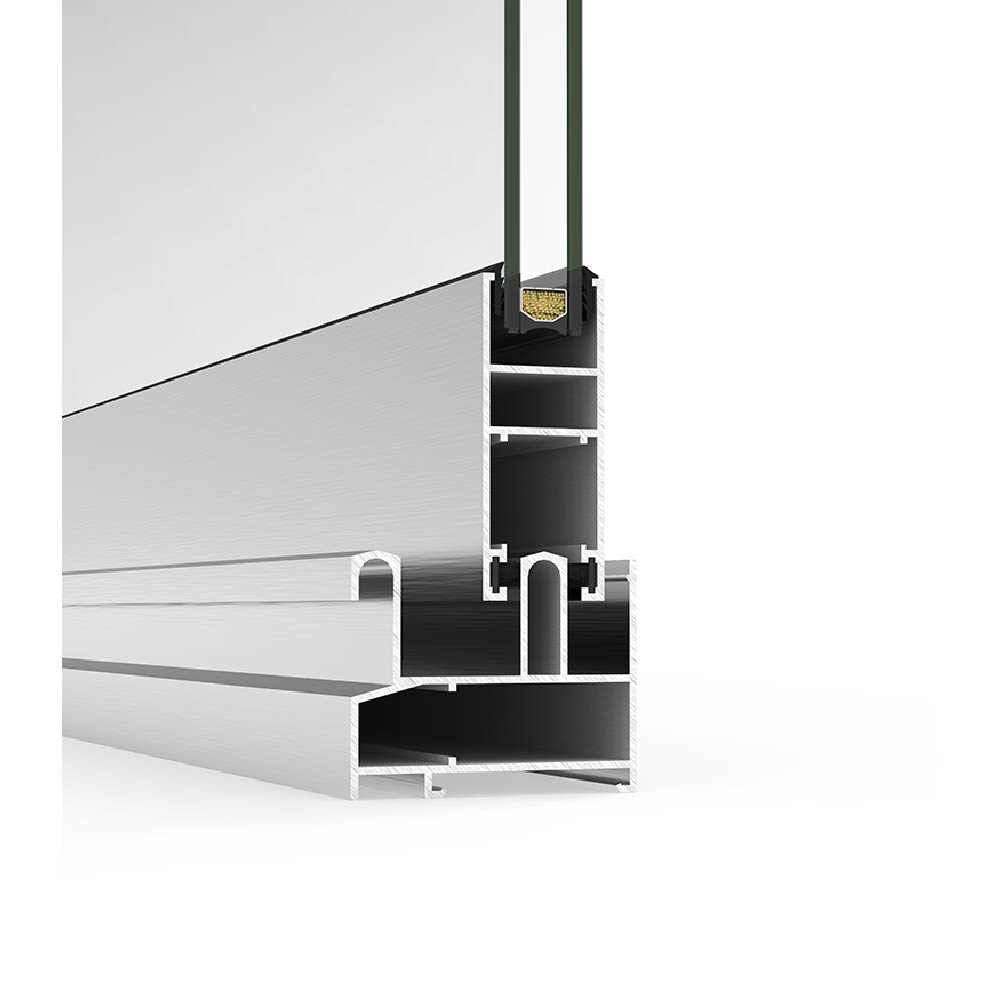

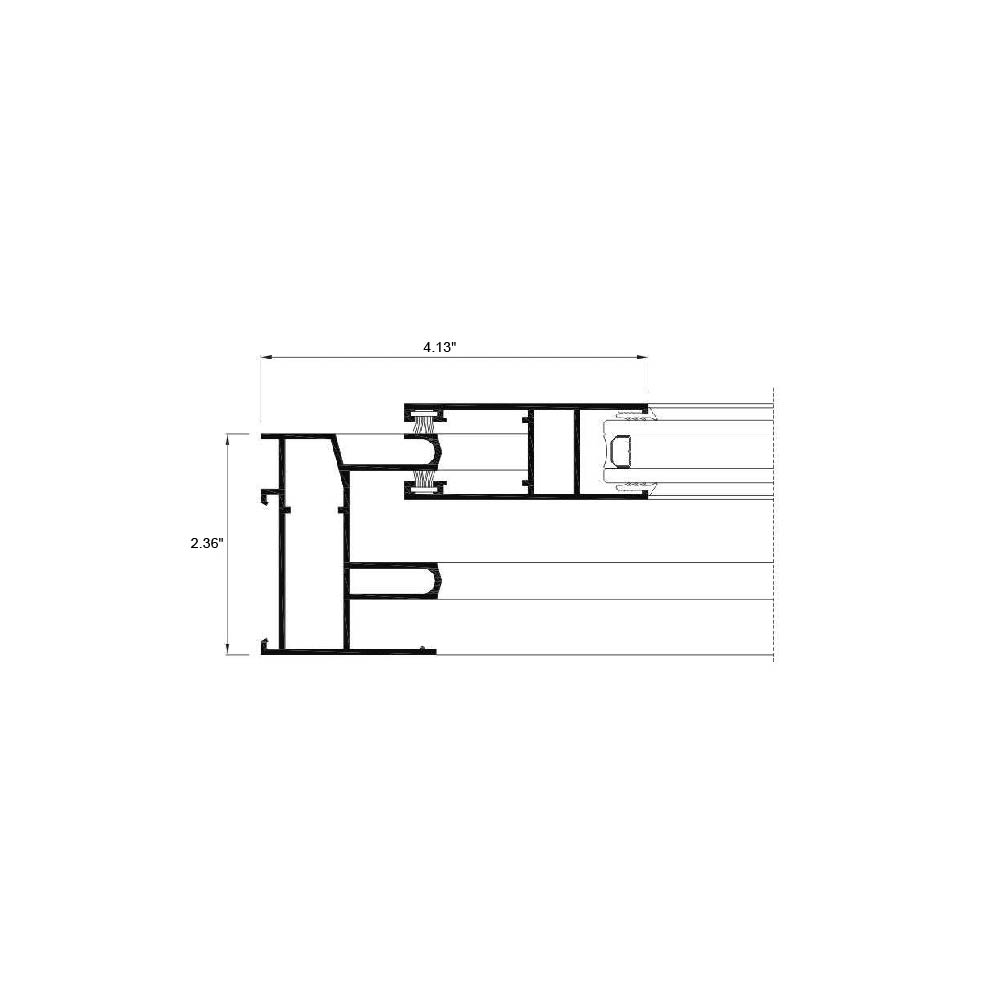

» Sections

Frame: 1 rail 1.57" ; 2 rails 1.57", 1.77", 2.36" and 2.76"; 3 rails 3.15"

Straight sash 1.02", Chamfered sash 1.02", Curved sash 1.08"
» Profile thickness

Window 0.059"
» Maximum dimensions/sash

Width (L) = 62.99"
Height (H) = 102.36"
» Maximum weight/sash

100 kg
Please consult regarding maximum weight and dimensions for other opening types
» Finishes

Color powder coating (RAL, mottled and rough)

Wood effect powder coating

Anti-bacterial powder coating

Anodized

Test Center

» Transmittance

Uw from 2.9 (W/m²K)

Please consult typology, dimensions and glazing
» Maximum acoustic insulation

Rw = 33 dB
» Air permeability

(EN 12207:2000) CLASS 3

» Water tightness

(EN 12208:2000) CLASS 8A
»Wind resistance

(EN 12210:2000) CLASS C5
Reference test 47.24" x 47.24" 2 sashes

Downloads

Products attachments

Technical
