COR Vision Sliding Sliding Window and Door Systems

For pricing information please send a request.

» Interlock profile: 0.79" » Maximum surface glazing area » Possibility of embed the bottom, top and lateral frames with in the wall » Possibility of pocket system

Shipping: Free

est. delivery:

Description
Downloads

Description

» Possibility of sash encounters at a 90° corner without a mullion

Technical Data

» Maximum glazing thickness

1.18"
» Opening possibilities

Up to 6 sashes

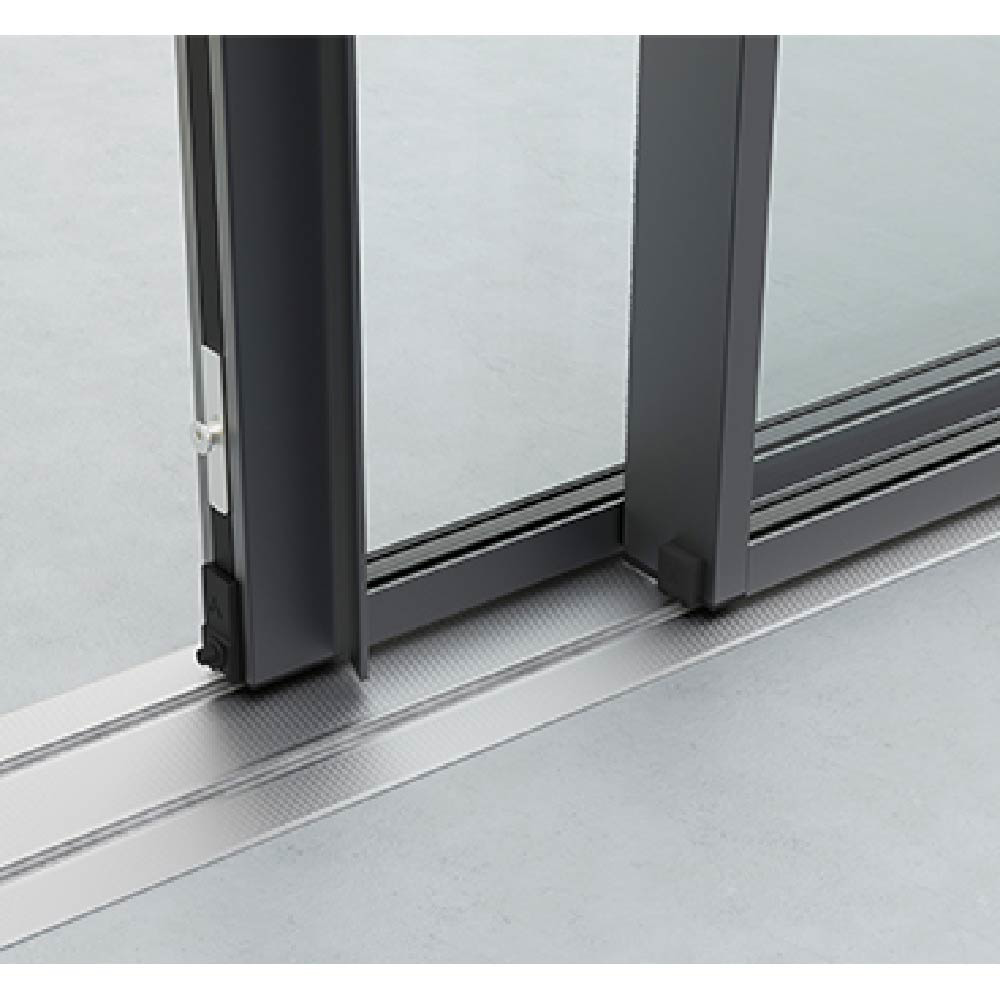

Up to 3 rails

1 sash + 1 fixed / 2 sashes + 1 fixed

Pocket solution possibility in 1, 2, 3 & 4 sashes

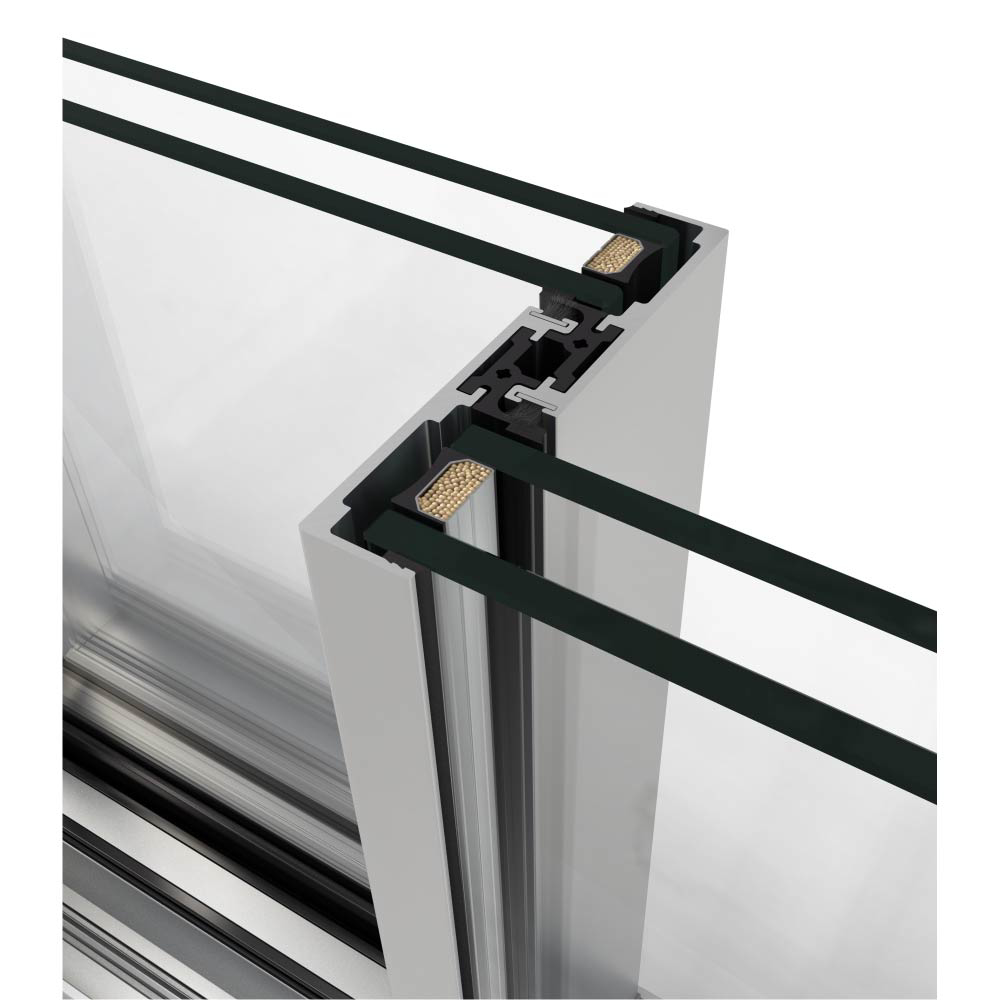

Possibility of interior and exterior corner at 90º without mullion

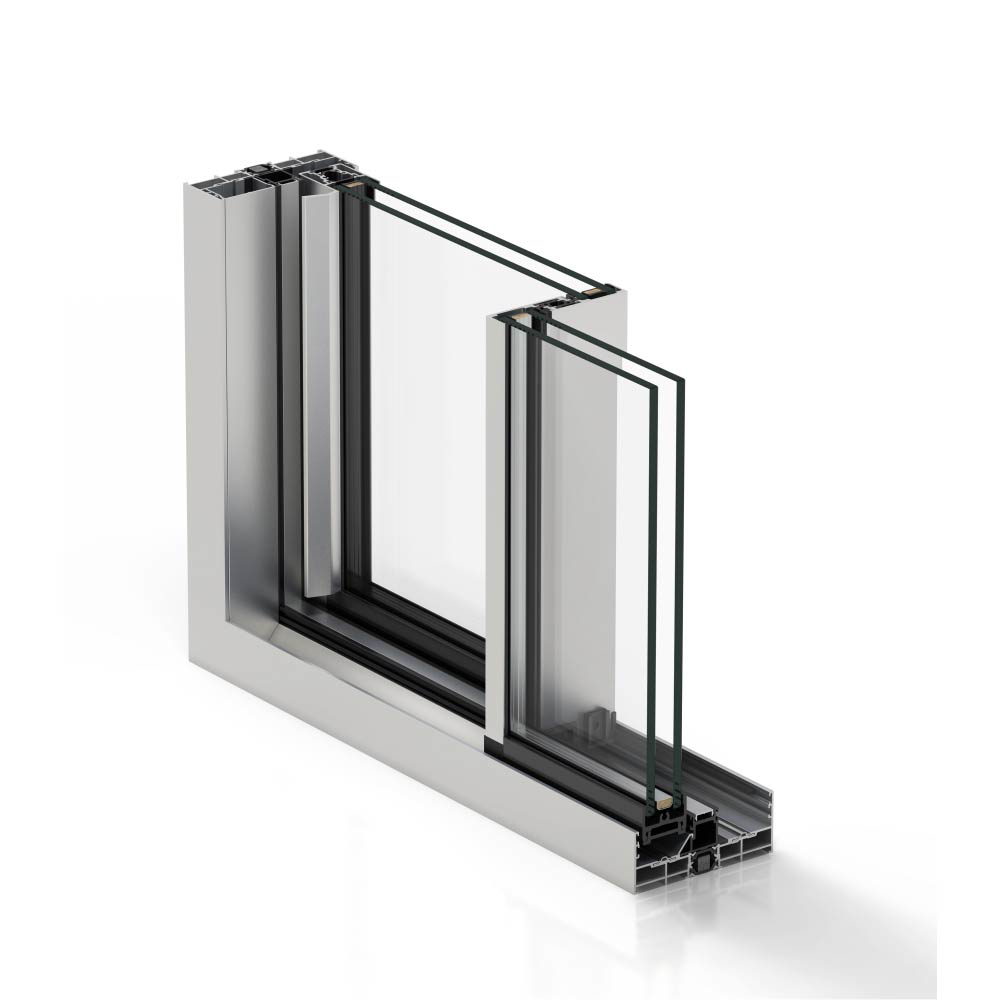

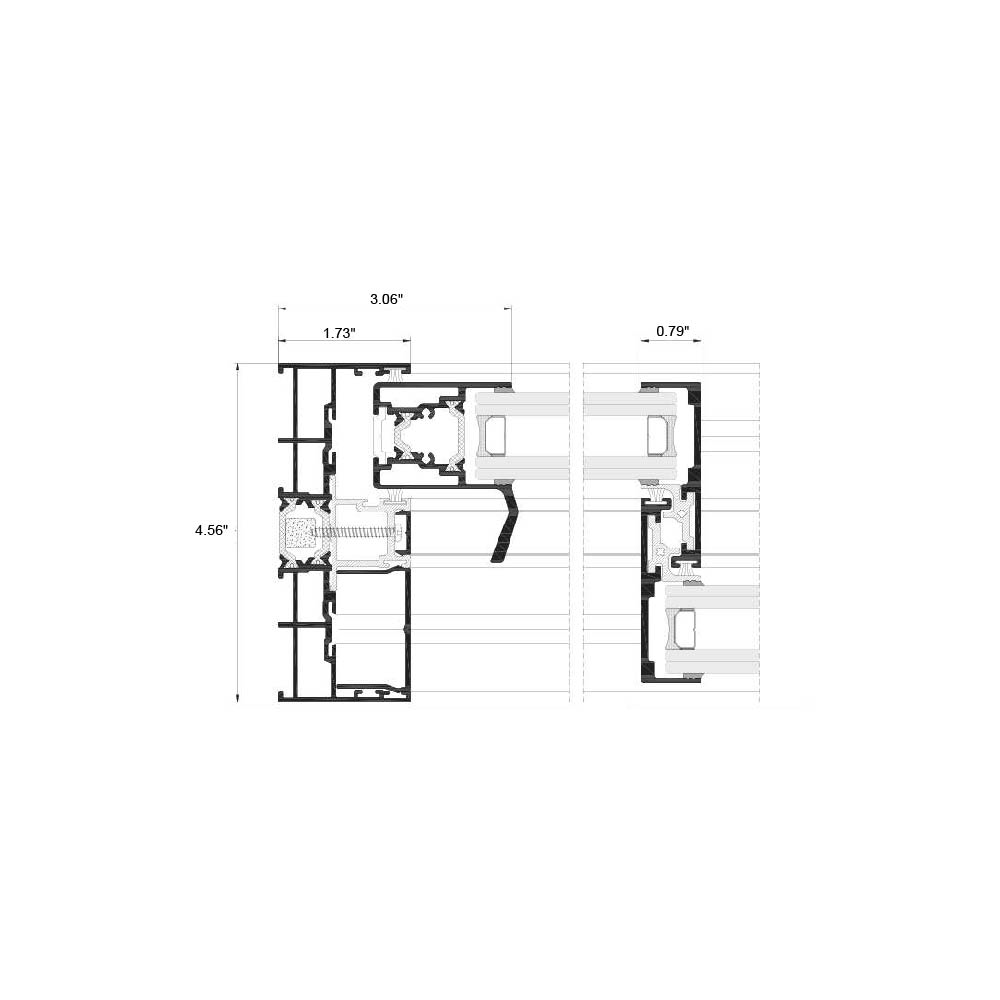

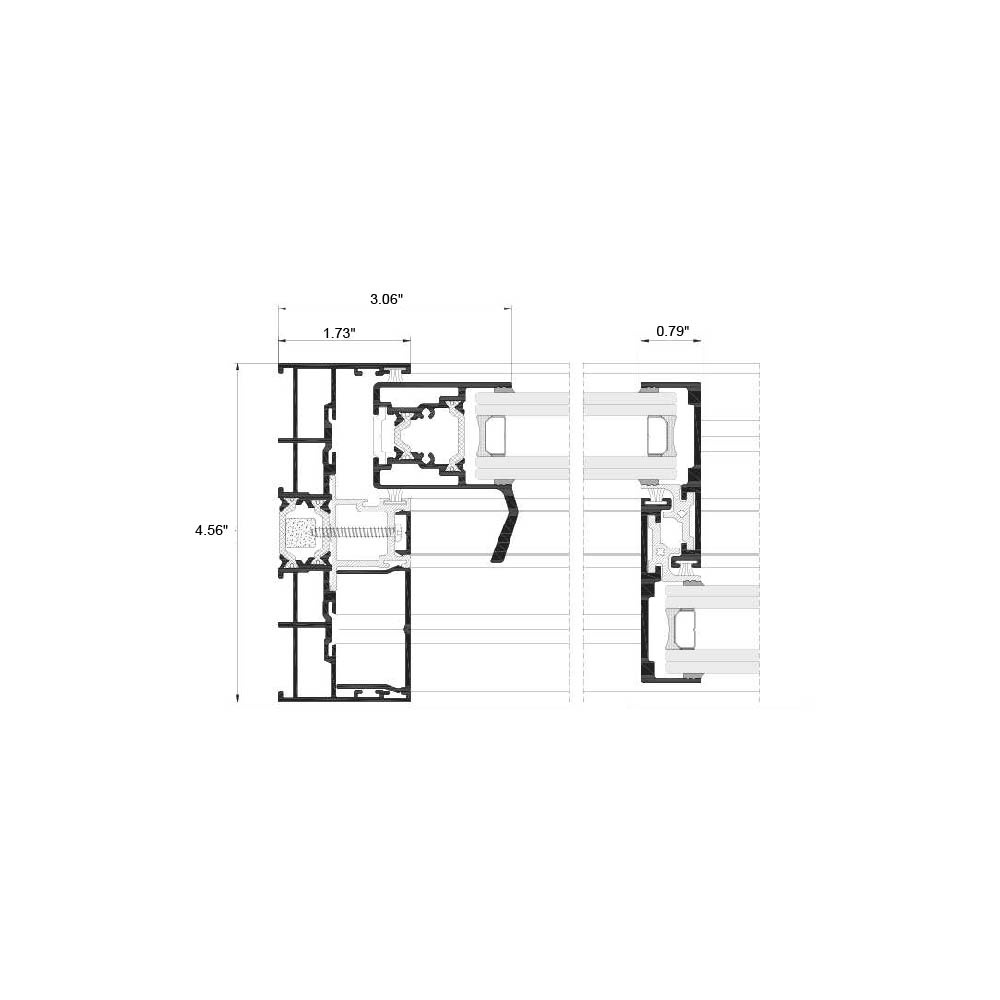

» Sections

Frame – 4.57"- 7.17" 3 rails
Sash – 1.46"
» Profile thickness

Door 0.067"
» Polyamide strip length

From 0.63" to 0.94"
» Maximum dimensions/sash

Width (L) = 98.43"
Height (H) = 118.11"
» Maximum weight/sash

320 kg
Please consult regarding maximum weight and dimensions for other opening types
» Finishes

Possibility of dual color systems

Color powder coating (RAL, mottled and rough)

Wood effect powder coating

Anti-bacterial powder coating

Anodized

Test Center

» Transmittance

Uw from 1.3 (W/m²K)

Please consult typology, dimensions and glazing
» Maximum acoustic insulation

Rw = 41 dB
» Air permeability

(EN 12207): CLASS 4
» Water tightness

(EN 12208): CLASS 7A
» Wind resistance

(EN 12210): CLASS C5
Reference test 48.43" x 61.02" 1 sash + 1 fixed light
