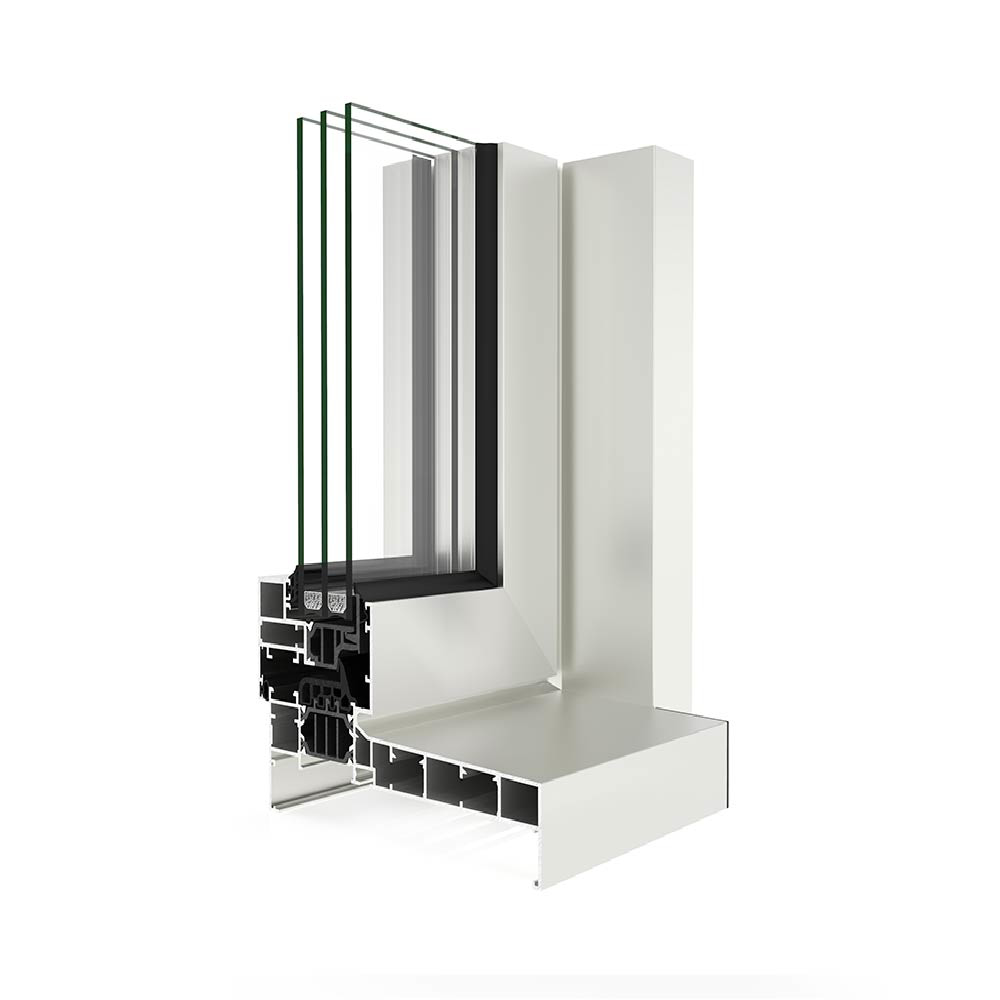

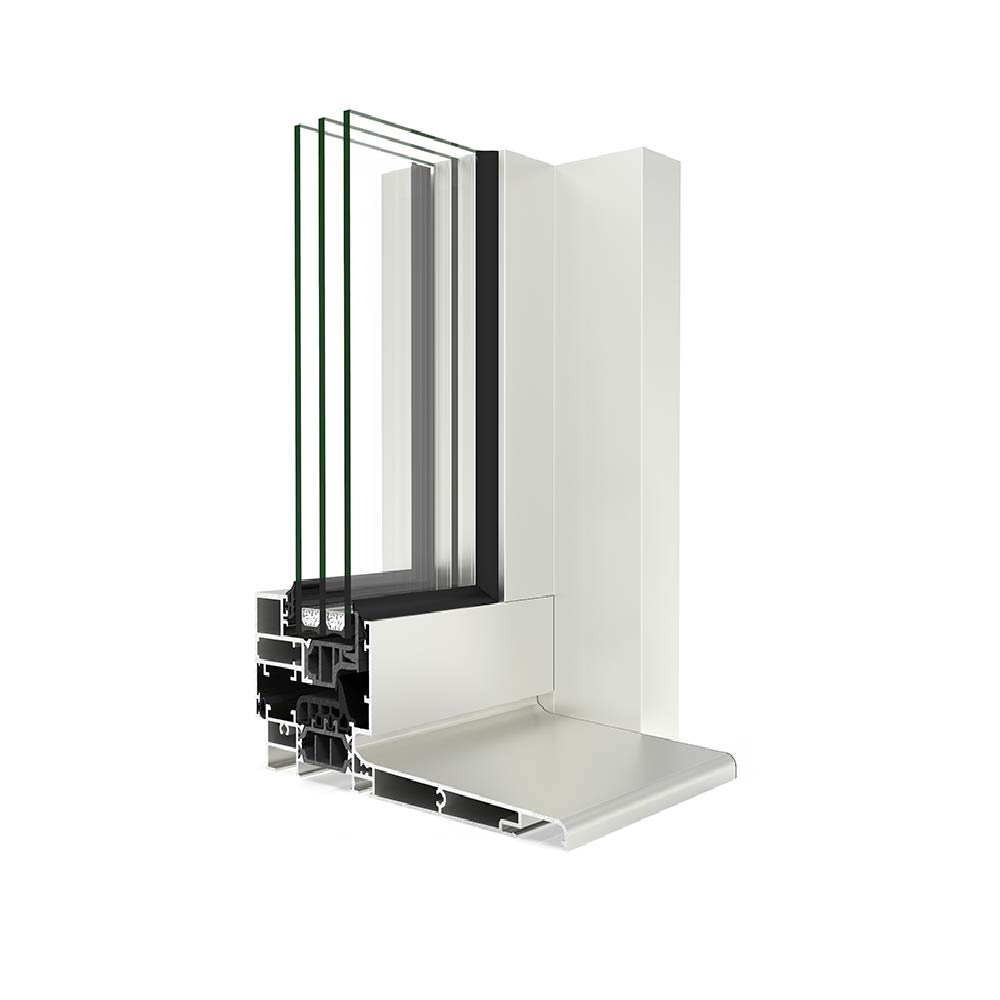

Hinged Window and Door Systems COR 70 OC

For pricing information please send a request.

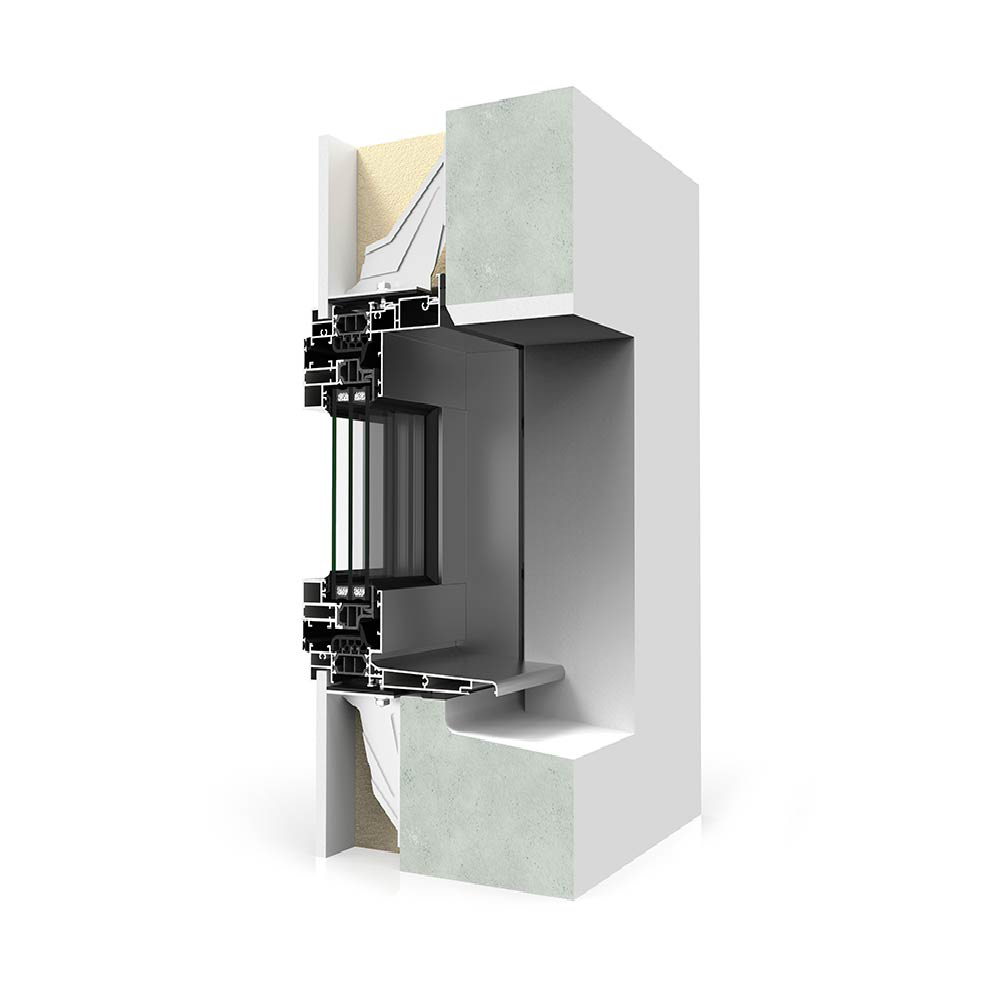

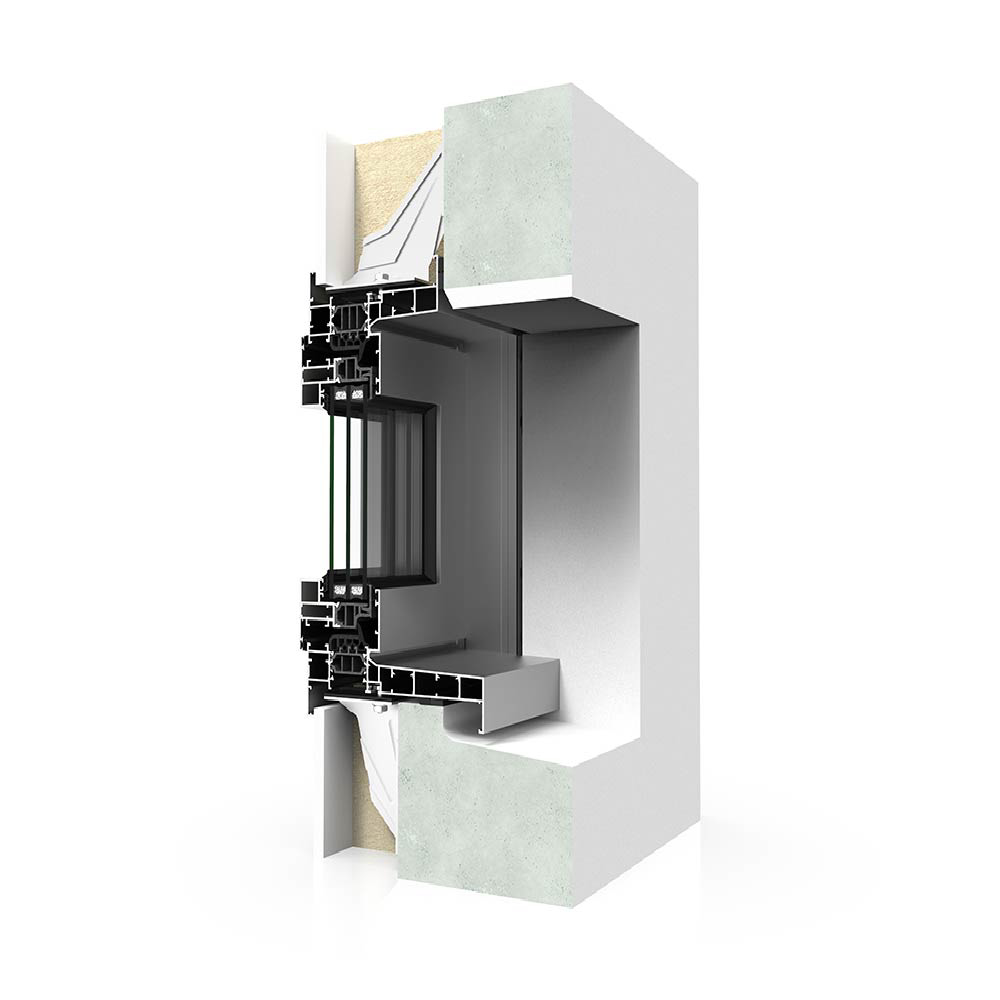

Hidden sash system oriented to the French market with Monoblock frame that makes installation easier. Using this new frame allows faster fabrication and installation, avoiding overlaps, cills and any other complementary profiles, speeding up assembly and fitting. The fabricator can choose either straight or 45° cut.

Shipping: Free

est. delivery:

Description
Downloads

Description

Possibilities
» Security hardware
» Concealed hinges
» Concealed handle
» Concealed drainage

Technical Data

» Glazing
Max. 1.57"
Min. 1.02"

» Opening possibilities

Inward opening
Side hung
Tilt & turn
Tilt only

» Sightlines
Frame 2.76"- 9.13"
Sash 2.76"

» Profile thickness
Window 0.075"

» Polyamide strip length
1.38"

» Maximum sash dimensions

Standard solution
Width (L) 51.18"
Height (H) 94.49"

HD Hardware (Side Hung)
Width (L) 47.24"
Height (H) 137.80"

» Maximum Sash Weight
160 kg

Consult maximum weight and dimensions according to typologies

» Finishes
Possibility of dual color systems
Color powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized

Test Center

» Transmittance
Uw ≥ 1.0 (W/m²K)
Please consult typology, dimensions and glazing

» Acoustic insulation
Rw up to 46 dB

» Air permeability
(EN 12207) Class 4

» Water tightness
(EN 12208) Class E1650

» Wind resistance
(EN 12210) Class C5

Reference test 48.43" × 58.27" / 1 sash
