cortizo

A 84 Hidden Sash PVC

For pricing information please send a request.

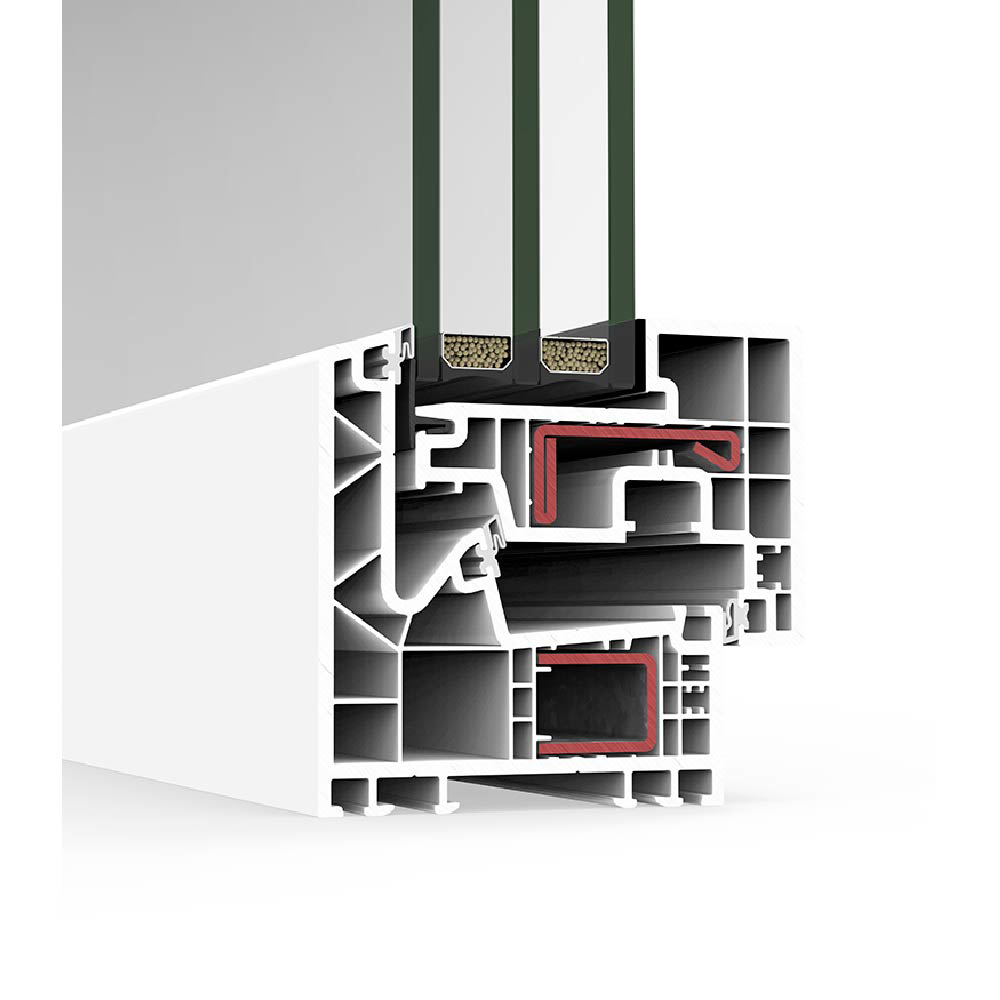

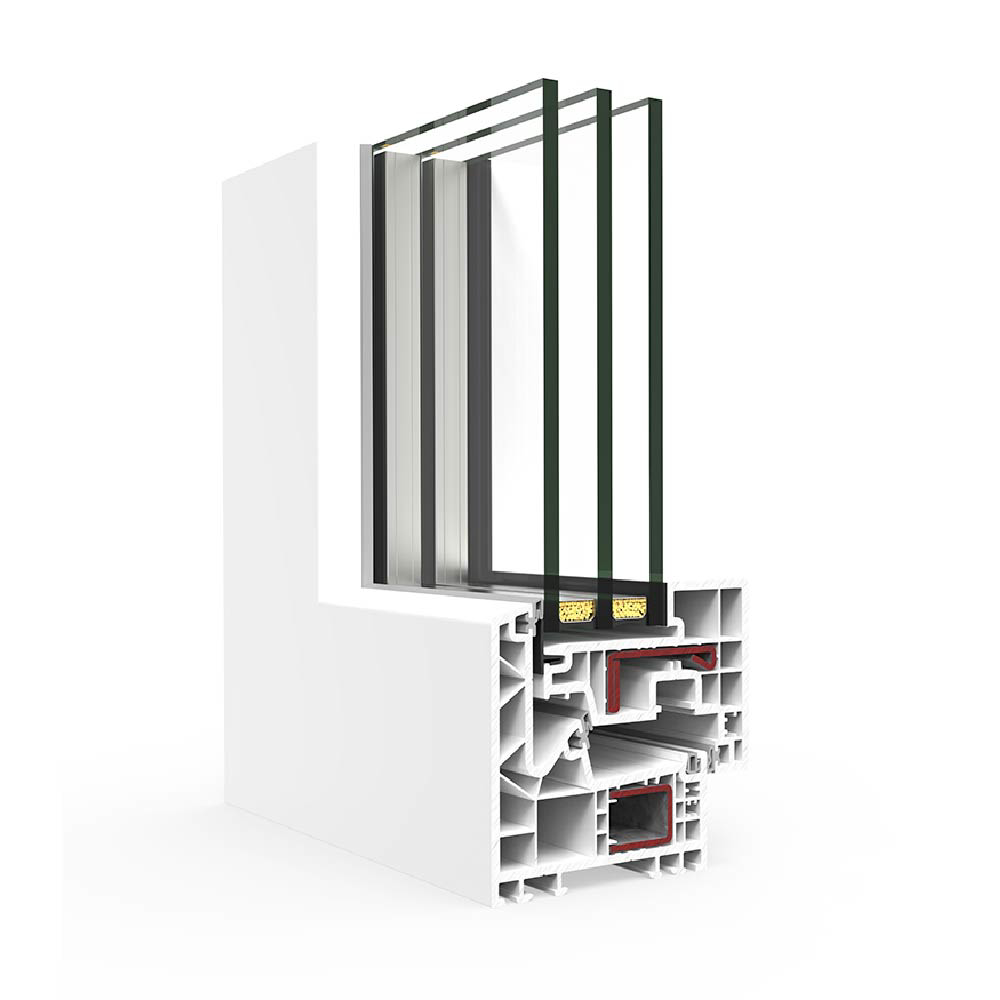

» Minimalism in PVC, sightline of 3.54". » Hinged system of 3.31" depth and profile with 6 inside chambers and insulating foams inside the frame and sash that allow to reach the best thermal performance in the market.

Shipping: Free

est. delivery:

Description
Downloads

Description

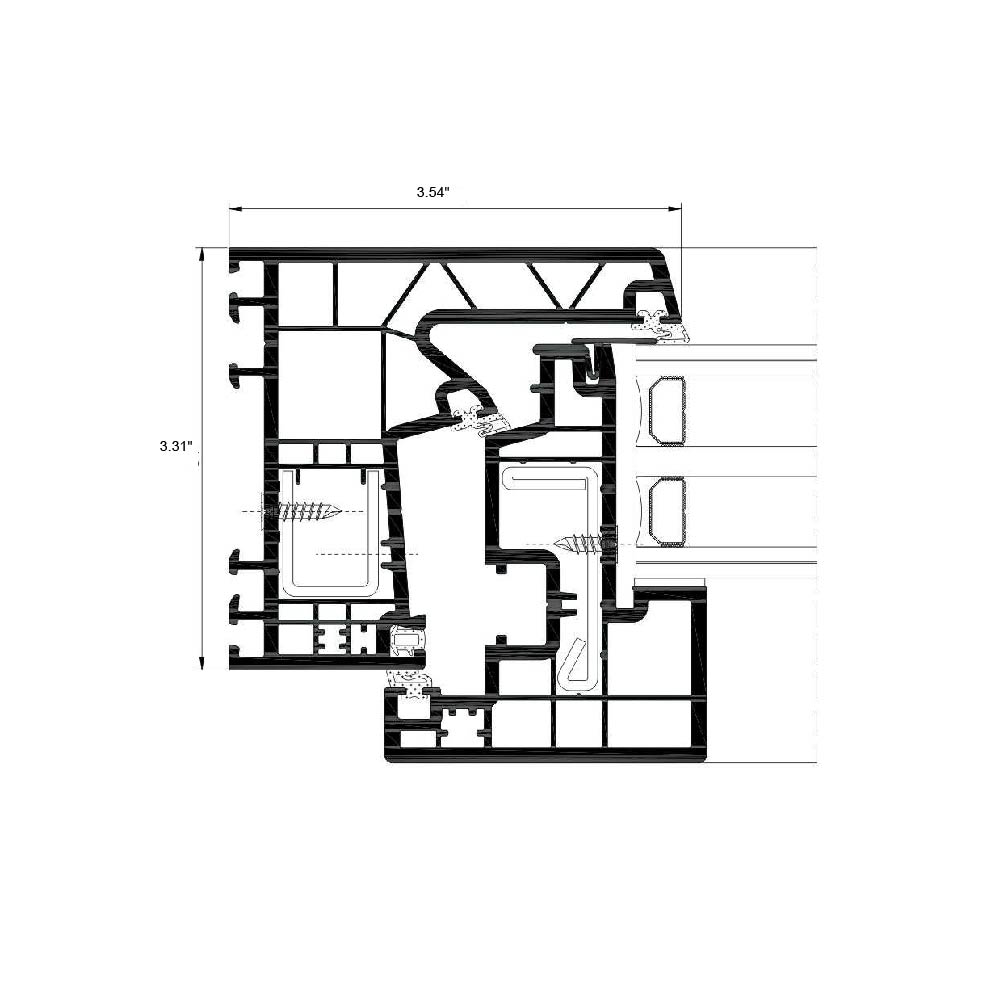

» The version A 84 Hidden sash, which Uf value starts from 1.11 W/m²K, allow a central interlock of 3.54", which is the same as the lateral sideline.

Technical Data

» Maximum glazing thickness

1.83"
» Opening possibilities

Inwards: Side hung, turn&tilt, tilt&slide and bottom hung.
» Sections

Frame – 3.31"

Sash – 3.31"

» Maximum dimensions/sash

Width (L) = 15.75"-55.12"

Height (H) = 17.72"-98.43"

» Maximum weight/sash

130 kg Window / Balcony

Please consult regarding maximum weight and dimensions according to types.
» Finishes

White color

Dual color

Wood effect

Test Center

» Transmittance

Uf ≥ 1,11 (W/m²K)
Acoustic insulation

Rw=46 dB
» Air permeability

(EN 12207) CLASS 4
» Water tightness

(EN 12208) CLASS E₂₂₅₀
» Wind resistance

(EN 12210) CLASS C5

Reference test 48.43" × 58.27" 2 Sashes.
