cortizo

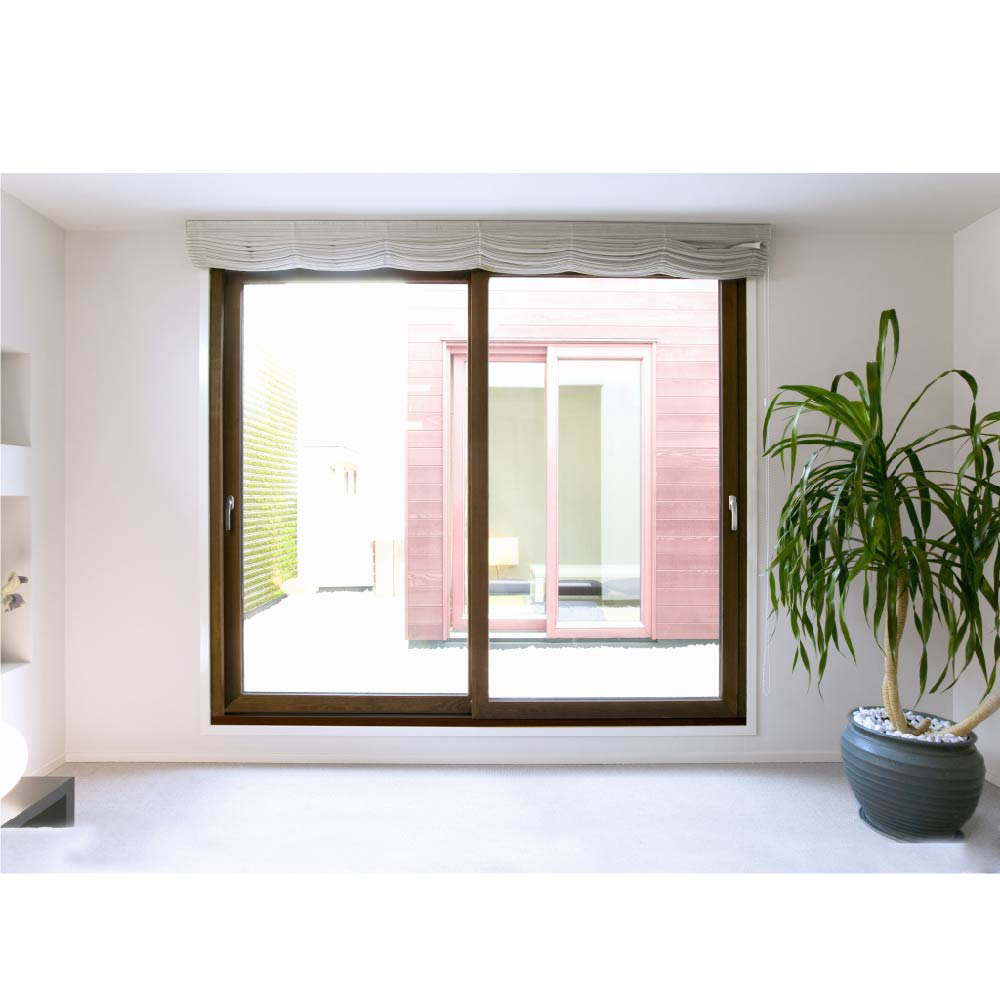

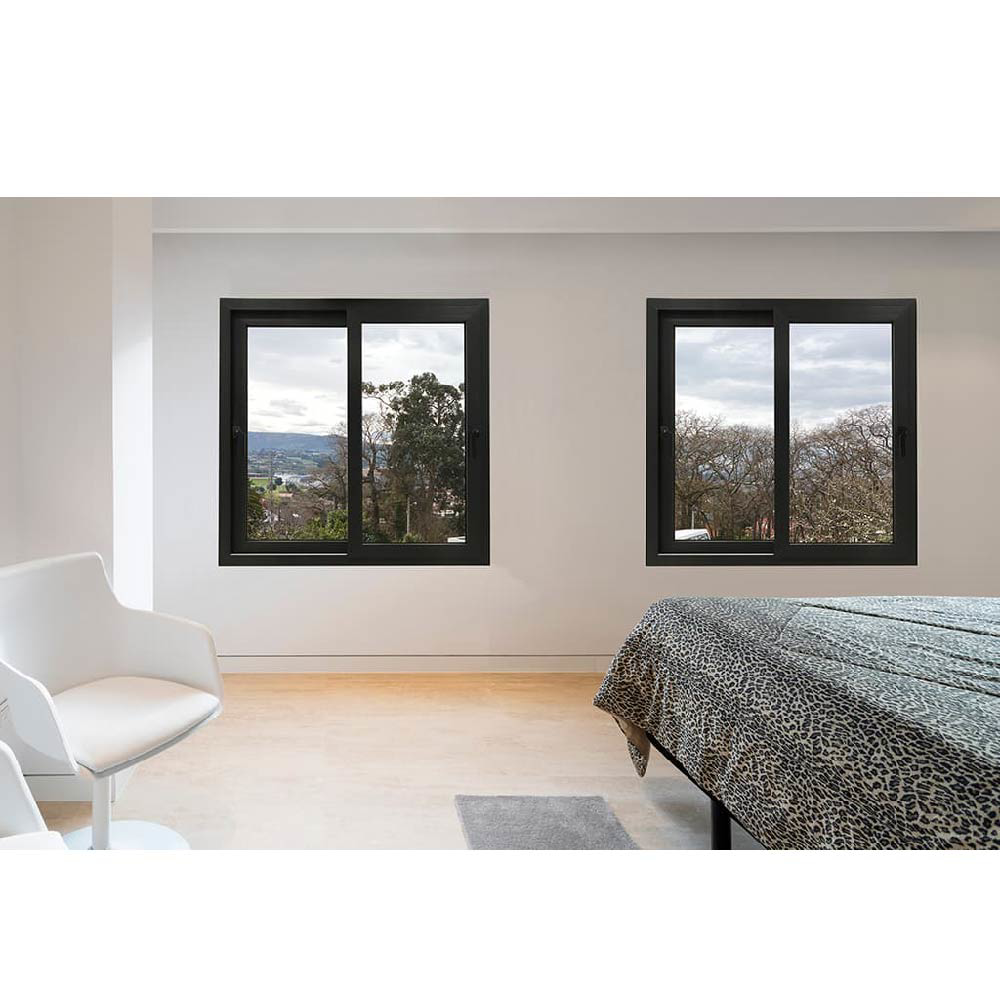

C 70 Sliding PVC

For pricing information please send a request.

» PVC sliding window system » 2.76" of frame depth » Transmittance (Uf) from 1.8 W/m²K » Possibility of 3 rail system

Shipping: Free

est. delivery:

Description

Technical Data

» Maximum glazing thickness

1.10"
» Opening possibilities

Sliding 2, 3, 4 & 6 sashes

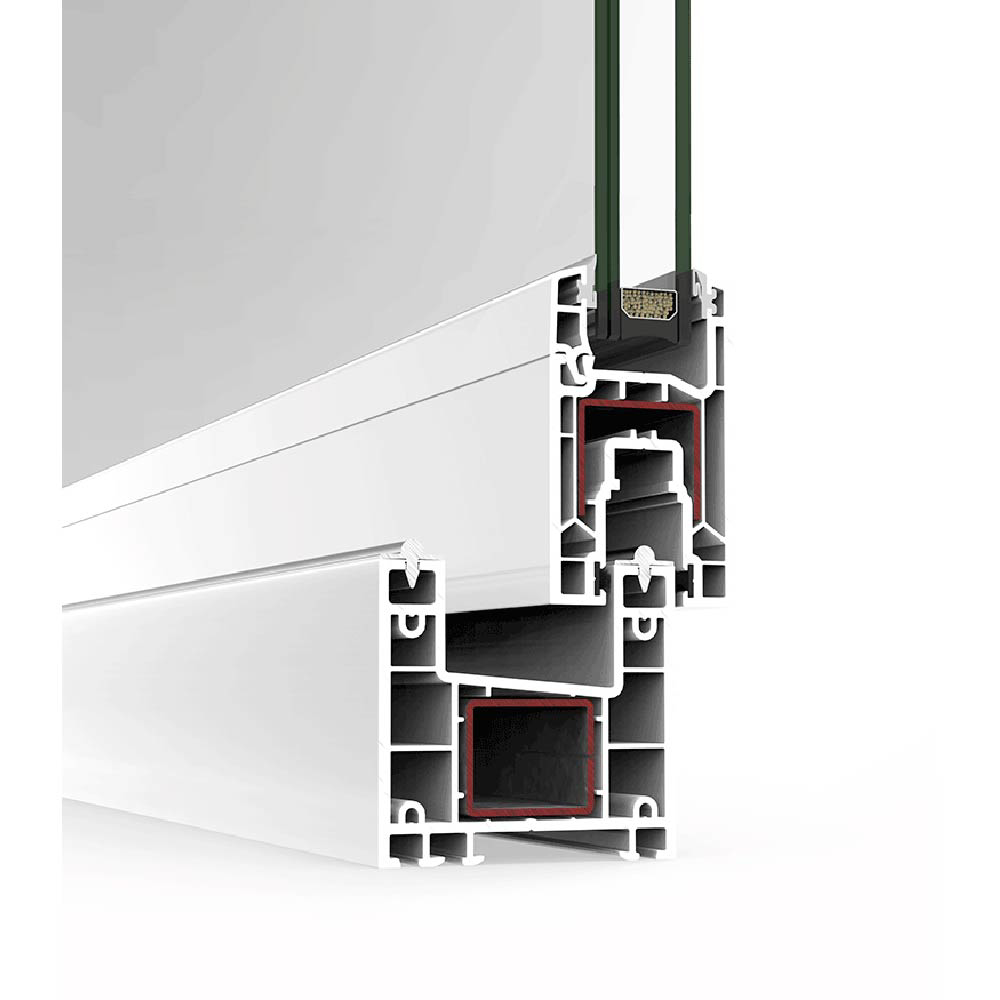

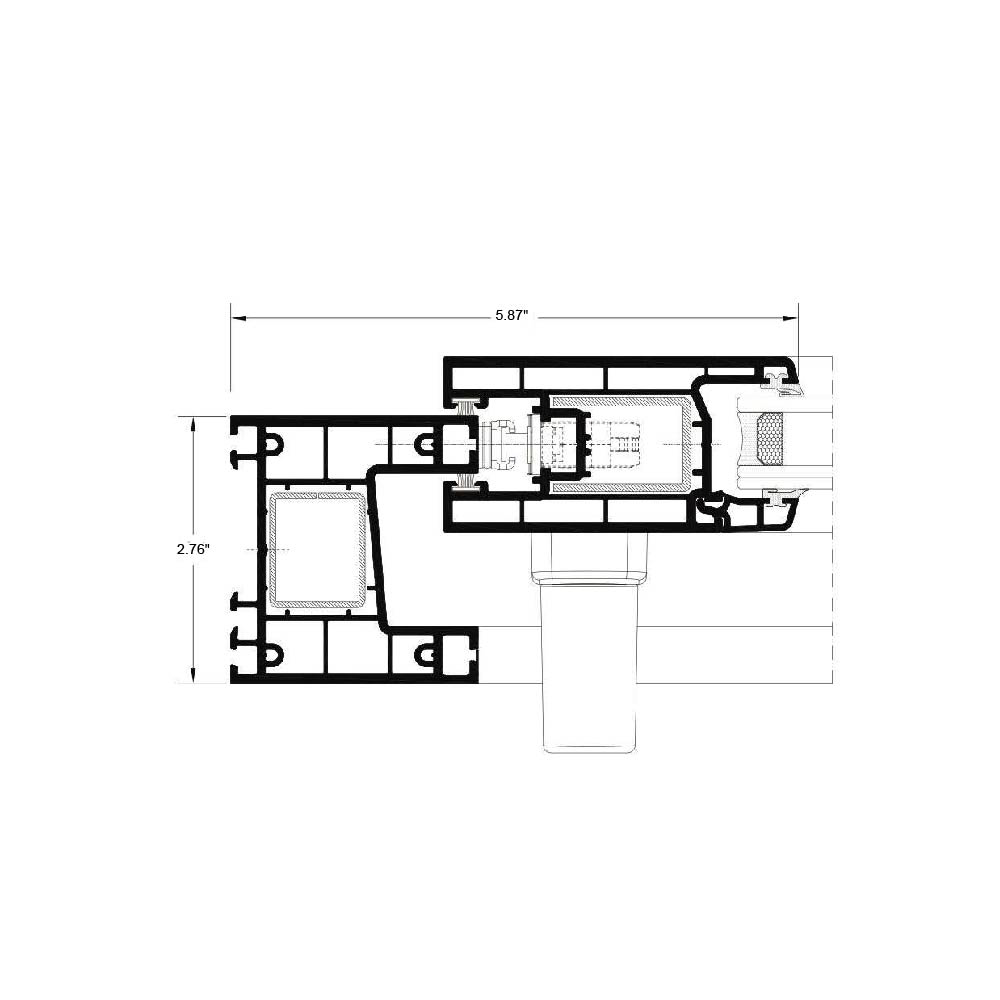

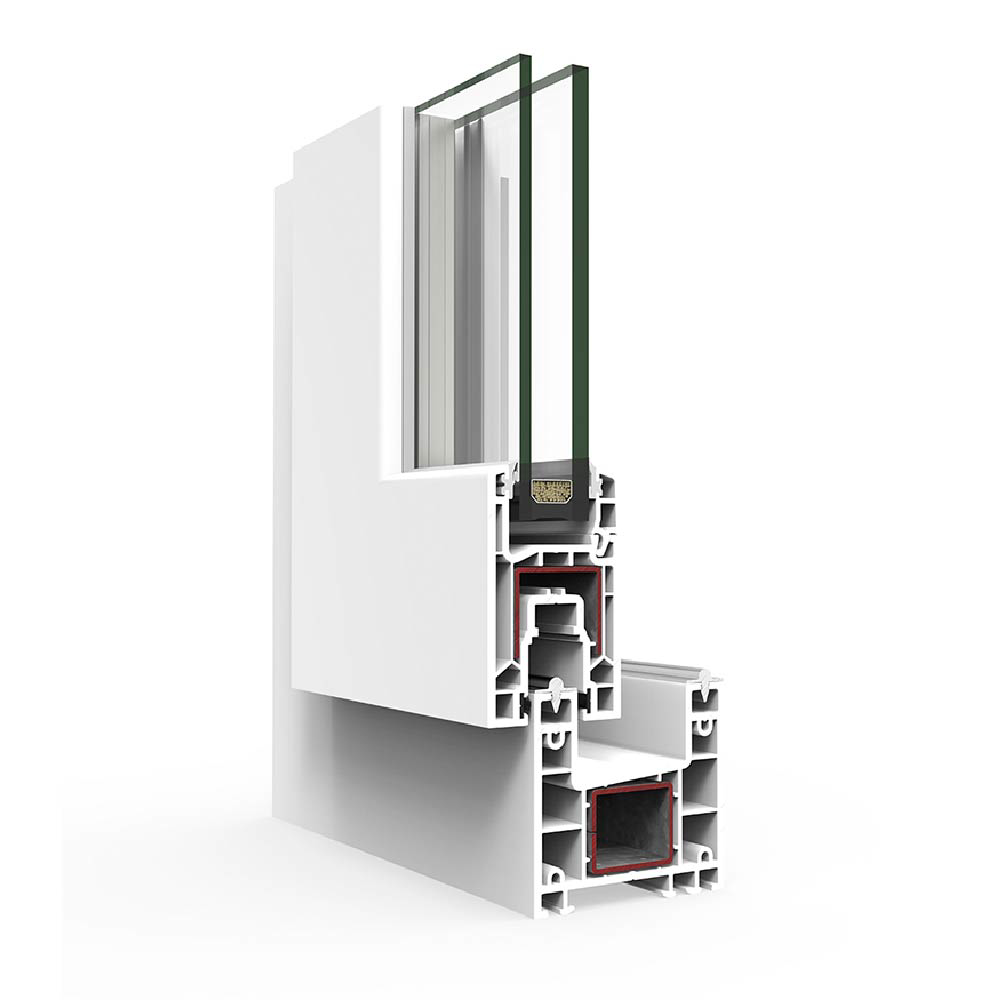

» Sections

Frame 2.76"
Sash 1.81"
» Maximum dimensions/sash

Window

Width (L) = 66.93"
Height (H) = 86.61"

Balcony

Width (L) = 70.87"
Height (H) = 102.36"

» Maximum weight/sash

140 kg

Please consult regarding maximum weight and dimensions according to types

» Finishes

Possibility of bicolor systems
White color
Wood effect

Test Center

» Transmittance

Uf ≥ 1,8 (W/m²K)
» Maximum acoustic insulation

Rw = 38 dB
» Air permeability

(EN 12207) CLASS 4
» Water tightness

(EN 12208) CLASS 7A
» Wind resistance

(EN 12210) CLASS C5

Reference test 48.43" × 58.27" 2 Sashes.

Downloads

Products attachments

Technical
