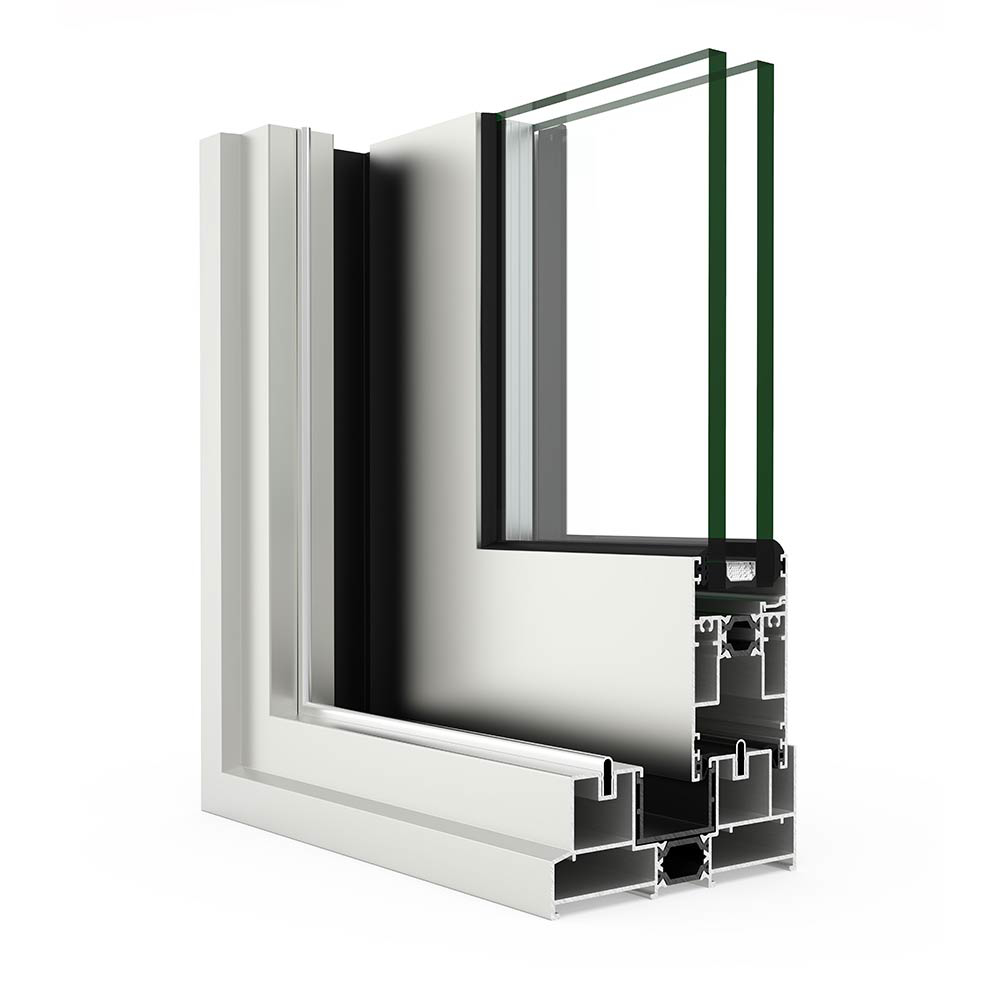

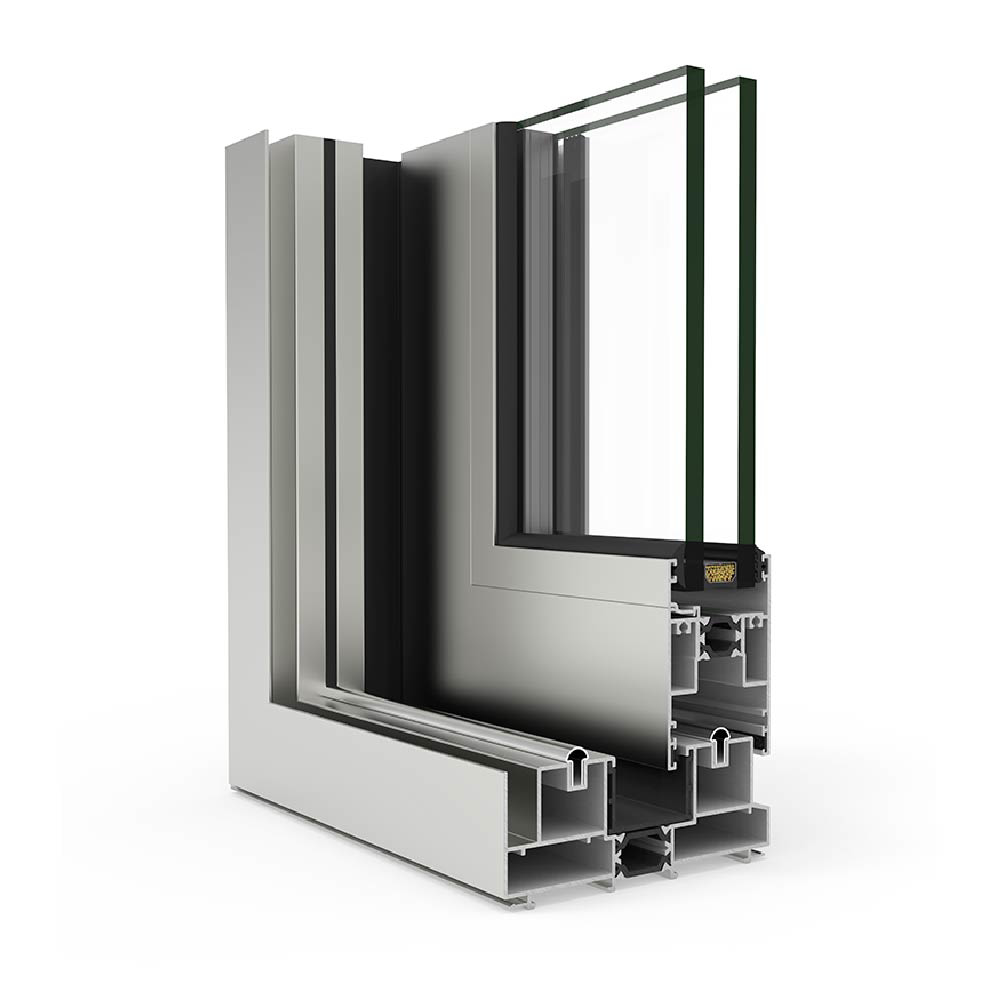

4700 Sliding Sliding Window and Door Systems

For pricing information please send a request.

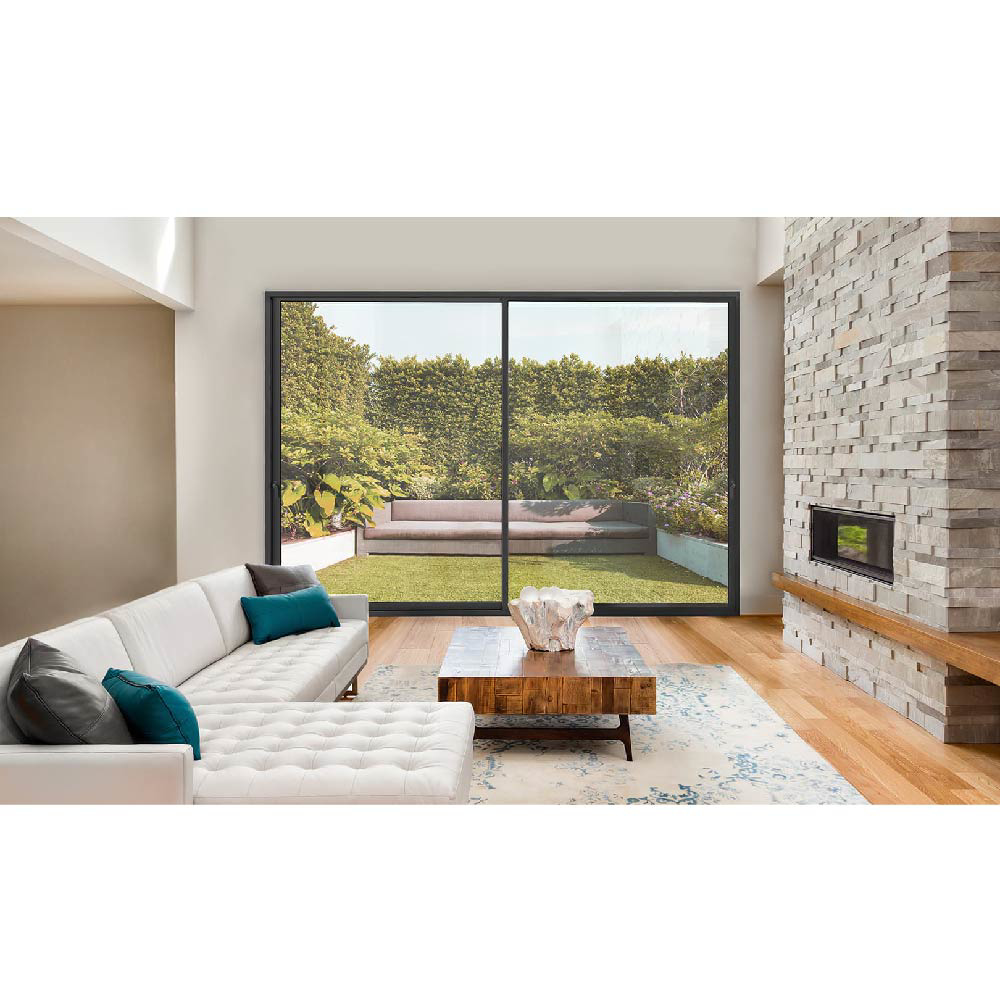

This sliding system, available both in slide and lift & slide versions, becomes an ideal solution for closing large spans. It presents modern aesthetics in straight lines, a reduced interlock section and large glazed surfaces that ensure bright and comfortable areas, due to its thermal and acoustic performance.

Shipping: Free

est. delivery:

Description
Downloads

Description

Technical Data

» Maximum glazing thickness

1.42"
» Opening possibilities

Sliding of 2, 3, 4, 6 & 8 sashes

Possibility of 1 rail (1 sash+ 1 fixed)

Possibility of 2, 3 & 4 rails

Possibility pocket solution 1, 2, 3 & 4 sashes

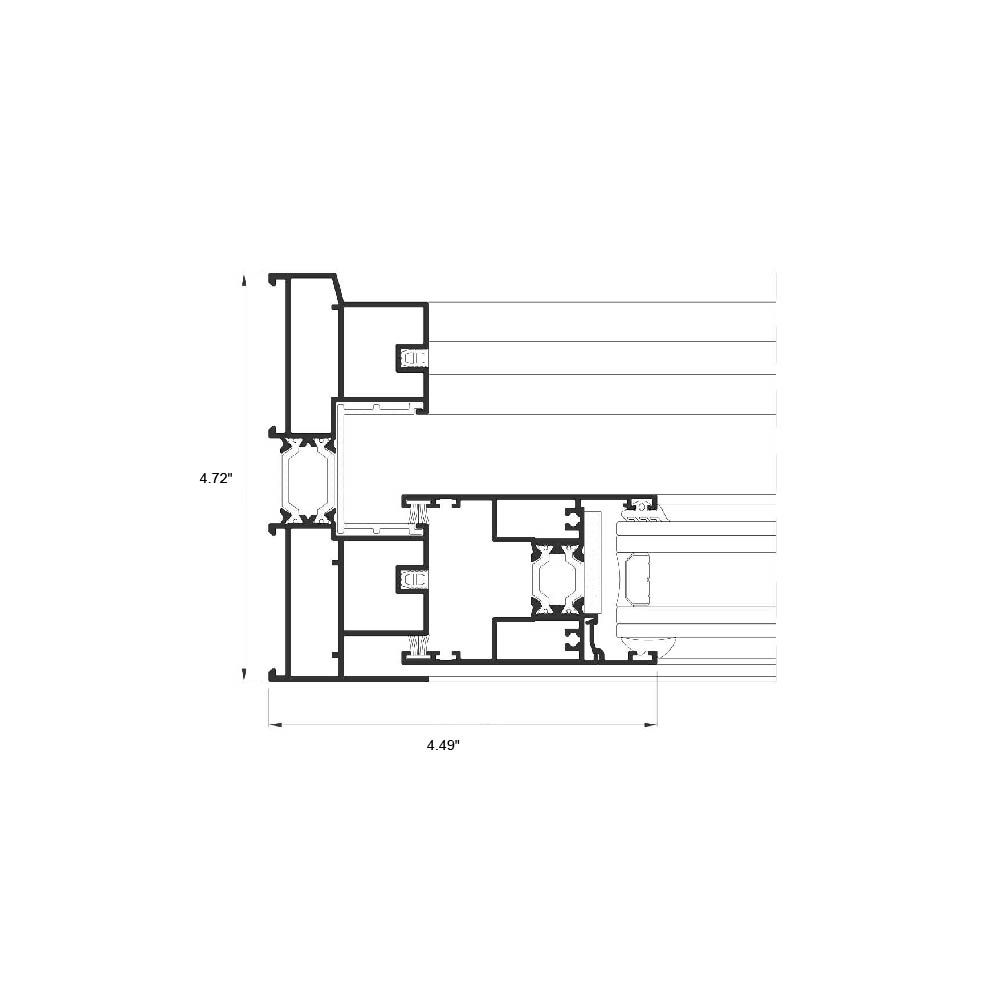

» Sections

Frame 4.72" & 4.53"

Sash 1.97"
» Profile thickness

Balcony 0.059"
» Polyamide strip length

0.78" & 0.98"
» Maximum dimensions/sash

Width (L) = 98.43"
Height (H) = 118.11"
» Maximum weight/sash

Slide: 280 Kg

Lift & Slide: 300 Kg
Please consult regarding maximum weight and dimensions for other opening types
» Finishes

Possibility of dual color systems

Color powder coating (RAL, mottled and rough)

Wood effect powder coating

Anti-bacterial powder coating

Anodized

Test Center

» Transmittance

Uw ≥ 1.00 (W/m²K)

Please consult typology, dimensions and glazing
» Maximum acoustic insulation

Rw = 40 dB
» Air permeability

(EN 12207)

Slide: Class 3

Lift & Slide: Class 4
» Water tightness

(EN 12208): Class 7A
» Wind resistance

(EN 12210):

Slide: Class C5

Lift & slide: Class C2

Reference test:
Slide: 70.87" × 86.61" / 2 sashes
Lift & slide: 157.48" × 98.43" / sashes

Security test PAS24:
Apt
