» Available in two versions, both certified by prestigious German Passivhaus Institut:

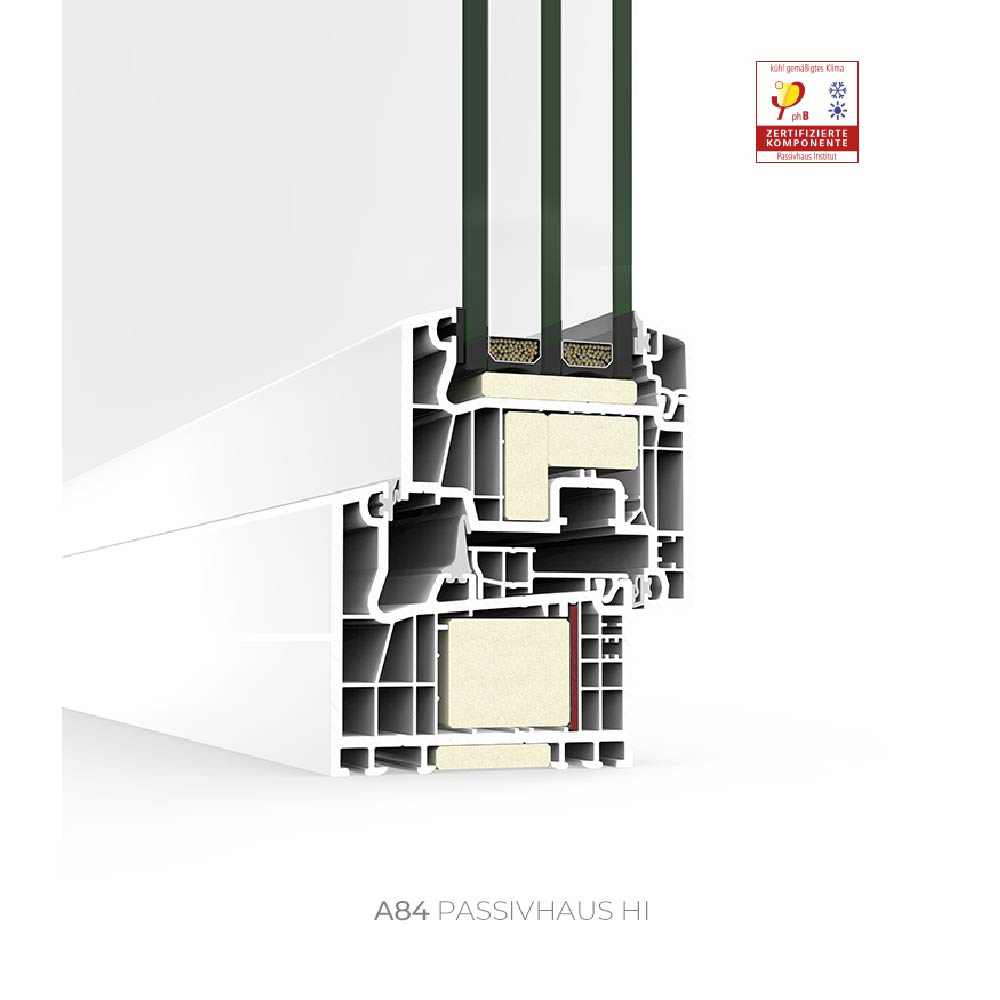

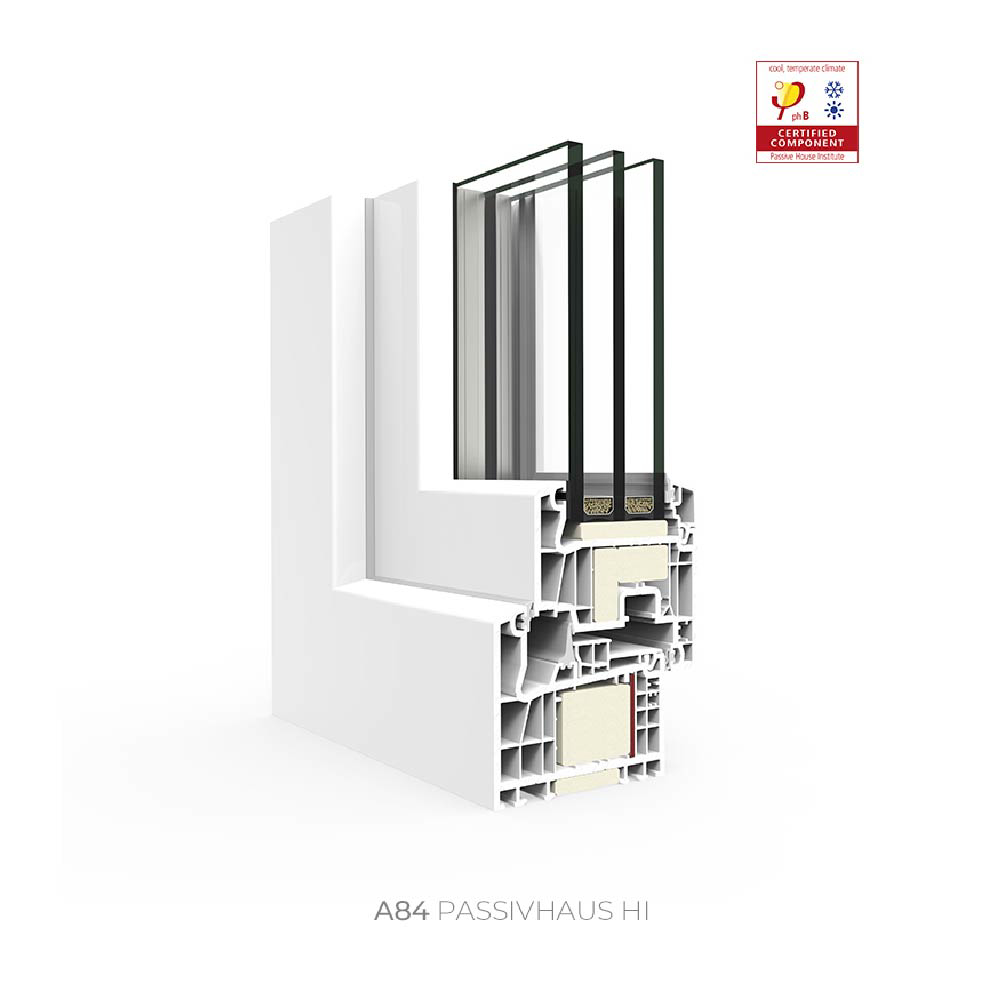

A 84 Passivhaus HI version, with Uf transmittance value of only 0.76 W / m²K, has been developed for cool-temperate category (temperate and cold weather), becoming an ideal solution for buildings with low energy consumption in the vast majority of European territory. The glass itself acts as a structural element of the window, fixed to the profile by a special adhesive tape. In this way, it is possible to improve the transmittance while maintaining the rigidity of the assembly intact.
On the other hand, version A 84 Passivhaus 1.0, with transmittance value Uf from 1.01 W/m²K, meets the specifications of the warm-temperate category, indicated in the Spanish geography.
Technical Data
» Maximum glazing thickness
A84 Passivhaus HI - 2.20"
A84 Passivhaus 1.0 - 2.13"
» Opening possibilities
A84 Passivhaus HI
Inwards: side hung, turn & tilt, bottom hung.
A84 Passivhaus 1.0
Inwards: side hung, turn & tilt, tilt & parallel, bottom hung.

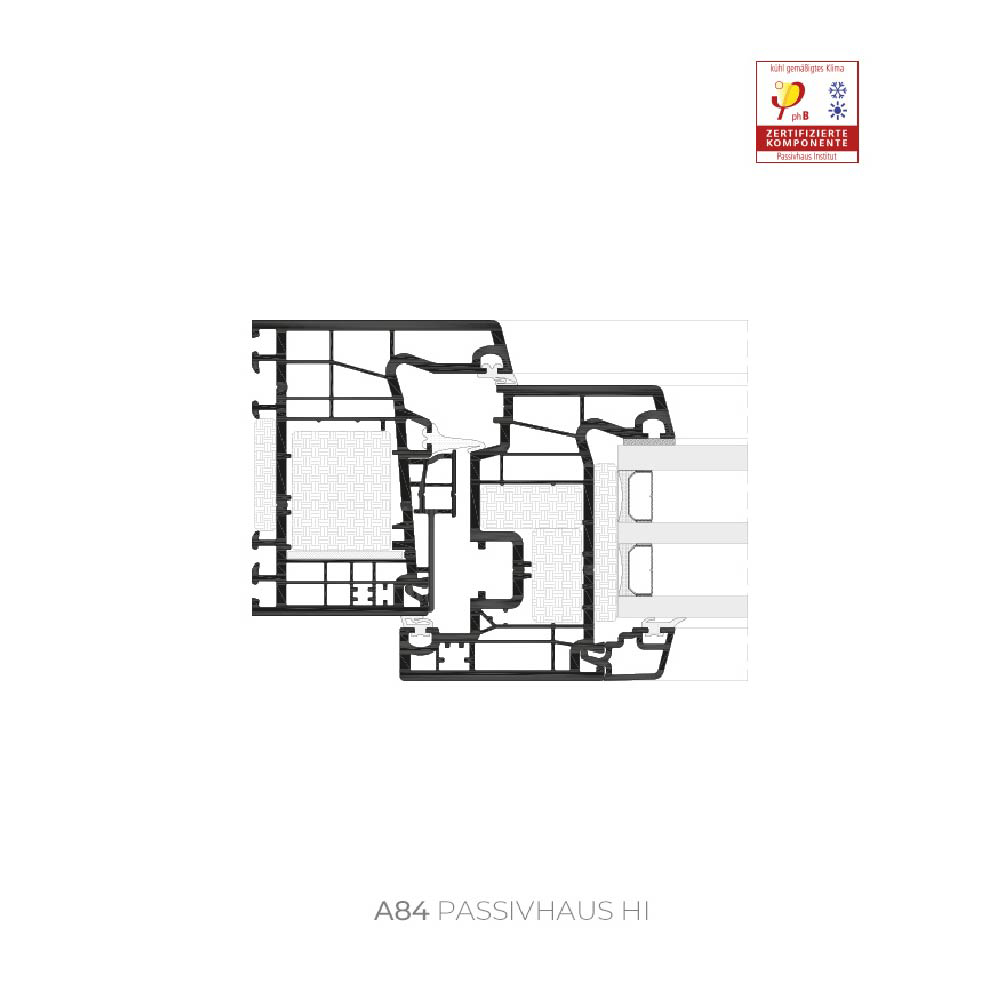

» Sections
Frame – 3.31"
Sash – 3.31"
» Maximum dimensions/sash
A84 Passivhaus HI
Window
Width (L) = 17.72"-51.18"
Height (H) = 17.72"-86.61"
Balcony
Width (L) = 17.72"-51.18"
Height (H) = 23.62"-86.61"
A84 Passivhaus 1.0
Window
Width (L) = 17.72"-55.12"
Height (H) = 17.72"-86.61"
Balcony
Width (L) = 25.59"-55.12"
Height (H) = 23.62"-94.49"
» Maximum weight/sash
A84 Passivhaus HI
100 kg Window
100 kg Balcony
A84 Passivhaus 1.0
130 kg Window
130 kg Balcony
Please consult regarding maximum
weight and dimensions according to types.
» Finishes
White color
Dual color
Wood effect
Metallic
Test Center
» Transmittance
A84 Passivhaus HI
Uf ≥ 0,76 (W/m²K)
A84 Passivhaus 1.0
Uf ≥ 1,0 (W/m²K)
» Maximum acoustic insulation
Rw = 46 dB
» Air permeability
(EN 12207) CLASS 4
» Water tightness
(EN 12208) CLASS E1500
» Wind resistance
(EN 12210) CLASS C5
Reference test 48.43" × 58.27", 2 Sashes.
