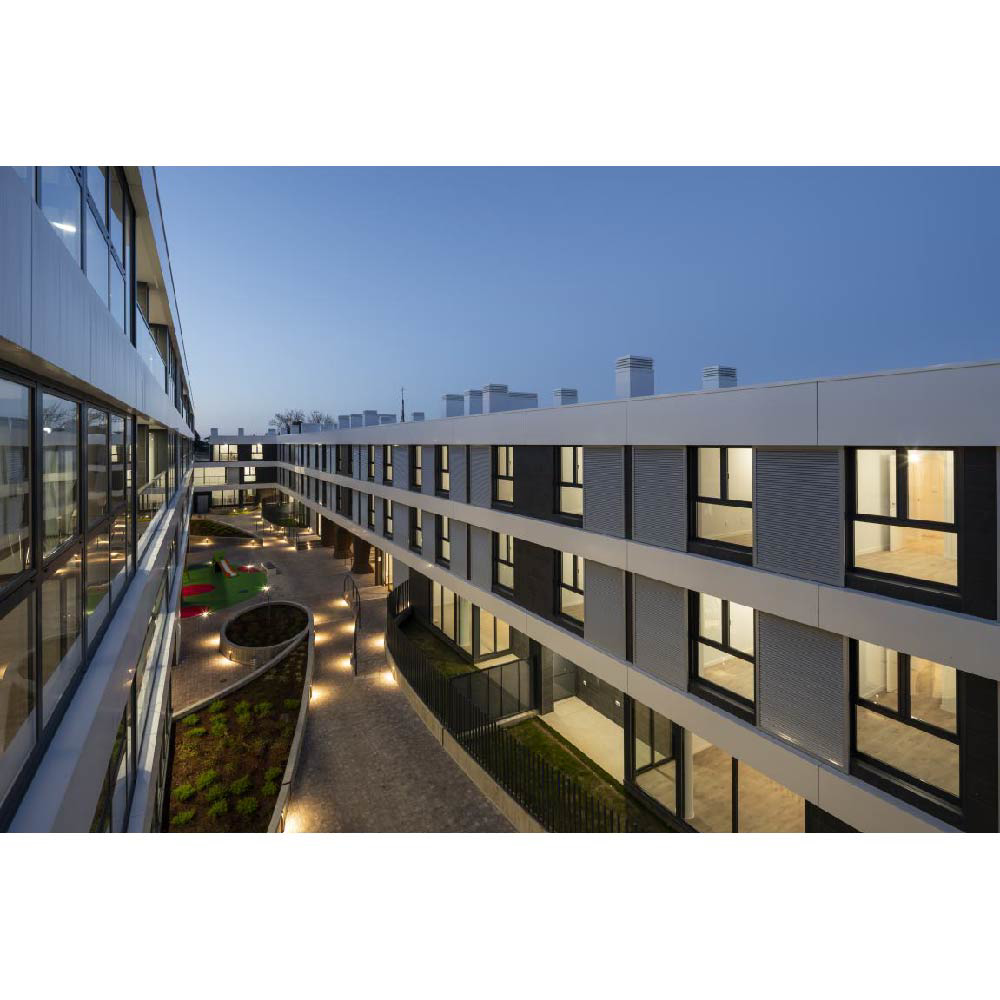

COR 60 Hinged Window and Door Systems

For pricing information please send a request.

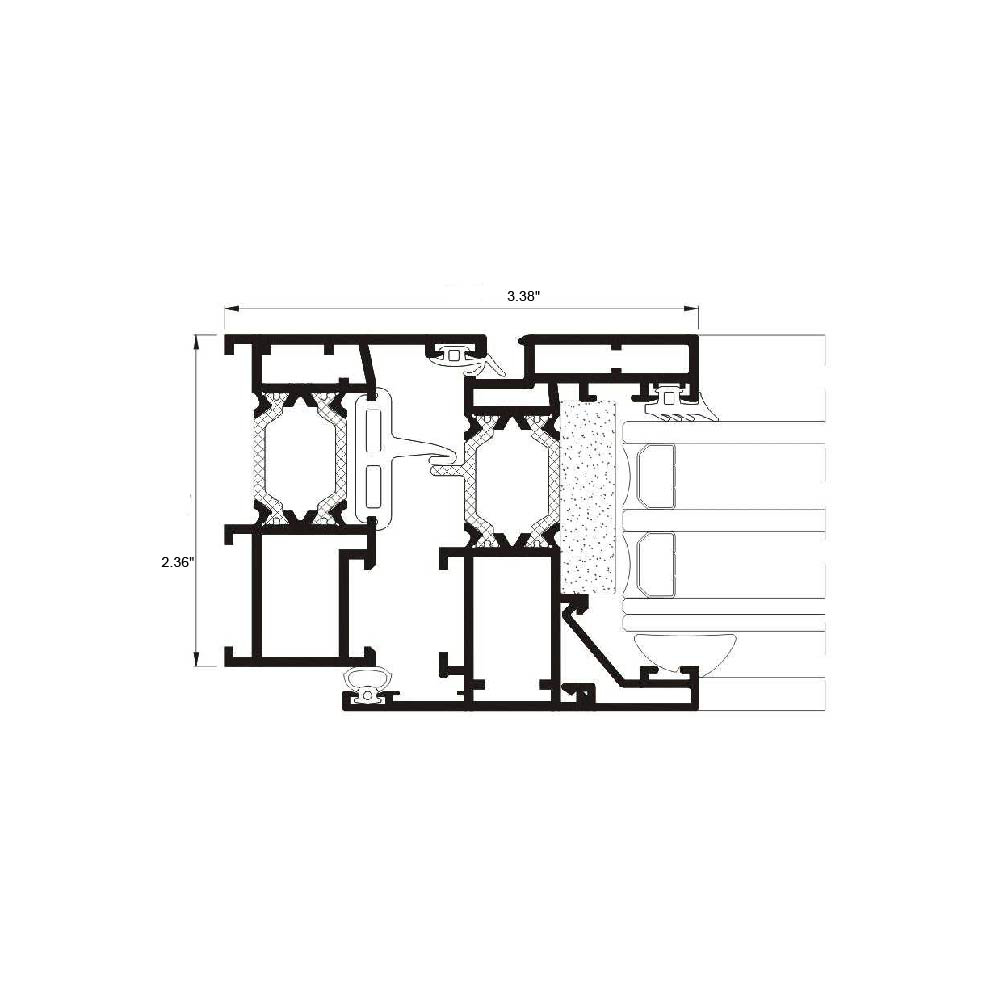

Hinged system with 2.36" of frame depth, featuring 0.94" polyamide strips, which provides a notable thermal and acoustic comfort, achieving a noise reduction of up to 48 dB.

Shipping: Free

est. delivery:

Description
Downloads

Description

Possibilities
» Security hardware
» Concealed hinges
» Accessibility

Technical Data

» Glazing
Max. 1.81"
Min. 0.20"

» Opening possibilities
Inward opening

Side hung

Tilt & turn

Parallel Sliding

Bottom hung
Outward opening
Side hung
Top hung
Pivoting on horizontal or vertical axis

» Sightlines
Frame 2.36"
Sash 2.68"

» Profile thickness
Window 0.063"
Door 0.063"

» Polyamide strip length
0.94"

» Maximum sash dimensions
Width (L) 59.06"
Height (H) 102.36"

» Maximum sash weight
160 kg

» Aesthetic possibilities
Sash: Straight or curved / Bead: Straight or curve

Consult maximum weight and dimensions according to typologies.

» Finishes
Possibility of dual color systems
Color powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized

Test Center

» Transmittance
Uw ≥ 1.0 (W/m^²K)
Consult maximum weight and dimensions according to typologies

» Acoustic insulation
Rw up to 48 dB

» Air permeability
(EN 12207) Class 4

» Water tightness
(EN 12208) Class E1350

» Wind resistance
(EN 12210) Class C5

Reference test 47.24" × 45.67" / 2 sashes
